Vaddio OneLINK System for Sony & Panasonic HDMI Cameras — 999-9530-000
Regular price
$2,322.00 USD
Unit price
Shipping calculated at checkout.
Vaddio OneLINK System for Sony & Panasonic HDMI Cameras — 999-9530-000 is backordered and will ship as soon as it is back in stock.
Out of stock — request a quote & lead time
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Description
Description
OneLINK™ Digital Camera Interface | Vaddio™ OneLINK System for Sony® and Panasonic® HDMI Cameras | HDBaseT™ Video, Power and Control Extension over a Single Cat-5e or Better Cable
Part Numbers: 999-9530-000 North America, 999-9530-001 International
Vaddio's OneLINK System for Sony and Panasonic HDMI Cameras is a digital camera extension system that extends HDMI video, power, network and RS232 control on a single Cat-5e/6 cable at distances of up to 328' (100m). Without any doubt, this new OneLINK system allows for easier, simpler and faster installations. The OneLINK system sends and regulates power to the camera, provides a bidirectional control channel for Ethernet and RS-232 and transmits/receives uncompressed HDMI video up to 1080p/60 and up to 2160p/30 for the future.

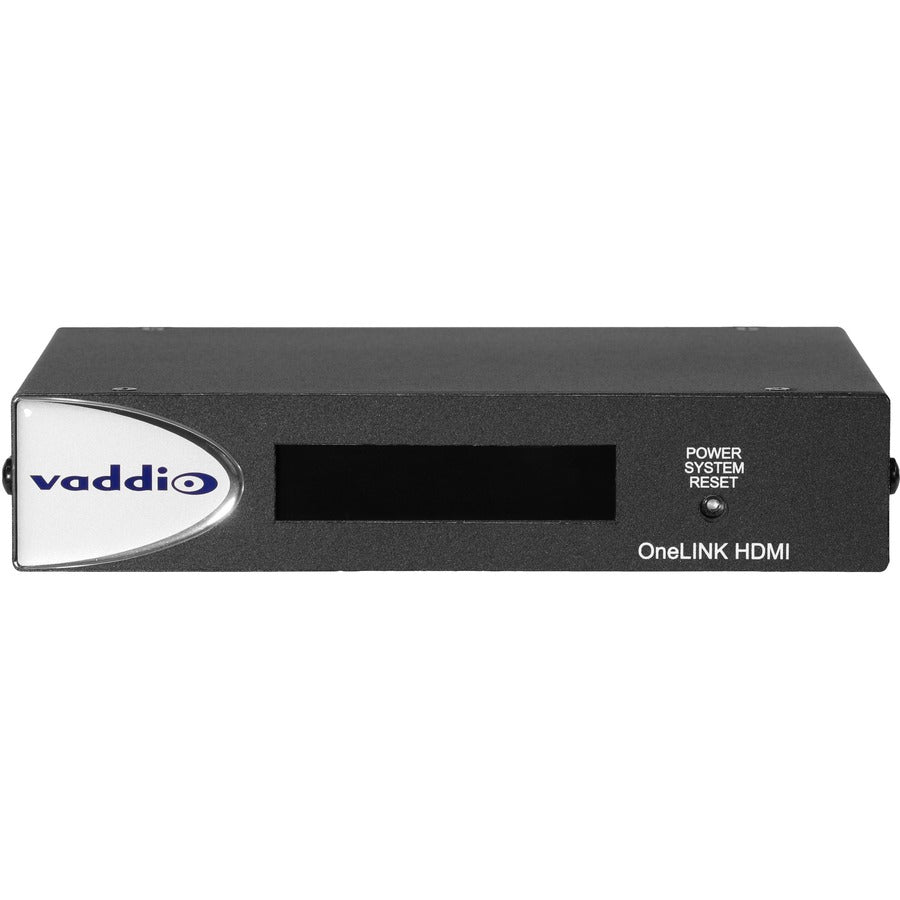

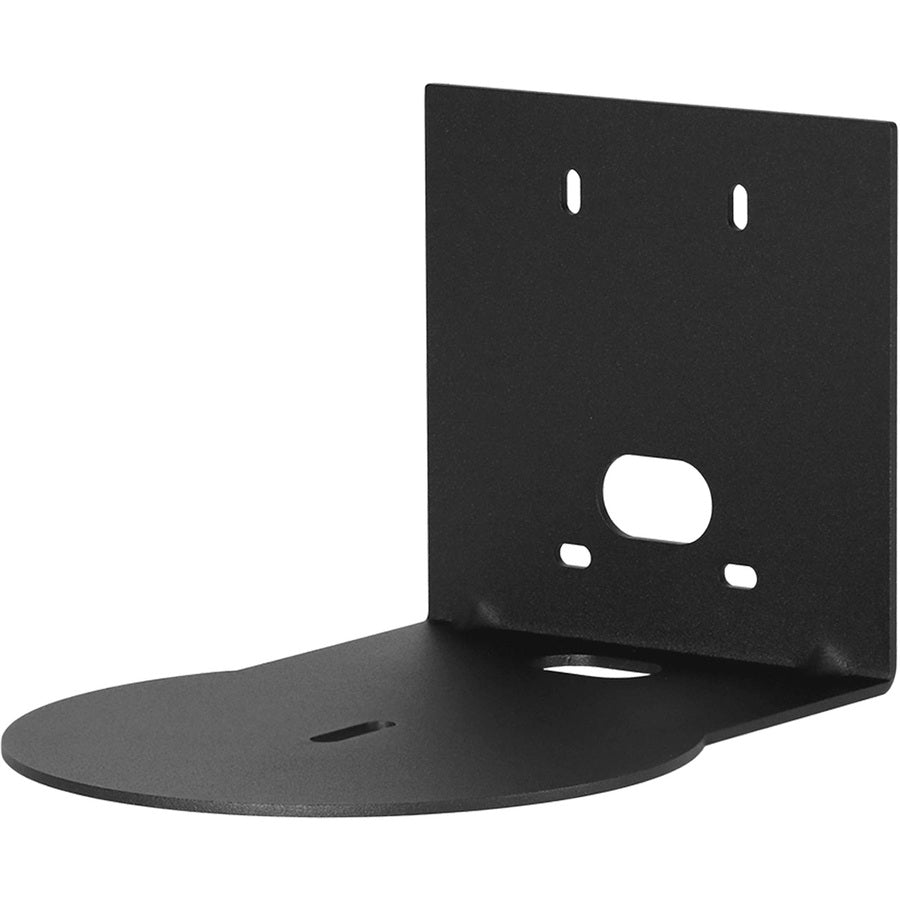

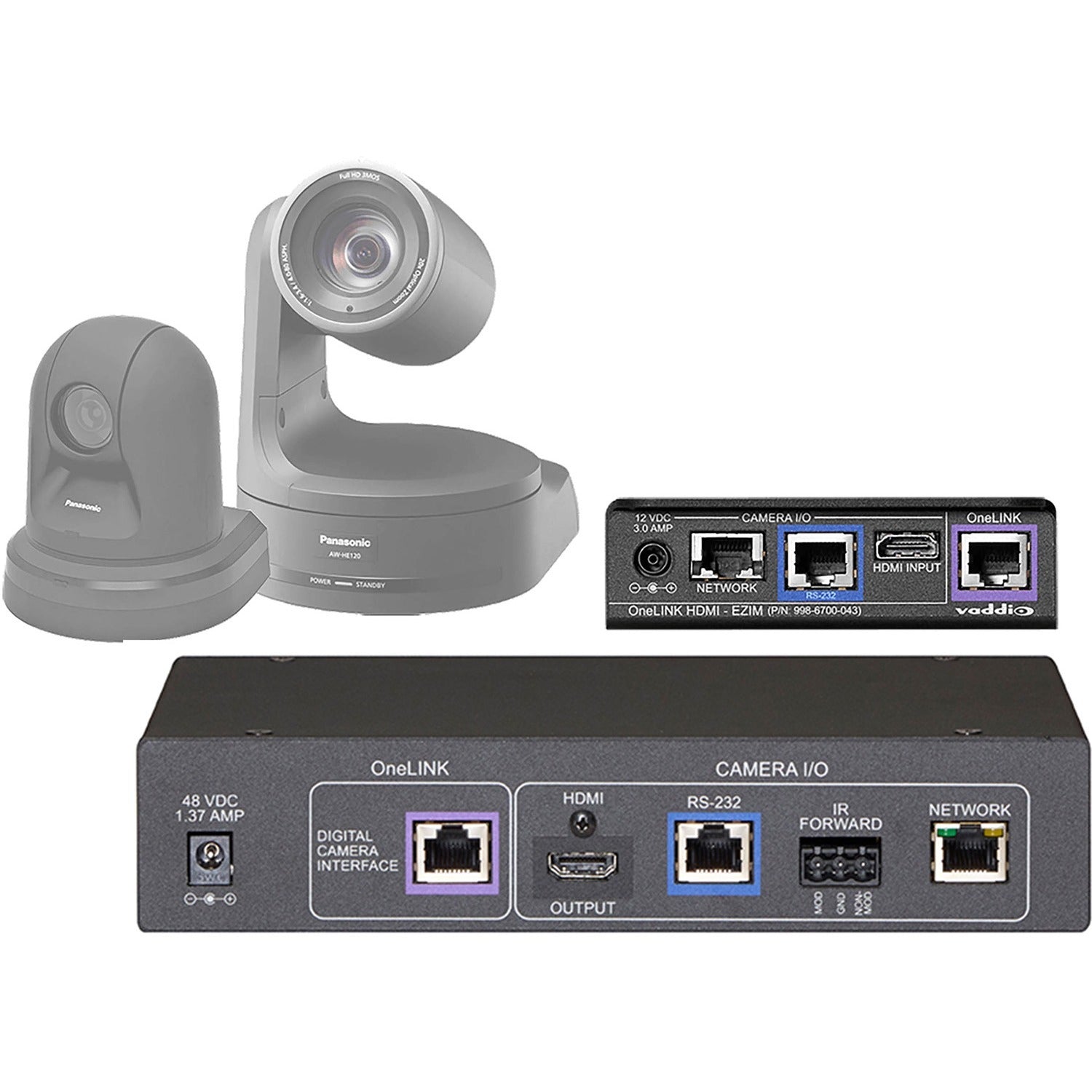

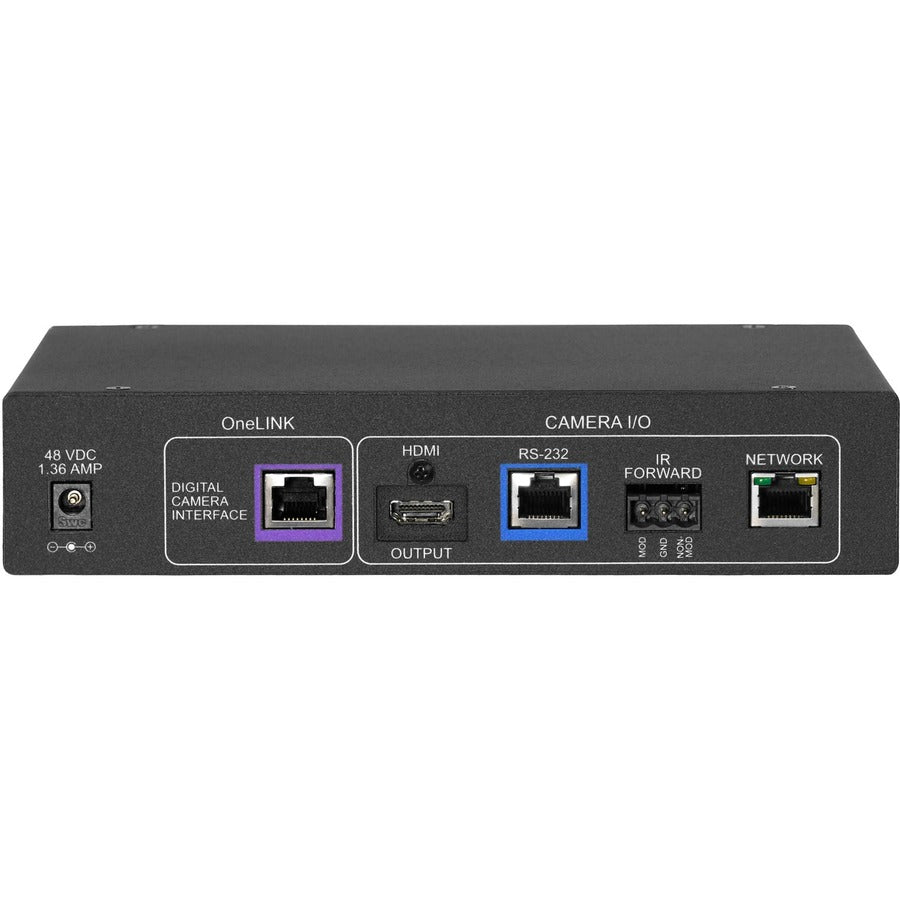

The system consists of the small OneLINK EZIM (EZCamera™ Interface Module) camera interface at the camera location and the OneLINK HDMI Interface. The EZIM provides the required camera connectivity and is mounted to the underside of the included Thin Profile Wall Mount with two 6-32 x .188" black mounting screws. All the 12" (305mm) patch cables on the camera end are provided with the OneLINK system including an HDMI cable, a power cable and two Cat-5e cables for network and RS-232. The Thin Profile Wall Mount can be mounted directly to a 2- gang sized electrical box for conduit installations or directly to the dry wall with wall anchors.
From one end to the other, the OneLINK system provides system integrators with an easy to install, simple and elegant, single cable camera extension solution, which exemplifies Vaddio's main tenet; The Art of Easy.
Part Numbers: 999-9530-000 North America, 999-9530-001 International
Vaddio's OneLINK System for Sony and Panasonic HDMI Cameras is a digital camera extension system that extends HDMI video, power, network and RS232 control on a single Cat-5e/6 cable at distances of up to 328' (100m). Without any doubt, this new OneLINK system allows for easier, simpler and faster installations. The OneLINK system sends and regulates power to the camera, provides a bidirectional control channel for Ethernet and RS-232 and transmits/receives uncompressed HDMI video up to 1080p/60 and up to 2160p/30 for the future.
The system consists of the small OneLINK EZIM (EZCamera™ Interface Module) camera interface at the camera location and the OneLINK HDMI Interface. The EZIM provides the required camera connectivity and is mounted to the underside of the included Thin Profile Wall Mount with two 6-32 x .188" black mounting screws. All the 12" (305mm) patch cables on the camera end are provided with the OneLINK system including an HDMI cable, a power cable and two Cat-5e cables for network and RS-232. The Thin Profile Wall Mount can be mounted directly to a 2- gang sized electrical box for conduit installations or directly to the dry wall with wall anchors.
From one end to the other, the OneLINK system provides system integrators with an easy to install, simple and elegant, single cable camera extension solution, which exemplifies Vaddio's main tenet; The Art of Easy.
- Quick, clutter-free camera installation - power, control, video, and network connectivity over single cable
- Extends camera installation distance up to 328 ft. (100 m) using Cat-6 cable; 230 ft (70 m) using Cat-5e
- Passes uncompressed HDMI® video up to 2160p/29.97
- Administrative control via web interface; passes web, Telnet, and RS-232 serial control to connected devices
- Compatible with legacy RoboSHOT HDMI and other HDMI cameras
- Available in system configurations with Vaddio cameras; kits available for use with Polycom and Cisco codecs and HDMI cameras
Specifications
Specifications
-
Product TypeVideo Extender Transmitter/Receiver
-
Form FactorWall Mountable
-
Country of OriginUnited States
-
ManufacturerLegrand Group
-
Receiver Depth6"
-
Number of Output Devices Supported1
-
Media Type SupportedTwisted Pair
-
Connectivity TechnologyWired
-
Number of Input Devices Supported1
-
Number of HDMI Inputs1
-
Manufacturer Website Addresshttp://www.legrand.us
-
Network (RJ-45)Yes
-
Number of Network (RJ-45) Ports2
-
HDMI InYes
-
HDMI OutYes
-
Twisted Pair Cable StandardCategory 6
-
Number of HDMI Outputs1
-
Maximum Video Resolution3840 x 2160
-
Maximum Operating Distance328.08 ft
-
Graphics Modes4K
-
Supported Video Modes2160p
-
Receiver Width8.38"
-
Receiver Height1.72"
-
Product LineOneLINK
-
Transmitter Depth1.24"
-
Transmitter Weight (Approximate)8.85 oz
-
Package Contents1 x OneLINK HDMI Interface 1 x OneLINK EZIM for the Camera Side 1 x 48 VDC, 1.36 Amp Switching Power Supply 1 x AC Cord Set 1 x 12" (305mm) HDMI Cable 1 x 12" (305mm) Sony 12 VDC Power Cable 1 x 12" (305mm) Panasonic 12 VDC Power Cable 1 x 12" (305mm) Cat-5e Patch Cable for Network 1 x 12" (305mm) RJ-45 to 8-Pin Mini Din for RS-232 1 x Thin Profile Wall Mount (black) that fits Sony SRG120DH, SRG-300H and Panasonic AW-HE40H 2 x 6-32 x .188" Black Phillips Flat Head Screws
-
Receiver Weight (Approximate)1.55 lb
-
Transmitter Height3.86"
-
Transmitter Width4.31"
