Eaton  |  SKU: SM2200RMDVTAA  |  UPC: 037332156310
New arrival

Tripp Lite by Eaton TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9 Battery Backup — SM2200RMDVTAA

Regular price $3,431.22 USD
Shipping calculated at checkout.


Request a quote for this item

Volume or contract pricing? Get a written quote with confirmed lead time.

Description

Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.

More from the Manufacturer

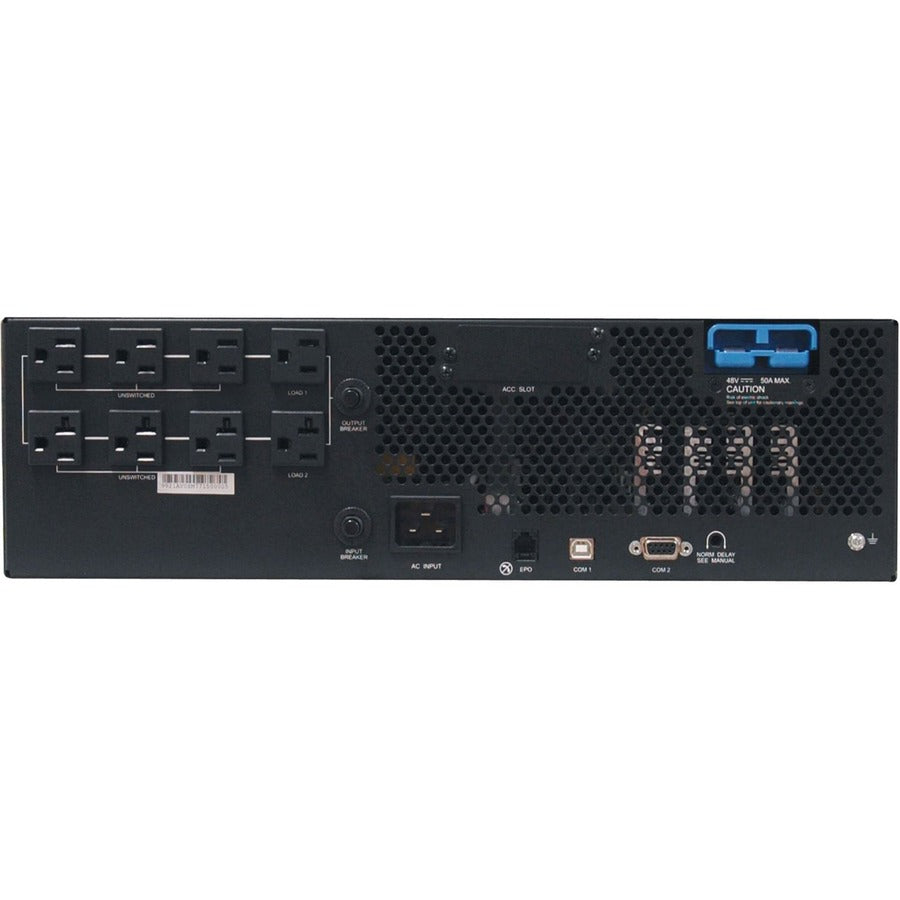

  • C20 inlet & 4 international input line cords, 4 5-15R & 4 5-15/20R outlets
  • 95% line-mode efficiency, 2 switched load banks
  • USB port, RS232, EPO and optional SNMP/WEB card slot; Detailed status LEDs
  • Maintains 120V output with 120V or 230V input, Sine wave output
  • 2200VA / 2.2kVA / 1920W line interactive 3U rack/tower UPS; 0.9 power factor
  • Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Specifications

  • Environmentally Friendly
    Yes
  • Product Type
    Line-interactive UPS
  • Product Line
    SmartPro
  • Limited Warranty
    2 Year
  • Country of Origin
    Taiwan
  • TAA Compliant
    Yes
  • Form Factor
    Rack/Tower
  • Hot Swappable
    Yes
  • Rack Height
    3U
  • Product Model
    SM2200RMDVTAA
  • Output Voltage
    120 V AC
  • Network Management
    SNMP Manageable
  • Transfer Time
    4 ms
  • USB
    Yes
  • Serial Port
    Yes
  • Typical Battery Recharge Time
    4.50 Hour
  • Backup/Run Time (Full Load)
    12 Minute

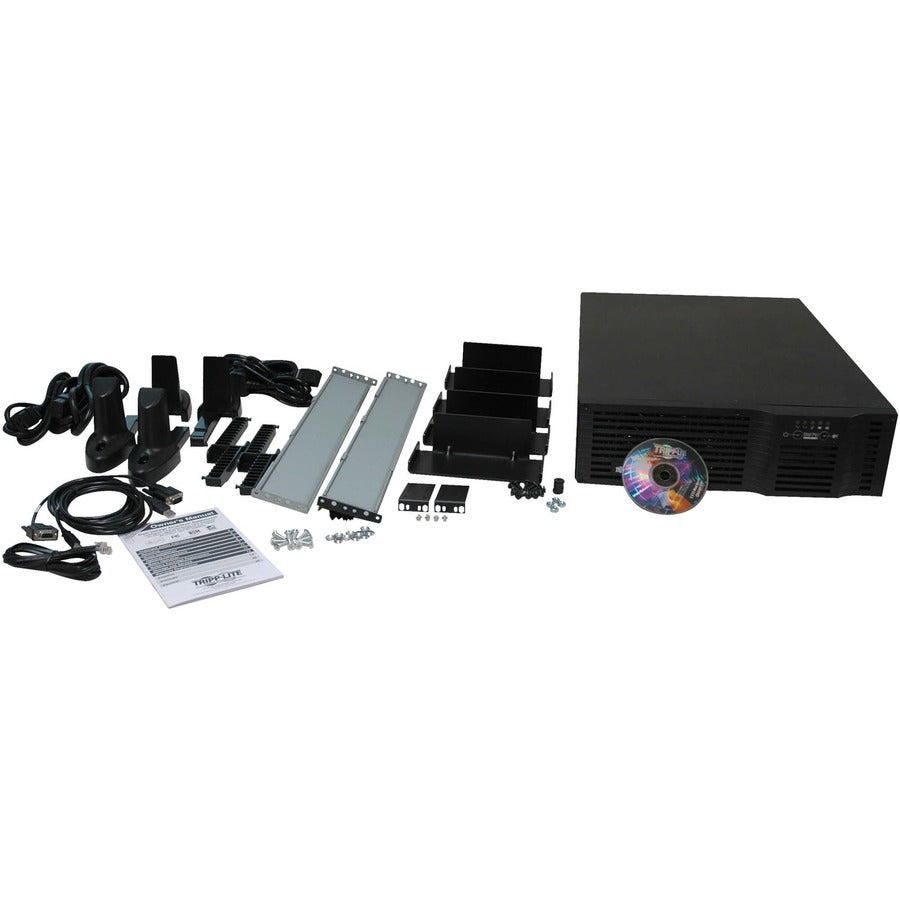

  • Package Contents
    SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS 5 x International Input Power Cables USB Cable Serial Cable EPO Cable PowerAlert Software CD Tower Stand Kit 4 Post 19 inch Rackmount Mounting Kit 2 Post 19 inch Rackmount Mounting Kit User Manual
  • Input Current
    16 A
  • Backup/Run Time (Half Load)
    30 Minute
  • Input Voltage
    110 V AC,220 V AC
  • Receptacle Type
    NEMA 5-15/20R,NEMA 5-15R
  • Receptacle Detail
    4 x NEMA 5-15/20R,4 x NEMA 5-15R
  • Manufacturer
    Tripp Lite by Eaton
  • Software Included
    PowerAlert Software
  • Load Capacity (Watt)
    1920 W
  • Manufacturer Website Address
    https://tripplite.eaton.com/
  • Load Capacity (VA)
    2200 VA
