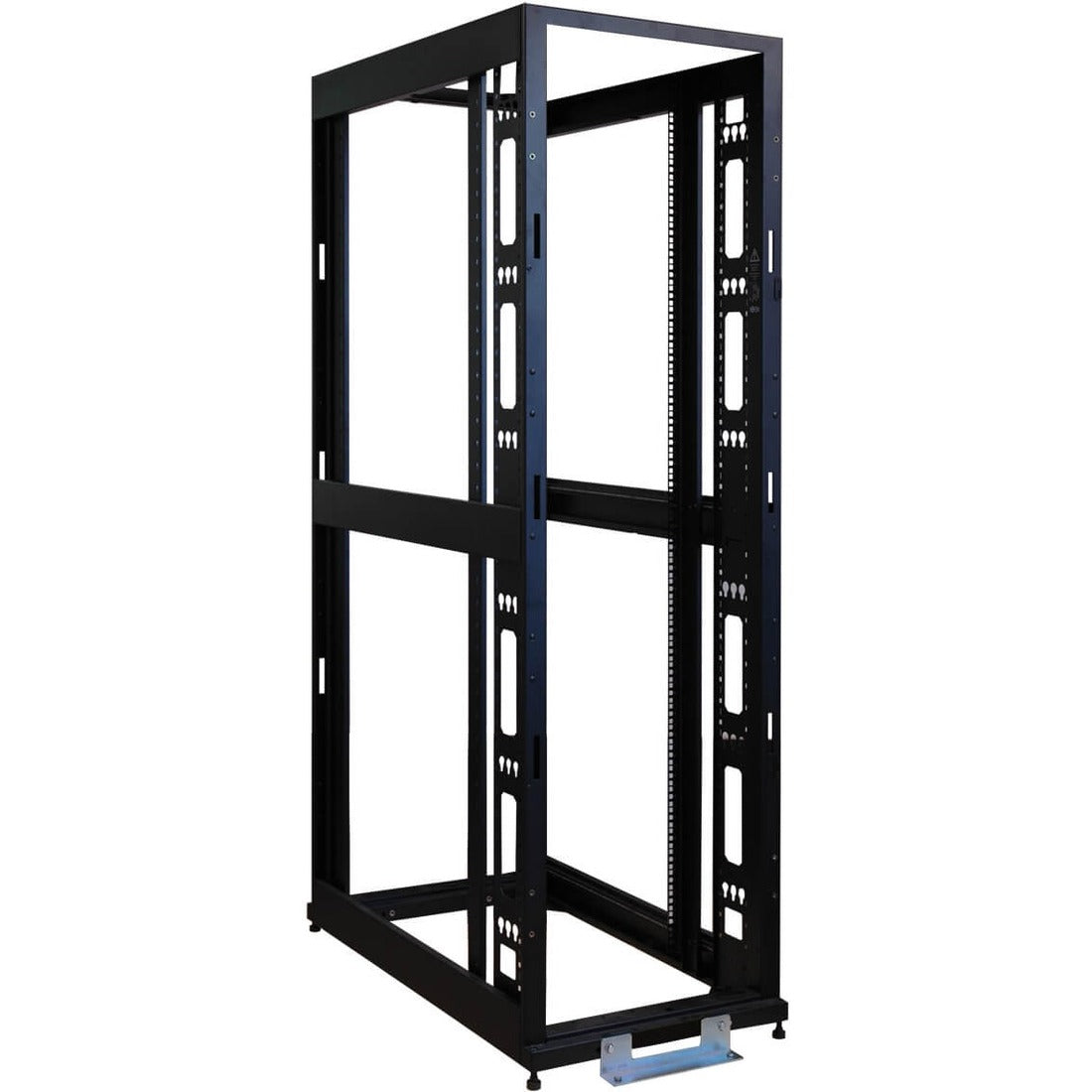

Tripp Lite by Eaton SmartRack 48U Standard-Depth 4-Post Premium Open Frame Rack with No Sides, Doors or Roof — SR48UBEXPNDNR3

The SR48UBEXPNDNR3 is an expansion model with no sides, doors or roof. An expansion model is useful when baying together multiple enclosures. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications.

The SR48UBEXPNDNR3 houses 3000 lb of standard 19-inch rack equipment in 48U. The front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference and supports tool-less button-mount 0U installation of up to four compatible PDUs and cable managers.

All components of the SR48UBEXPNDNR3 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.

To simplify deployment, the SR48UBEXPNDNR3 comes with heavy duty 3" preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

The SR48UBEXPNDNR3 comes with a 5-year product warranty. As part of the SmartRack family, the SR48UBEXPNDNR3 is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

• Includes 50 pieces of M6 cage nuts and 50 pieces of M6 screws (equipment mounting hardware)
• Preinstalled heavy duty 3" casters and leveling feet
• 3000 lb stationary / 3000 lb rolling load capacity
• Ships fully assembled
• Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
• 4 interior vertical posts with unthreaded square hole openings
• 48U SmartRack Premium open frame rack (no sides, doors or roof)
