Tripp Lite by Eaton PDU 12.6kW 3-Phase Local Metered PDU 208V Outlets (36 C13 & 9 C19) Hubbell 50A CS8365C 6 ft. (1.83 m) Cord 0U Vertical TAA — PDU3MV6H50
Tripp Lite by Eaton PDU 12.6kW 3-Phase Local Metered PDU 208V Outlets (36 C13 & 9 C19) Hubbell 50A CS8365C 6 ft. (1.83 m) Cord 0U Vertical TAA — PDU3MV6H50 is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Tripp Lite by Eaton PDU 12.6kW 3-Phase Local Metered PDU 208V Outlets (36 C13 & 9 C19) Hubbell 50A CS8365C 6 ft. (1.83 m) Cord 0U Vertical TAA — PDU3MV6H50 is backordered and will ship as soon as it is back in stock.
Description
Description

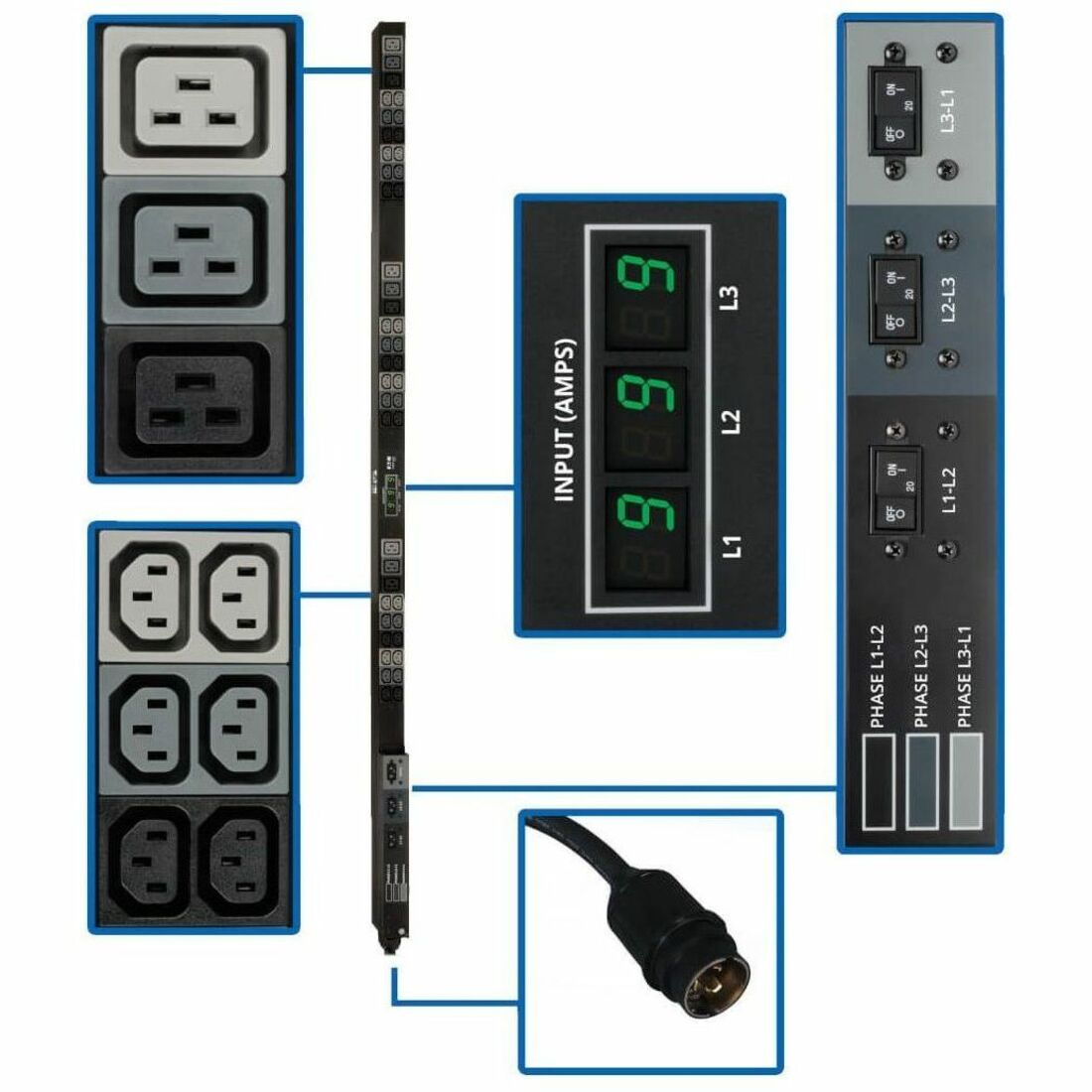

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

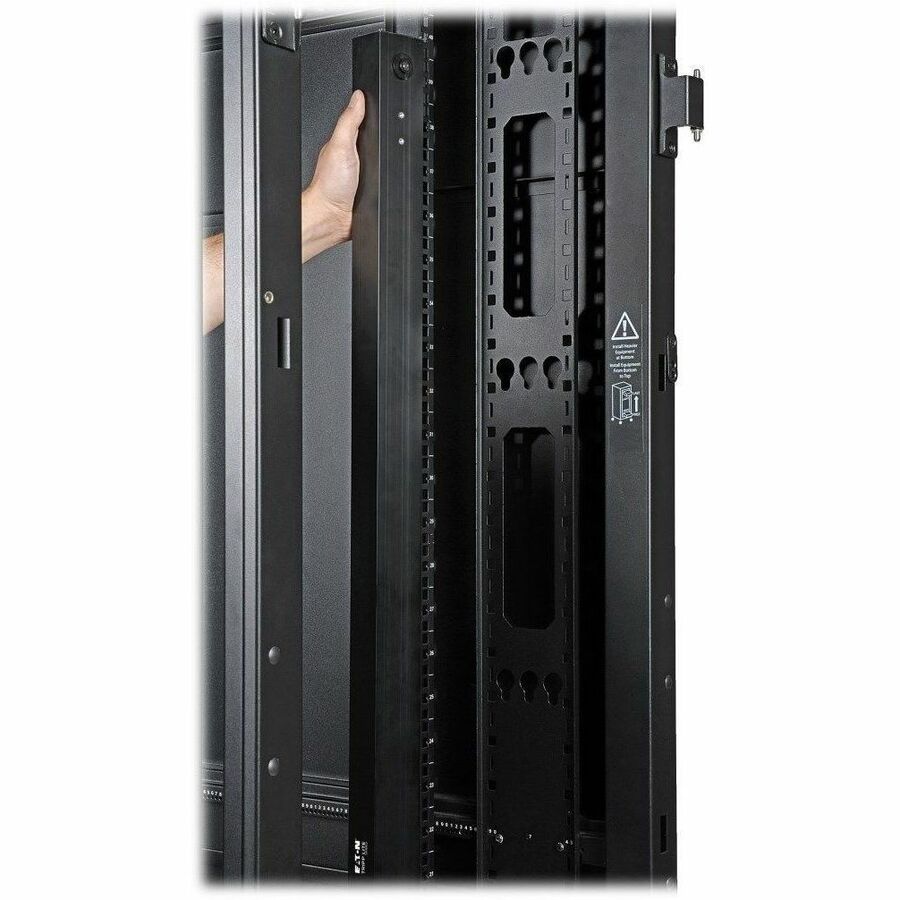

- Toolless button-mount installation; cord retention brackets included

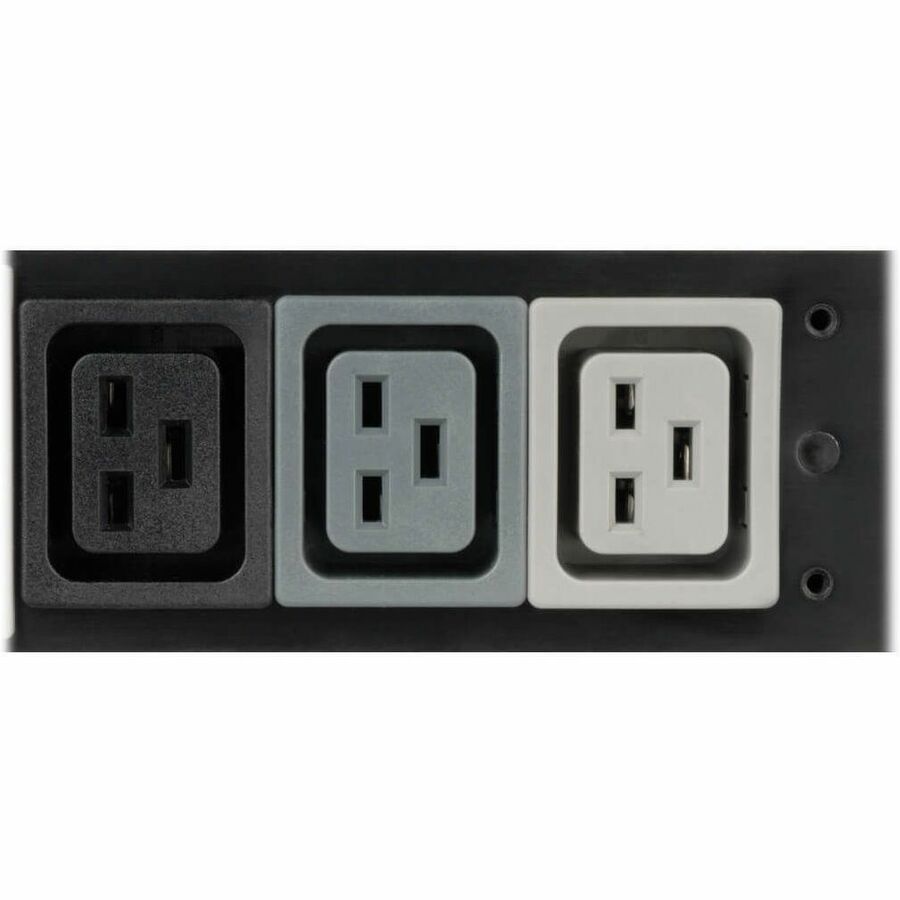

- 45 208V outlets total (36 C13, 9 C19)
- Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord

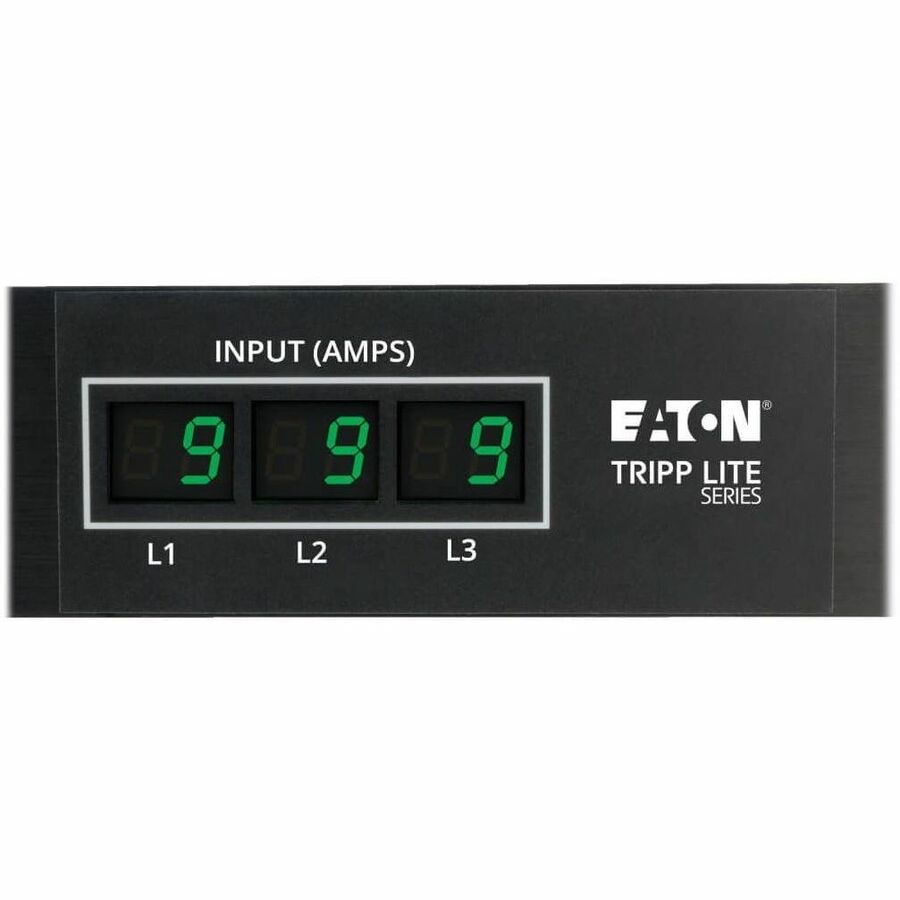

- Reports load current per-phase via set of 3 built-in current meters

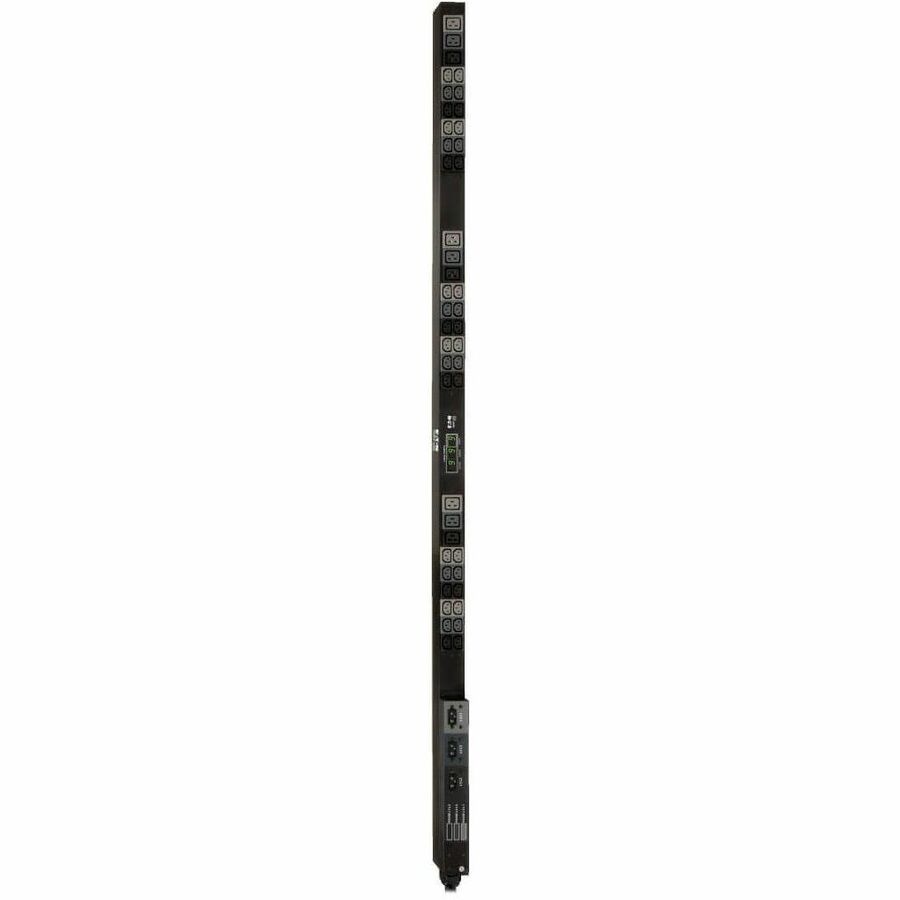

- Metered 12.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
Specifications
Specifications
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Limited Warranty2 Year
-
Country of OriginTaiwan
-
TAA CompliantYes
-
Product TypePDU
-
Mount TypeRack-mountable
-
Mounting OrientationVertical
-
Product SeriesMetered
-
Product ModelPDU3MV6H50
-
Input Voltage230 V AC
-
Output Voltage208 V AC
-
Protection TypeOverload Protection
-
Plug/Connector TypeHubbell CS8365C
-
Power Rating (Watt)12.60 kW
-
Package ContentsMetered PDU3MV6H50 45-Outlets PDU Cord Retention Brackets Rack Mounting Brackets Owner's Manual
-
Receptacle TypeIEC 60320 C19,IEC 60320 C13
-
Receptacle Detail9 x IEC 60320 C19,36 x IEC 60320 C13
-
ManufacturerTripp Lite by Eaton
-
Manufacturer Website Addresshttps://tripplite.eaton.com/
