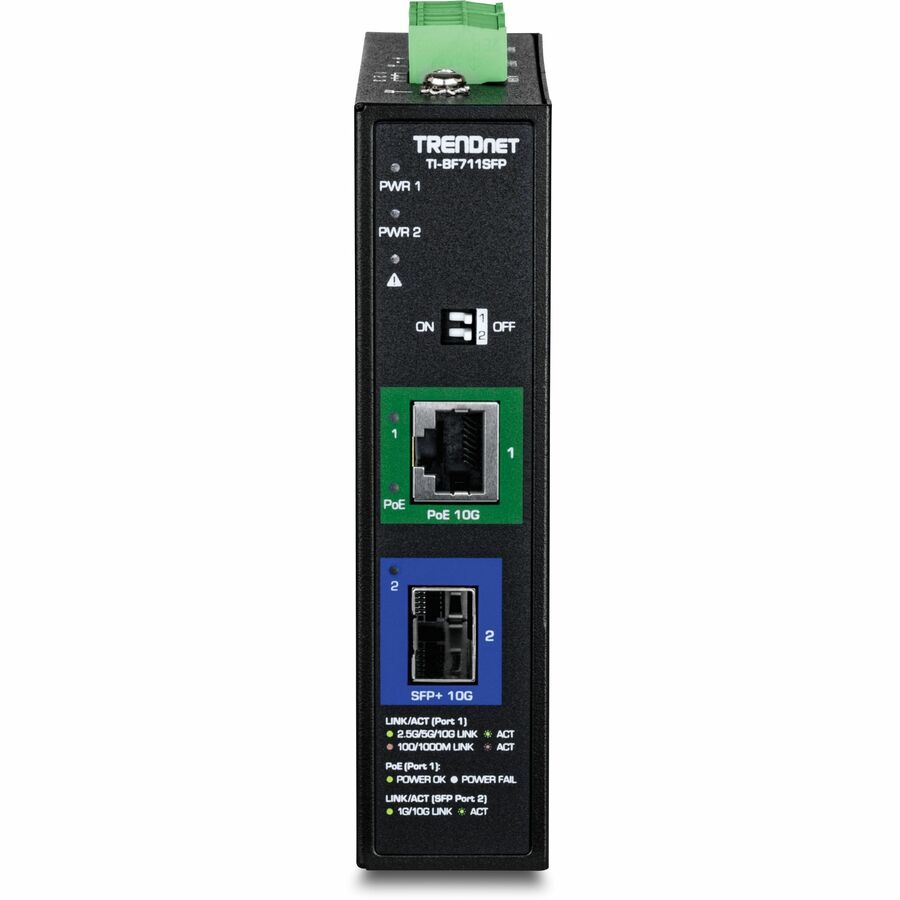

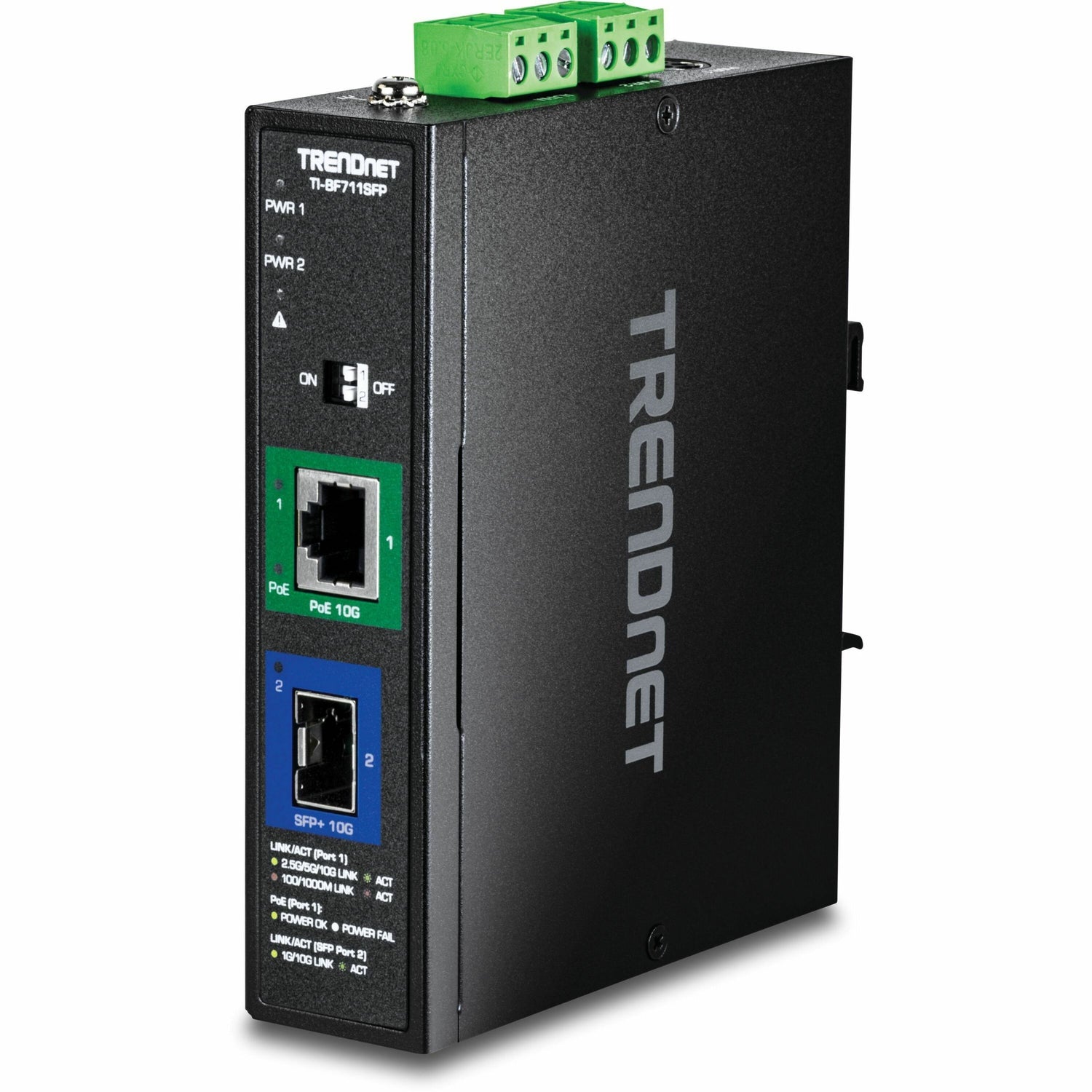

TRENDnet Industrial 10G SFP+ to 10G PoE++ Media Converter, TI-BF711SFP, Hardened IP50 Rated, NDAA & TAA Compliant for Government Use, Provides up to 95W, DIN-Rail and Wall Mounts Included — TI-F711SFP

TRENDnet's Industrial 10G SFP+ to 10G PoE++ Media Converter, model TI-BF711SFP, converts a long-distance fiber connection to a copper connection, while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40°- 75° C (-40° - 167° F), the industrial PoE++ media converter features a hardened IP50 rated metal housing suitable for tough, industrial environments. The industrial PoE++ media converter's rugged design also provides protection from shock, freefall, and vibration.

Industrial Applications

Networks devices for manufacturing, general industrial, logistics, surveillance, transportation, and corporate applications.

PoE++ Output

Converts long-distance fiber to copper while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras and wireless APs.

Industrial Environments

Hardened IP50 converter for industrial networking environments within a - 40°- 75° C (-40° - 167° F) operating temperature range.

FEATURES | 10G PoE++ Port

One 10G PoE++ Ethernet port for high-power and high-speed devices

Link Fault Pass Through

Easily enable the LFPT (Link Fault Pass Through) feature on the industrial multi-mode media converter using the front panel DIP switch to identify a link fault to the remote LFPT enabled media converter

Surge Protection

Provides up to 6kV RJ45 Ethernet surge protection

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

10G SFP+ Port

One 10G SFP+ port for long distance applications

Dust Protected

This industrial switch is IP50 rated for ingress dust protection

Extreme Temperature Range

An extreme operating temperature range of -40° - 75° C (-40° - 167°F) allows for installations in industrial environments with intense hot or cold conditions

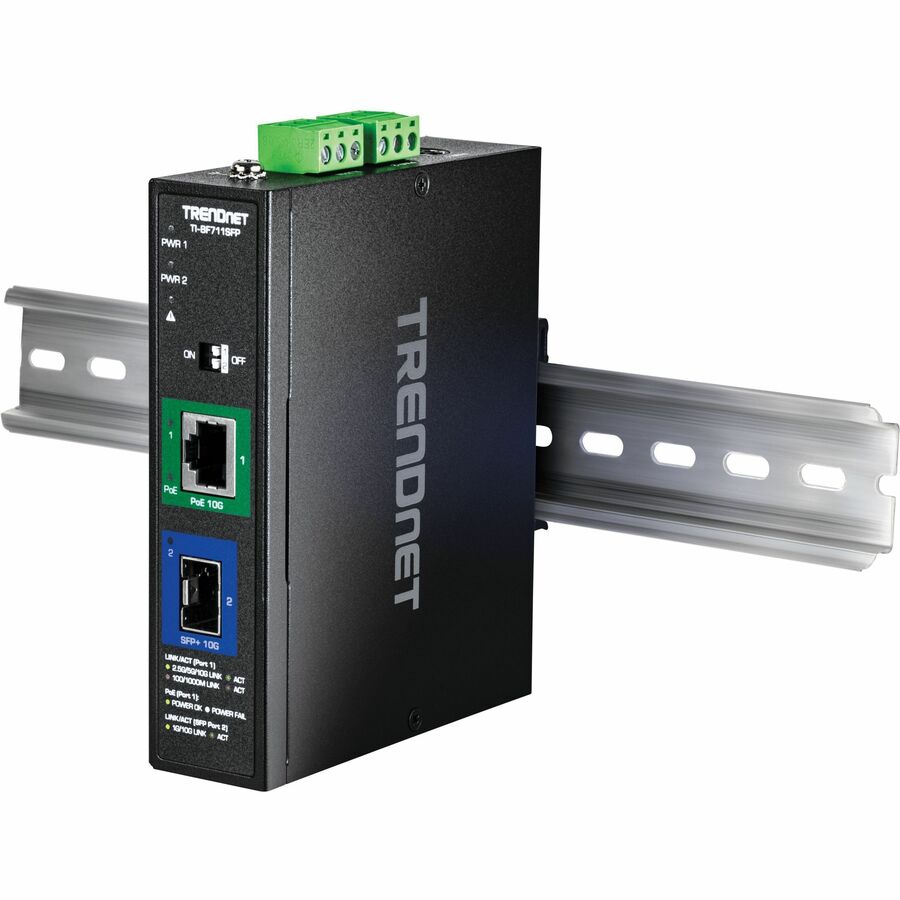

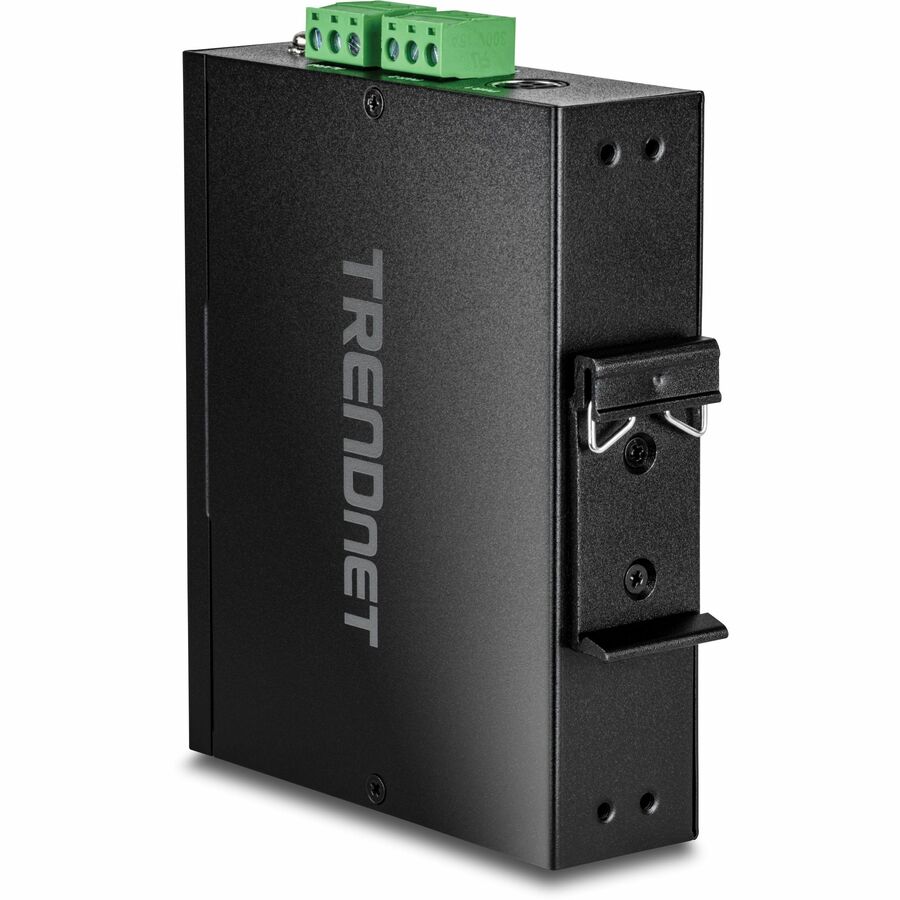

DIN-Rail / Wall Mounts

The rugged PoE+ switch includes DIN-Rail mount and wall mount hardware

Dip Switches

1: LFPT (Link Fault Pass Through) on/off (default ON) 2: EEE (Energy Efficient Ethernet, IEEE 802.3az) on/off (default OFF)

Fault Tolerance

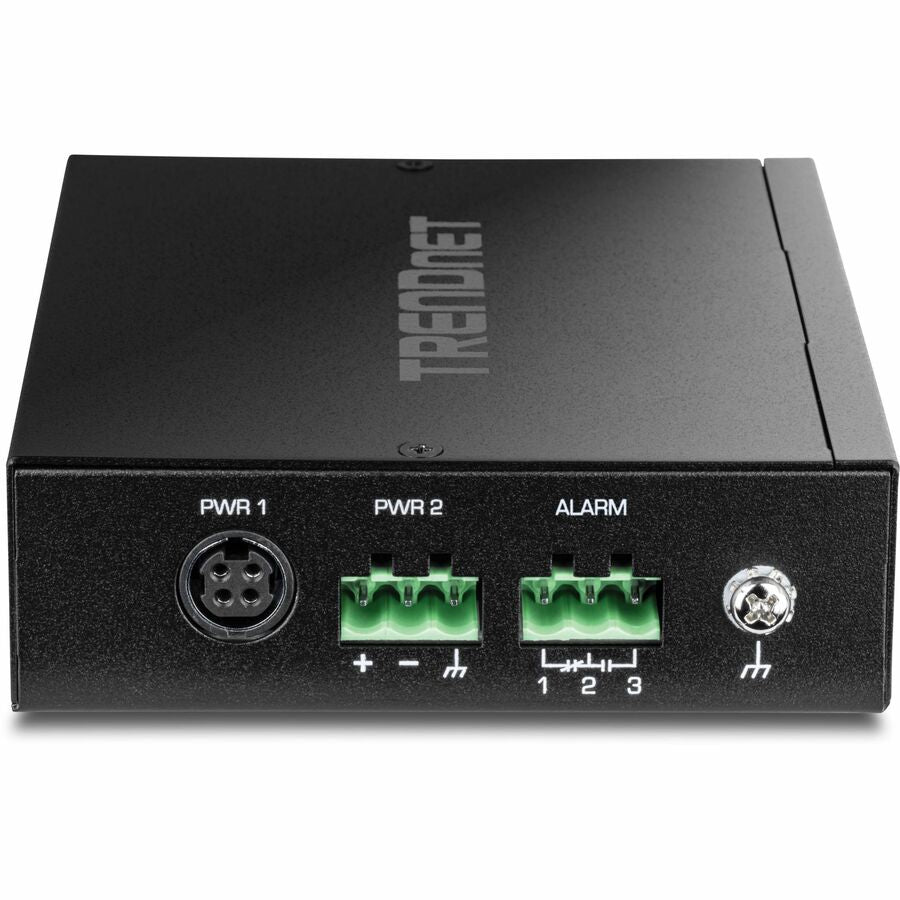

Features an output alarm relay to indicate an input power failure

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

Grounding Point

The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges

More from the Manufacturer

• 1 x 10G SFP+ port
• 1 x 10G Ethernet port
• Hardened IP50-rated 10G Ethernet to 10G SFP+ converter
• SFP port accommodates Multi or Single Mode fiber modules
• Hardened IP50-rated metal switch
• 6kV RJ45 Ethernet surge protection
• Extreme operating temperature range of -40° - 75°C (-40° - 167°F)
• Dual 48V and 9 - 60V DC inputs provide redundant
• power with overload current protection
• Alarm relay triggered by power failure
