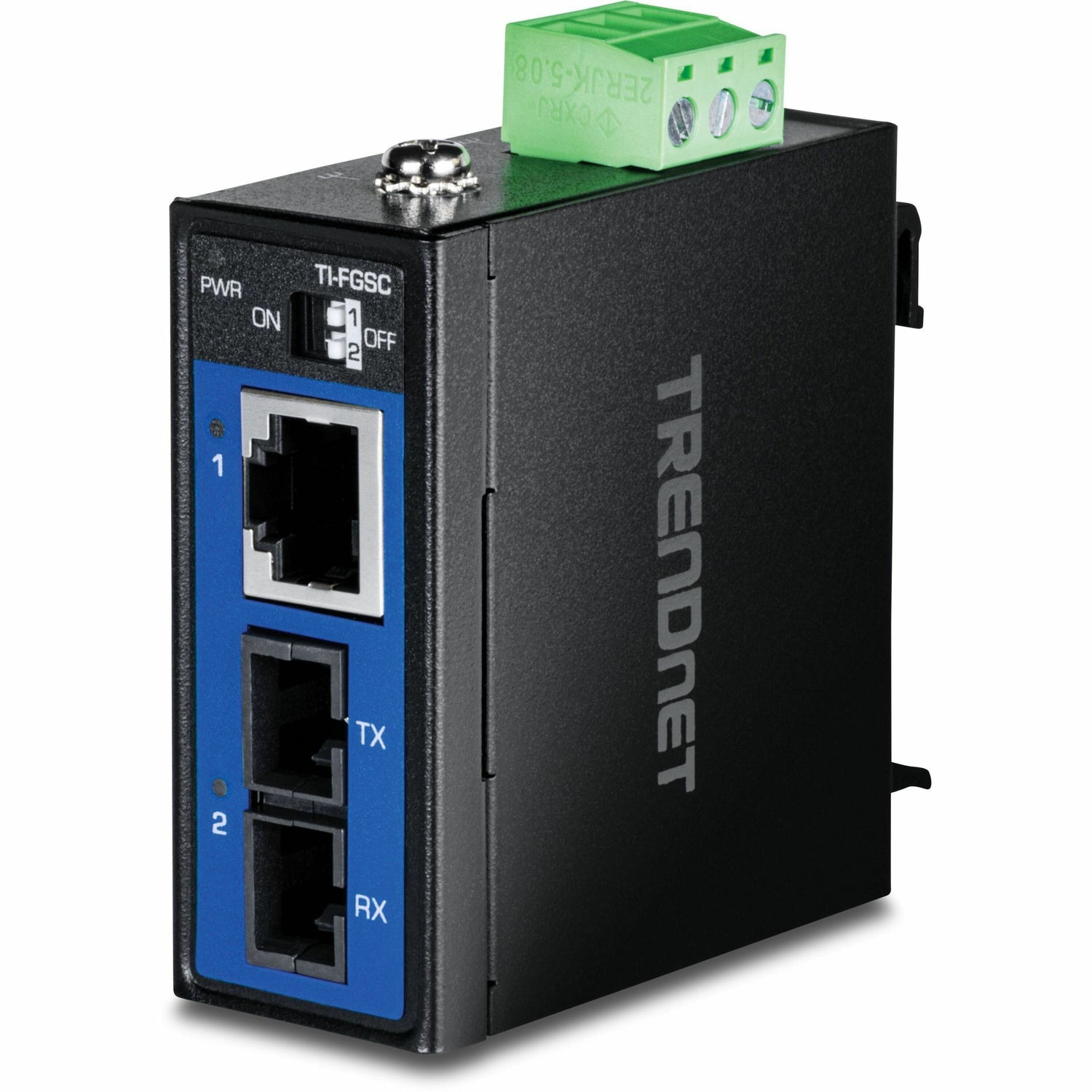

TRENDnet Hardened Industrial 1000BASE-LX Multi-Mode SC Fiber Media Converter (1km, 0.62mi.), TI-FGSC, 1 x Gigabit RJ45 Port, 1 x SC-Type Interface Port, NDAA TAA Compliant — TI-FGSC

TRENDnet's Hardened Industrial 1000BASE-LX Multi-Mode SC Fiber Converter, model TI-FGSC, features a gigabit RJ45 port and a 1000BASE-LX SC interface port for building-to-building or long-distance fiber optic cable runs of up to 1km (0.62 mi.). The industrial multi-mode media converter's compact IP50-rated design allows for flexible installation, provides ingress dust protection, and includes DIN-rail and wall mounting hardware options. The industrial SC fiber converter's rugged design provides resistance to standard compliance levels of shock and vibration, and operates within an extreme temperature range of -40° - 75° C (-40° - 167° F). The front panel DIP switches quickly allow switching between switch/converter modes, and enable or disable Link Fault Pass Through (LFPT).

Distance

1000BASE-LX (1310nm) gigabit multimode fiber for building-to-building or long-distance fiber optic cable runs of up to 1km (0.62 mi.)

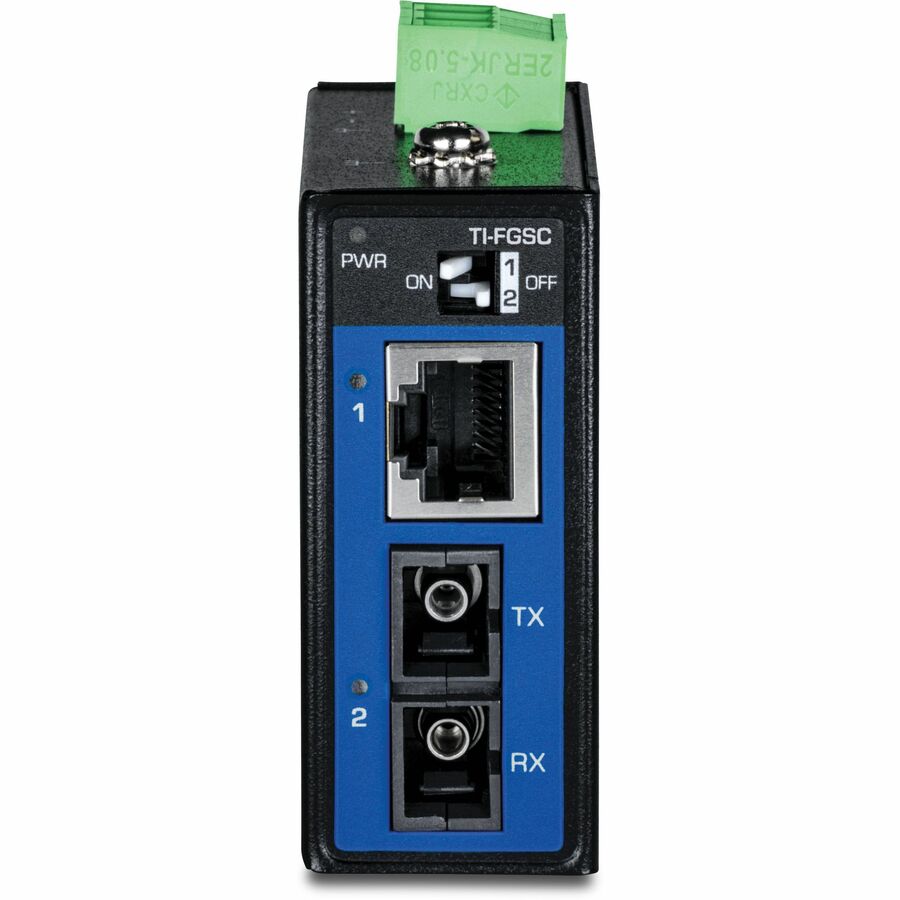

Front Panel Switches

The industrial multi-mode media converter's front panel DIP switches quickly allow switching between switch/ converter modes, and enable or disable Link Fault Pass Through (LFPT).

Hardened Compact Design

Equipped with an IP50-rated housing for dust ingress protection, 6kV Ethernet surge protection, designed to provide resistance to standard compliance levels of shock and vibration, and operates within an extreme temperature range of 40° - 75° C (-40° - 167° F).

FEATURES | Network Ports

1 x Gigabit RJ45 Port and 1 SC fiber optic port

Extreme Temperature Range

Operates within an extreme operating temperature range of 40° - 75° C (-40° - 167° F)

Overload Current Protection

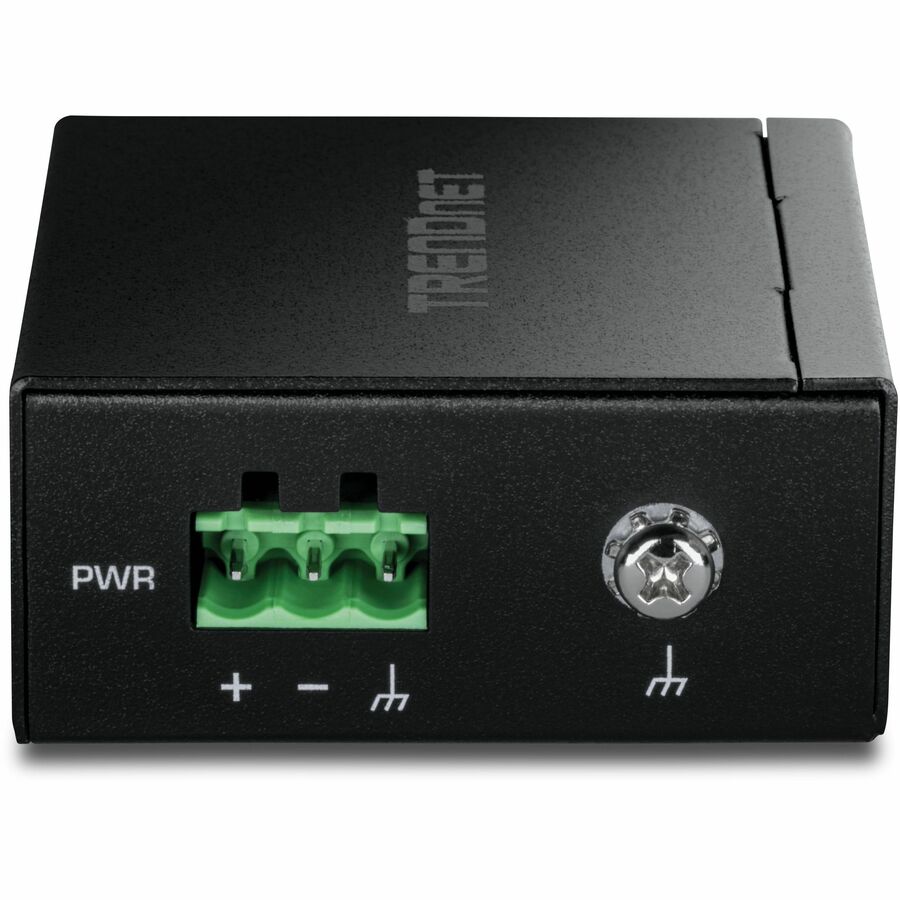

12 - 60V DC power input with overload current protection; power supply sold separately (model: TIM6024)

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Distance

1000BASE-LX (1310nm) gigabit multi-mode fiber for distances of up to 1km (0.62 mi)

Link Fault Pass Through

Easily enable the LFPT (Link Fault Pass Through) feature on the industrial multi-mode media converter using the front panel DIP switch to identify a link fault to the remote LFPT enabled media converter

Surge Protection

Provides up to 6kV RJ45 Ethernet surge protection

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Level 3 Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

Dust Protected

The industrial multi-mode converter's IP50-rated metal housing provides ingress protection from dust

Converter Modes

Quickly toggle between switch or converter (passthrough) modes using the front panel DIP switch depending on network traffic requirements and provide installation flexibility

Shock and Vibration Resistant

Complies with shock (EN 60068- 227), freefall (EN 60068-2-31), and vibration (EN 60068-2-6) standards

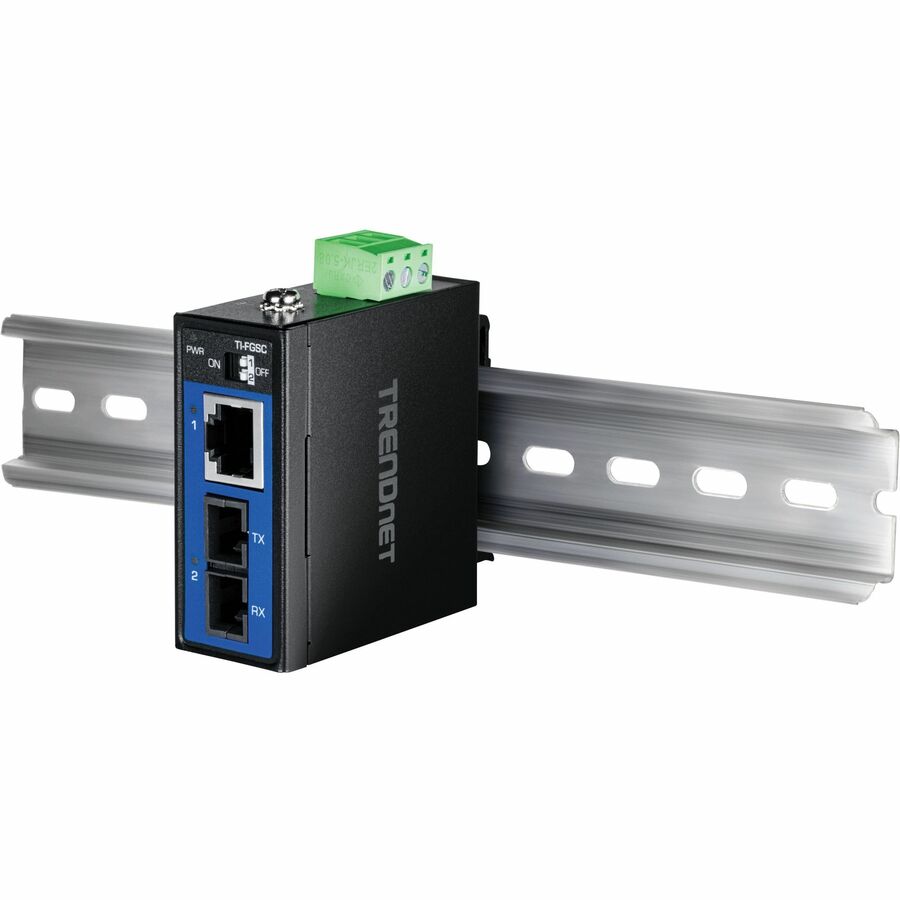

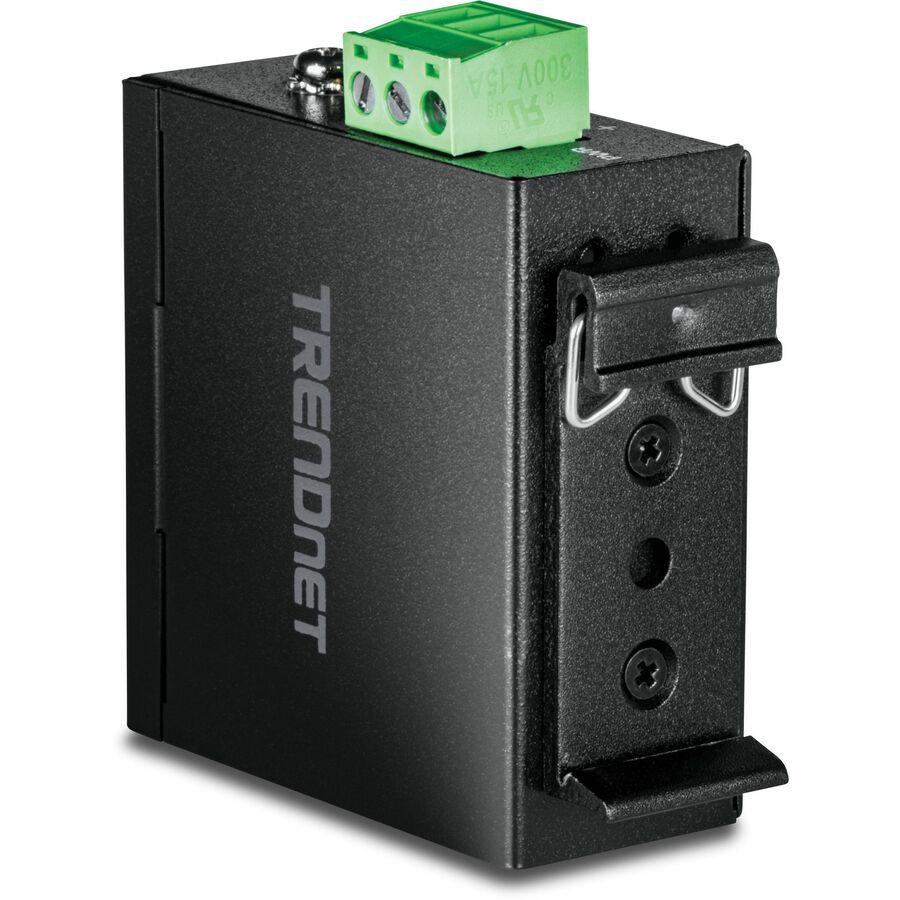

DIN-Rail / Wall Mounts

The industrial multi-mode media converter includes DIN-Rail mount and wall mount hardware

• Hardened IP50-rated industrial compact media converter
• 1000BASE-LX (1310nm) multi-mode fiber for distances of up to 1km (0.62 mi)
• 1 x Gigabit RJ45 port and 1 x SC-type interface port
• Operating temperature range of -40° - 75° C (-40° - 167° F)
• 12 - 60V DC power input with overload current protection
• 6kV RJ45 Ethernet surge protection
• Fanless design for silent operation
• Includes DIN-Rail mount and wall mount brackets
• Power supply sold separately (model: TI-M6024)
• NDAA / TAA compliant (U.S. and Canada only)
