TP-Link  |  SKU: MC110CS  |  UPC: 840460604536
Sold out
New arrival

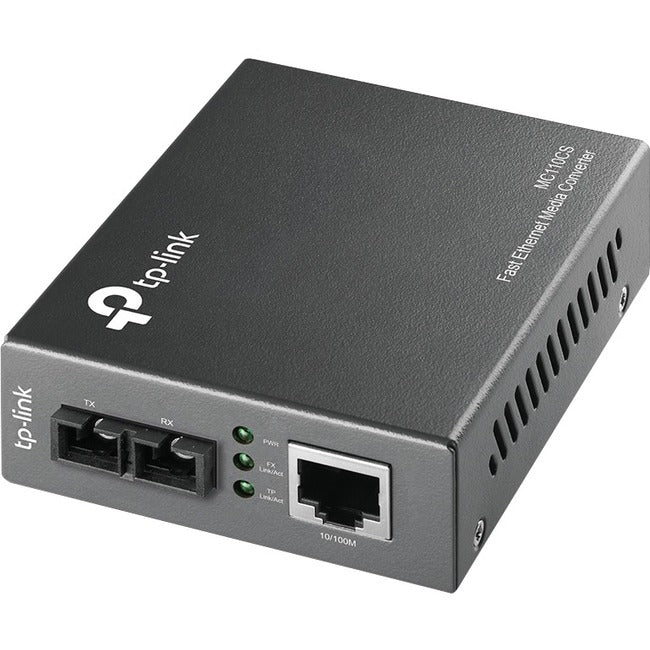

TP-LINK MC110CS - Fast Ethernet SFP to RJ45 Fiber Media Converter — MC110CS

$20.99 USD
Shipping calculated at checkout.
Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector.

  • External power supply. Wave Length: 1310nm. Max Power Consumption: 2.4W.
  • Easy-to-view LED indicators provide status to monitor network activity easily.
  • Extends fiber distance up to 12.5 mile (20km).
  • Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port.
  • Works at 100Mbps in Full-Duplex mode for both TX port and FX port.
  • Designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa.

Specifications
  • Environmentally Friendly
    Yes
  • Country of Origin
    China
  • Limited Warranty
    2 Year
  • Form Factor
    External
  • Product Type
    Transceiver/Media Converter
  • Manufacturer
    TP-LINK Technologies Co., Ltd
  • Number of Network (RJ-45) Ports
    1
  • Ethernet Technology
    Fast Ethernet
  • Total Number of Ports
    2
  • Network (RJ-45)
    Yes
  • Media Type Supported
    Optical Fiber
  • Fiber Mode Supported
    Single-mode
  • Fiber Optic Cable Standard
    9/125 µm
  • Power Source
    Power Adapter
  • Fiber Optic Wavelength
    1310 nm
  • Power Consumption
    2.40 W
  • Number of SC Ports
    1
  • Manufacturer Website Address
    http://www.tp-link.com/us
  • Product Model
    MC110CS
  • Maximum Distance Supported
    12.43 Mile
  • Network Technology
    10/100Base-TX,100Base-FX
  • Package Contents
    MC110CS Fast Ethernet Media Converter Power Adapter Installation Guide
