Asynchronous procurement. Written quotes within one business day. Request a quote.

Startech.com  |  SKU: SV565UTPU  |  UPC: 065030832625
New arrival

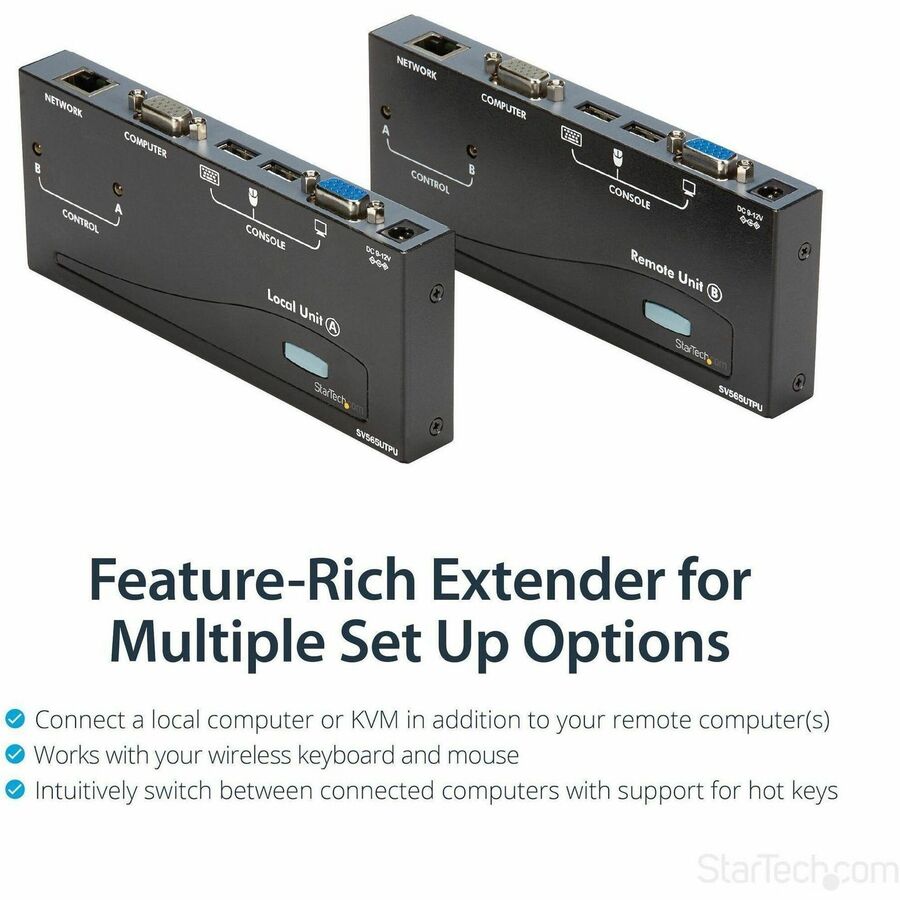

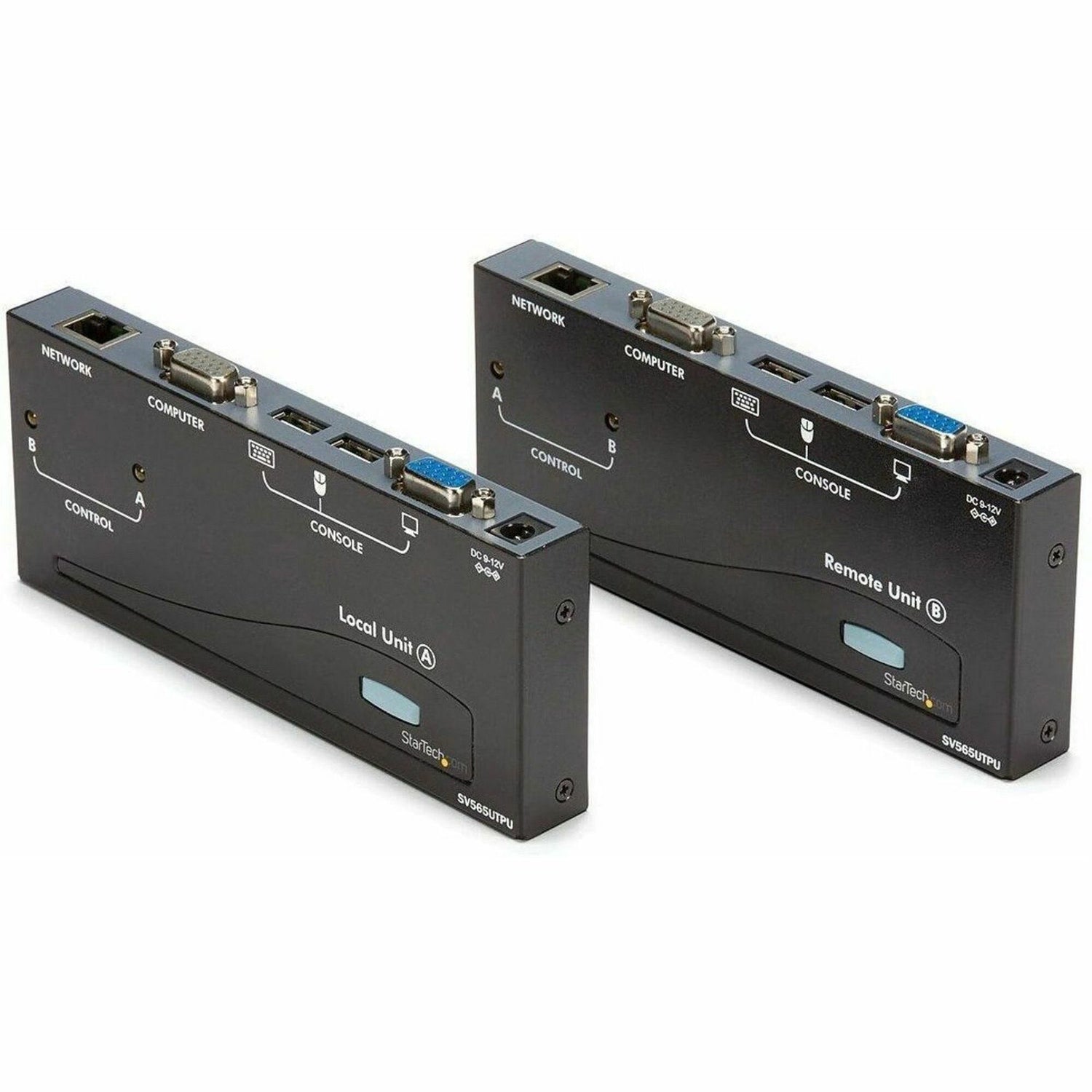

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft) — SV565UTPU

Regular price $263.41 USD
Shipping calculated at checkout.


Request a quote for this item

Volume or contract pricing? Get a written quote with confirmed lead time.

Description

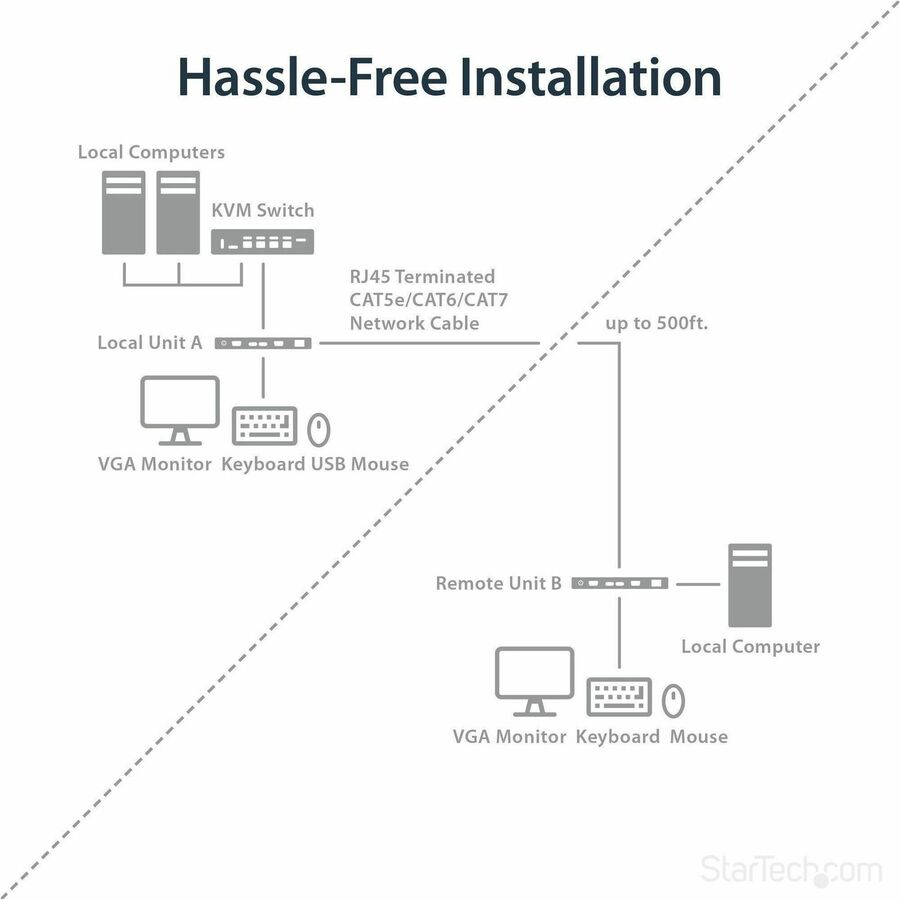

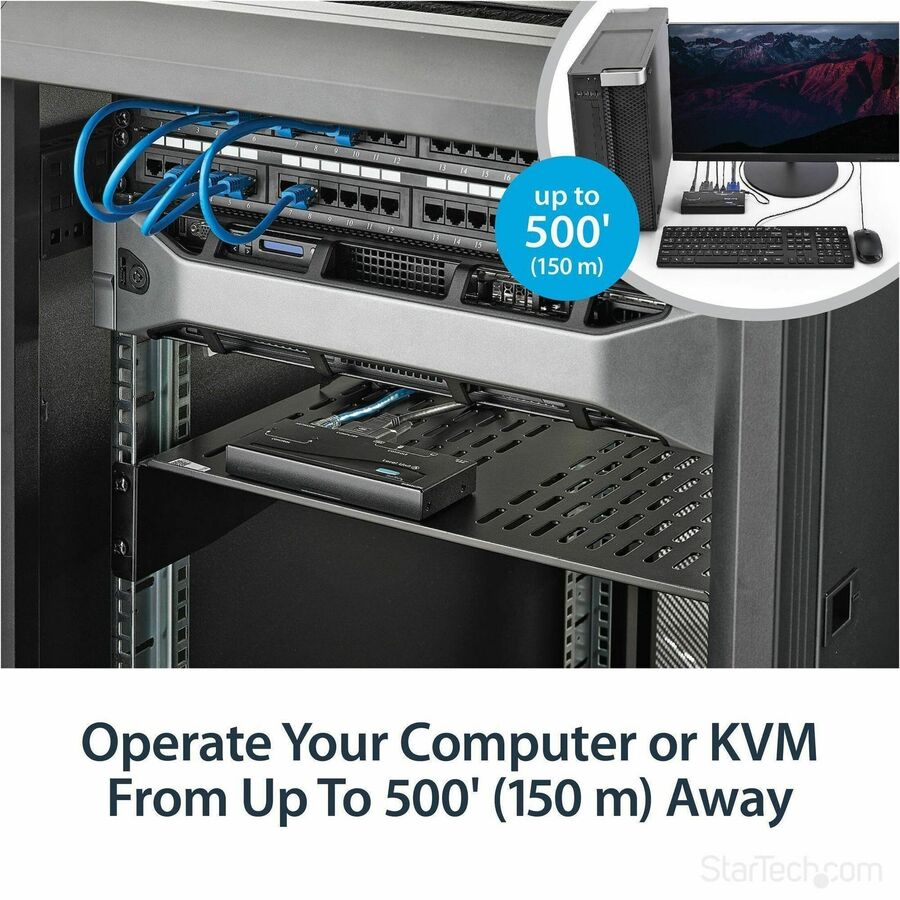

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

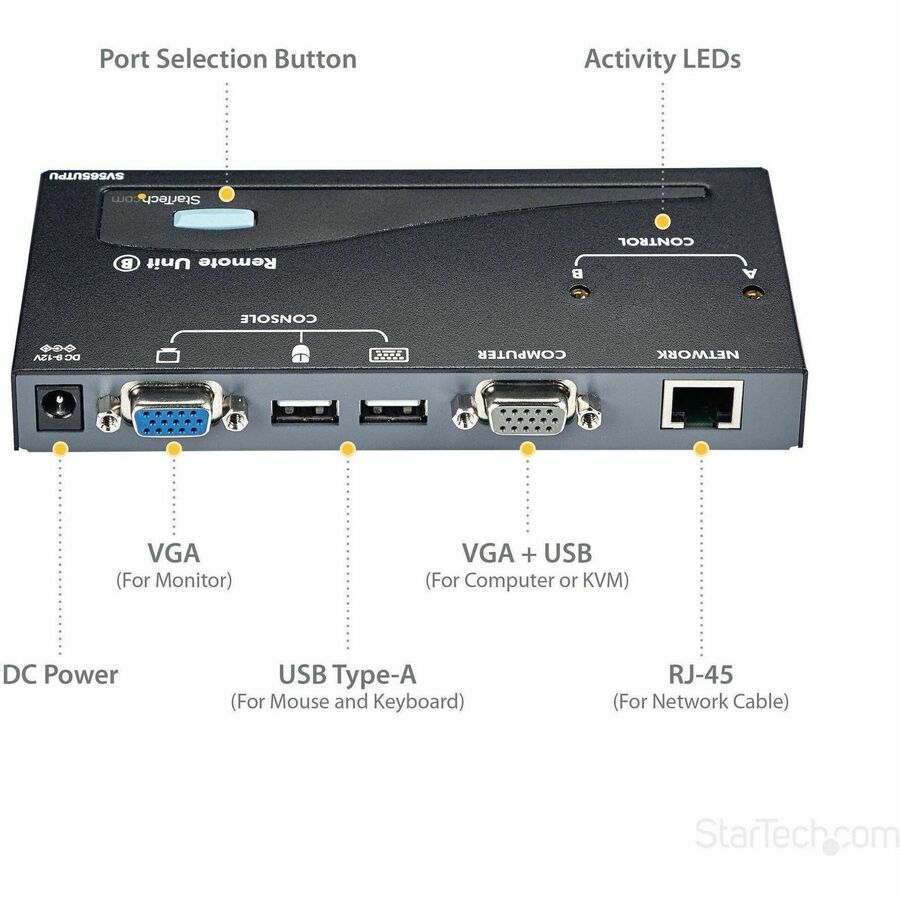

  • PS/2 and USB host PC's supported via the appropriate PS2 or USB KVM cable (USB style included)
  • Can be used with a single computer or connected to an existing KVM switch
  • Easy installation using industry-standard UTP network cable
  • Supports most combo keyboard and mouse sets (including Wireless)
  • Intuitive hotkey commands
  • Supports auto-switching between host and remote users or dedicated control

Specifications

  • Manufacturer
    StarTech.com
  • Environmentally Friendly
    Yes
  • Limited Warranty
    2 Year
  • Form Factor
    Desktop
  • Country of Origin
    Taiwan
  • TAA Compliant
    Yes
  • Packaged Quantity
    1
  • Receiver Height
    0.80"
  • Product Color
    Black
  • Product Type
    KVM Console/Extender
  • Transmitter Width
    6.10"
  • Transmitter Height
    0.80"
  • Receiver Width
    6.10"
  • Product Model
    SV565UTPU
  • Receiver Weight (Approximate)
    1.32 lb
  • Transmitter Weight (Approximate)
    1.32 lb
  • Connectivity Technology
    Wired
  • Manufacturer Website Address
    http://www.startech.com
  • VGA
    Yes
  • USB
    Yes
  • Number of Computers Supported
    2
  • Number of Local Users Supported
    1
  • Network (RJ-45)
    Yes
  • Number of Network (RJ-45) Ports
    2
  • Number of USB Ports
    4
  • Input Voltage Range
    110V AC to 240V AC
  • Maximum Operating Distance
    500 ft
  • Maximum Video Resolution
    1024 x 768
  • Number of VGA Ports
    4
  • KVM Technology
    Analog
  • Power Consumption
    5.40 W
  • Number of Remote Users Supported
    1
  • Graphic Mode
    XGA
  • Environmental Certification
    RoHS,WEEE
  • Input Voltage
    120 V AC,240 V AC
  • Color Family
    Black
  • Packaged Quantity Condition
    Kit
  • Package Contents
    USB VGA KVM Console/Extender 2 x 6 ft 2-in-1 USB VGA KVM Cables 8 x Rubber Feet 1 x Power Adapter 1 x Instuction Manual
  • Additional Warranty Information
    This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
