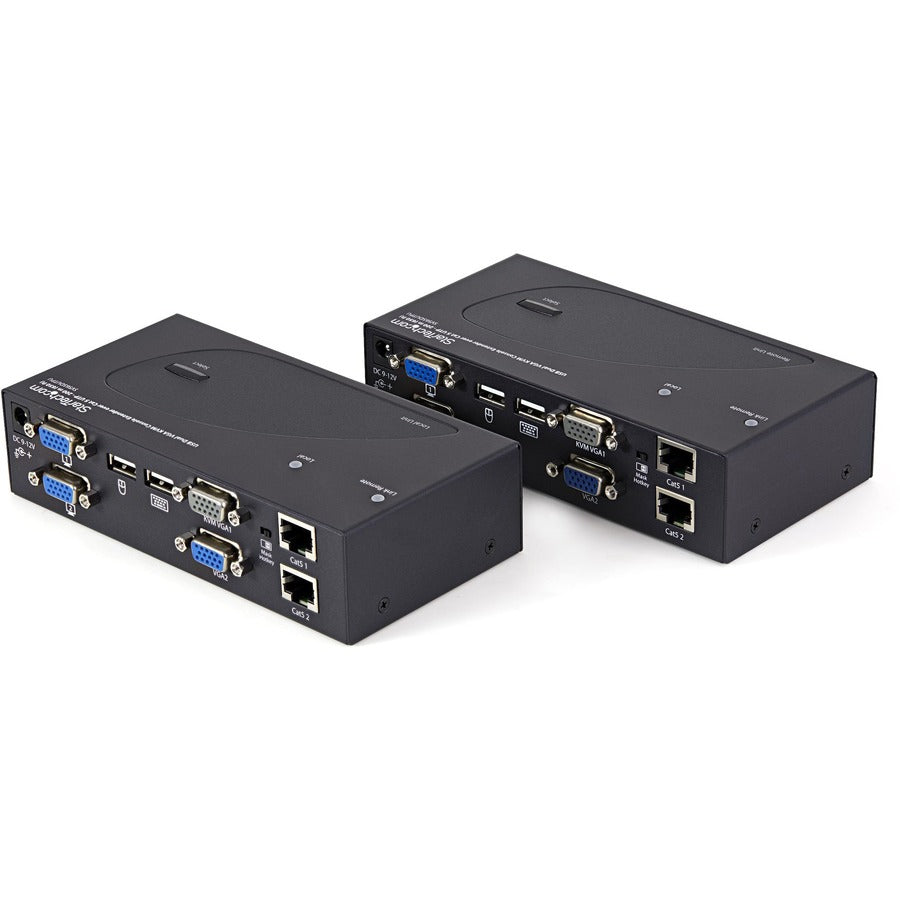

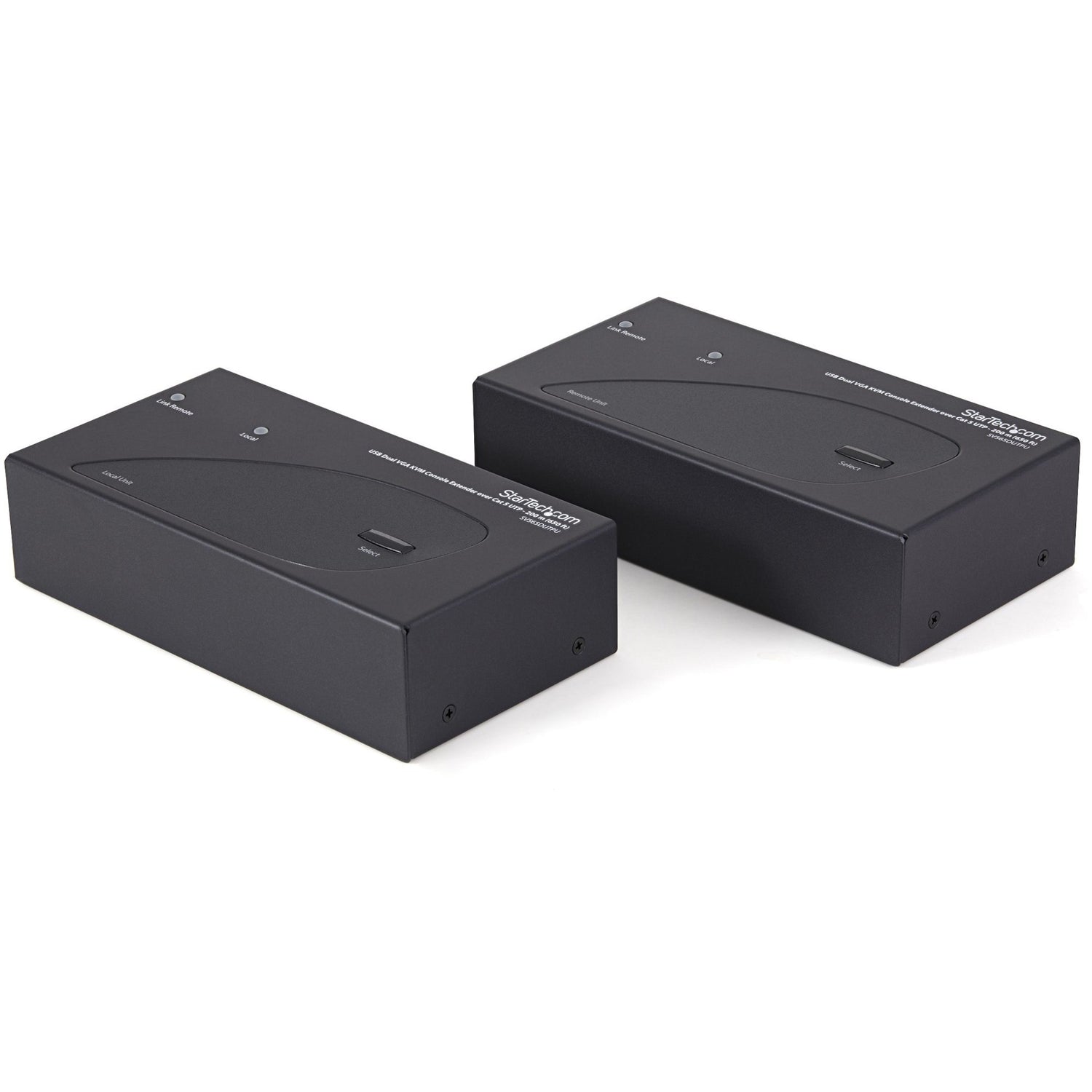

StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m — SV565DUTPU

Regular price $466.36 USD
Shipping calculated at checkout.


Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.

The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

  • Intuitive hot-key commands for fine-tuning video

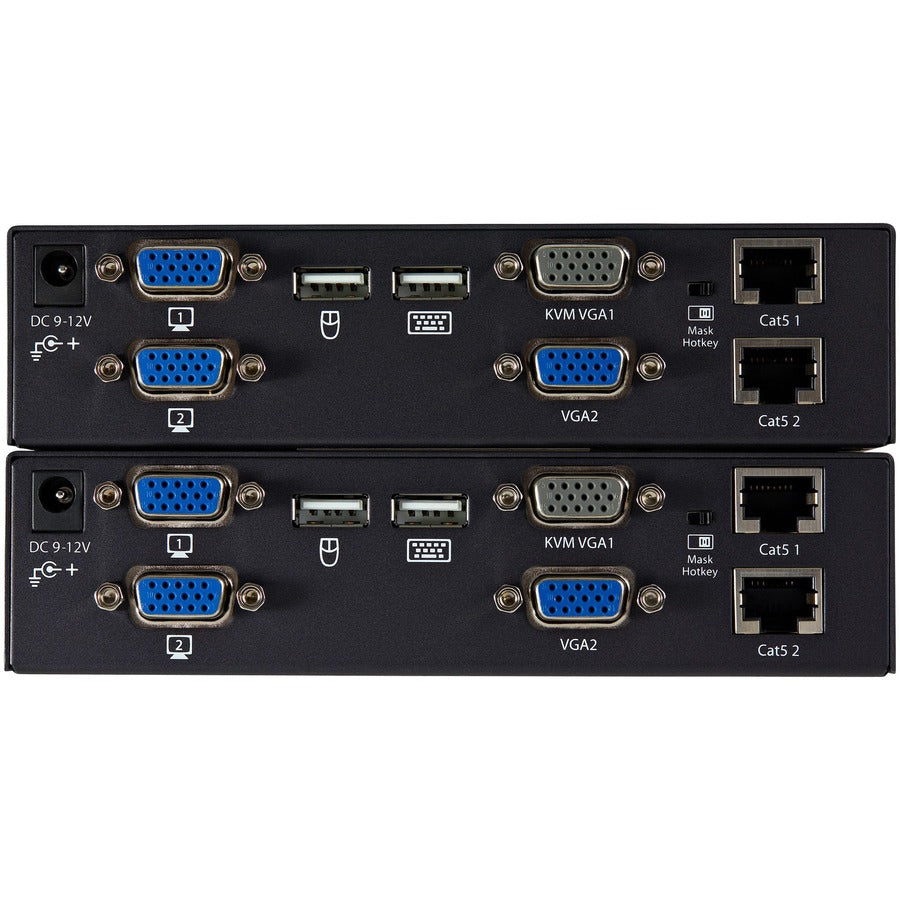

  • KVM console connections available on both the local and remote end
  • Supports most combo keyboard and mouse sets (including Wireless)
  • Extend up to 650 ft. (200 m) using 2 industry-standard UTP network cables
  • Can be used with a single computer or connected to an existing KVM switch
  • Dual VGA KVM extender at 1920x1200 resolution

Specifications

  • Manufacturer
    StarTech.com
  • Environmentally Friendly
    Yes
  • Form Factor
    Desktop
  • Country of Origin
    Taiwan
  • TAA Compliant
    Yes
  • Limited Warranty
    3 Year
  • Packaged Quantity
    1
  • Product Color
    Black
  • Product Type
    KVM Console/Extender
  • Transmitter Height
    1.60"
  • Receiver Height
    1.60"
  • Receiver Width
    3.10"
  • Transmitter Width
    3.10"
  • Receiver Weight (Approximate)
    1.18 lb
  • Transmitter Weight (Approximate)
    1.18 lb
  • Receiver Depth
    6.10"
  • Transmitter Depth
    6.10"
  • Connectivity Technology
    Wired
  • Manufacturer Website Address
    http://www.startech.com
  • VGA
    Yes
  • USB
    Yes
  • Number of Computers Supported
    2
  • Network (RJ-45)
    Yes
  • Number of USB Ports
    4
  • Input Voltage Range
    110V AC to 240V AC
  • KVM Technology
    Analog
  • Power Consumption
    5.40 W
  • Graphic Mode
    WUXGA
  • Number of Network (RJ-45) Ports
    4
  • Maximum Video Resolution
    1920 x 1200
  • Maximum Operating Distance
    650 ft
  • Package Contents
    1 x Local Unit 1 x Remote Unit 2 x 6 ft 2-in-1 USB VGA KVM Cables 8 x Rubber Feet 1 x Universal Power Adapter (NA/EU/UK/AU) 1 x Instruction Manual
  • Number of VGA Ports
    8
  • Number of Local Users Supported
    2
  • Environmental Certification
    RoHS,WEEE,REACH
  • Input Voltage
    120 V AC,240 V AC
  • Packaged Quantity Condition
    Kit
