StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI and USB over IP LAN or Cat5e/Cat6 Ethernet (100m/330ft) - Remote KVM Console — SV565HDIP

Name: StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI and USB over IP LAN or Cat5e/Cat6 Ethernet (100m/330ft) - Remote KVM Console — SV565HDIP
Brand: Startech.com
SKU: SV565HDIP
Price: 698.01 USD
Availability: OutOfStock

$698.01 USD

Shipping calculated at checkout.

Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.

Supports UHD 4K 30Hz

The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.

Hassle-Free Installation

With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.

The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.

Versatile Configuration Options

The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.

For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5 or CAT6 cabling up to 330 feet (100 meters).

SV565HDIP is backed by a 2-year warranty and free lifetime technical support.

Specifications

Manufacturer

StarTech.com
Environmentally Friendly

Yes
Limited Warranty

2 Year
Form Factor

Desktop
Country of Origin

Taiwan
TAA Compliant

Yes
Packaged Quantity

1
Product Color

Black
Product Type

KVM Console/Extender
Receiver Height

1.10"
Transmitter Height

1.10"
Transmitter Depth

5.10"
Receiver Depth

5.10"
Transmitter Width

4.60"
Transmitter Weight (Approximate)

1.34 lb
Receiver Width

4.60"
Receiver Weight (Approximate)

1.34 lb
Connectivity Technology

Wired
Manufacturer Website Address

http://www.startech.com
USB

Yes
Number of Computers Supported

1
Network (RJ-45)

Yes
Number of Network (RJ-45) Ports

2
Input Voltage Range

100V AC to 240V AC
Number of Remote Users Supported

1
Power Consumption

18 W
HDMI

Yes
Number of HDMI Ports

2
Maximum Video Resolution

3840 x 2160
Maximum Operating Distance

330 ft
Number of USB Ports

5
Graphic Mode

4K

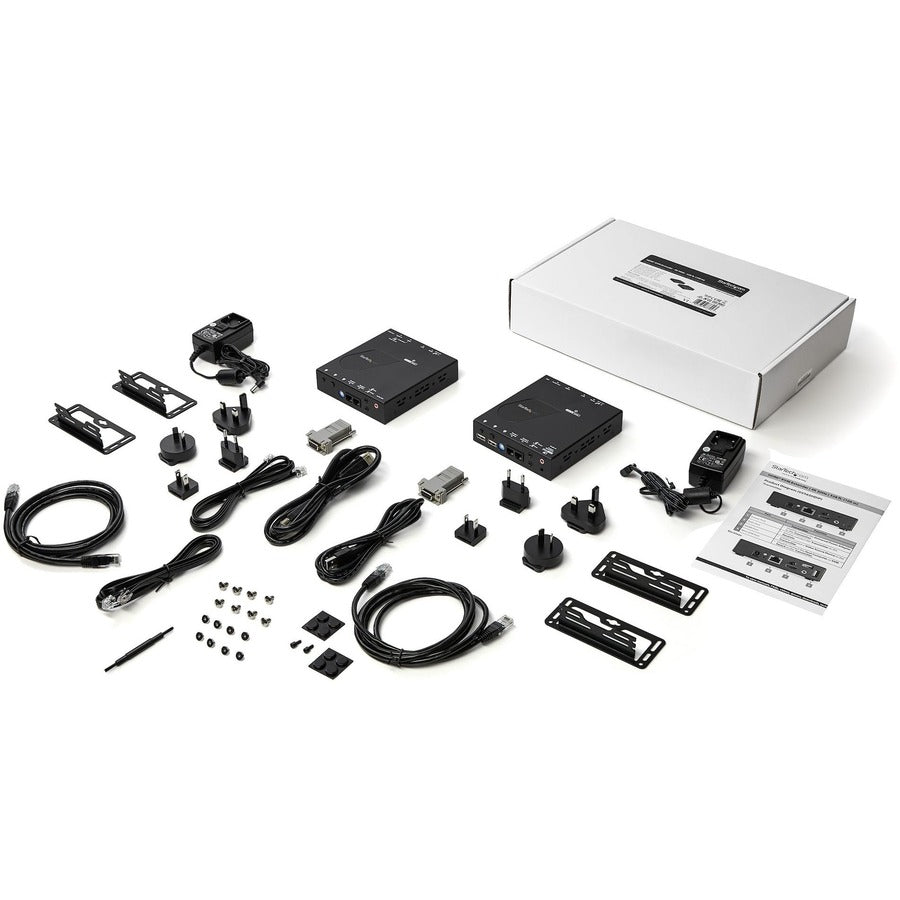

Package Contents

1 x Transmitter Unit 1 x Receiver Unit 2 x Universal Power Adapters (NA, JP, EU, UK, AU/NZ) 2 x Mounting Kits 2 x Ethernet Cables 2 x DB9 Serial Adapters 2 x RJ11 Serial Cables 1 x HDMI Cable (1.2 m) 1 x USB Cable (1.5 m) 8 x Rubber Feet 1 x Plastic Screwdriver 1 x Quick-Start Guide
Input Voltage

120 V AC,240 V AC
Packaged Quantity Condition

Kit
