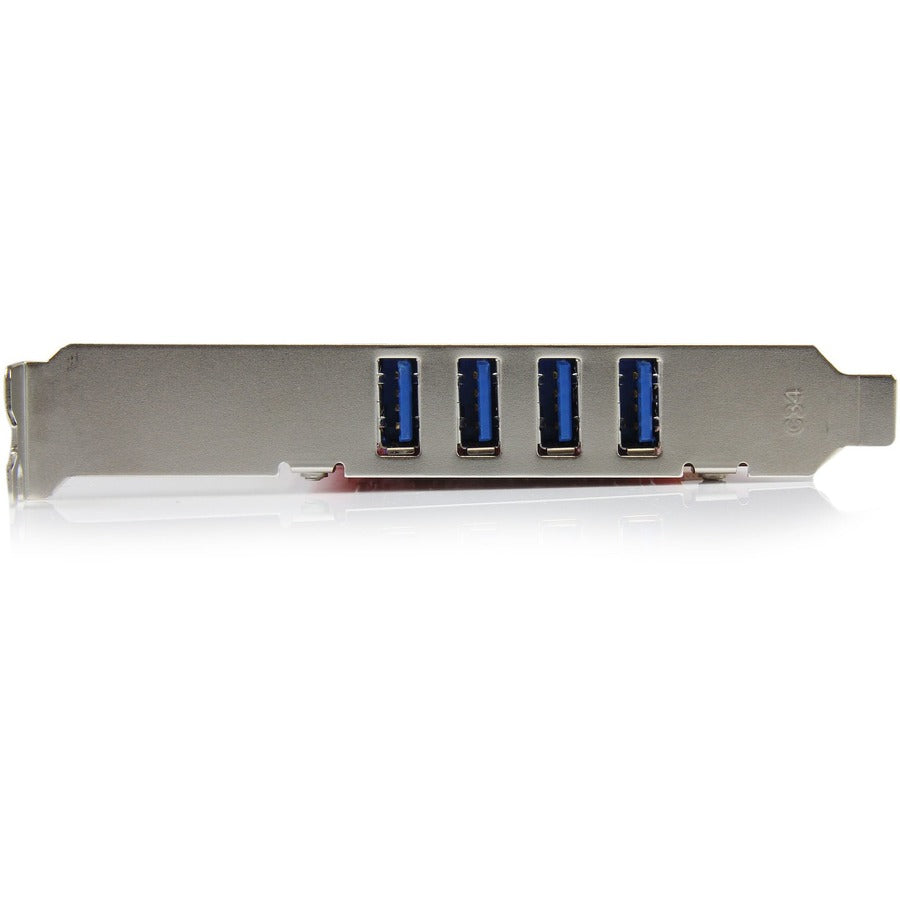

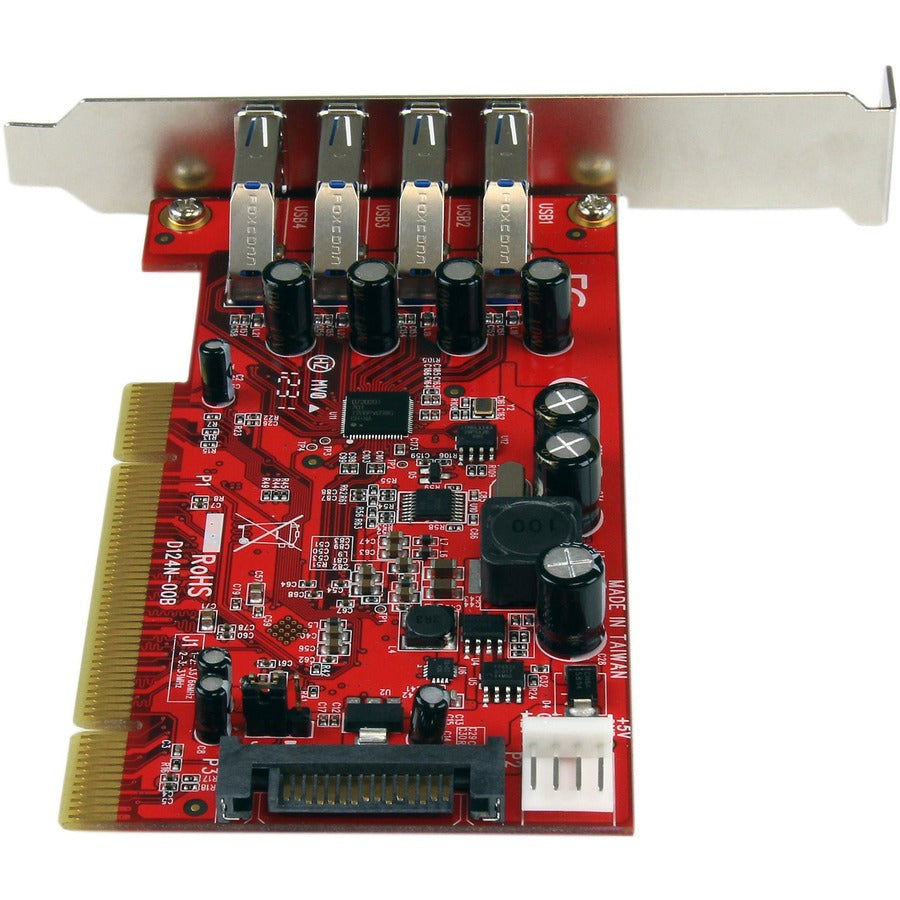

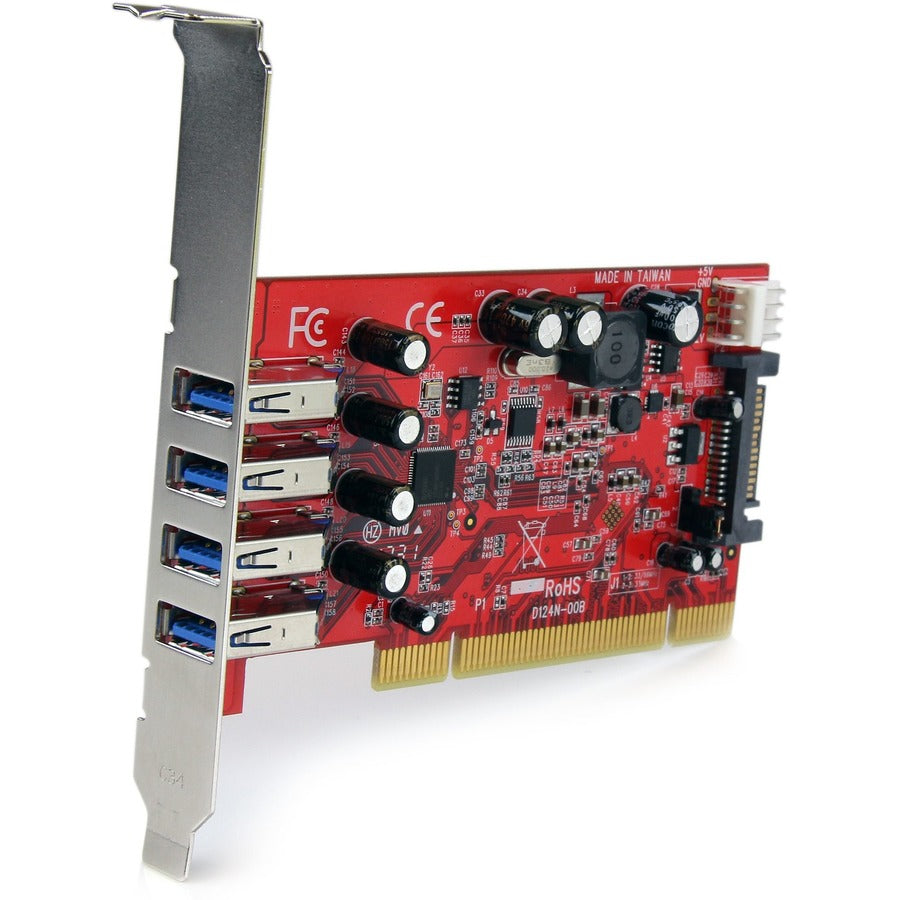

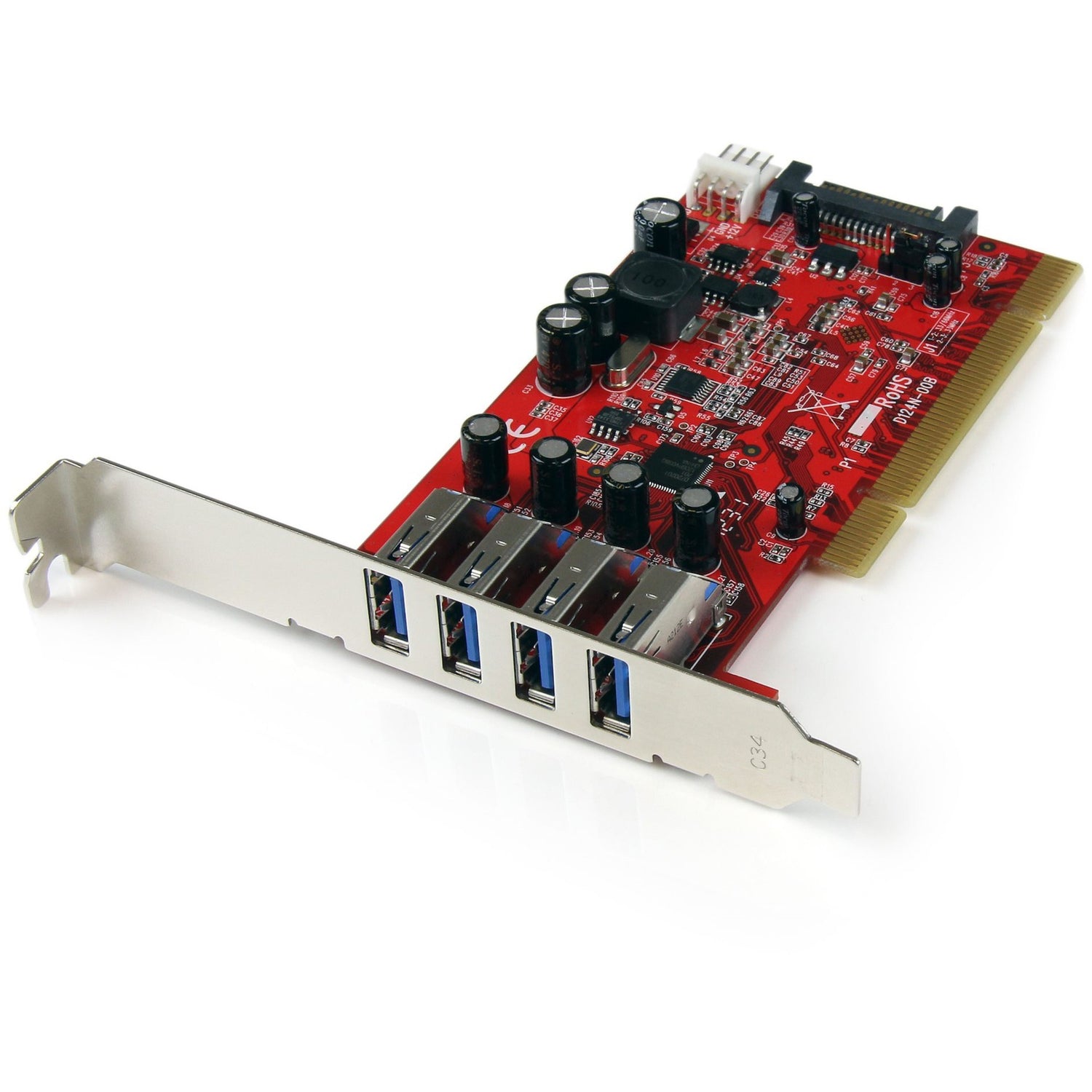

StarTech.com 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power - 5Gbps — PCIUSB3S4

Regular price $78.91 USD
Shipping calculated at checkout.


Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description

The PCIUSB3S4 4-Port PCI to USB 3.2 Gen 1 Card enables legacy PCI slots to support the SuperSpeed USB 3.2 Gen 1 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.2 Gen 1 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection. Note: Some newer PCs may use a PCIe to PCI bridge which can cause unexpected compatibility issues with this product.
This versatile USB 3.2 Gen 1 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.2 Gen 1 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.2 Gen 1 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.2 Gen 1 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

  • COMPATIBILITY: This card is Windows only; Supported versions: Windows XP and up, Windows Server 2003 and up; USB card is only compatible with PCI/PCI-X slots and is NOT COMPATIBLE with PCI-Express (PCIe); See PEXUSB3S4V for a PCIe solution
  • STANDARD & LOW PROFILE BRACKET: PCI USB card comes with a full-profile (standard) bracket pre-installed and a low-profile (half height) bracket included for versatile installation in both low-profile and full-profile computer systems
  • OPTIONAL POWER: USB PCI expansion card features SATA & SP4 power ports to supply additional power to the USB ports (when motherboard power is insufficient); Power can be connected to SATA or SP4 port to provide up to 5V 0.9A/4.5W per USB Type-A port
  • TRANSFER SPEEDS: USB PCI card with UASP achieves speeds up to the maximum of your PCI bus (1.3Gbps); Ideal for older computers with only PCI slots available like Dell OptiPlex 7010/HP Compaq dc7800; Backward compatible with USB 2.0/1.1/1.0
  • ADD 4x SUPERSPEED USB 3.0 PORTS: This PCI/PCI-X Universal (3.3V & 5V, 32-bit) card adds four USB-A 3.2 Gen 1 ports to your computer or server through a PCI slot; Supports USB 3.0/3.1 Gen 1/USB 3.2 Gen 1x1

Specifications

  • Manufacturer
    StarTech.com
  • Limited Warranty
    Lifetime
  • Environmentally Friendly
    Yes
  • Country of Origin
    Taiwan
  • TAA Compliant
    Yes
  • Form Factor
    Plug-in Card
  • Packaged Quantity
    1
  • Platform Supported
    PC
  • Product Type
    USB Adapter
  • Length
    5.2"
  • Product Color
    Red
  • Manufacturer Website Address
    http://www.startech.com
  • Total Number of USB Ports
    4
  • Host Interface
    PCI-X
  • Number of SATA Ports
    1
  • UASP Support
    Yes
  • Number of USB 3.2 Ports
    4
  • Data Transfer Rate
    5 GB/s
  • Environmental Certification
    REACH,RoHS,WEEE
  • Operating System Supported
    Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019
  • Package Contents
    4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual
