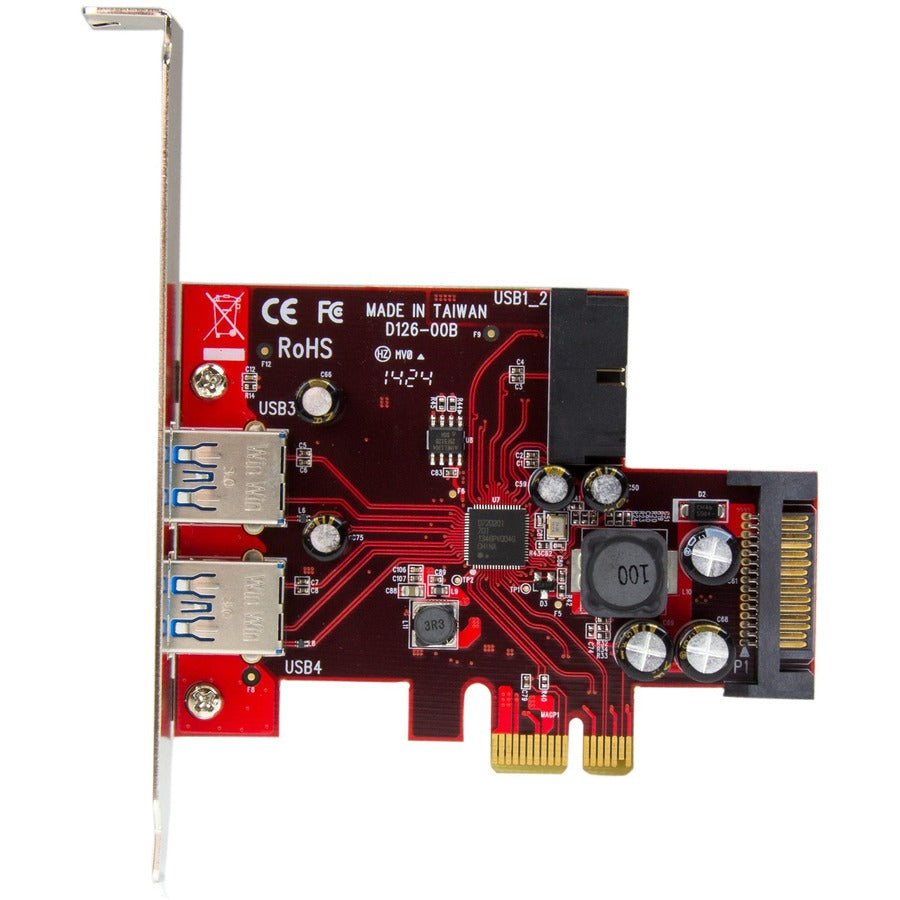

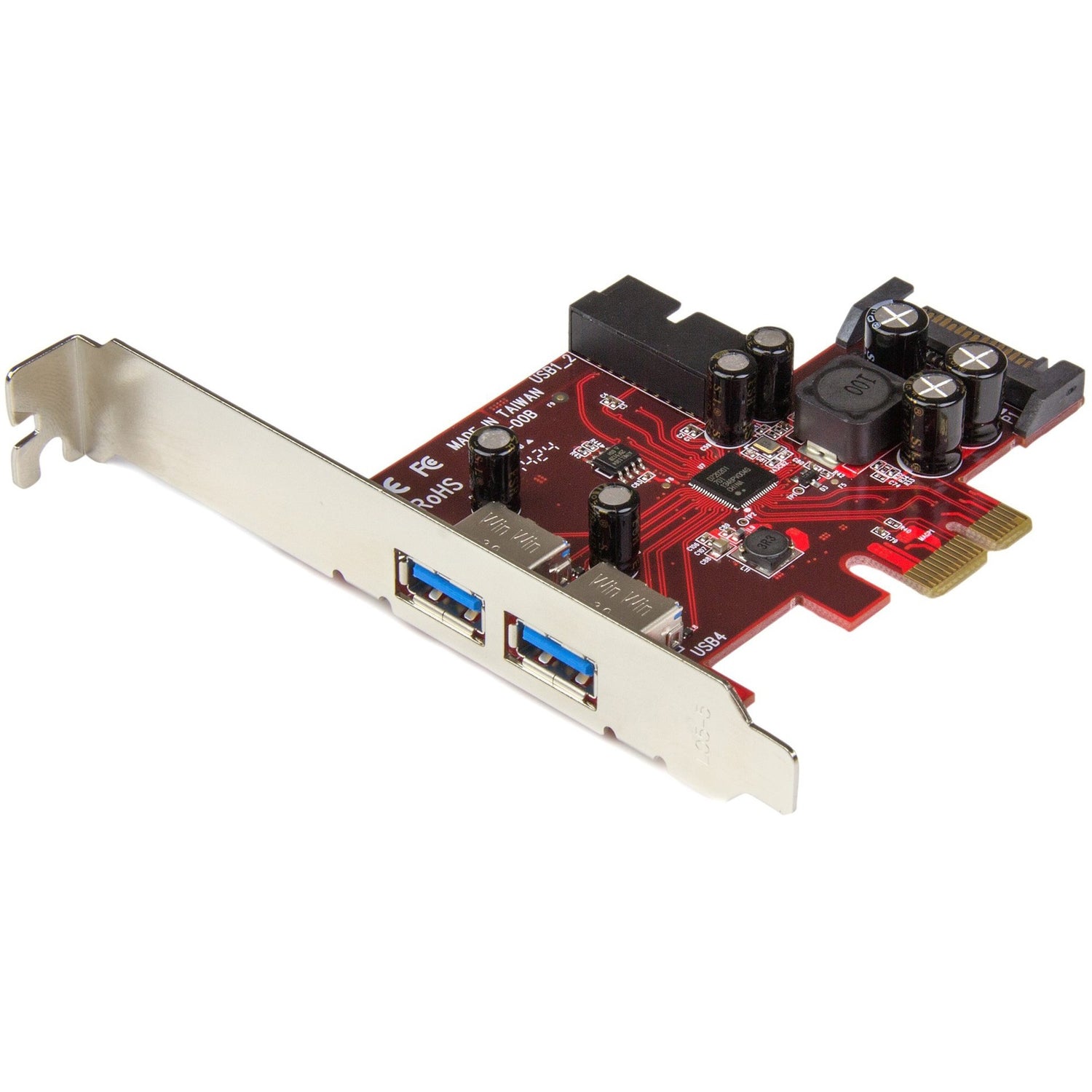

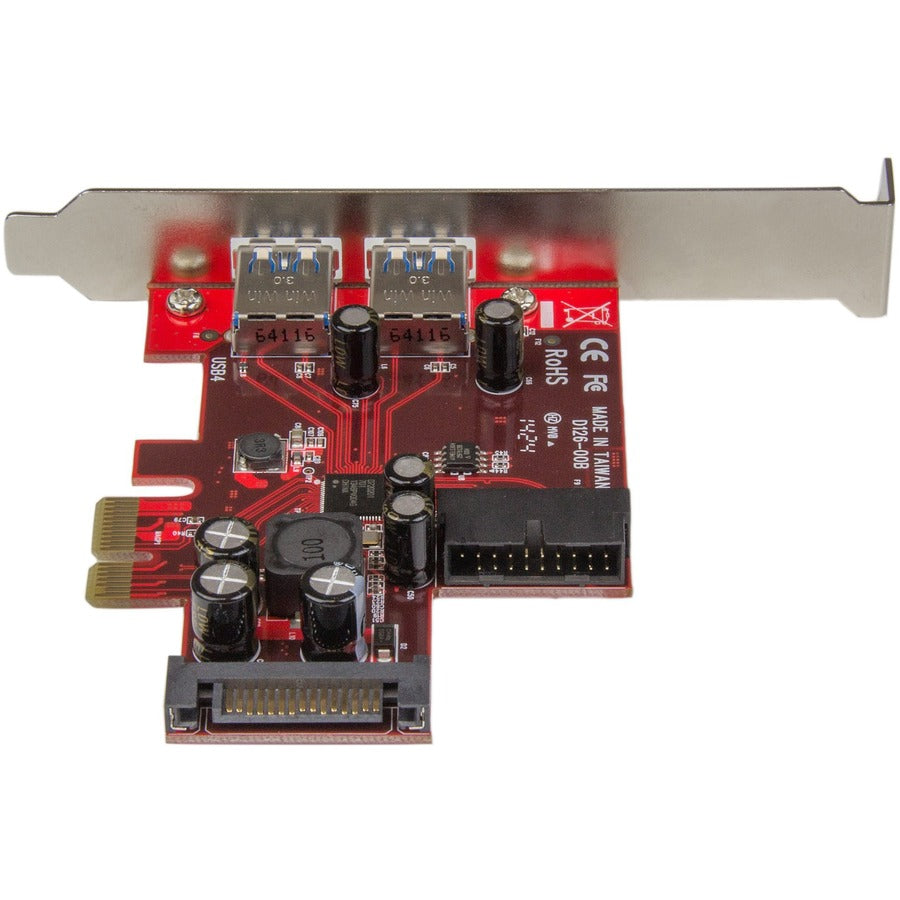

StarTech.com 4 Port PCI Express USB 3.0 Card - 5Gbps - 2 External & 2 Internal (IDC) - SATA Power — PEXUSB3S2EI

Regular price $47.14 USD
Shipping calculated at checkout.


Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description

This PCI Express USB 3.2 Gen 1 card offers a cost-effective upgrade that lets you add four USB 3.2 Gen 1 ports to your computer through a PCIe slot. It offers two external ports plus two internal (IDC) USB 3.2 Gen 1 headers to help adapt your desktop or server to support a variety of USB 3.2 Gen 1 devices.
With extra motherboard-style USB 3.2 Gen 1 headers you have the flexibility to add more internal USB 3.2 Gen 1 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades.
For added convenience, the card integrates two external USB 3.2 Gen 1 ports, so you can plug in more devices such as external hard drives or printers.
The USB 3.2 Gen 1 card is easy to install and requires no additional drivers or software in natively supported Windows 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed.
Connecting older peripherals isn't a problem either. So, there's no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology.
This high-performance SuperSpeed USB 3.2 Gen 1 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 1, when paired with a
The PEXUSB3S2EI is ruggedly built for reliable USB 3.2 Gen 1 device connections and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.

More from the Manufacturer

More from the Manufacturer

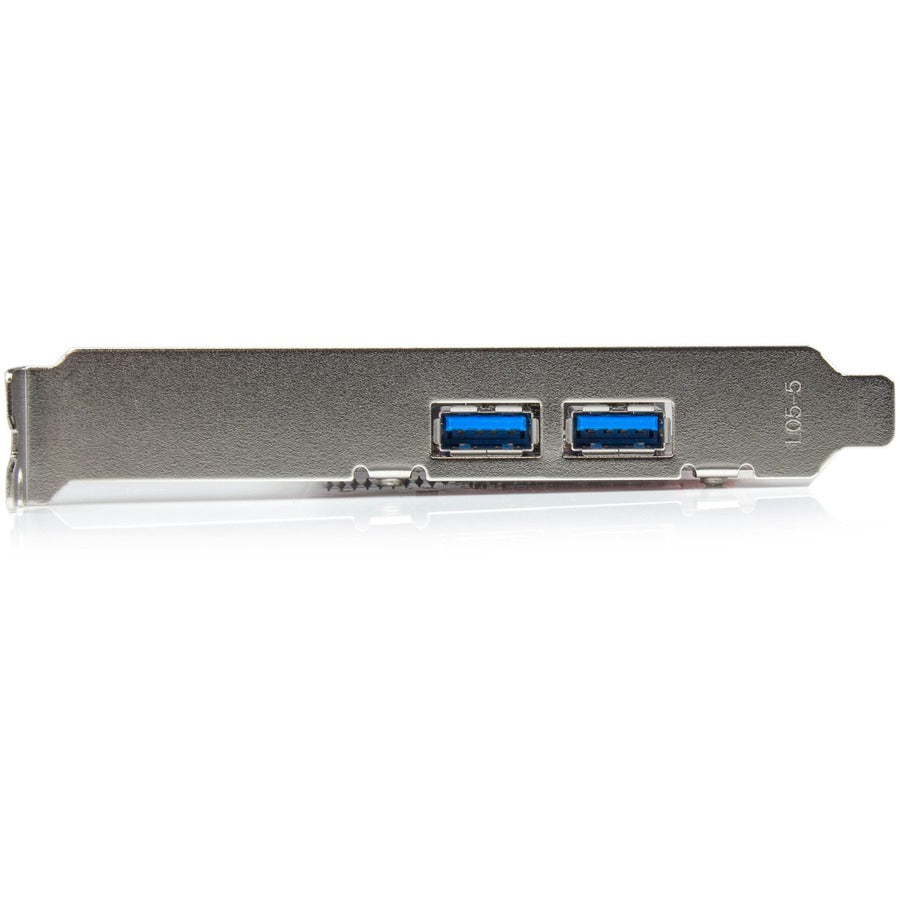

  • Configured with full-profile bracket, half-height bracket included
  • PCIe x1 interface, compliant with PCI Express 2.0 specifications
  • Optional SATA power connector provides up to 900mA per port for high-power USB devices
  • Transfer large files at lightning speed, with throughput support up to 5 Gbps
  • Backward compatibility lets you save money and connect existing USB 2.0 and 1.x devices
  • Fast, hassle-free setup with Windows 8 native support, and fits into standard or low-profile systems
  • Flexibility to connect external and internal USB 3.2 Gen 1 devices and supports UASP

Specifications

  • Manufacturer
    StarTech.com
  • Environmentally Friendly
    Yes
  • Limited Warranty
    2 Year
  • Country of Origin
    Taiwan
  • TAA Compliant
    Yes
  • Form Factor
    Plug-in Card
  • Packaged Quantity
    1
  • Platform Supported
    PC
  • Product Type
    USB Adapter
  • Length
    3.6"
  • Product Color
    Red
  • Manufacturer Website Address
    http://www.startech.com
  • Total Number of USB Ports
    4
  • Host Interface
    PCI Express x1
  • Number of SATA Ports
    1
  • UASP Support
    Yes
  • Package Contents
    4-port PCI Express USB 3.0 Card - 2 External, 2 Internal - SATA Power 1 x Low-Profile Bracket 1 x Driver CD 1 x Instruction Manual
  • Number of USB 3.2 Ports
    4
  • Operating System Supported
    Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019
