StarTech.com 3ft (1m) Panel Mount DisplayPort Cable, 4K x 2K Video, DisplayPort 1.2 Extension Cable Male to Female, DP Extender Cord — DPPNLFM3PW

Regular price $20.49 USD
Shipping calculated at checkout.


Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description

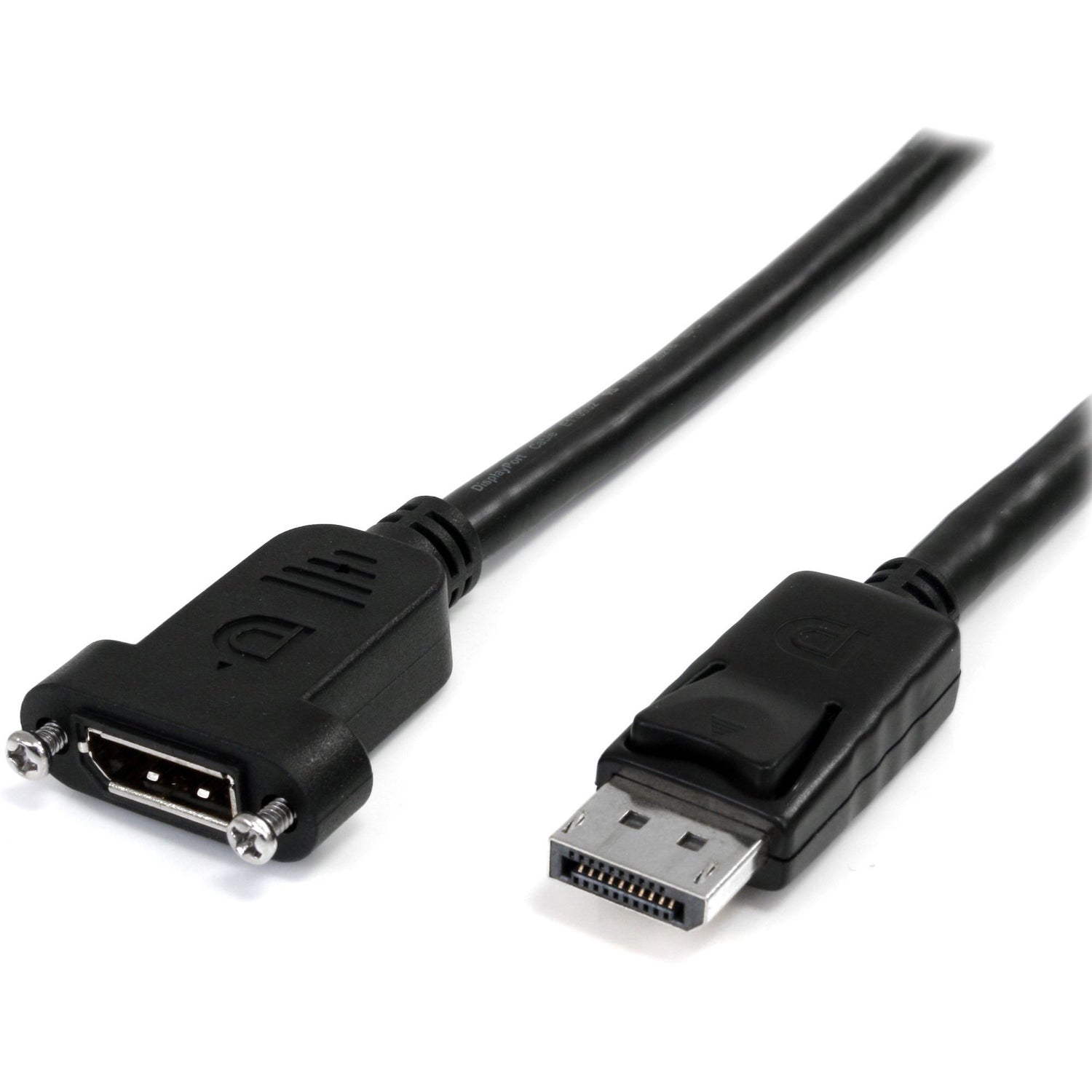

The DPPNLFM3PW 3ft DisplayPort Extension Panel Mount Cable features one DP male connector and one panel mount DP female connector, providing a well-secured, easy to access DisplayPort connection on your PC or faceplate, and allowing you to customize your systems to suit your needs. If power is required, the DisplayPort Cable uses all 20 pins and can deliver power accordingly.

The DPPNLFM3PW is backed by StarTech.com's lifetime warranty for guaranteed reliability.

More from the Manufacturer

  • SPECS: 3' (0.91m)
  • White
  • DisplayPort 1.2
  • DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws)
  • 28 AWG
  • PVC cable jacket, ABS connector shell
  • Shield: Double sided copper foil
  • Backward compatible w/ DP1.1
  • Lifetime Warranty
  • APPLICATIONS: Add extra 6ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display
  • QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio

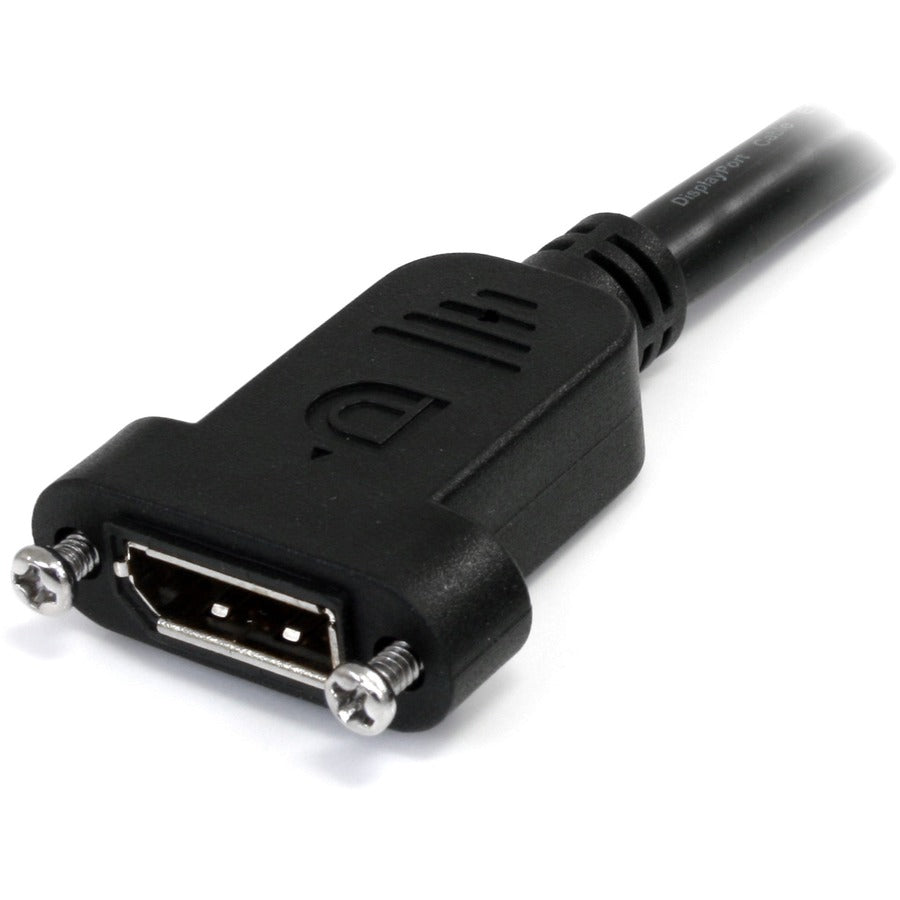

  • RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
  • PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)

Specifications

  • Manufacturer
    StarTech.com
  • Limited Warranty
    Lifetime
  • Environmentally Friendly
    Yes
  • Country of Origin
    China
  • Product Type
    Video Cable
  • Product Color
    White
  • Jacket Material
    Polyvinyl Chloride (PVC)
  • Cable Length
    3 ft
  • Manufacturer Website Address
    http://www.startech.com
  • Contact Plating
    Gold
  • American Wire Gauge
    28 AWG
  • Shielding
    Yes
  • Data Transfer Rate
    21.6 Gbit/s
  • Supported Resolution
    3840 x 2400
  • Device Supported
    Audio/Video Device,PC,Faceplate
  • Features
    Molded,Flexible,Strain Relief,Fray Resistant,Damage Resistant,Latching Connector,EMI Protection
  • Connector Type on First End
    DisplayPort 1.2 Digital Audio/Video - Male
  • Connector Type on Second End
    DisplayPort 1.2 Digital Audio/Video - Female
  • Connector on Second End Details
    1 x DisplayPort 1.2 Digital Audio/Video - Female
  • Connector on First End Details
    1 x DisplayPort 1.2 Digital Audio/Video - Male
  • Connector Gender on First End
    Male
  • Connector Gender on Second End
    Female
