StarTech.com 3 Port 2b 1a LP 1394 PCI Express FireWire Card — PEX1394B3LP

Regular price $72.76 USD
Shipping calculated at checkout.


Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description

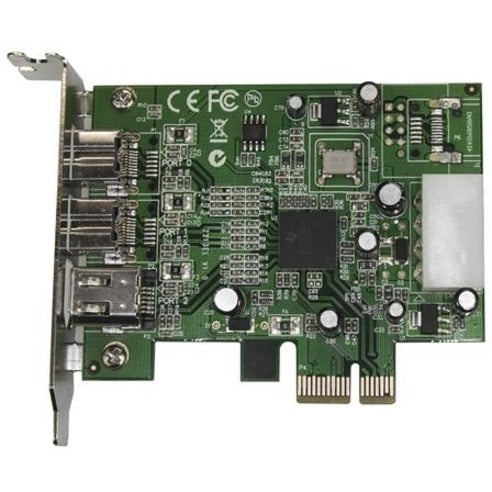

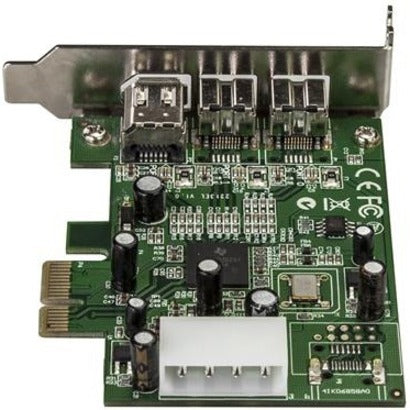

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.

More from the Manufacturer

More from the Manufacturer

  • Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
  • Internal power connector for high-powered FireWire devices
  • Built with a native PCI Express chipset, no bridge chip
  • Includes full/standard profile installation bracket
  • Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
  • One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps

Specifications

  • Manufacturer
    StarTech.com
  • Limited Warranty
    Lifetime
  • Environmentally Friendly
    Yes
  • Country of Origin
    Taiwan
  • TAA Compliant
    Yes
  • Form Factor
    Plug-in Card
  • Length
    3.3"
  • Product Type
    FireWire Adapter
  • Manufacturer Website Address
    http://www.startech.com
  • Host Interface
    PCI
  • Number of FireWire/i.LINK 400 Ports
    1
  • Total Number of FireWire/i.LINK Ports
    3
  • Number of FireWire/i.LINK 800 Ports
    2
  • Package Contents
    3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter 1 x FireWire Cable 1 x Full Profile Bracket 1 x Software CD 1 x Instruction Manual
  • Platform Supported
    PC,Mac,Linux
  • Operating System Supported
    Windows 2000,Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019,Windows Server 2022,Mac OS X 10.6 Snow Leopard,Mac OS X 10.8 Mountain Lion,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 3.5.x
  • Data Transfer Rate
    800 MB/s
