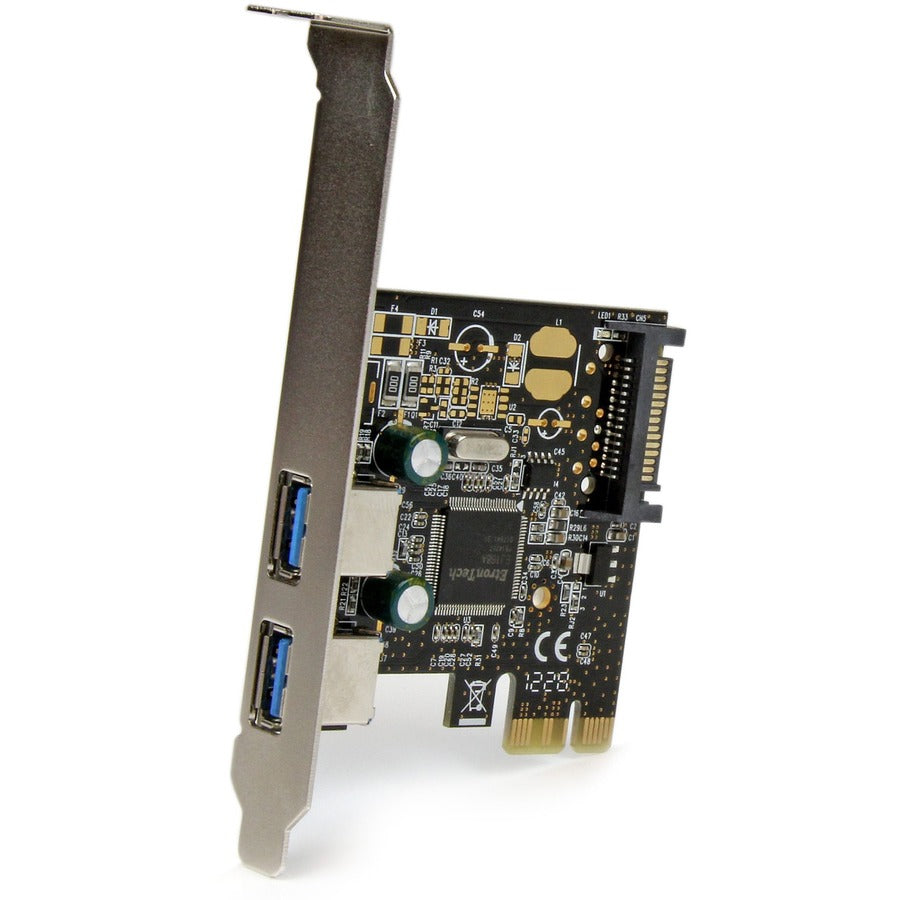

StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps — PEXUSB3S23
StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps — PEXUSB3S23 is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps — PEXUSB3S23 is backordered and will ship as soon as it is back in stock.
Description
Description
The PEXUSB3S23 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Includes a Low Profile/half-height installation bracket
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications
- Compliant with PCI Express 2.0 specifications
- SATA power connector (required) provides up to 900mA per USB port
- Supports data rates up to 5 Gbps
- Provides two external USB 3.2 Gen 1 connections
Specifications
Specifications
-
ManufacturerStarTech.com
-
Environmentally FriendlyYes
-
Country of OriginChina
-
Limited Warranty2 Year
-
Form FactorPlug-in Card
-
Packaged Quantity1
-
Platform SupportedPC
-
Length3.1"
-
Product TypeUSB Adapter
-
Product ColorBlack
-
Manufacturer Website Addresshttp://www.startech.com
-
Total Number of USB Ports2
-
Host InterfacePCI Express x1
-
Number of SATA Ports1
-
UASP SupportNo
-
Number of USB 3.2 Ports2
-
Environmental CertificationRoHS,REACH,WEEE
-
Operating System SupportedWindows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019
-
Package Contents2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual
