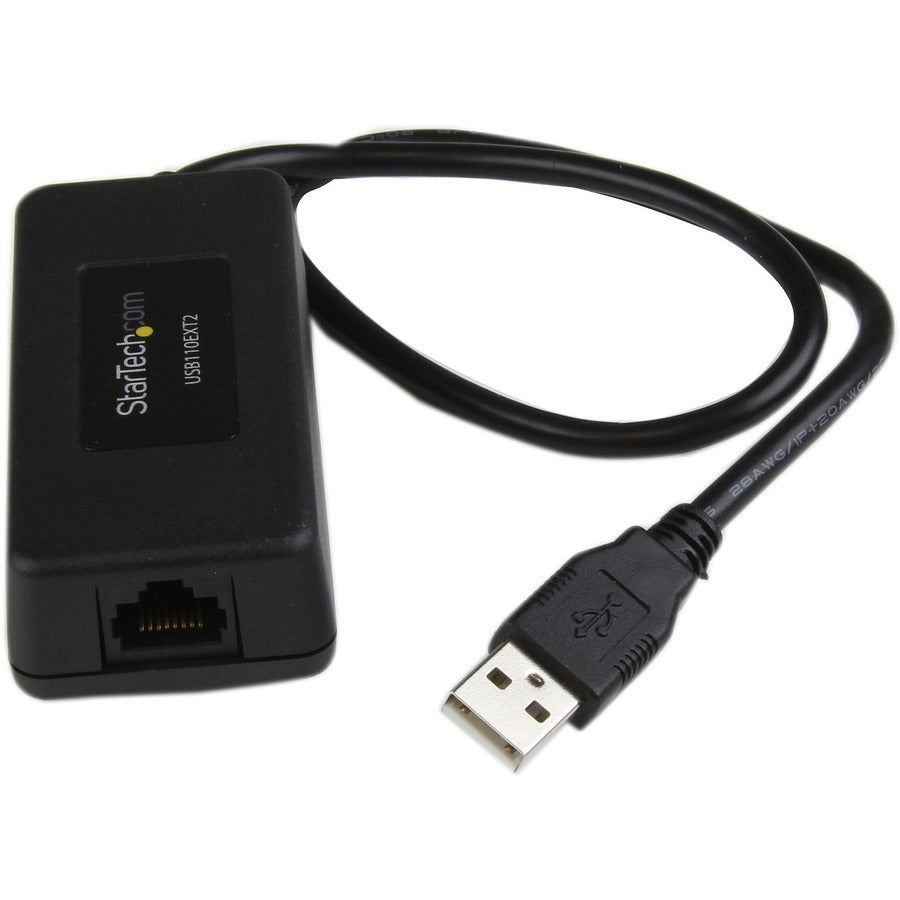

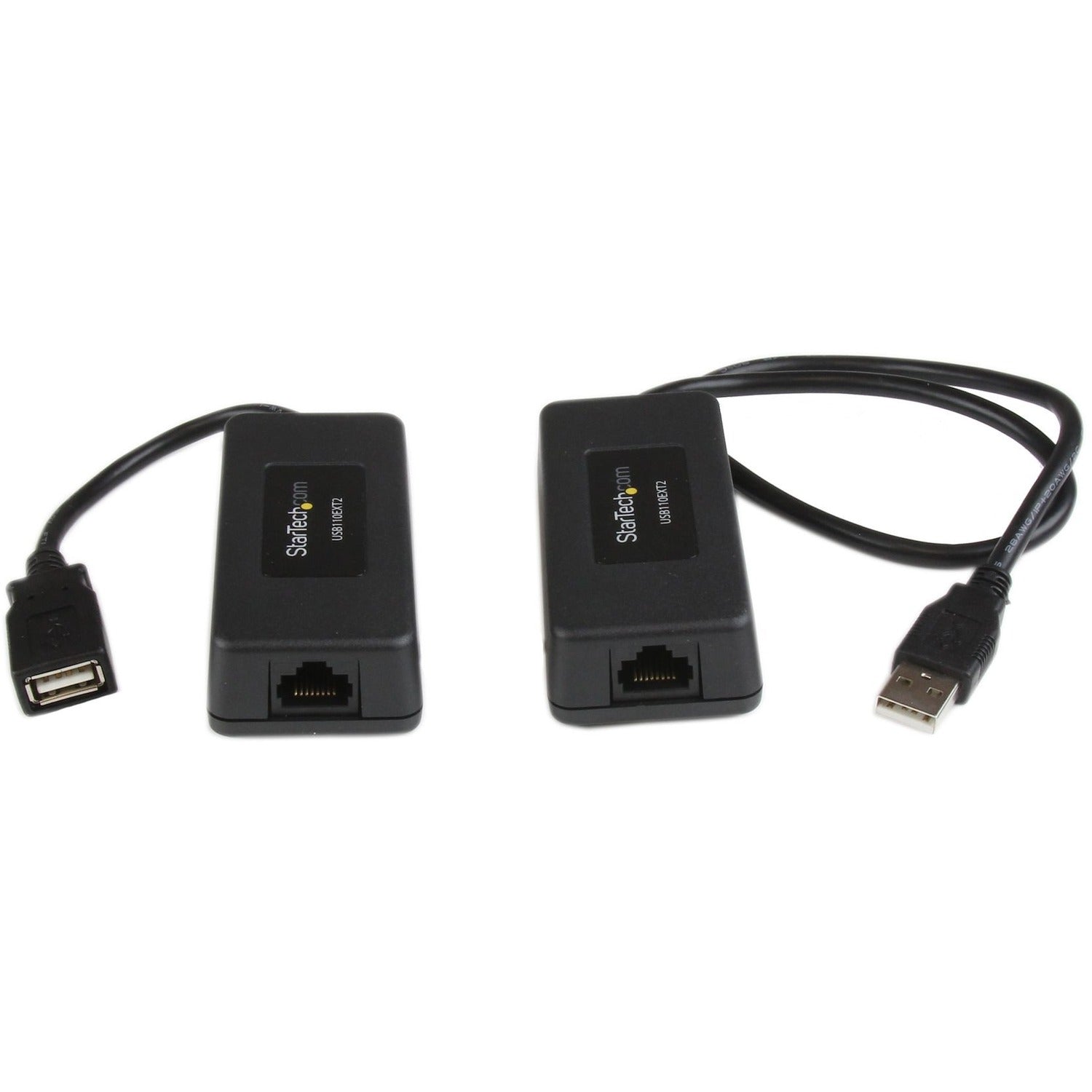

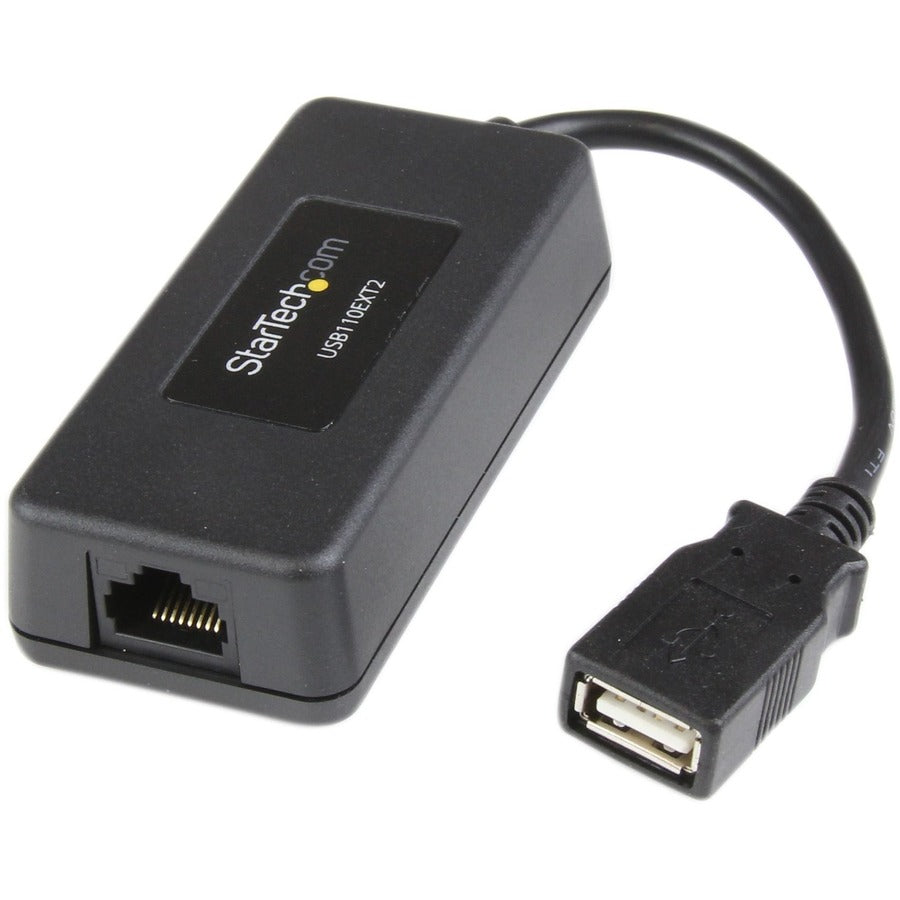

StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m) — USB110EXT2

$145.54 USD
Shipping calculated at checkout.
Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description
The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.

The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.

Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

  • No driver or software required
  • Integrated USB cables
  • Efficient circuit design provides up to 300mA of power at the remote end
  • 8kV Contact and 16kV Air Electrical Static Discharge (ESD) protection
  • Full Speed USB 1.1 compliant host interface, with data bandwidth up to 12 Mbps
  • Support for a maximum distance of up to 40m (131ft), over Cat5 or Cat6 cabling
  • 1x USB 1.1 port, 1x RJ45 port

Specifications
  • Manufacturer
    StarTech.com
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Country of Origin
    China
  • Limited Warranty
    3 Year
  • Packaged Quantity
    1
  • Length
    3.3"
  • Product Color
    Black
  • Product Material
    Plastic
  • Product Type
    USB Extender
  • Transmitter Weight (Approximate)
    3.88 oz
  • Receiver Weight (Approximate)
    3.88 oz
  • Manufacturer Website Address
    http://www.startech.com
  • USB
    Yes
  • Number of USB Ports
    1
  • Maximum Extended Range
    131.23 ft
  • Package Contents
    1 x Local Unit 1 x Remote Unit 1 x Instruction Manual
  • Certifications & Standards
    CE FCC
  • Additional Information
    Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders, for more versatile device connection options USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 165 feet (50 meters) - a cost-effective solution for extending USB devices that don't require the higher bandwidth offered by USB 2.0+ USB over Cat5/Cat6 eliminates the need to cascade expensive, inflexible and space consuming USB hubs or repeaters for extending the range of a USB device 1x USB 1.1 port, 1x RJ45 port 8kV Contact and 16kV Air Electrical Static Discharge (ESD) protection Integrated USB cables No driver or software required
  • Maximum Data Transfer Rate
    1.50 MB/s
