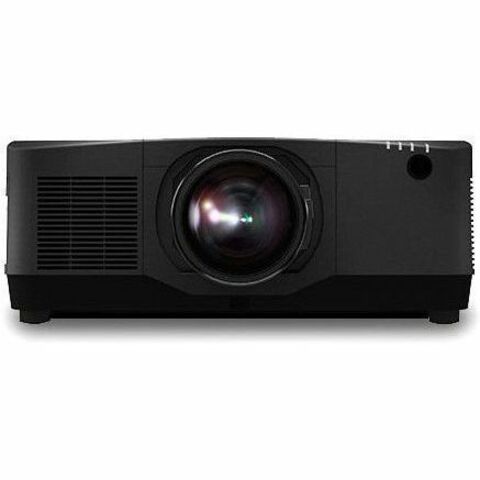

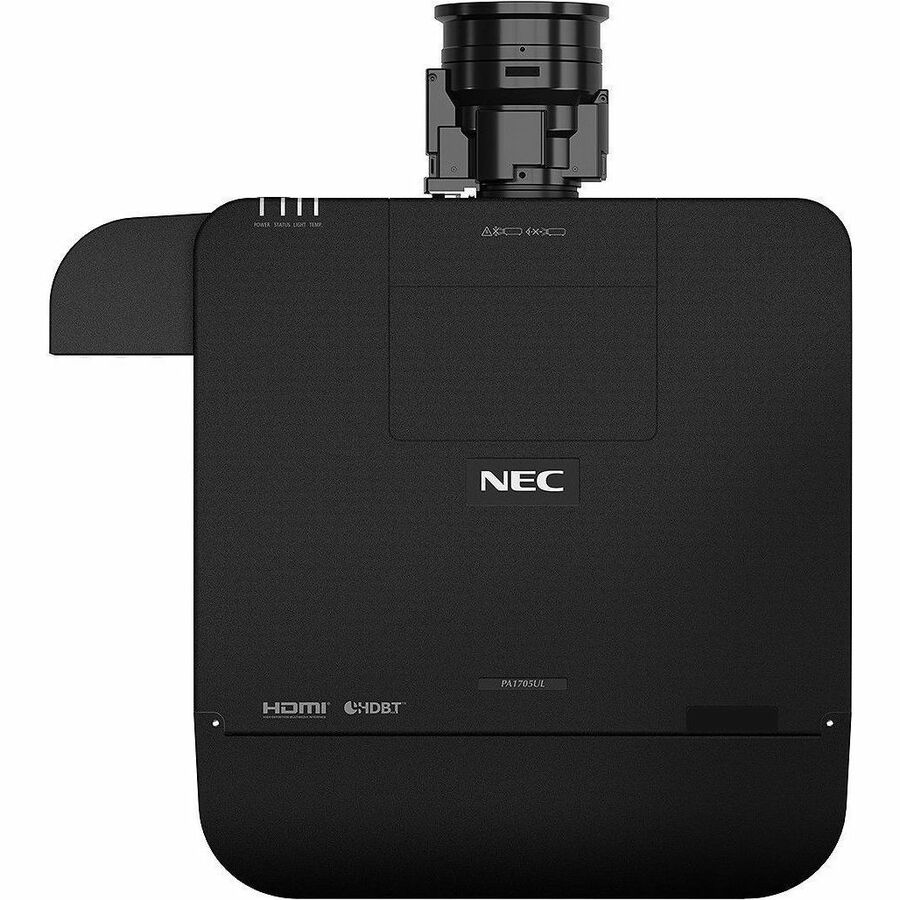

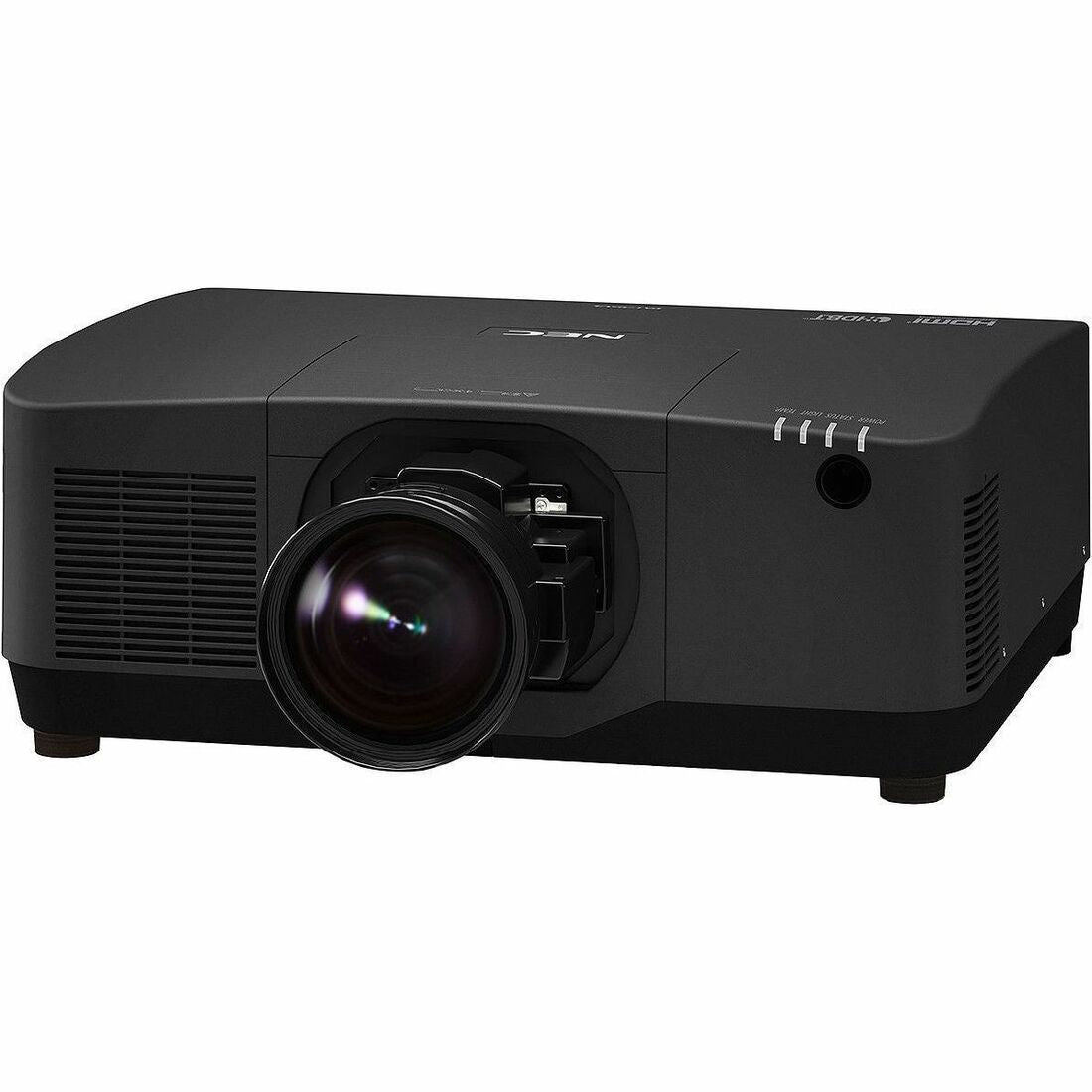

Sharp NP-PA1705UL-B LCD Projector - 16:10 - Ceiling Mountable, Floor Mountable - Black — NP-PA1705UL-B
Sharp NP-PA1705UL-B LCD Projector - 16:10 - Ceiling Mountable, Floor Mountable - Black — NP-PA1705UL-B is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Description
Description
The Sharp/NEC NP-PA1705UL-B is a 16,000-lumen (17,000 lm center) LCD laser projector with a 16:10 aspect ratio, built for higher-education and corporate installation. It offers extensive digital connectivity, optional motorized lenses, and HDBaseT for single-cable video, audio, Ethernet, and control.
- 16,000-lumen brightness (17,000 lm center) for high-ambient-light rooms
- 16:10 LCD laser light source; 4K-ready via high-performance scaling
- HDBaseT input with repeater support for edge-blending and stacking
- Optional motorized lenses (shift, focus, zoom) and roll-free installation
- Integrates with AMX, Crestron RoomView, Extron XTP, and PJLink; ProAssist setup software
Specifications
Specifications
-
Limited Warranty5 Year
-
Product TypeLCD Projector
-
ManufacturerSharp NEC Display Solutions Ltd.
-
Form FactorCeiling Mountable
-
Product ColorBlack
-
USBYes
-
Network (RJ-45)Yes
-
Graphic ModeWUXGA
-
Video Signal StandardHDTV
-
HDMIYes
-
Number of Lamps1
-
Native Aspect Ratio16:10
-
Normal Mode Lamp Life20000 Hour
-
Output Scan Format1080p
-
Native Resolution1920 x 1200
-
Lamp TypeLaser
-
Contrast Ratio3,000,000:1
-
Maximum Resolution4096 x 2160
-
Maximum Diagonal Image Size41.67 ft
-
SDI Standard3G-SDI
-
Product SeriesNP
-
Operating Power Consumption960 W
-
Projection MethodFront,Rear,Front Ceiling,Rear Ceiling
-
Standard Mode Brightness17000 lm
-
Manufacturer Website Addresshttp://www.sharp-nec-displays.com/
-
Application/UsageEducation,Corporate,Class Room,Meeting,Room,Auditorium,Large Venue
-
Additional Warranty InformationRegistered owners receive a 5-year or 20,000 hours parts and labor warranty including instacare next business day exchange.
-
Package Contents17,000-Lumen Professional Installation Projector Remote Control Batteries Power Cord Lens Hole Cap User Manual (Web Download) Installation Manual (Web Download) Quick Start Guide Important Information Product registration Card Lens Anti-Theft Screw Security Sticker
-
Product ModelNP-PA1705UL-B
