Description
Description

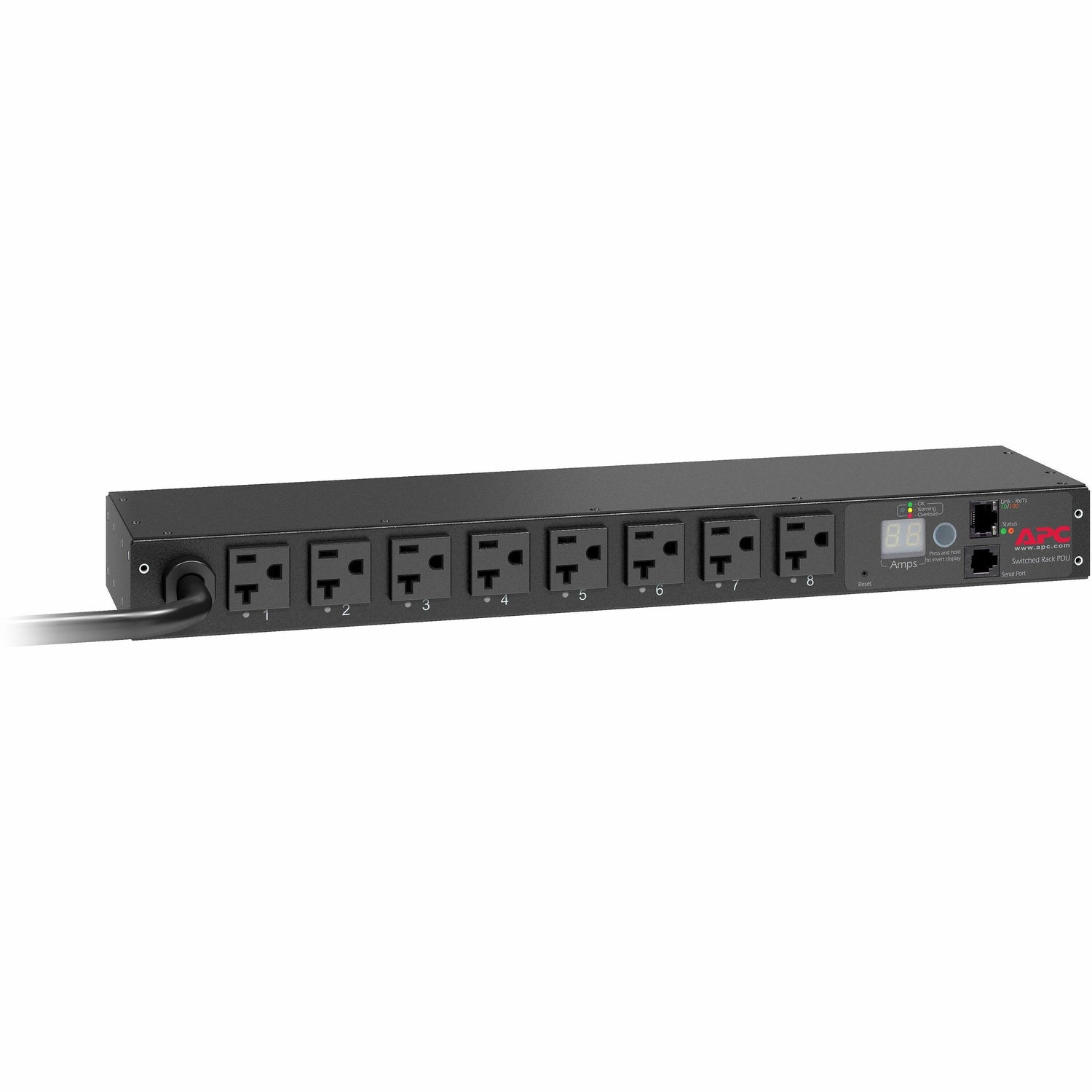

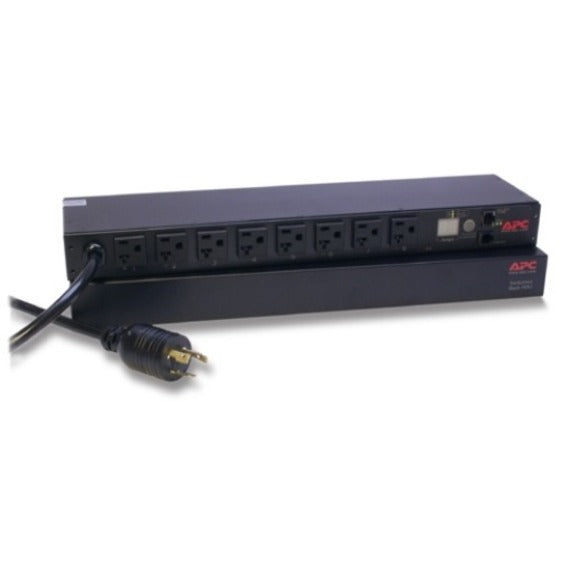

It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 120V. It features 8 NEMA 5-20R outlets and a NEMA L5-20P input connection. The PDU has a 1U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
- The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
- Supports remote monitoring and control, enabling users to manage power distribution from a distance
- With a 1U form factor, it saves valuable rack space and allows for efficient cable management
- It features 8 NEMA 5-20R outlets, providing ample connectivity options for different devices
- It can handle a maximum current capacity of 20A, making it suitable for various applications
Specifications
Specifications
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Limited Warranty2 Year
-
Rack Height1U
-
ManufacturerSchneider Electric SA
-
Product TypePDU
-
Mount TypeRack-mountable
-
Cord Length12 ft
-
Receptacle TypeNEMA 5-20R
-
Manufacturer Website Addresshttp://www.schneider-electric.com
-
Output Voltage120 V AC
-
Plug/Connector TypeNEMA L5-20P
-
Power Rating (VA)2400 VA
-
PDU TypeSwitched
-
Network (RJ-45)Yes
-
Plug/Connector Detail1 x NEMA L5-20P
-
Receptacle Detail8 x NEMA 5-20R
-
Input Current20 A
-
Package ContentsRack PDU, Switched, 1U, 20A, 120V, (8)5-20 Cord retention bracket(s) Horizontal mounting brackets Installation guide User manual
-
Additional Warranty Information2 years repair or replace
-
Input Voltage100 V,120 V
