Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20 — AP7801B
Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20 — AP7801B is backordered and will ship as soon as it is back in stock.
Volume or contract pricing? Get a written quote with confirmed lead time.
Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20 — AP7801B
Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20 — AP7801B is backordered and will ship as soon as it is back in stock.
Description
Description

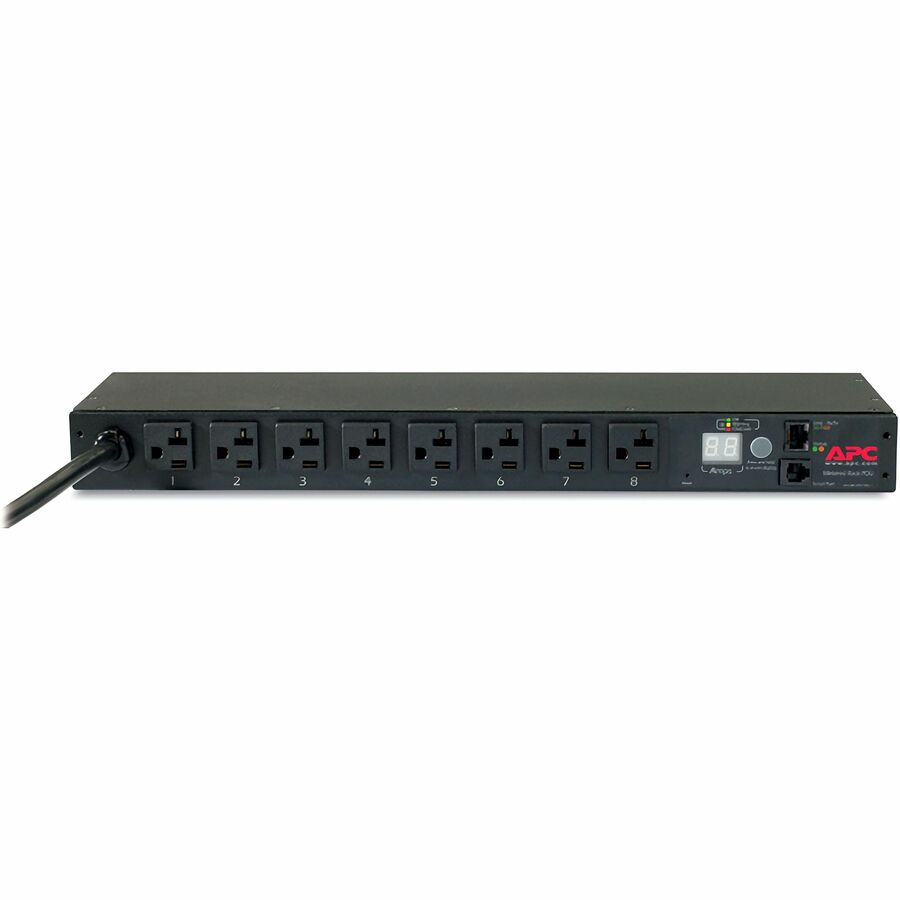

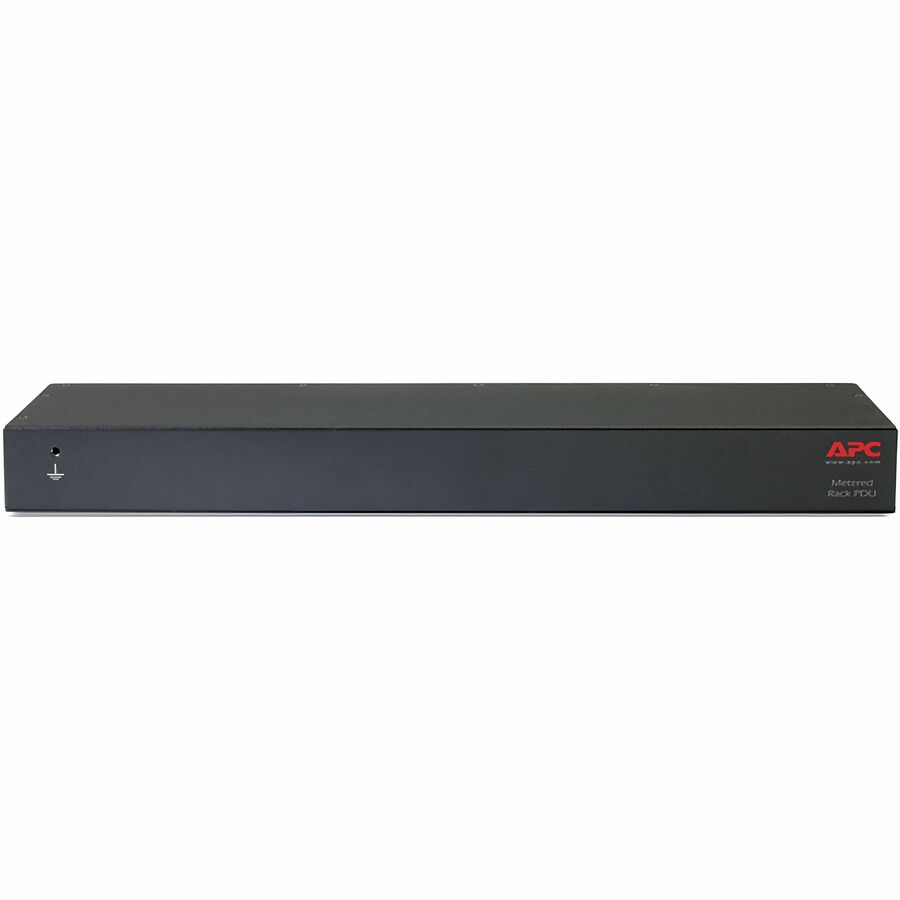

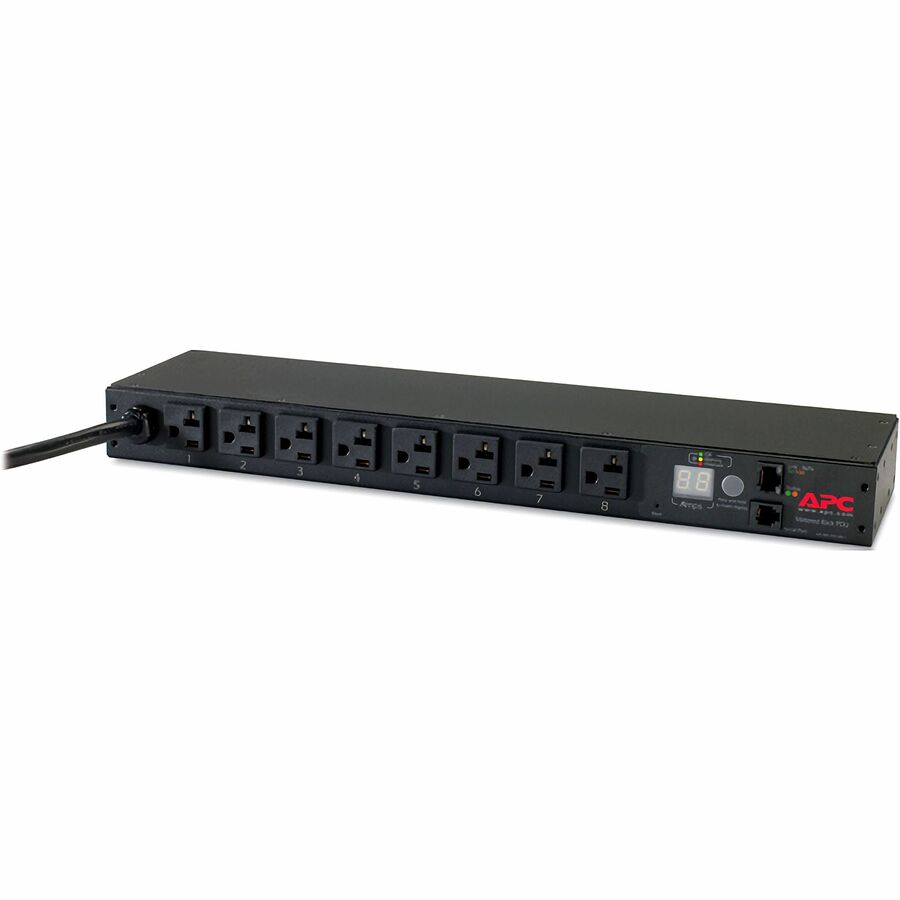

It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 20A and operates at 120V. The PDU features 8 NEMA 5-20R outlets and a 12-foot power cord with a NEMA L5-20P plug. It has a load capacity of 1920 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
- Includes a cord retention bracket and toolless mounting kit for quick setup
- Supports up to 20A, 120V power distribution, ensuring reliable power delivery
- Horizontal mounting to fit various rack configurations, conserving space
- Provides 8 NEMA 5-20R outlets for comprehensive power distribution
Specifications
Specifications
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Limited Warranty2 Year
-
Rack Height1U
-
ManufacturerSchneider Electric SA
-
Product TypePDU
-
Mount TypeRack-mountable
-
Cord Length12 ft
-
Receptacle TypeNEMA 5-20R
-
Manufacturer Website Addresshttp://www.schneider-electric.com
-
Output Voltage120 V AC
-
Plug/Connector TypeNEMA L5-20P
-
Power Rating (VA)1920 VA
-
PDU TypeMetered
-
Receptacle Detail8 x NEMA 5-20R
-
Input Current20 A
-
Package ContentsRack PDU, Metered, 1U, 20A, 120V, (8) 5-20 Cord retention bracket(s) Installation guide Rack mounting brackets User manual
-
Additional Warranty Information2 years repair or replace
-
Input Voltage100 V,120 V
