Rack PDU, Basic, Zero U, 20A, 120V, (24)5-20 — AP7530
Rack PDU, Basic, Zero U, 20A, 120V, (24)5-20 — AP7530 is backordered and will ship as soon as it is back in stock.
Volume or contract pricing? Get a written quote with confirmed lead time.
Rack PDU, Basic, Zero U, 20A, 120V, (24)5-20 — AP7530
Rack PDU, Basic, Zero U, 20A, 120V, (24)5-20 — AP7530 is backordered and will ship as soon as it is back in stock.
Description
Description

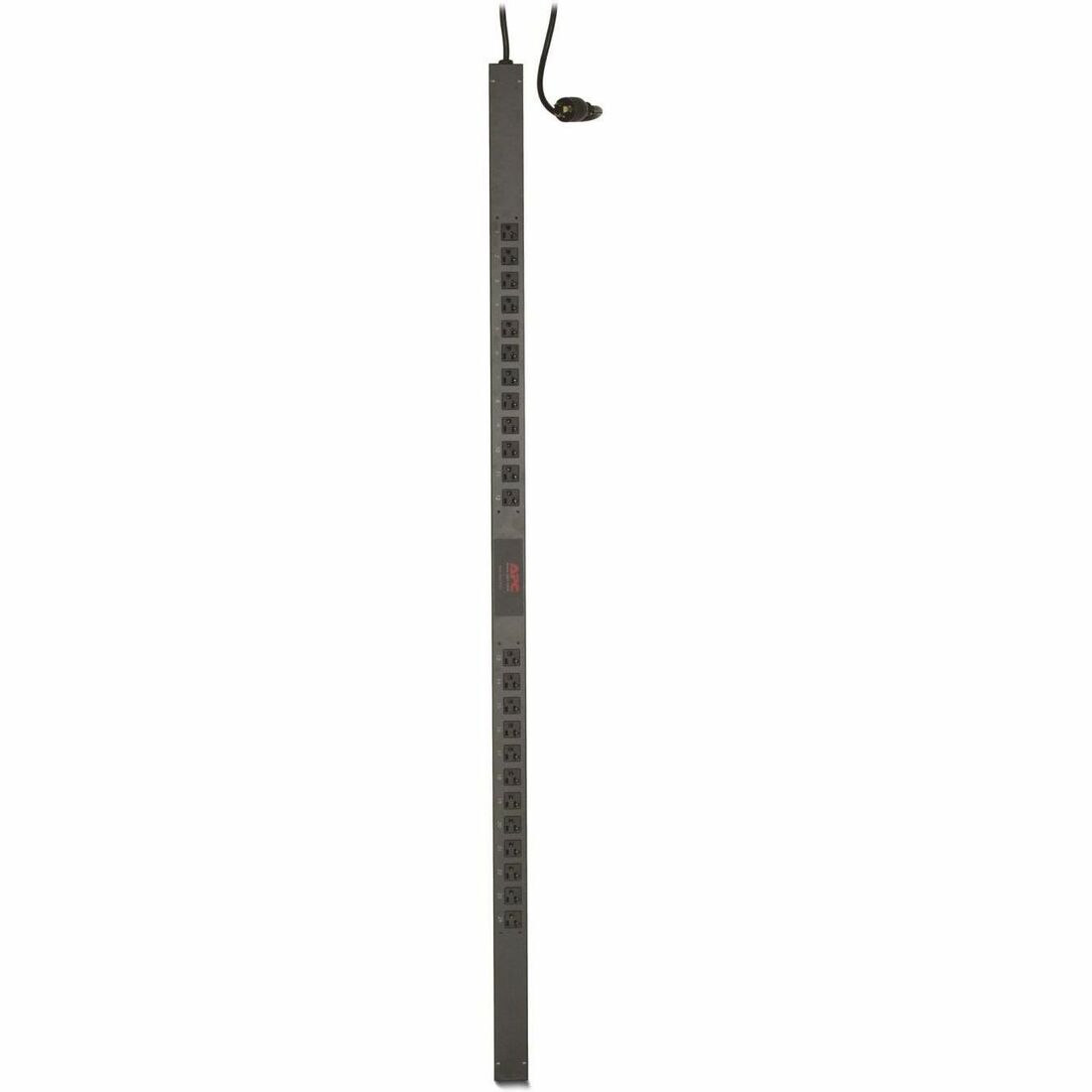

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 24 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with a NEMA L5-20P plug. The unit is designed for reliable power distribution and includes cord retention brackets, an installation guide, rack mounting brackets, and a toolless mounting kit.
- Compatible with a variety of rack enclosures and power configurations

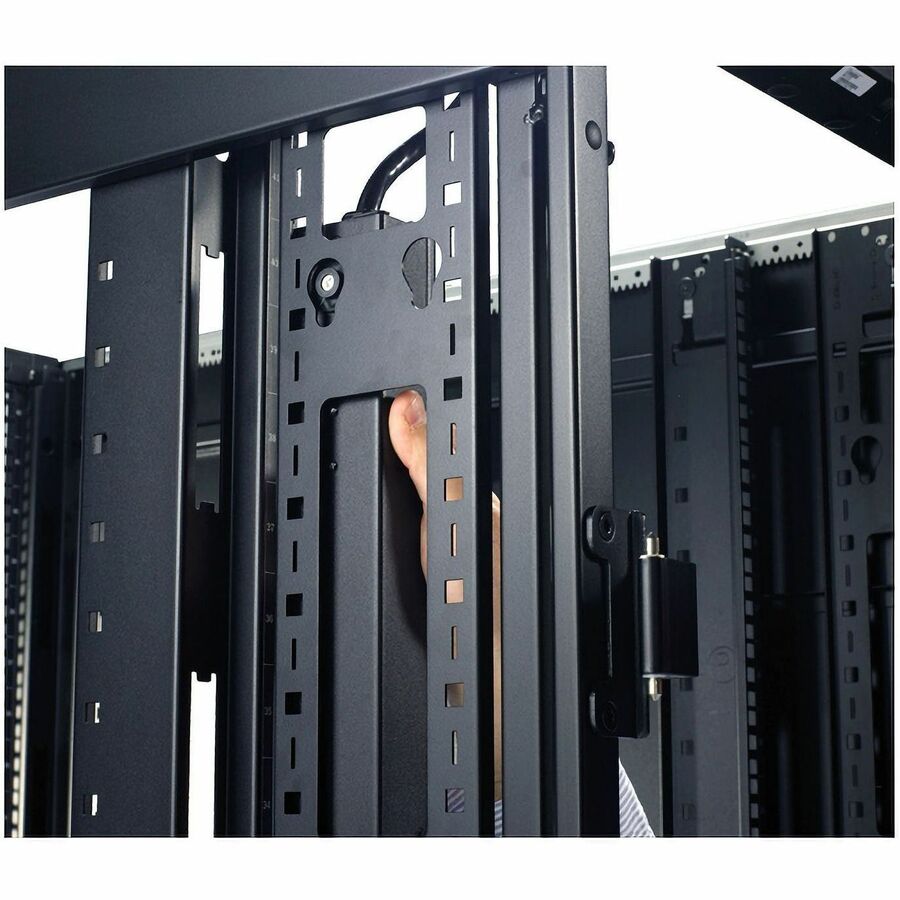

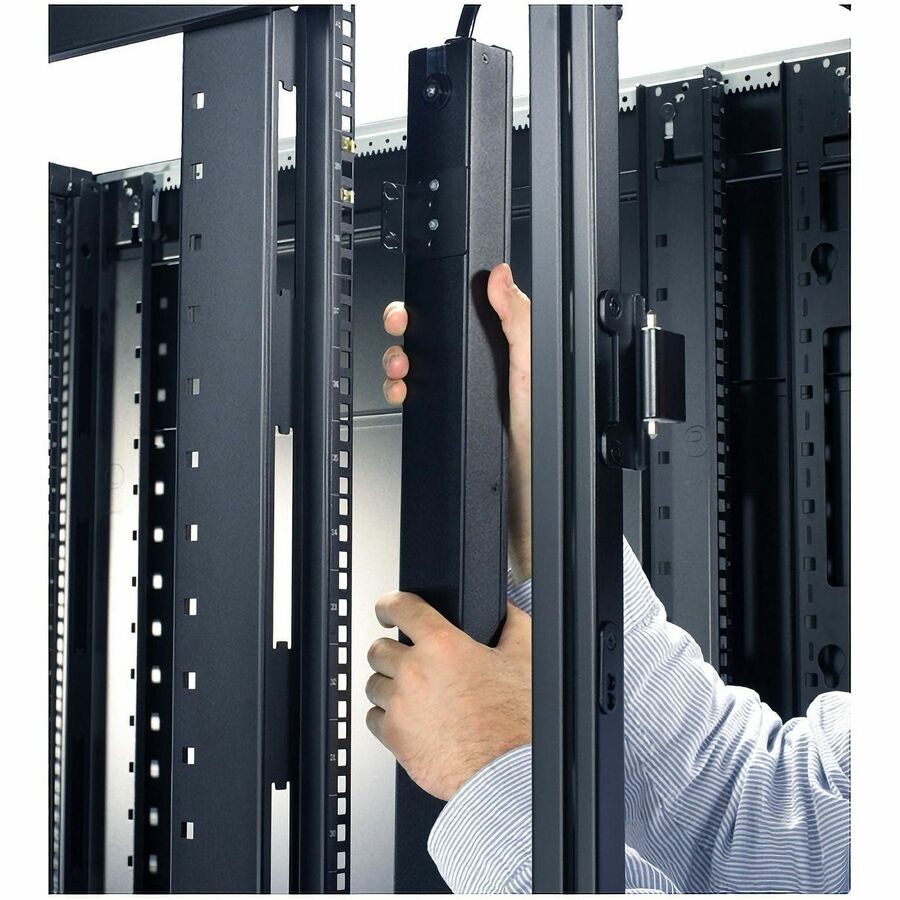

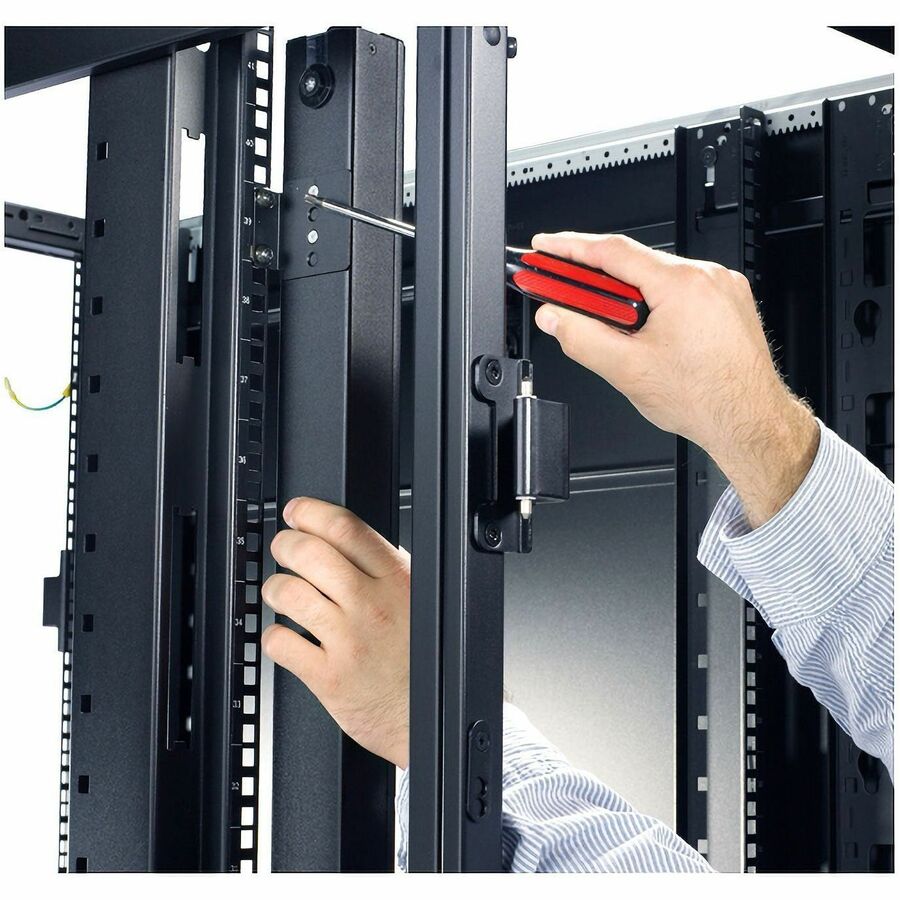

- Easy installation with toolless mounting capabilities

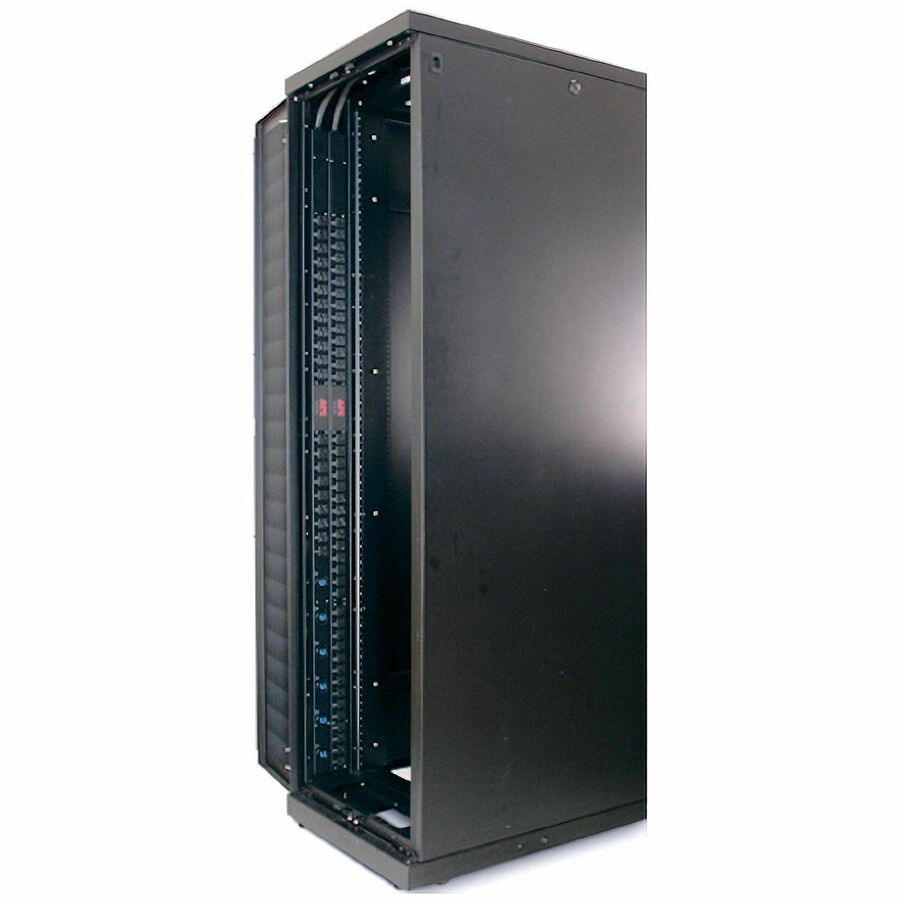

- Mounts vertically in the rack, saving valuable rack space for other equipment
- Supports up to 24 outlets, allowing for efficient power distribution in high-density environments
Specifications
Specifications
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Limited Warranty2 Year
-
Packaged Quantity1 Each
-
ManufacturerSchneider Electric SA
-
Product TypePDU
-
Rack Height0U
-
Mount TypeRack-mountable
-
Cord Length10 ft
-
Product ColorBlack
-
Product LineBasic Rack
-
Receptacle TypeNEMA 5-20R
-
PDU TypeBasic
-
Manufacturer Website Addresshttp://www.schneider-electric.com
-
Output Voltage120 V AC
-
Plug/Connector TypeNEMA L5-20P
-
Receptacle Detail24 x NEMA 5-20R
-
Power Rating (VA)1920 VA
-
Package ContentsBasic Rack 1.92kVA PDU Cord retention bracket(s) Installation guide Rack mounting brackets Toolless mounting kit User manual
-
Additional Warranty Information2 years repair or replace
-
Input Voltage100 V,120 V
