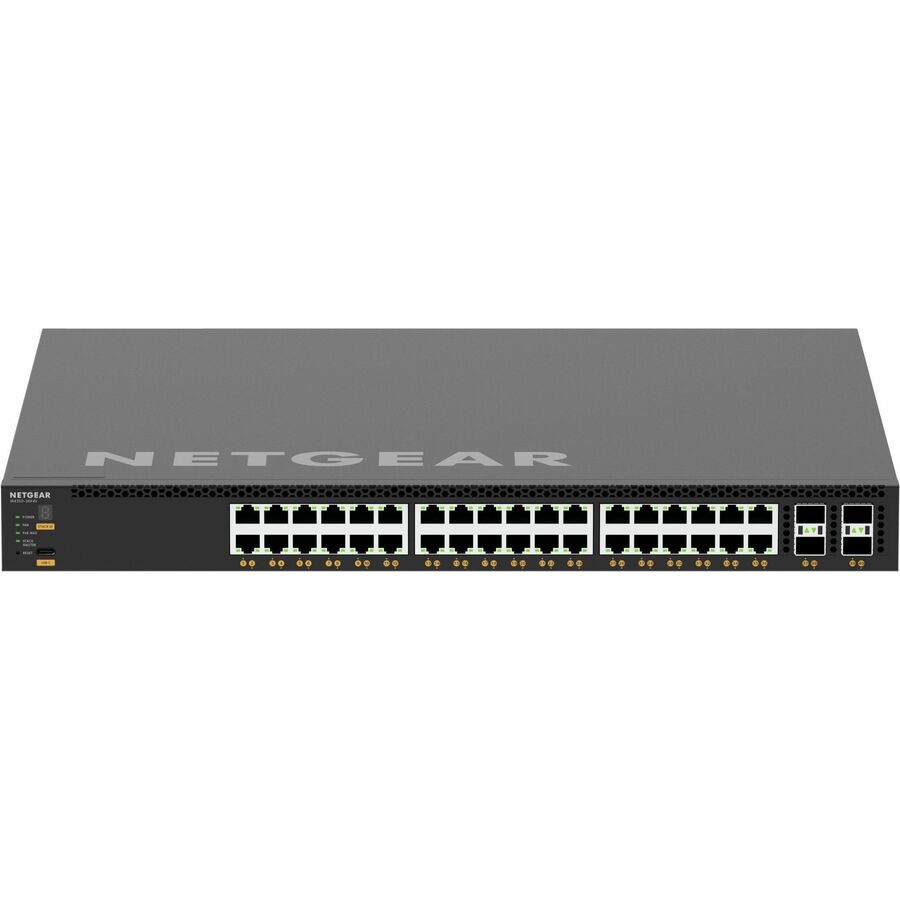

Netgear 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch — XSM4340CV-100NES
Netgear 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch — XSM4340CV-100NES is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Description
Description
POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OFTHE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
PRO AV RESOURCES
? All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.- 36 10G/Multi-Gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
- 750W internal power supply providing 280W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,760W, when the redundant PoE budget remains 280W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
Specifications
Specifications
-
Limited WarrantyLifetime
-
Product TypeEthernet Switch
-
Compatible Rack Unit1U
-
ManufacturerNetgear, Inc
-
Power SourcePower Supply
-
Manufacturer Website Addresshttp://www.netgear.com
-
Network (RJ-45)Yes
-
ModularYes
-
ManageableYes
-
Number of Power Supplies Installed1
-
Uplink PortYes
-
Layer Supported3
-
Number of Total Expansion Slots4
-
Number of Power Supplies Supported2
-
Redundant Power Supply SupportedYes
-
PoE (RJ-45) PortYes
-
Expansion Slot TypeSFP28
-
Plug/Connector TypeC14
-
Total Number of Network Ports36
-
Media Type SupportedTwisted Pair,Optical Fiber
-
Input Voltage120 V AC,230 V AC
-
Ethernet Technology10 Gigabit Ethernet,25 Gigabit Ethernet
-
Network Technology10GBase-T,25GBase-X
-
Networking StandardsIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
-
Product SeriesM4350
-
Form FactorTable Top,Desktop,Rack-mountable
-
Package Contents36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch 1 x Power Cord(s) 1 x Console USB Type-C Cable 1 x Rack-mounting Standard Bracket Set 1 x Set of Longer Brackets for Recessed Mounting 4 x Rubber Footpads for Tabletop Installation 1 x Installation Guide
-
PoE Budget1760 W
-
Port/Expansion Slot Details36 x 10 Gigabit Ethernet Expansion Slots,8 x 25 Gigabit Ethernet Expansion Slots
-
Power Consumption148 W
