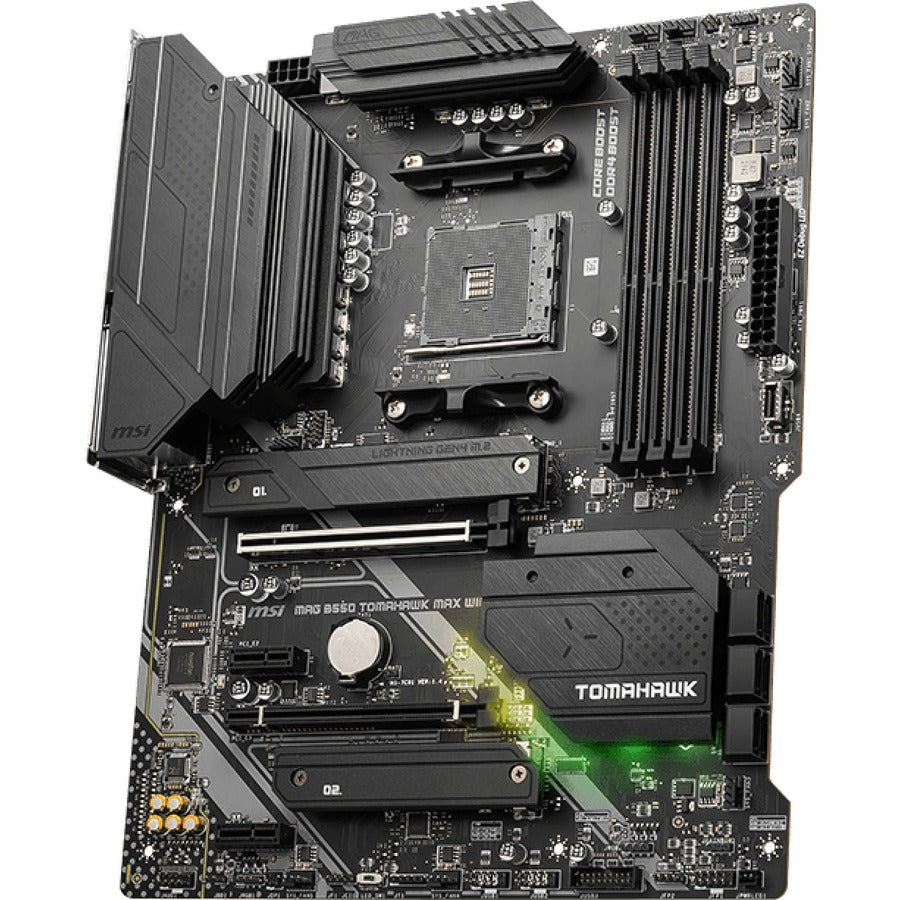

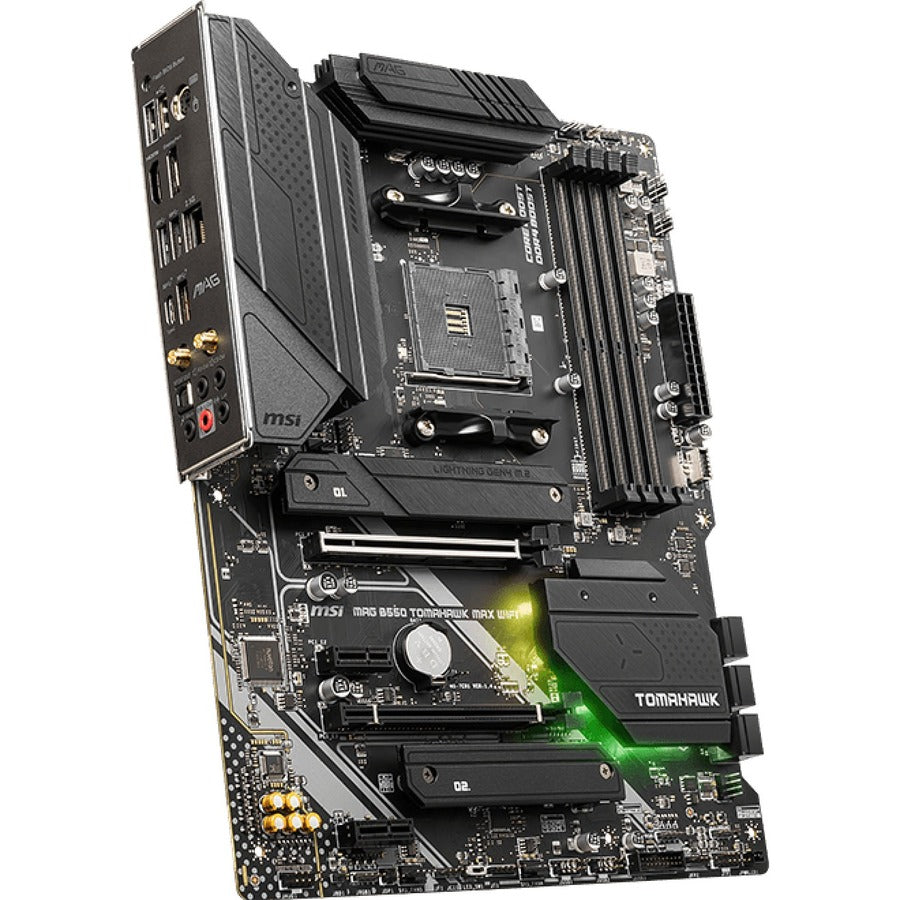

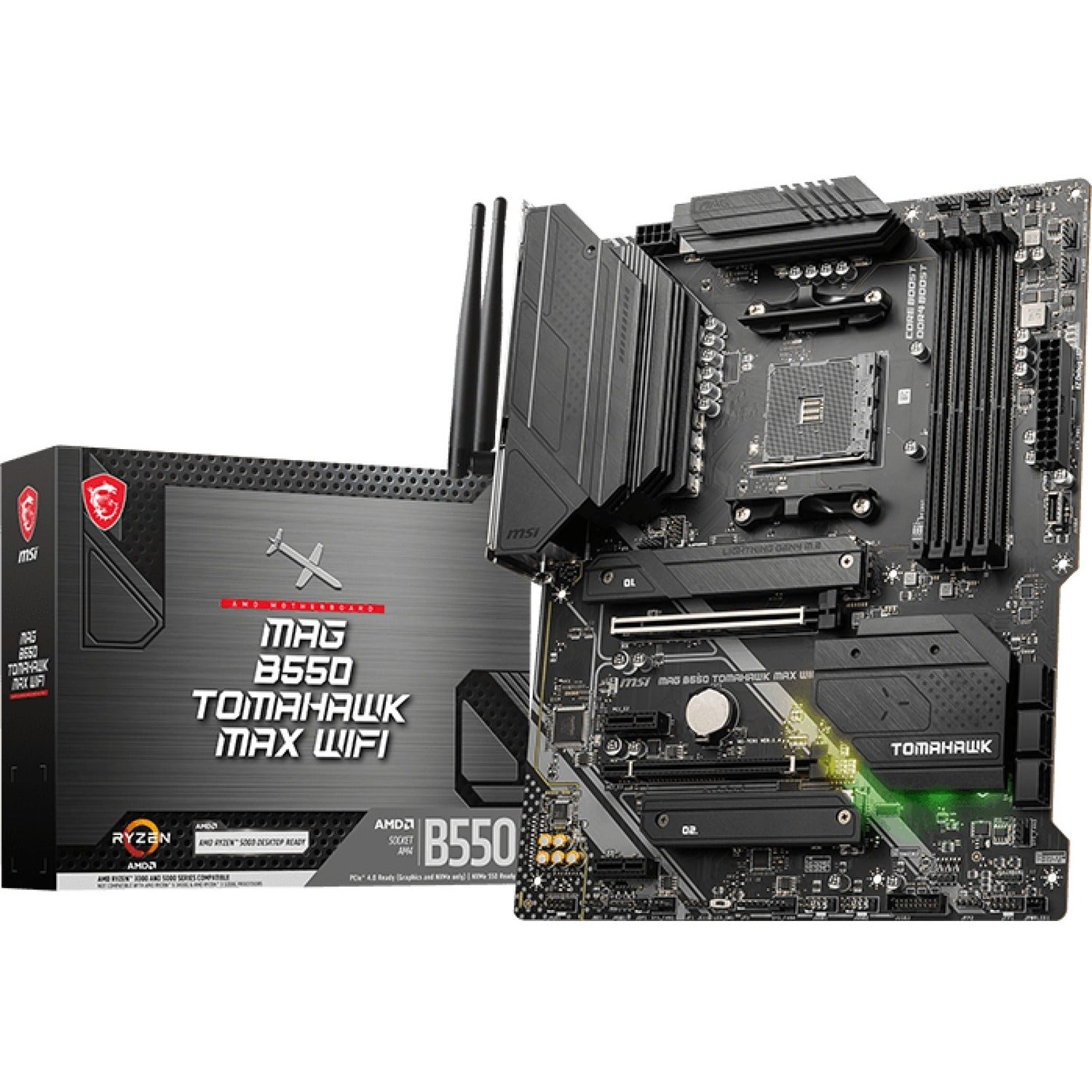

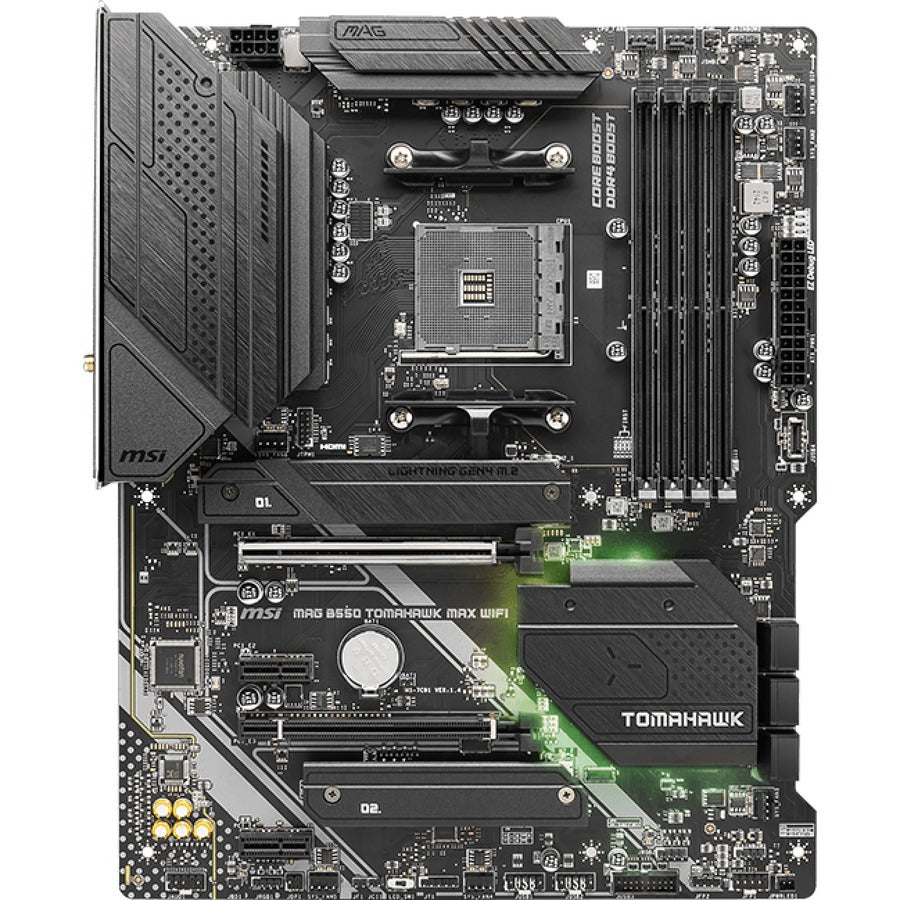

MSI MAG B550 TOMAHAWK MAX WIFI Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX — B550TMHWKMWI
MSI MAG B550 TOMAHAWK MAX WIFI Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX — B550TMHWKMWI is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Description
Description
Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
- Supports DDR4 Memory, up to 5100+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- 2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.

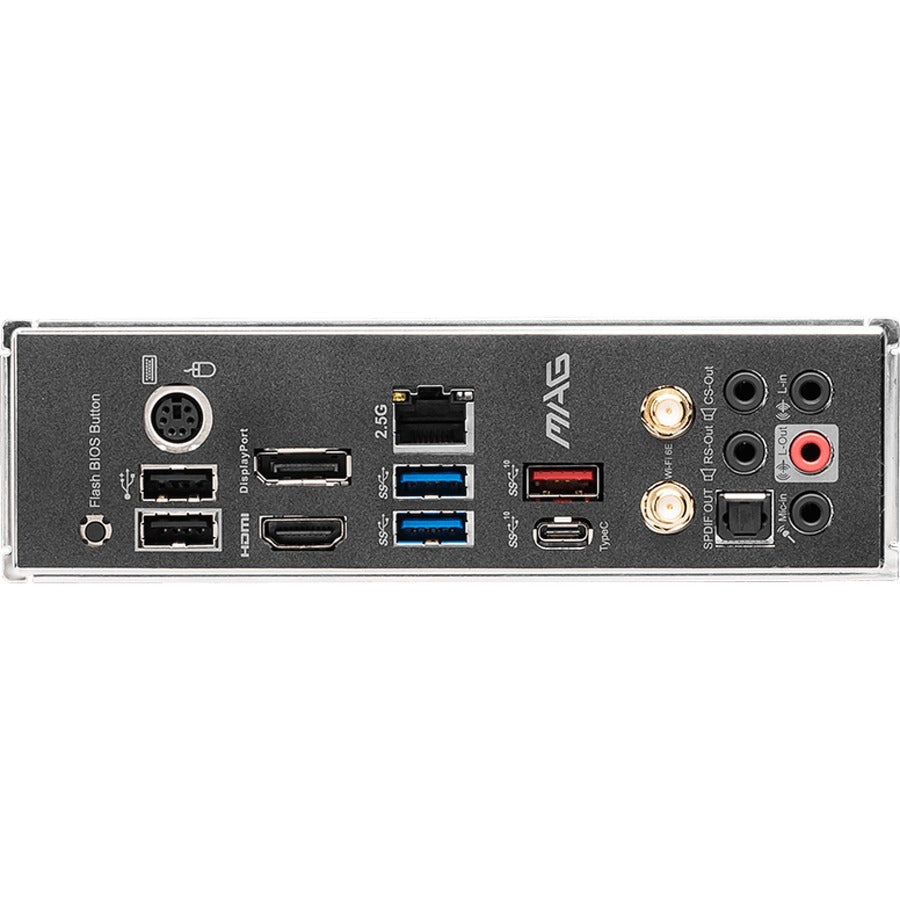

- Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
Specifications
Specifications
-
Country of OriginChina
-
ManufacturerMSI
-
Limited Warranty3 Year
-
Product TypeDesktop Motherboard
-
Form FactorATX
-
Product LineMAG
-
Number of Network (RJ-45) Ports1
-
RAID SupportedYes
-
Number of USB 2.0 Ports2
-
Manufacturer Website Addresshttp://www.msi.com
-
DisplayPortYes
-
HDMIYes
-
Number of PCI Express x16 Slots2
-
Number of Total Expansion Slots4
-
Total Number of USB Ports6
-
Controller TypeSerial ATA/600
-
Onboard VideoCPU Dependent Video
-
Audio Channels7.1
-
Total Processor Supported1
-
Gigabit EthernetYes
-
Number of SATA Interfaces6
-
Number of Memory Slots4
-
Memory TechnologyDDR4 SDRAM
-
Total Number of Onboard USB Ports7
-
Number of Onboard USB 2.0 Ports4
-
S/PDIFYes
-
Number of PCI Express x1 Slots2
-
Chipset ManufacturerAMD
-
Total Number of PCI Express Slots4
-
Maximum Memory Supported128 GB
-
Number of M.2 Interfaces2
-
Processor SocketSocket AM4
-
Processor SupportedRyzen 9
-
Number of USB 3.2 Gen 2 Type-C Ports1
-
Number of USB 3.2 Gen 2 Type-A Ports1
-
2.5Gigabit EthernetYes
-
Number of USB 3.2 Gen 1 Type-A Ports2
-
Chipset ModelB550
-
HDMI Version2.1
-
Memory Form FactorDIMM,UDIMM
-
RAID Levels0,10,1
-
Multi GPU SupportedCrossFire
-
Memory Speed Supported5100 MHz,5000 MHz,4866 MHz,4800 MHz,4600 MHz,4533 MHz,4400 MHz,4300 MHz,4266 MHz,4200 MHz,4133 MHz,4000 MHz,3866 MHz,3733 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3300 MHz,3200 MHz,3000 MHz,2933 MHz,2666 MHz,2400 MHz,2133 MHz
-
Product ModelB550 TOMAHAWK MAX WIFI
