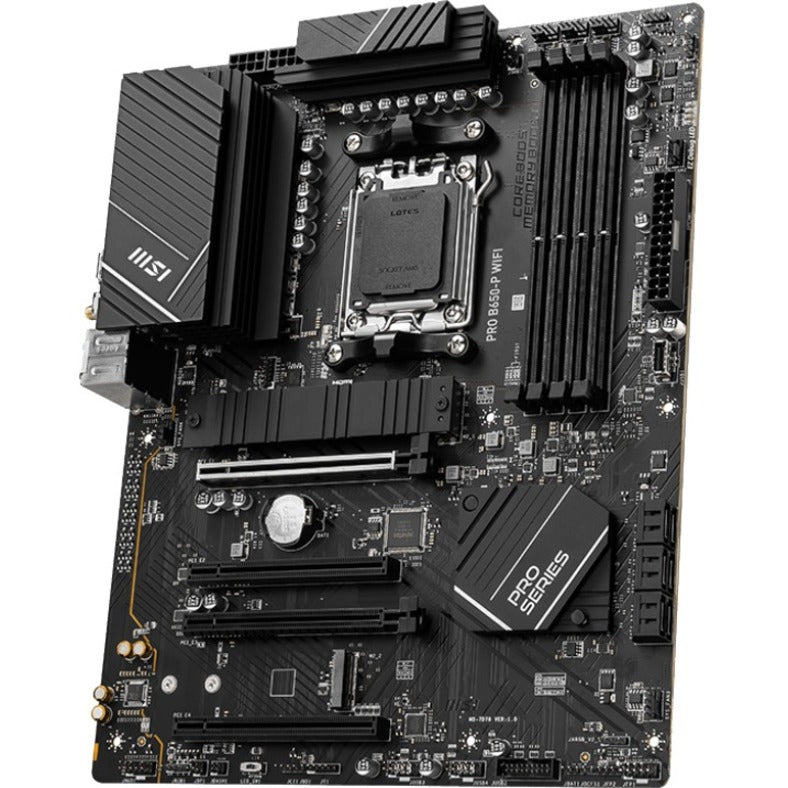

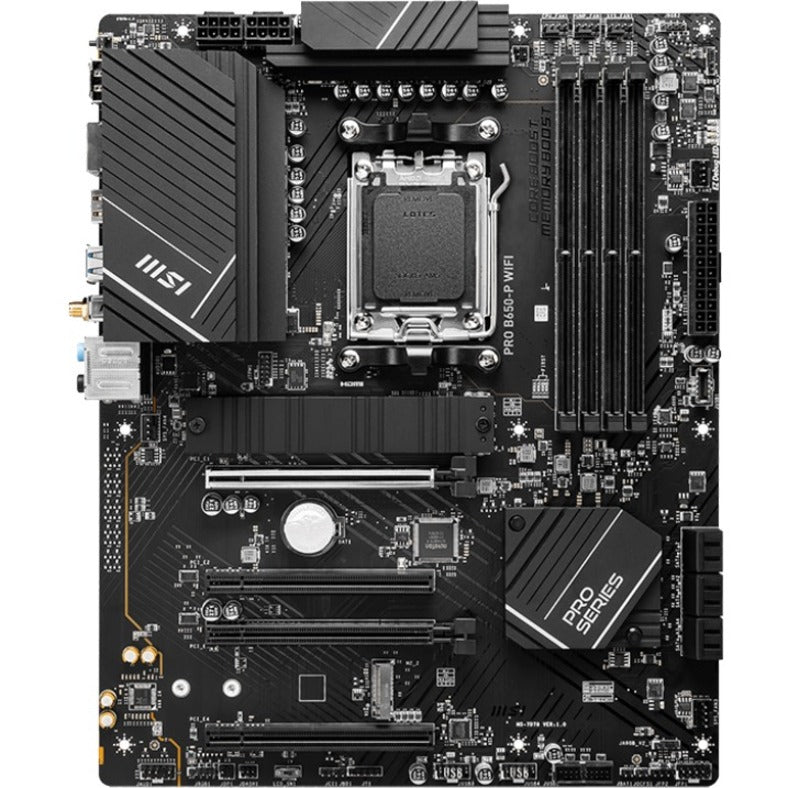

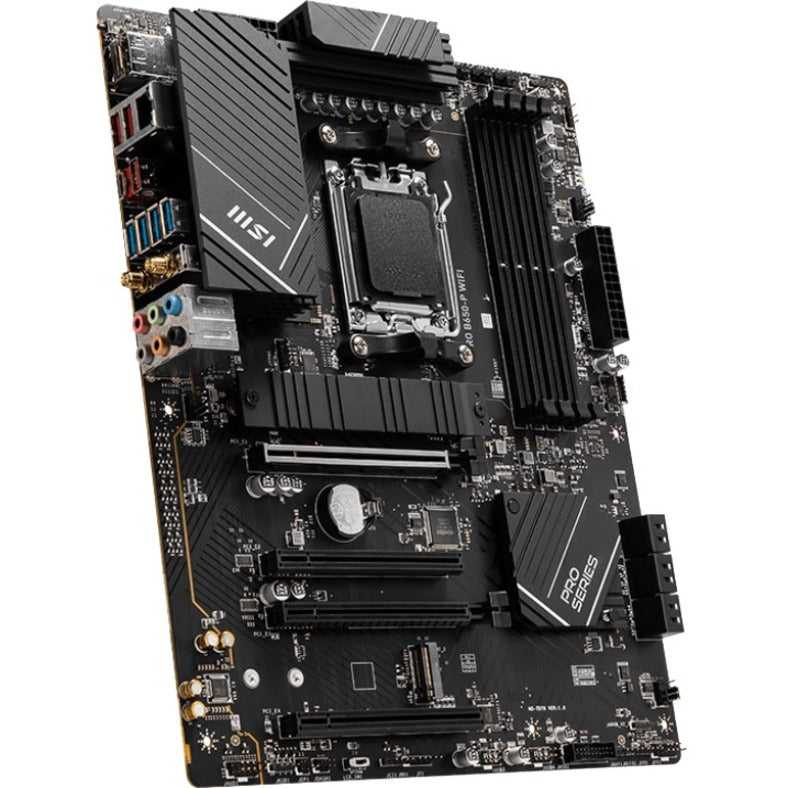

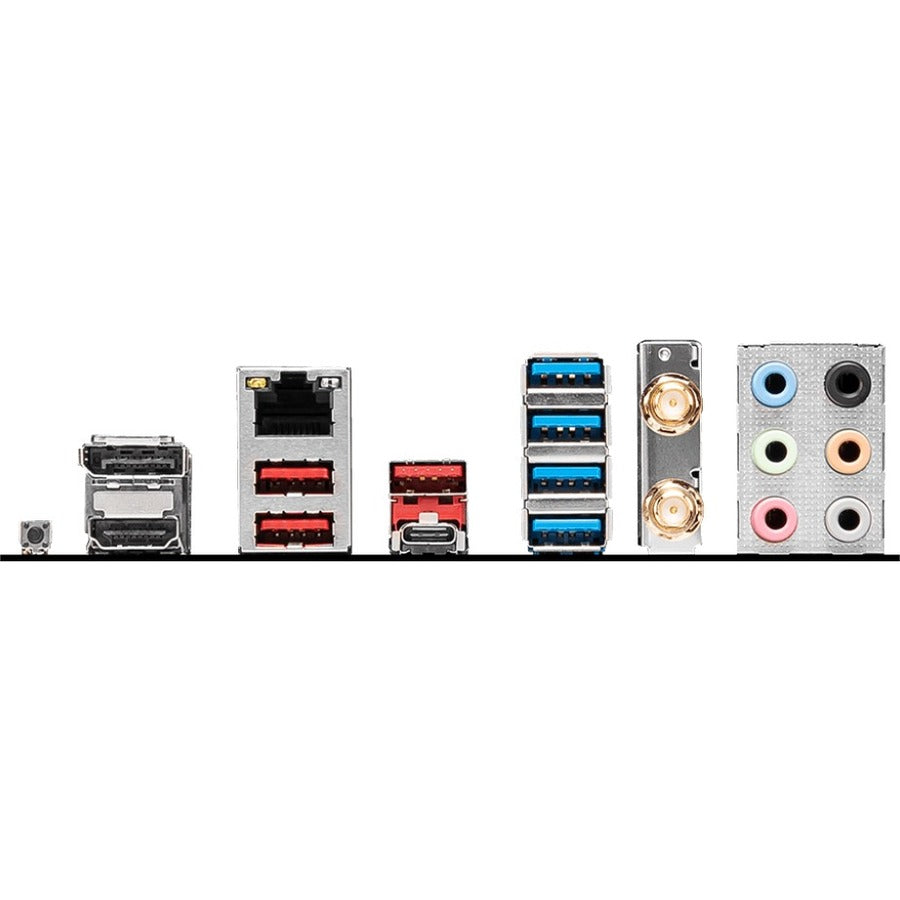

MSI B650-P WIFI Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX — B650PWIFI
MSI B650-P WIFI Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX — B650PWIFI is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Description
Description
PRO B650-P WIFI
PRO B650-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
PRO SERIES BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
- EZ Debug LED: Easiest way to troubleshoot.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Specifications
Specifications
-
Country of OriginChina
-
ManufacturerMSI
-
Limited Warranty3 Year
-
Product TypeDesktop Motherboard
-
Form FactorATX
-
Product SeriesPRO
-
Number of Network (RJ-45) Ports1
-
RAID SupportedYes
-
BluetoothYes
-
Manufacturer Website Addresshttp://www.msi.com
-
DisplayPortYes
-
HDMIYes
-
Wireless LANYes
-
Total Number of USB Ports8
-
Number of Total Expansion Slots4
-
Controller TypeSerial ATA/600
-
Onboard VideoCPU Dependent Video
-
Audio Channels7.1
-
Total Processor Supported1
-
Number of SATA Interfaces6
-
Number of Memory Slots4
-
Total Number of Onboard USB Ports7
-
Number of Onboard USB 2.0 Ports4
-
Chipset ManufacturerAMD
-
Number of PCI Express x16 Slots4
-
Total Number of PCI Express Slots4
-
Maximum Memory Supported128 GB
-
Number of M.2 Interfaces2
-
Number of USB 3.2 Gen 1 Ports4
-
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
-
Number of Onboard USB 3.2 Ports3
-
2.5Gigabit EthernetYes
-
Number of USB 3.2 Gen 2 Type-A Ports3
-
Number of USB 3.2 Ports1
-
Memory TechnologyDDR5 SDRAM
-
RAID Levels0,1
-
Memory Form FactorUDIMM,DIMM
-
Processor SupportedRyzen 5,Ryzen 7,Ryzen 9
-
Processor SocketSocket AM5
-
Chipset ModelB650
-
Memory Speed Supported6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz,4000 MHz
-
Package ContentsPRO B650-P WIFI Desktop Motherboard European Union Regulatory Notice Quick Installation Guide 2 x M.2 Clips Wi-Fi Antenna SATA Cable I/O Shiled
-
Product ModelB650-P WIFI
