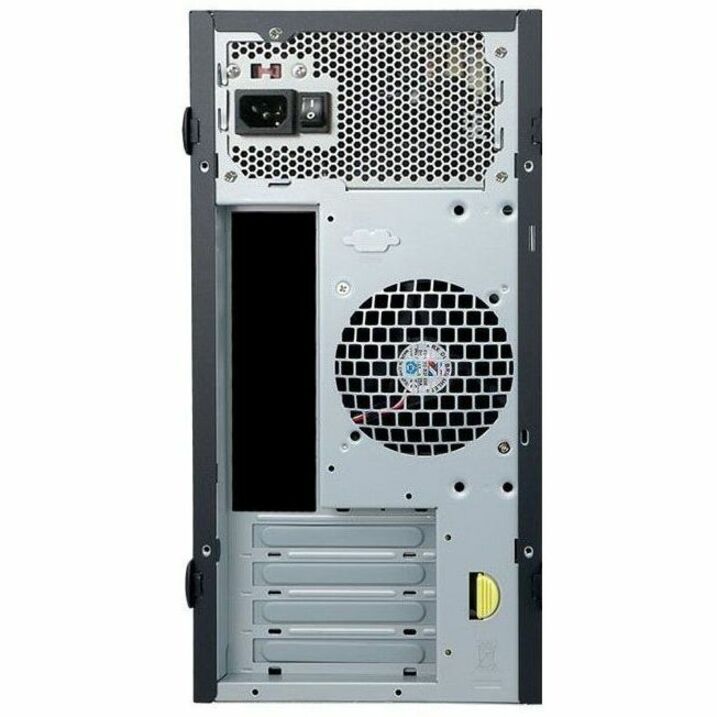

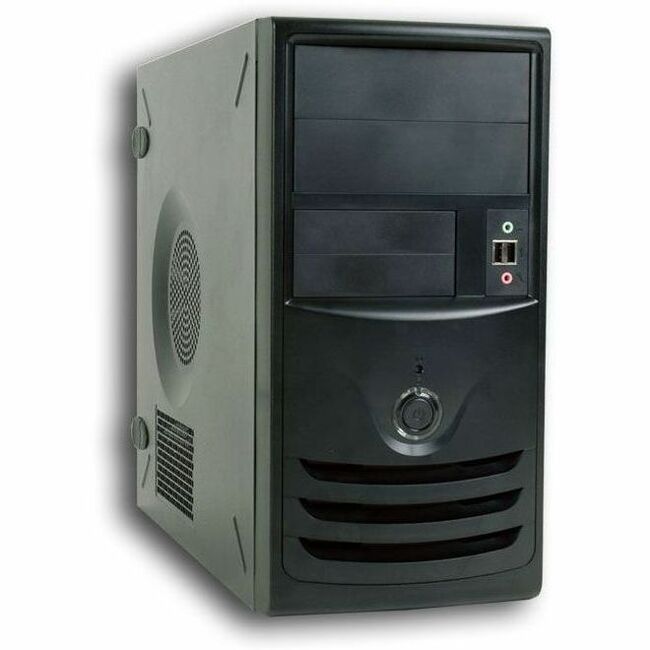

In Win Z Series Micro-ATX Mini Tower Chassis — Z589.CQ450TB3

Tool-Free Installation and Easy Maintenance

Tool-free front panel, drive bays and I/O slots.

Configured 6 Drive Bays

5.25" x 2, 3.5" x 3 and 2.5" x 1 drive bays for expandability of future upgrade.

Side Panel Clips

The patented tool free installation side panel clips.

Folded Edge

No sharp edges or debris for safe installation

Stamped Motherboard Support

Easy MB installation. No MB standoff required.

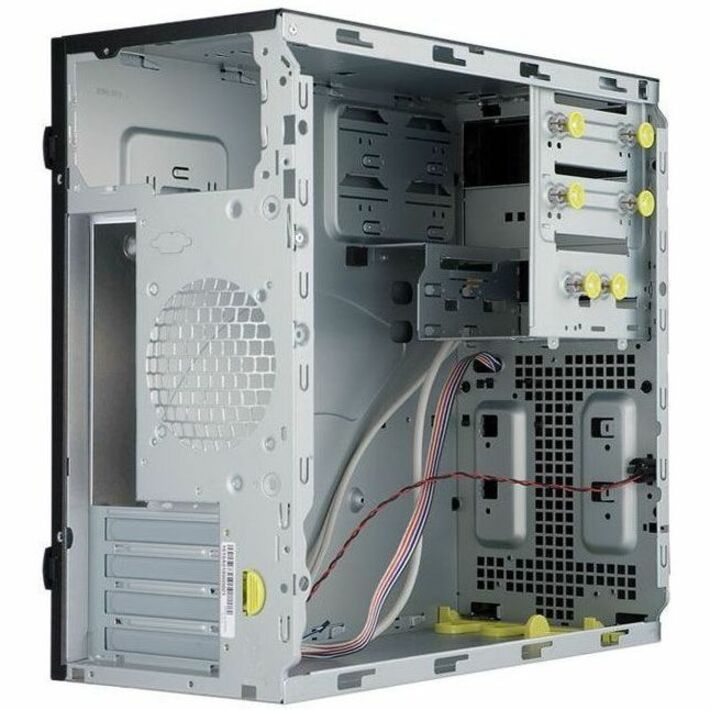

Tool-Free

• Screwless Front Panel
• Screwless Side Panels
• Screwless 5.25" Drive Bays
• Screwless 3.5" Drive Bays

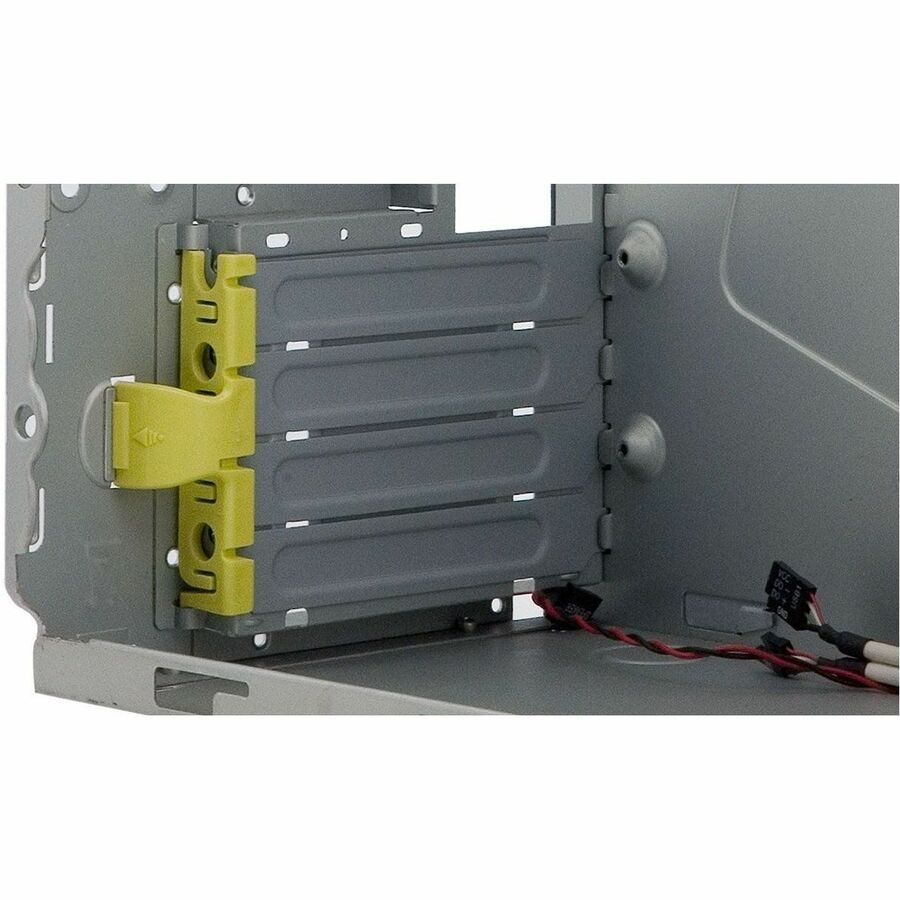

• Screwless PCI-E Expansion Slots

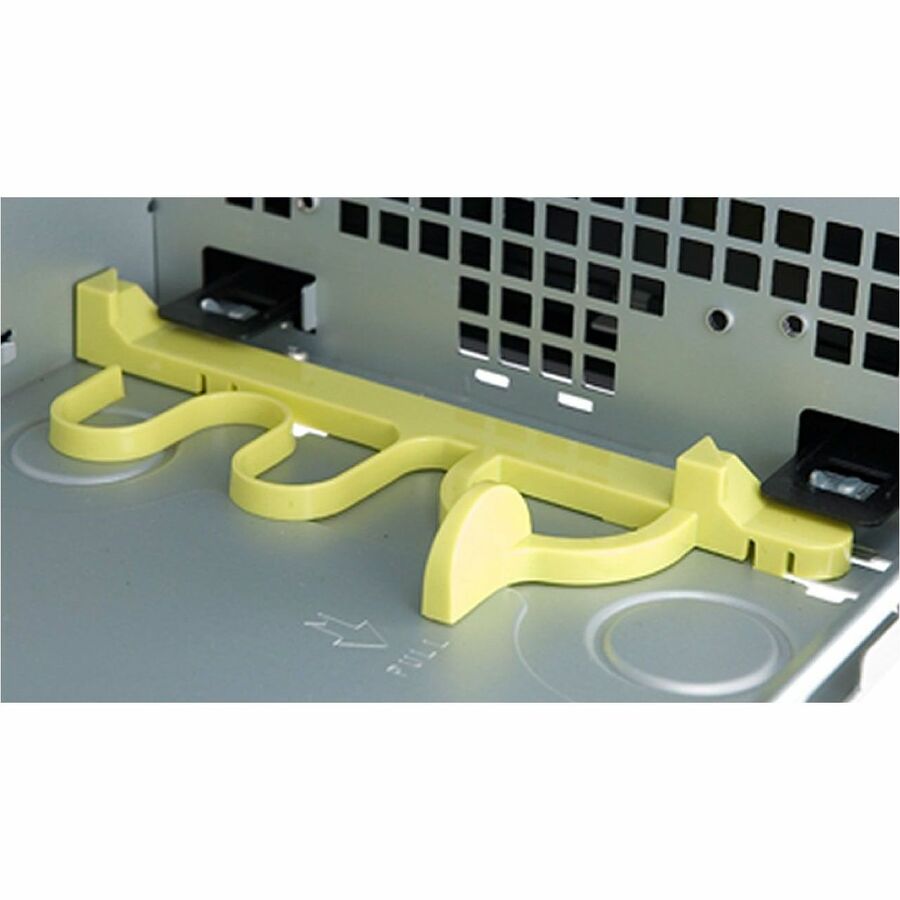

3.5"/2.5" Drive Bays

• 3.5" Drive Bays x 3
• Internal 2.5" x 1

Excellent Thermal Solution

• ?Intel Certified TAC 2.0
• Qualified for TAC 2.0,a mass ventilation hole side panel
• design that strengthens thermal efficiency and cools down the entire system.
• ?80mm or 90mm Rear Fan (Optional)

Front Ports

• ?USB 2.0 x 2
• ?HD Audio
• ?Optional USB 3.0 x 2

Optional

• eSATA
• Chassis Intrusion Switch
• 3.5" to 2.5" HDD / SSD Bracket Supports 2.5"x 2
• Optional 60 mm Fan x 1 (60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)

• Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
• With the compact mini-tower structure, you can freely install the casing anywhere
