Eaton | SKU:
SRW6UW
Sold out
New arrival
Eaton Tripp Lite Series SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure, White — SRW6UW
Regular price
$396.50 USD
Unit price
Shipping calculated at checkout.
Eaton Tripp Lite Series SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure, White — SRW6UW is backordered and will ship as soon as it is back in stock.
Out of stock — request a quote & lead time
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Description
Description

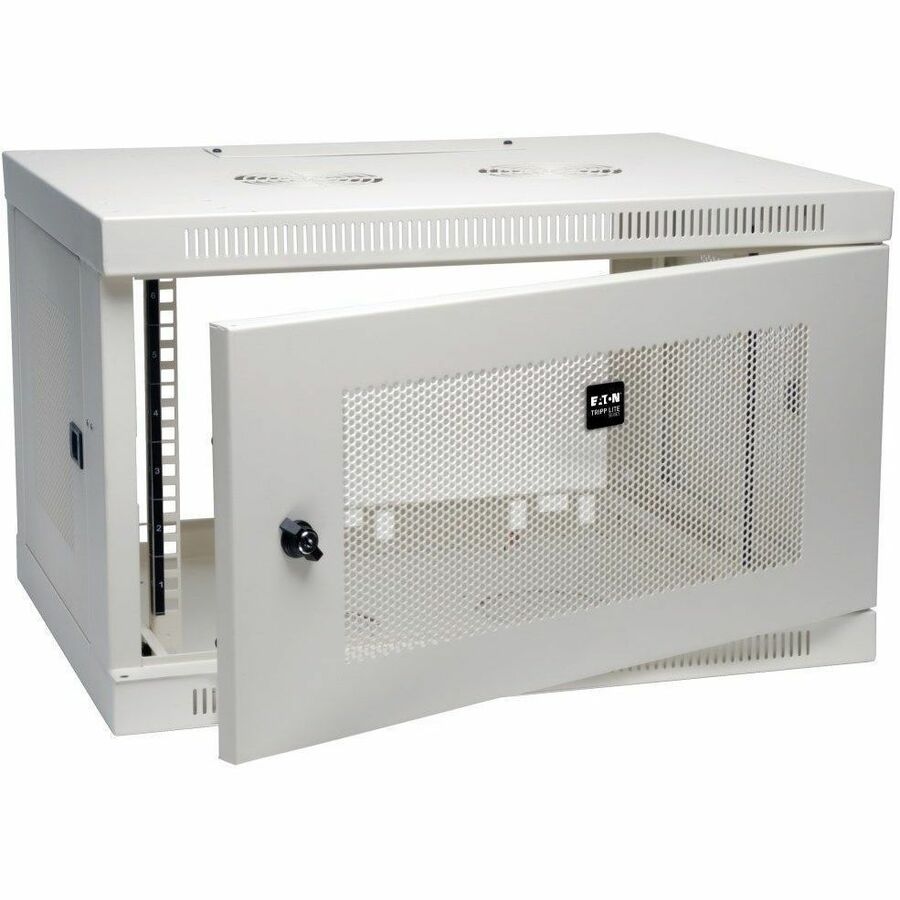

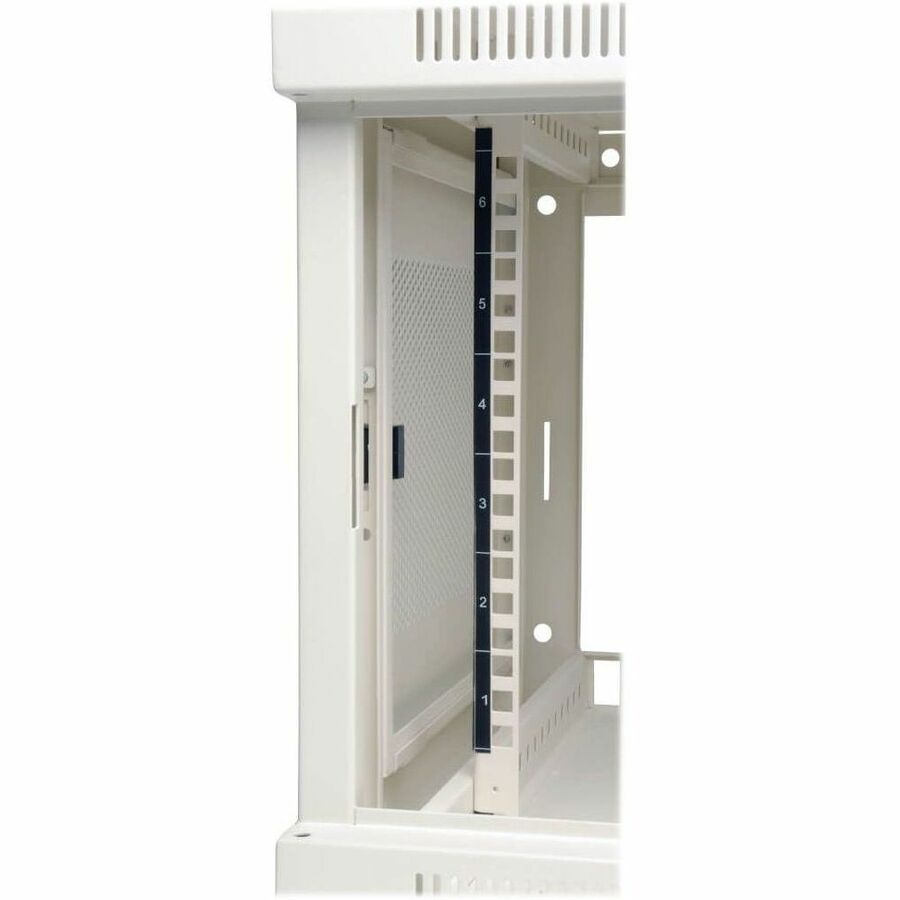

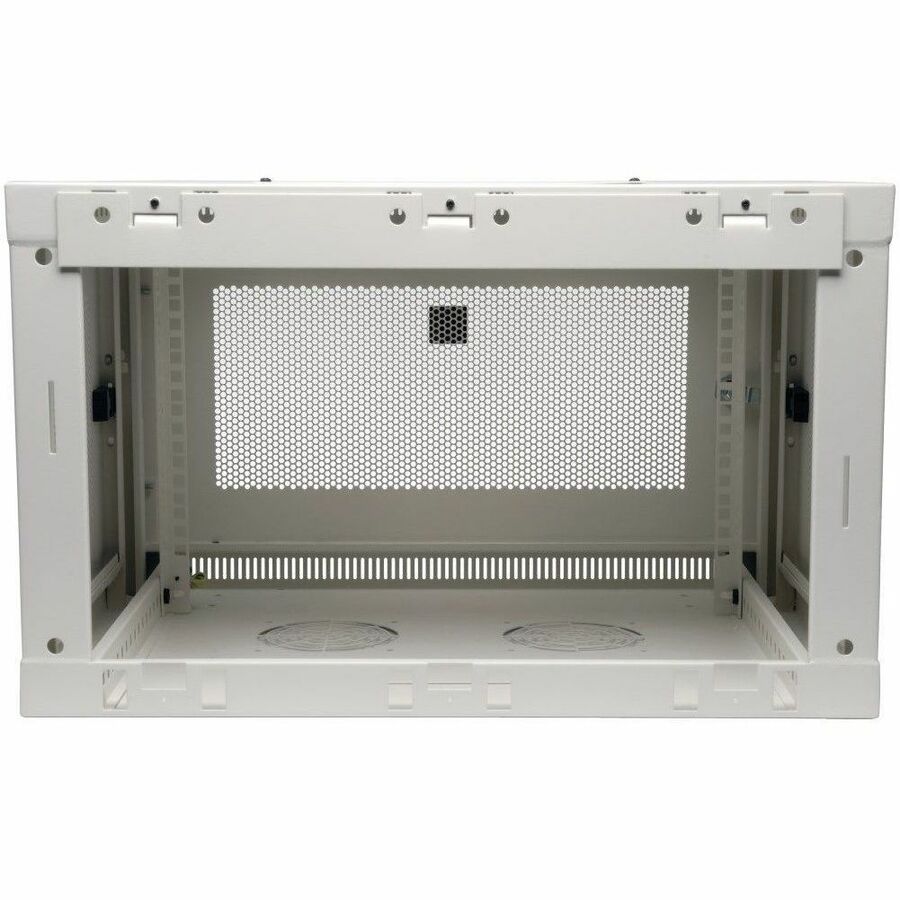

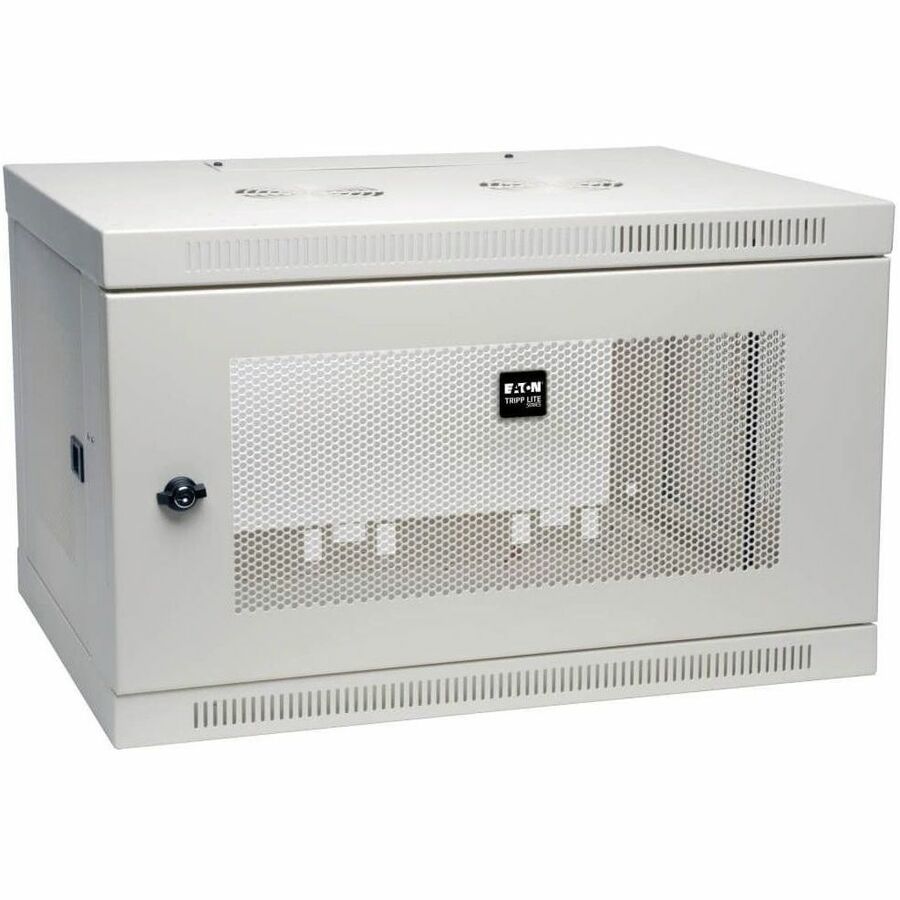

The SRW6UW is a white 6U Wall-Mount Rack Enclosure Cabinet designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable front mounting rails have both square mounting holes (default position) and tapped holes to accommodate up to 6U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall. The SRW6UW comes with a 5-year product warranty.
- Mounts to wall or rolls on floor (with optional SRCASTER)
- Secures 6U of 19 in. rack equipment up to 16.5 in. deep
- Flow-through ventilation keeps equipment cool
- Locking steel cabinet vented at sides, front, top and bottom
- Maximum load capacity of 200 lb.
Specifications
Specifications
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Country of OriginChina
-
Limited Warranty5 Year
-
Form FactorWall Mountable
-
Assembly RequiredNo
-
Product TypeRack Cabinet
-
Rack Width19"
-
Rack Height6U
-
Static/Stationary Weight Capacity200 lb
-
Product LineSmartRack
-
Product ColorWhite
-
Rack Depth16.50"
-
Product ModelSRW6UW
-
FeaturesCable Management
-
Package ContentsWhite SmartRack 6U Wall-Mount Rack Enclosure Cabinet 12 x M6 Screws 12 x M6 Cage Nuts 12 x M6 Washers 2 x Keys Owner's Manual
-
ManufacturerTripp Lite by Eaton
-
Color FamilyWhite
-
Manufacturer Website Addresshttps://tripplite.eaton.com/
