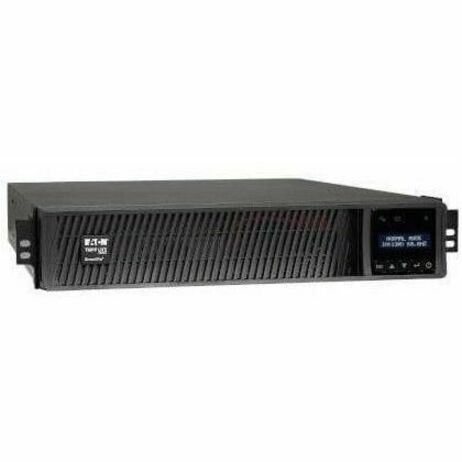

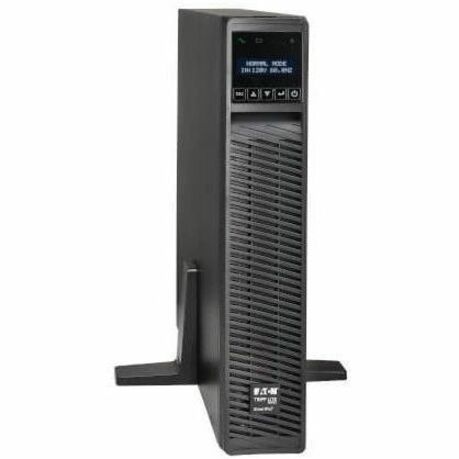

Eaton Tripp Lite Series SmartPro 1440VA 1440W 120V Line-Interactive Sine Wave UPS - 8 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower — SMART1500RMXL2U
Eaton Tripp Lite Series SmartPro 1440VA 1440W 120V Line-Interactive Sine Wave UPS - 8 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower — SMART1500RMXL2U is backordered and will ship as soon as it is back in stock.
Volume or contract pricing? Get a written quote with confirmed lead time.
Eaton Tripp Lite Series SmartPro 1440VA 1440W 120V Line-Interactive Sine Wave UPS - 8 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower — SMART1500RMXL2U is backordered and will ship as soon as it is back in stock.
Description
Description
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART1500RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA 5-15R Outlets Protect Your Connected Components
Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART1500RMXL2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
- $250,000 Ultimate Lifetime Insurance
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
- ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
- Unity power factor ensures maximum power possible at each power rating
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, transient surges and line noise
Specifications
Specifications
-
Product TypeLine-interactive UPS
-
Rack Height2U
-
Product LineSmartPro
-
Country of OriginChina
-
Form FactorRack/Tower
-
Limited Warranty3 Year
-
Cord Length10 ft
-
Hot SwappableYes
-
Receptacle TypeNEMA 5-15R
-
Input Voltage120 V AC
-
Network ManagementSNMP Manageable
-
Waveform TypeSine Wave
-
Receptacle Detail8 x NEMA 5-15R
-
Transfer Time4 ms
-
Typical Battery Recharge Time4 Hour
-
Plug/Connector TypeNEMA 5-15P
-
USBYes
-
Battery ChemistryLead Acid
-
AVRYes
-
Package ContentsSMART1500RMXL2U UPS System PowerAlert software with USB and DB9 cables Mounting hardware for 4 post rackmount installation Cable for Emergency Power Off interface Instruction manual with warranty information
-
Backup/Run Time (Half Load)15.10 Minute
-
PhaseSingle Phase
-
Replaceable BatteryYes
-
Backup/Run Time (Full Load)5.10 Minute
-
Battery CharacteristicsValve-regulated
-
Maximum Operating Temperature104°F (40°C)
-
Output Voltage100 V AC,110 V AC,120 V AC,125 V AC
-
ManufacturerTripp Lite by Eaton
-
Battery Life6 Year
-
Storage Temperature5°F (-15°C) - 122°F (50°C)
-
Output Frequency60 Hz
-
Input Frequency60 Hz
-
EMI/RFI Noise FilterYes
-
DC System Voltage48 V DC
-
EPO PortYes
-
Energy SavingGreater than 95% efficiency - GREEN UPS; Individually controllable load banks
-
Sound Emission (A-Weighted)40 dB(A)
-
Output Power Factor1
-
Manufacturer Website Addresshttps://tripplite.eaton.com/
-
Additional Warranty Information3 year with registration. Note: Registration is required for 3-year warranty.
-
Status IndicatorsUPS status (Solid Green) Battery Mode (Solid Orange) Battery Low Warning (Flashing Orange) Fault/Alarm (Solid Red)
-
AlarmUPS StartUp,Remote Shutdown,Overload,Low Battery,Power Failure
-
Application/UsageNetwork Device,High-end System
-
Load Capacity (VA)1440 VA
-
Load Capacity (Watt)1440 W
