Eaton  |  SKU: SMART2200RM2UL  |  UPC: 037332192646
Sold out
New arrival

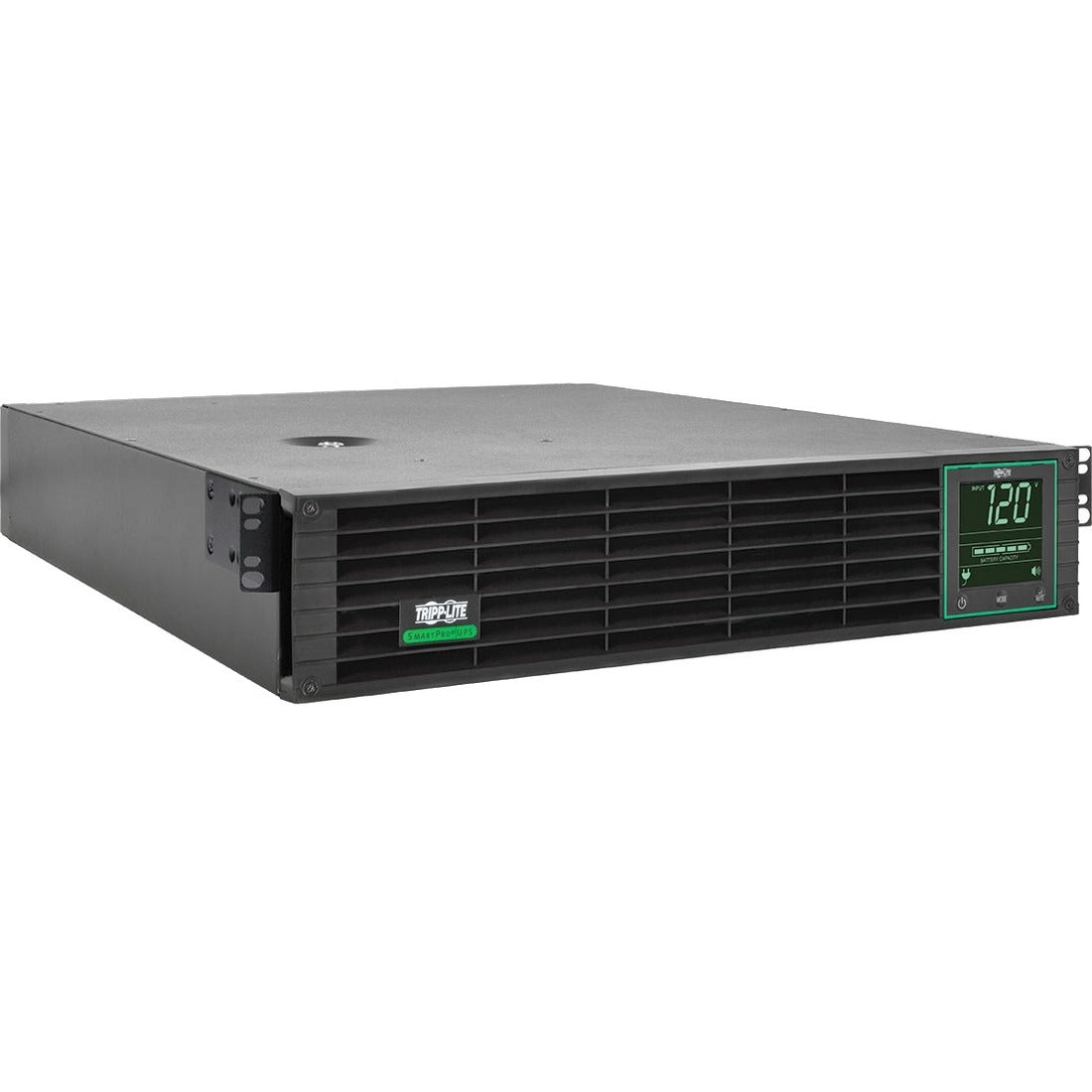

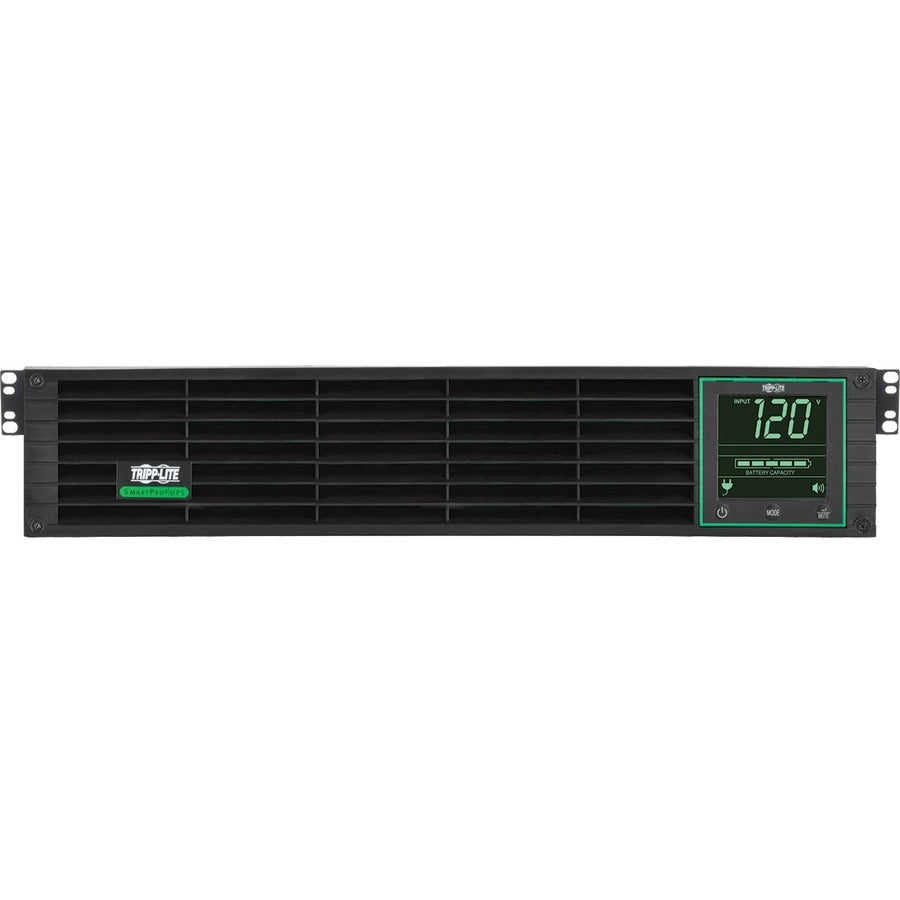

Eaton Tripp Lite Series SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, Lithium Iron Phosphate (LiFePO4) Batteries, 2U, LCD, USB, DB9 — SMART2200RM2UL

$3,938.72 USD
Shipping calculated at checkout.
Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description
Protects Mission-Critical Rack-Mounted Equipment
  • Provides fully regulated sine wave AC output for servers, network storage devices, telecom hardware and other applications where long battery lifespan is critical
  • Audible alarm signals loss of utility power, overload and low battery
  • 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets

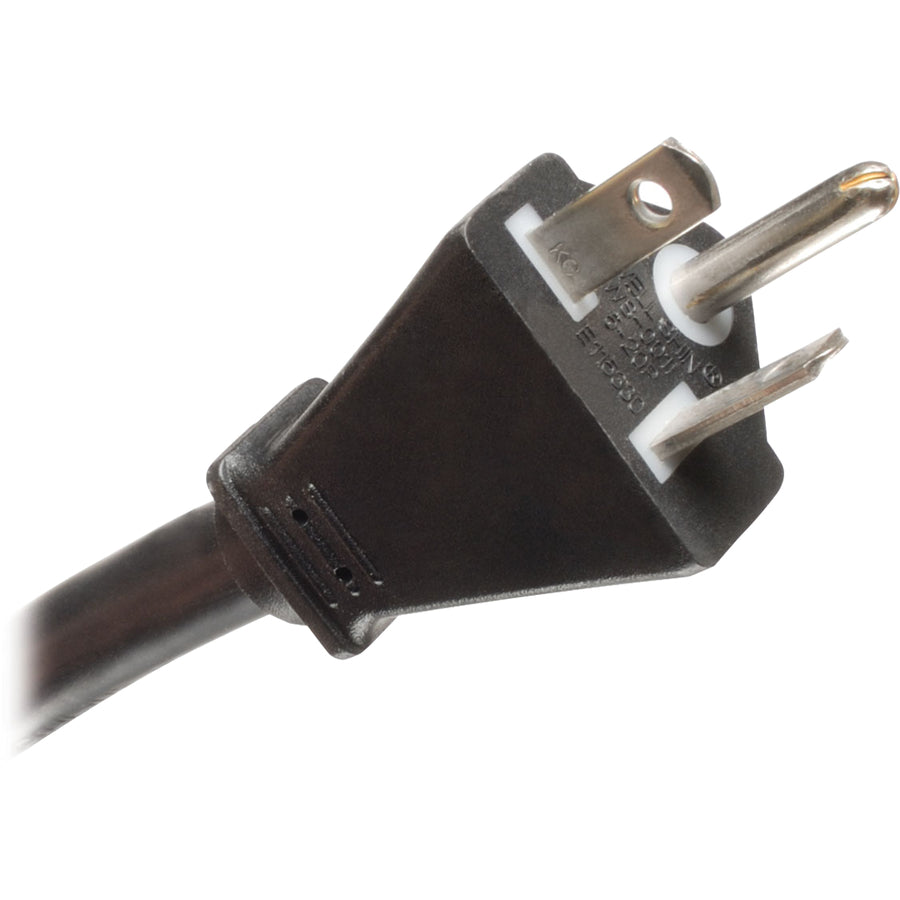

  • 10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
  • 570-joule surge suppression rating
  • 0.9 power factor rating
  • 97% line-mode efficiency rating saves money in energy costs
Superior LiFePO4 Battery Backup Compared to Equivalent Lead Acid Battery
  • More than 2x the service life
  • Up to 3x more charge/discharge cycles
  • Recharges to 100% capacity in less than 2 hr.
  • Weighs 60% less, reducing overall UPS weight
  • Supports half load up to 11.7 min. and full load up to 5.1 min.
2 Load Banks with Switchable Outlets
  • Can control 2 outlets remotely to reboot equipment or shed nonessential loads
Automatic Voltage Regulation (AVR)
  • Maintains 120V nominal output over input range of 83V-145V without using battery power
EMI/RFI Line Noise Filtering
  • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

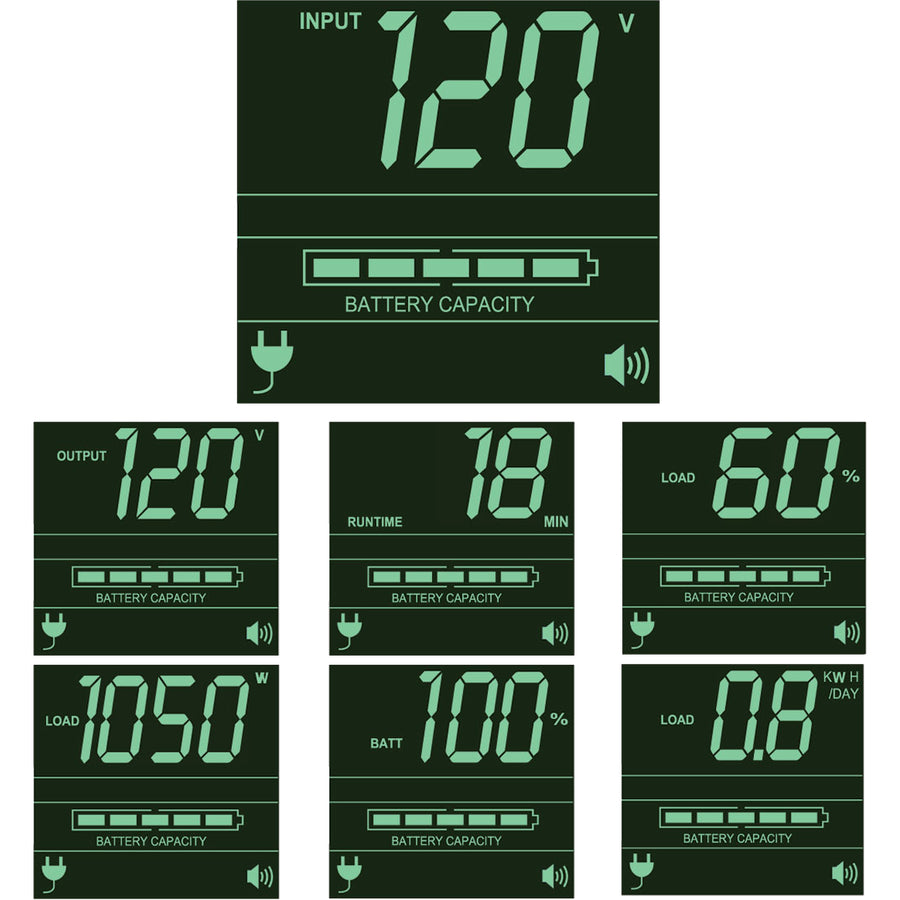

Interactive LCD Screen
  • Front-panel LCD with detailed UPS and site power status and operating data
  • Rotates for easy viewing in rack-mount or tower configurations
Optional Network Management Cards
  • Compatible with Tripp Lite UPS management cards WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
Communications Ports
  • USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite PowerAlert software (available via free download at www.tripplite.com/poweralert
  • EPO port supports emergency shutdown in large facilities
Versatile Installation Options
  • Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
  • Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
  • Mounts in upright tower position with optional 2-9USTAND accessory
Backed by Tripp Lite's Ultimate Lifetime Insurance
  • ,250,000 Ultimate Lifetime Insurance covers any connected components
  • 11.7 min. runtime at half load; 5.1 min. at full load
  • Compatible with Tripp Lite network management cards
  • 8 NEMA 5-15R outlets-2 switchable via network interface
  • 97% line-mode efficiency rating saves money in energy costs
  • LiFePO4 battery offers longer life, more cycles and faster recharge

Specifications
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack-mountable
  • Product Type
    Line-interactive UPS
  • Rack Height
    2U
  • Product Line
    SmartPro
  • Limited Warranty
    5 Year
  • Country of Origin
    United States
  • Hot Swappable
    Yes
  • Product Model
    SMART2200RM2UL
  • Input Voltage
    120 V AC
  • USB
    Yes
  • Serial Port
    Yes
  • Plug/Connector Type
    NEMA 5-20P
  • Transfer Time
    5 ms
  • Phase
    Single Phase
  • Waveform Type
    Pure Sine Wave
  • Maximum Operating Temperature
    122°F (50°C)
  • Backup/Run Time (Full Load)
    5.10 Minute
  • Input Current
    16 A
  • Typical Battery Recharge Time
    1.40 Hour
  • Package Contents

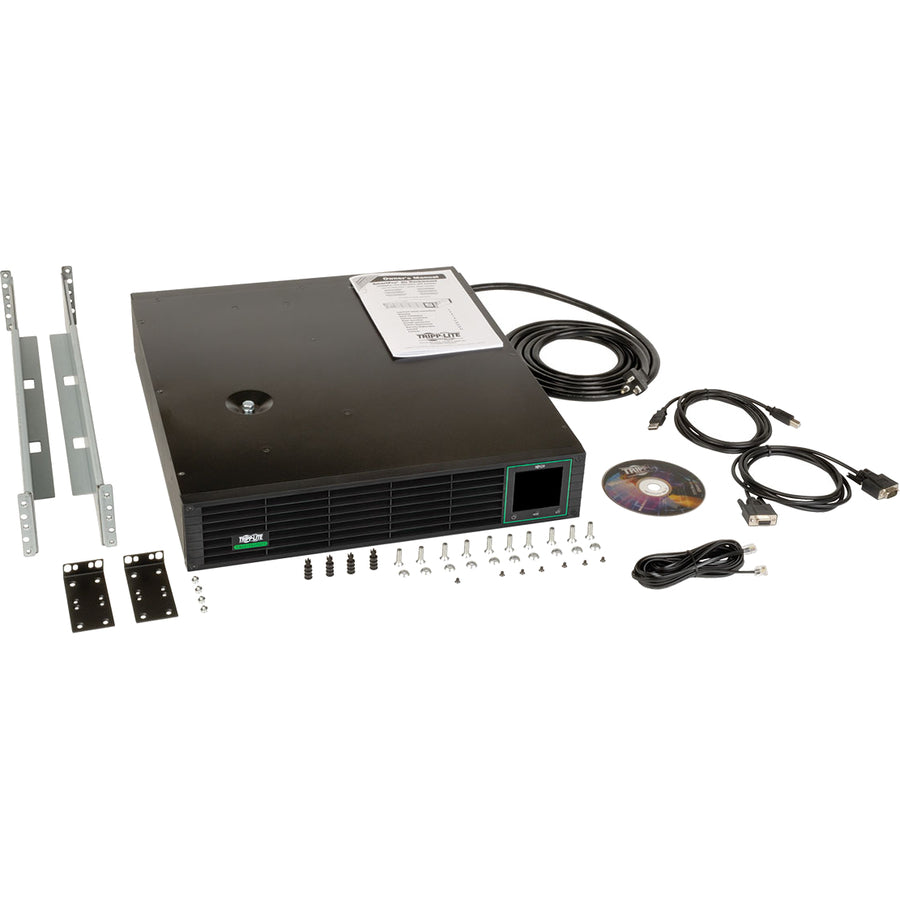

    SmartPro SMART2200RM2UL 2200VA UPS USB cable DB9 cable EPO cable Rack-mounting hardware Owner's manual
  • Backup/Run Time (Half Load)
    11.70 Minute
  • Output Voltage
    110 V AC,115 V AC,120 V AC
  • Receptacle Type
    NEMA 5-15/20R,NEMA 5-20
  • Receptacle Detail
    4 x NEMA 5-15/20R,4 x NEMA 5-20
  • Manufacturer
    Tripp Lite by Eaton
  • Application/Usage
    Server,Network Storage Device
  • Circuit Breaker
    Yes
  • Sound Emission (A-Weighted)
    45 dB(A)
  • Surge Energy Rating
    570 J
  • EMI/RFI Noise Filter
    Yes
  • Alarm
    UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown
  • Thermal Dissipation
    393.59 W
  • Load Capacity (Watt)
    1920 W
  • Manufacturer Website Address
    https://tripplite.eaton.com/
  • Load Capacity (VA)
    2200 VA
