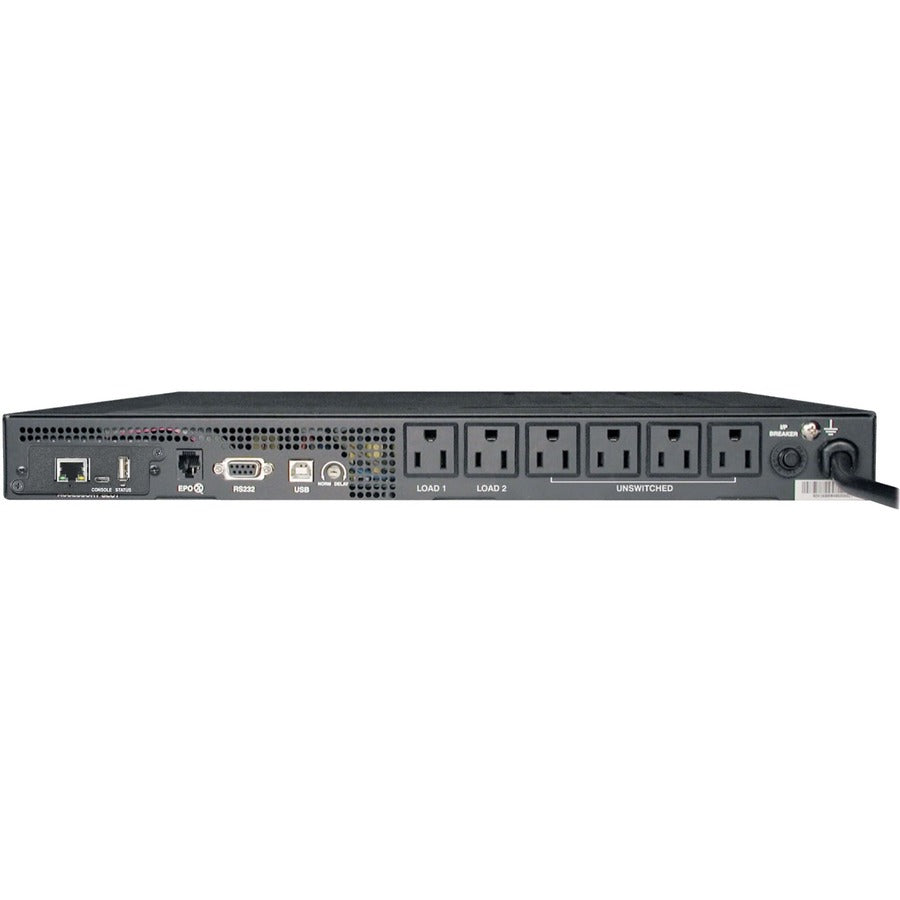

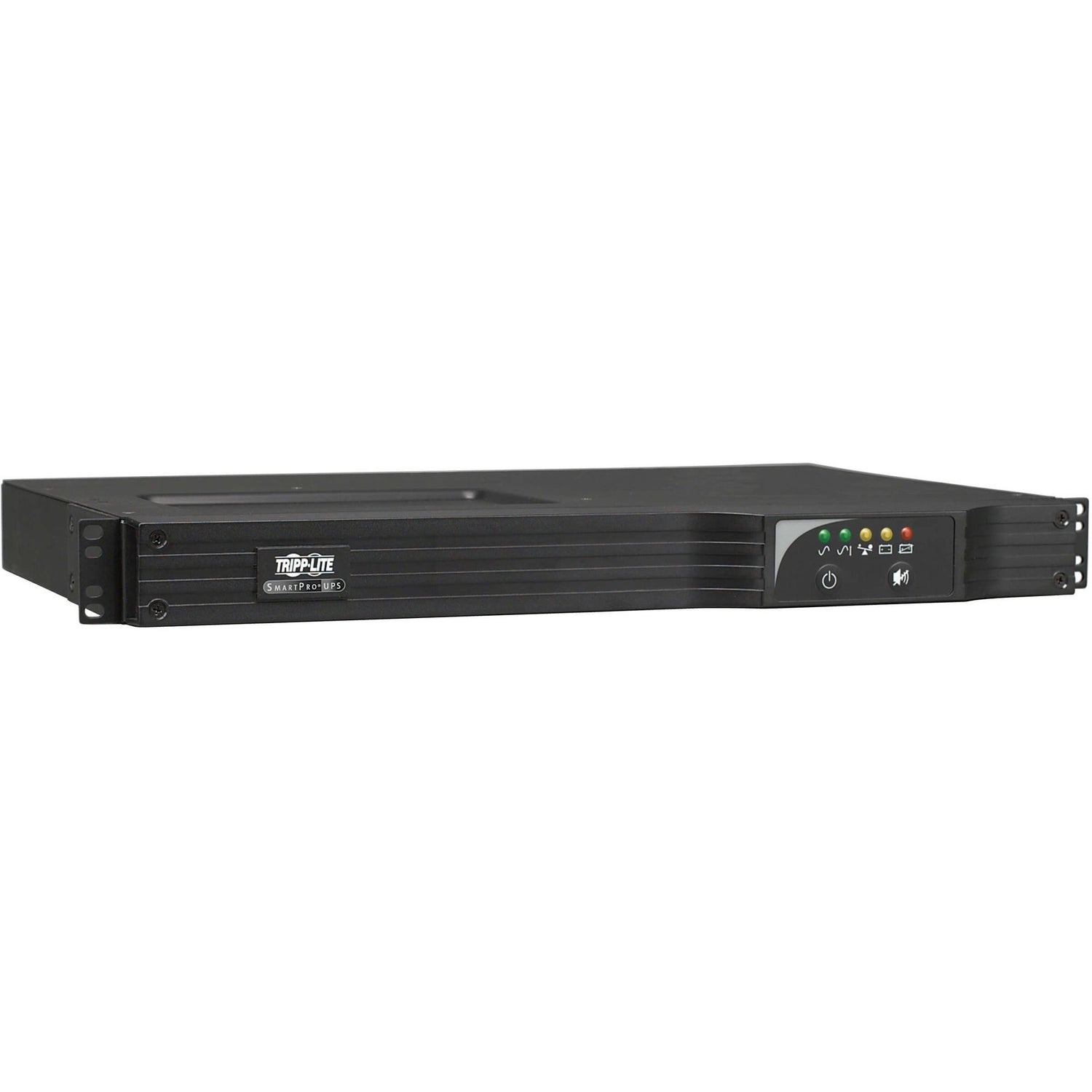

Eaton Tripp Lite Series SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS, 1U Rack/Vertical, WEBCARDLX Network Interface, USB, DB9, 6 Outlets — SMART1000RM1UN

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
• Audible alarm signals loss of utility power, overload and low battery
• 6 NEMA 5-15R outlets
• 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
• 450-joule surge suppression rating

• Supports half load up to 14 min. and full load up to 4 min.
• Internal batteries designed for hot-swap field replacement

• Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, Telnet, SSH, and CLI.
• Optional E2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status

• Auto Probe feature (Firmware 15.5.2 and greater) of the LX Platform Interface checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA)

• 2 load banks, each with one outlet controllable remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-147V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

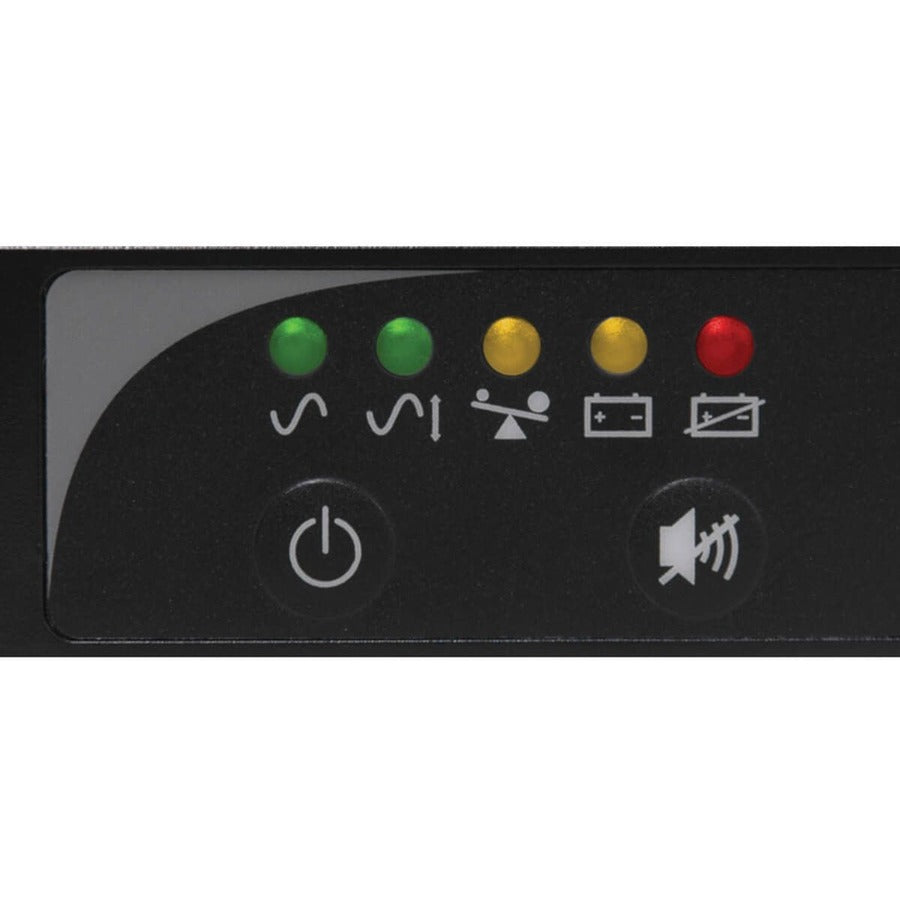

LED Indicators

• Front-panel LEDs signal power, voltage correction, load level and battery charge state

Communications Ports

• USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software (available via free download at www.tripplite.com/poweralert)
• EPO port supports emergency shutdown in large facilities

Versatile Installation Options

• Hardware included for mounting in 1U of EIA-standard 19 in. 2- or 4-post rack
• Optional 4POSTRAILKIT1U accessory available for extra support in 4-post installations
• Compatible with vertical mount cabinets

More from the Manufacturer

• 14 min. runtime at half load; 4 min. at full load
• Pre-installed WEBCARDLX network interface
• Network power management and control capability
• Corrects under- and overvoltages from 83V to 147V
• 6 NEMA 5-15R outlets-2 switchable via network interface
