Eaton Tripp Lite Series SmartPro 120V 1kVA 750W Medical-Grade Line-Interactive Tower UPS, 4 Outlets, Full Isolation, Expandable Runtime — SMART1200XLHG

Tripp Lite's SMART1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 28 minutes of runtime for a half load or 10 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise, while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both backup protection and surge protection rated to 940 joules. The SMART1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.

Ideal UPS Backup in Healthcare Facilities

• Complies with UL 60601-1 standards for use in patient-care facilities
• Isolation transformer with Faraday shield offers full isolation and removes common mode noise
• 6 ft. power cord with 120V NEMA 5-15P-HG plug
• Floating AC output prevents noise coupling and meets agency requirements for isolation

Reliable Battery Backup and Surge Protection

• Supports half load up to 28 min. and full load up to 10 min.

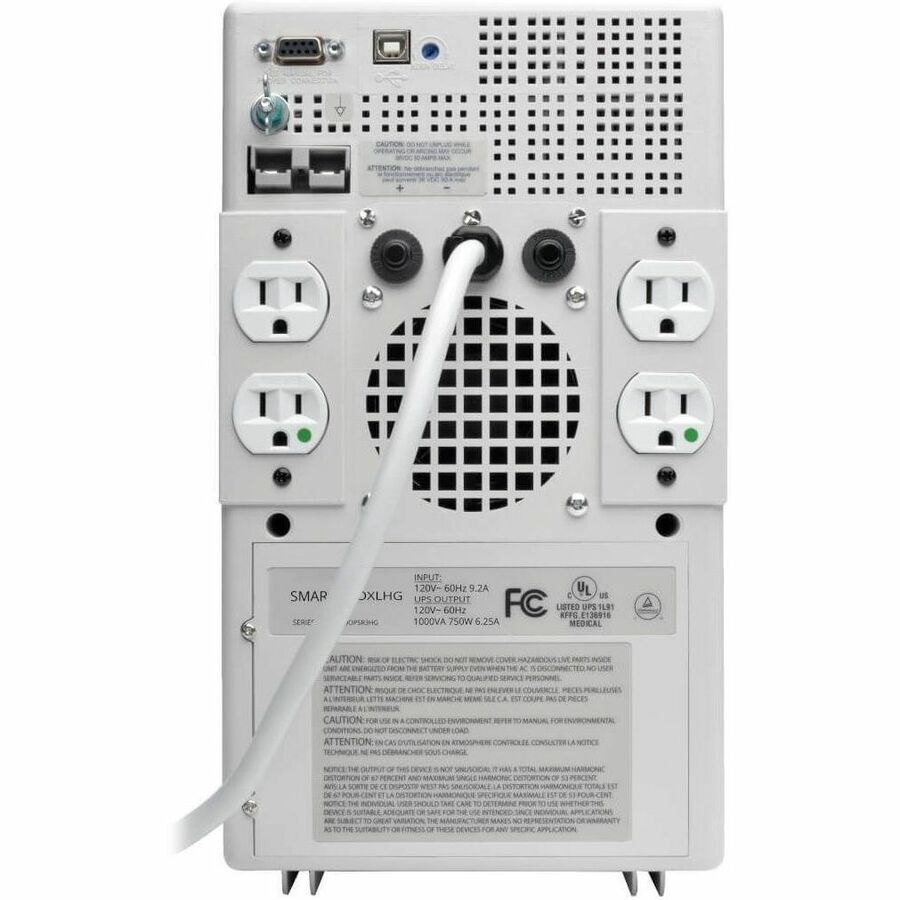

• 4 NEMA 5-15R-HG outlets with 940-joule surge protection
• Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
• Resists electrostatic discharge

LEDs and Audible Alarms

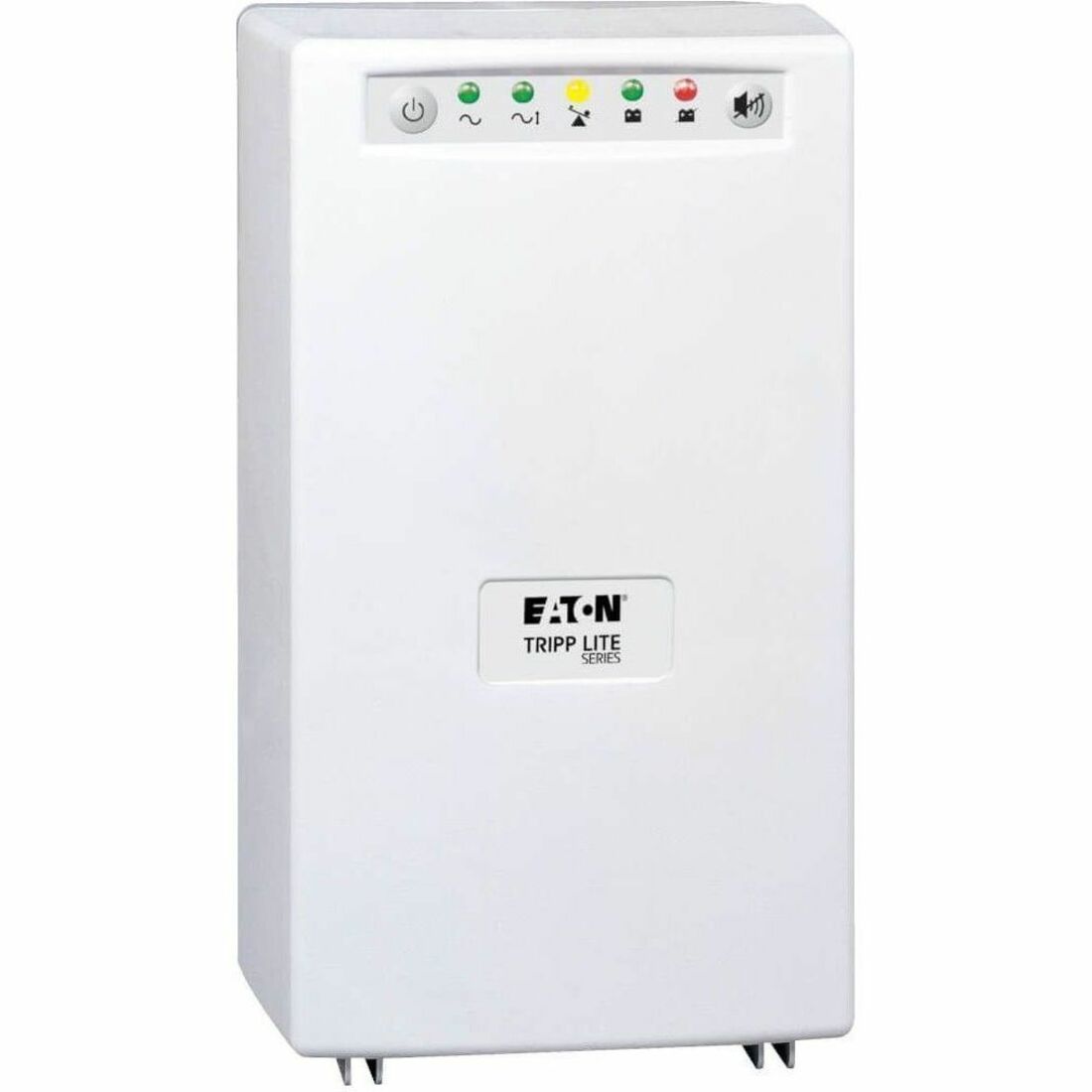

• Front LEDs indicate power, mode, load and battery status
• Alarms alert you to power failure, overload and low battery
• Mute/quiet mode ideal for use in quiet patient-care vicinities

Saves Files When You're Away

• Included PowerAlert® software enables safe, unattended system shutdown and file saving during power failures
• Connects to computer via DB9 or USB port with included cables

More from the Manufacturer

• 28 min. runtime at half load; 10 min. at full load
• Expandable runtime with optional external battery packs
• 4 NEMA 5-15R-HG outlets
• Front-panel LEDs indicate load, power, voltage and battery statuses
• Corrects under- and overvoltages from 81V to 143V
