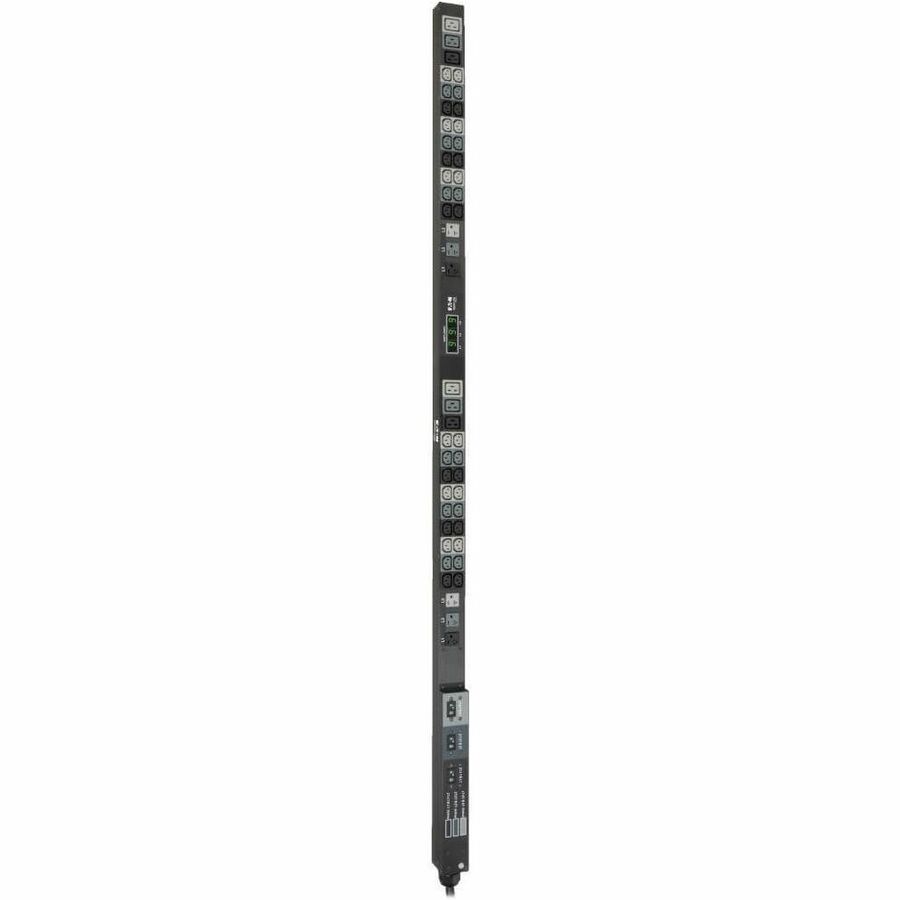

Eaton Tripp Lite Series 8.6kW 3-Phase Local Metered PDU, 208/120V Outlets (36 C13, 6 C19, 6 5-15/20R), 208V L21-30P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA — PDU3MV6L2130
Eaton Tripp Lite Series 8.6kW 3-Phase Local Metered PDU, 208/120V Outlets (36 C13, 6 C19, 6 5-15/20R), 208V L21-30P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA — PDU3MV6L2130 is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Eaton Tripp Lite Series 8.6kW 3-Phase Local Metered PDU, 208/120V Outlets (36 C13, 6 C19, 6 5-15/20R), 208V L21-30P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA — PDU3MV6L2130 is backordered and will ship as soon as it is back in stock.
Description
Description
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- TAA Compliant

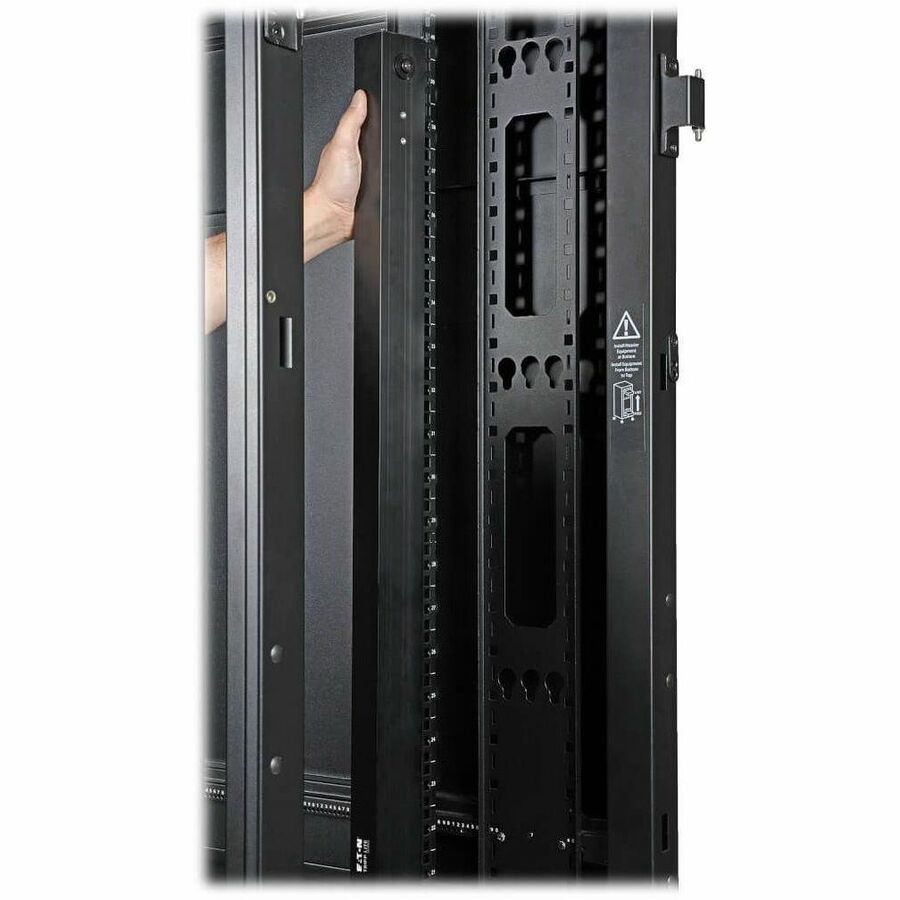

- Toolless button-mount installation; cord retention brackets included

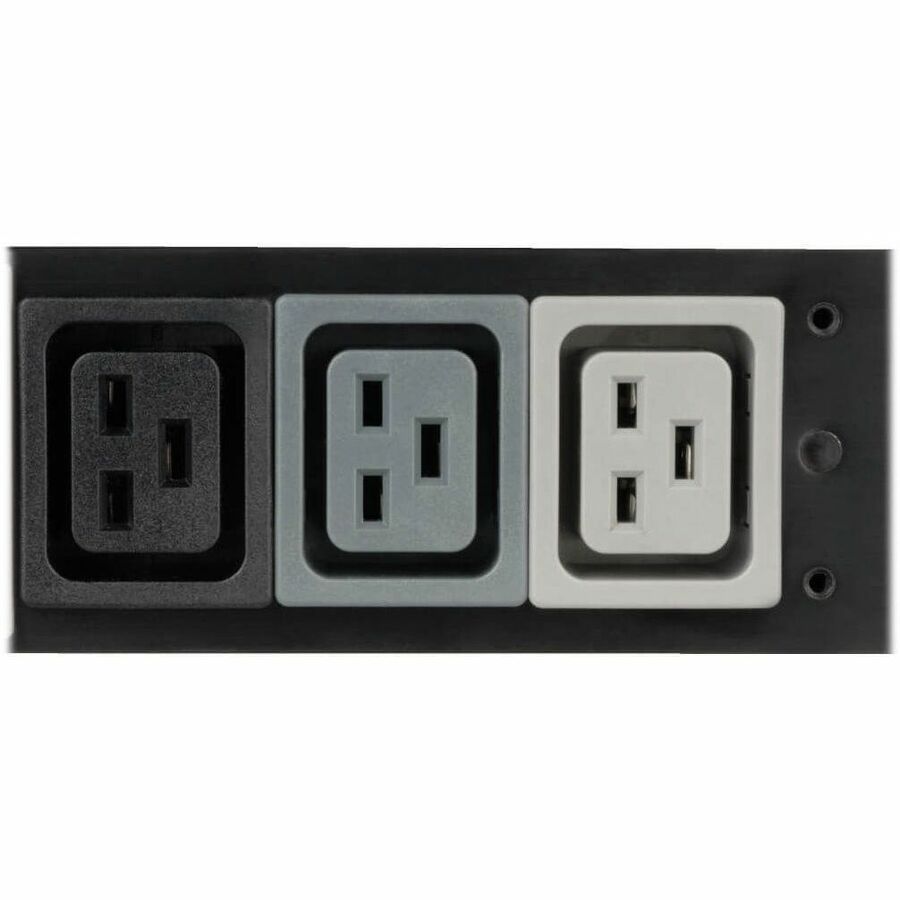

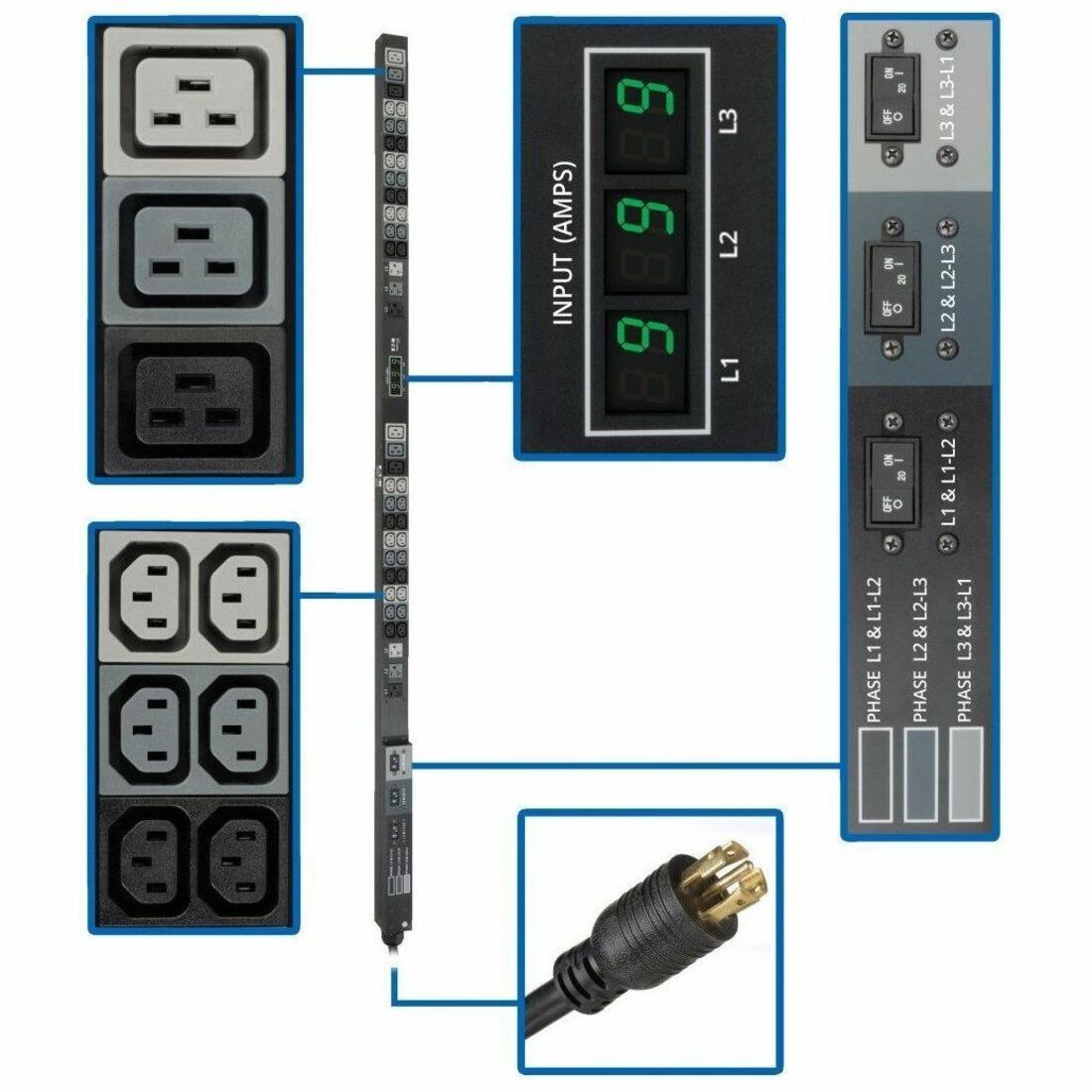

- 48 outlets total; 36 C13 (208V), 6 C19 (208V) & 6 NEMA 5-15/20R (120V)
- NEMA L21-30P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord

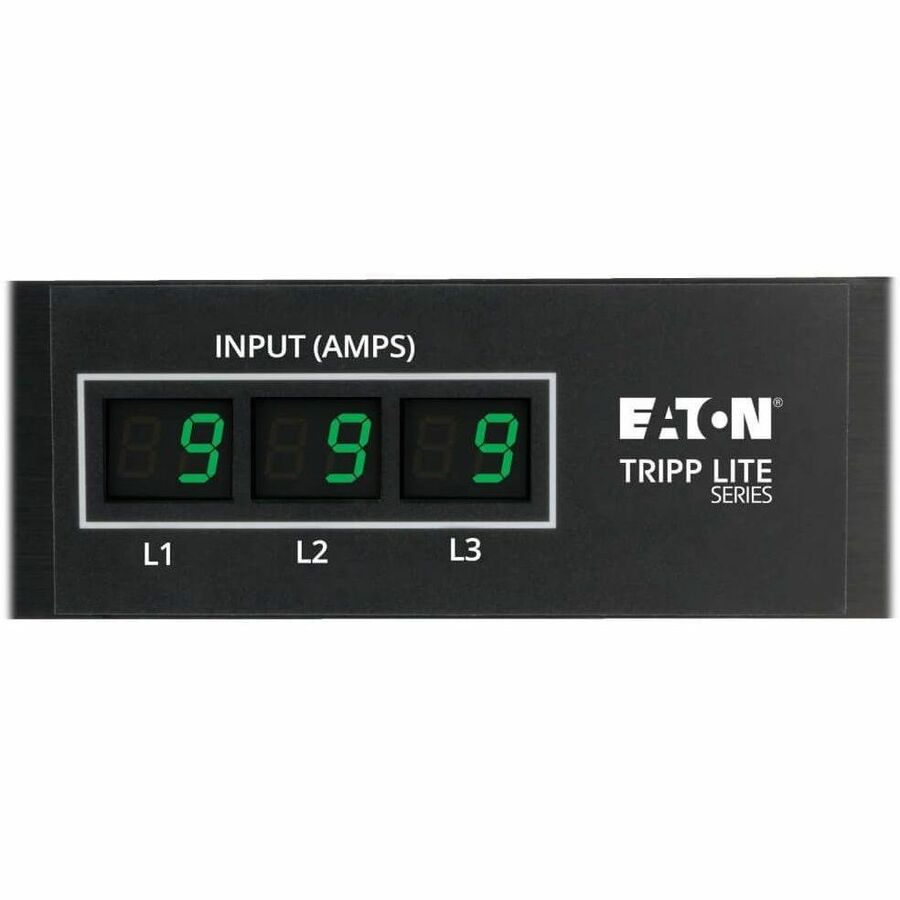

- Reports input current per-phase via built in current meters
- Metered 8.6kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
Specifications
Specifications
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Limited Warranty2 Year
-
Country of OriginTaiwan
-
TAA CompliantYes
-
Product TypePDU
-
Mount TypeRack-mountable
-
Mounting OrientationVertical
-
Product SeriesMetered
-
Product ModelPDU3MV6L2130
-
Input Voltage230 V AC
-
Protection TypeOverload Protection
-
Power Rating (Watt)8600 W
-
Package ContentsMetered PDU3MV6L2130 48-Outlets 8.6kW PDU Cord Retention Brackets Rack Mounting Brackets Owner's Manual
-
Plug/Connector TypeNEMA L21-30P
-
Output Voltage120 V AC,208 V AC
-
Receptacle TypeNEMA 5-15/20R,IEC 60320 C19,IEC 60320 C13
-
Receptacle Detail6 x NEMA 5-15/20R,6 x IEC 60320 C19,36 x IEC 60320 C13
-
ManufacturerTripp Lite by Eaton
-
Manufacturer Website Addresshttps://tripplite.eaton.com/
