Eaton | SKU:
ECO550UPS
New arrival

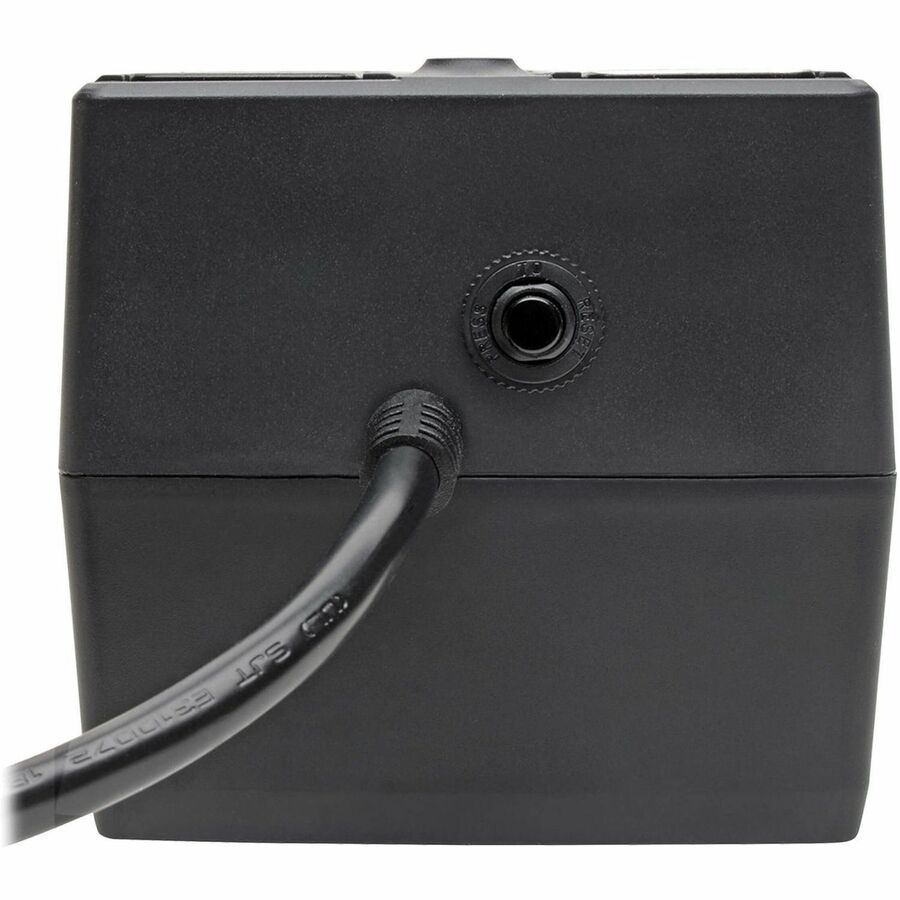

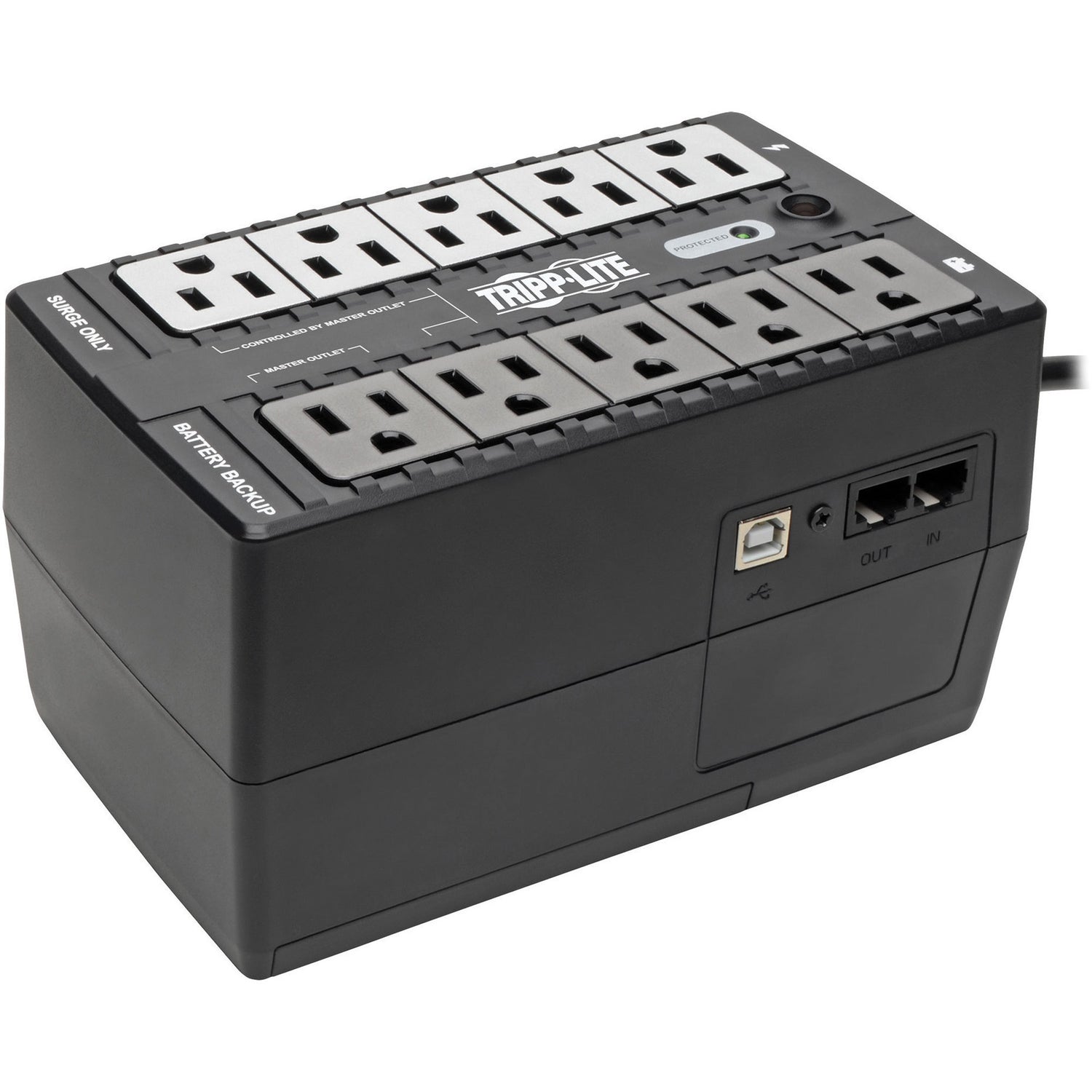

Eaton Tripp Lite Series 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, 5-15P Plug, ENERGY STAR, Desktop/Wall — ECO550UPS
Regular price
$171.00 USD
Unit price
Shipping calculated at checkout.
Eaton Tripp Lite Series 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, 5-15P Plug, ENERGY STAR, Desktop/Wall — ECO550UPS is backordered and will ship as soon as it is back in stock.
Request a quote for this item
Volume or contract pricing? Get a written quote with confirmed lead time.
Description
Description
Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes four battery-supported outlets for computer, monitor and two vital system peripherals, plus four additional surge suppression-only outlets for accessories not requiring battery support. Three of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. UPS system meets RoHS standards. 550VA/300-watt power handling ability supports entry-level PC systems for up to 17 minutes during power fail conditions.
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative

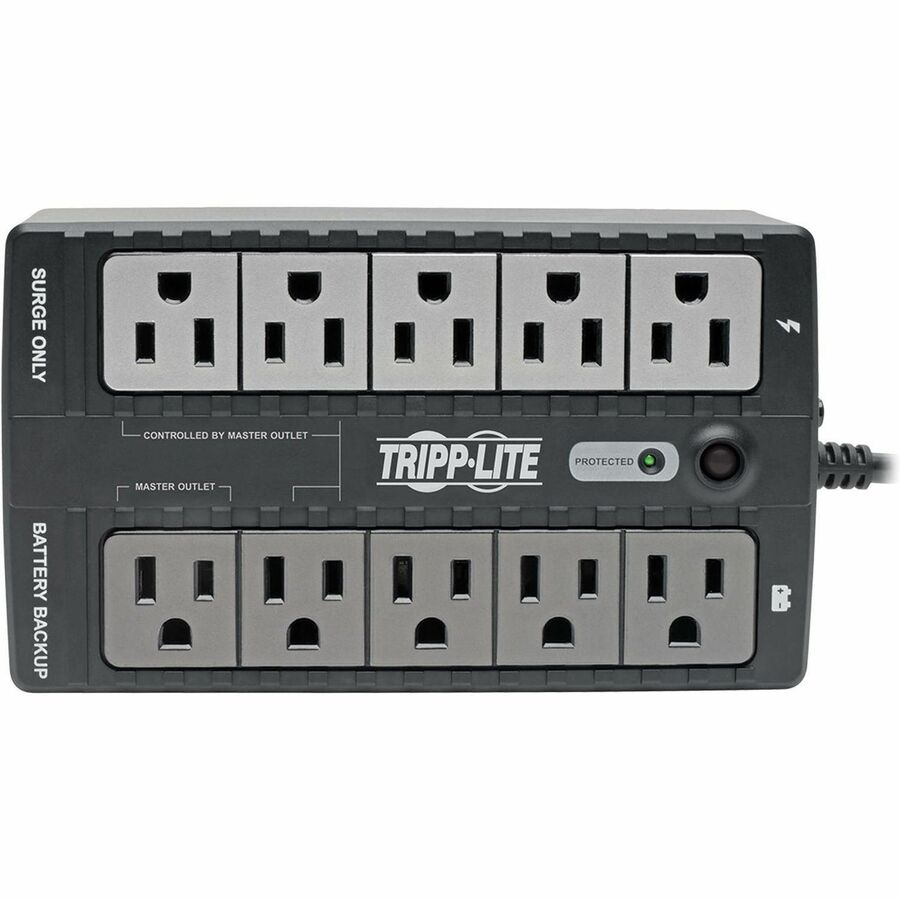

- 10 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
Specifications
Specifications
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Limited Warranty3 Year
-
Country of OriginVietnam
-
Energy StarYes
-
Packaged Quantity1 Each
-
Cord Length6 ft
-
Product ColorBlack
-
Product TypeStandby UPS
-

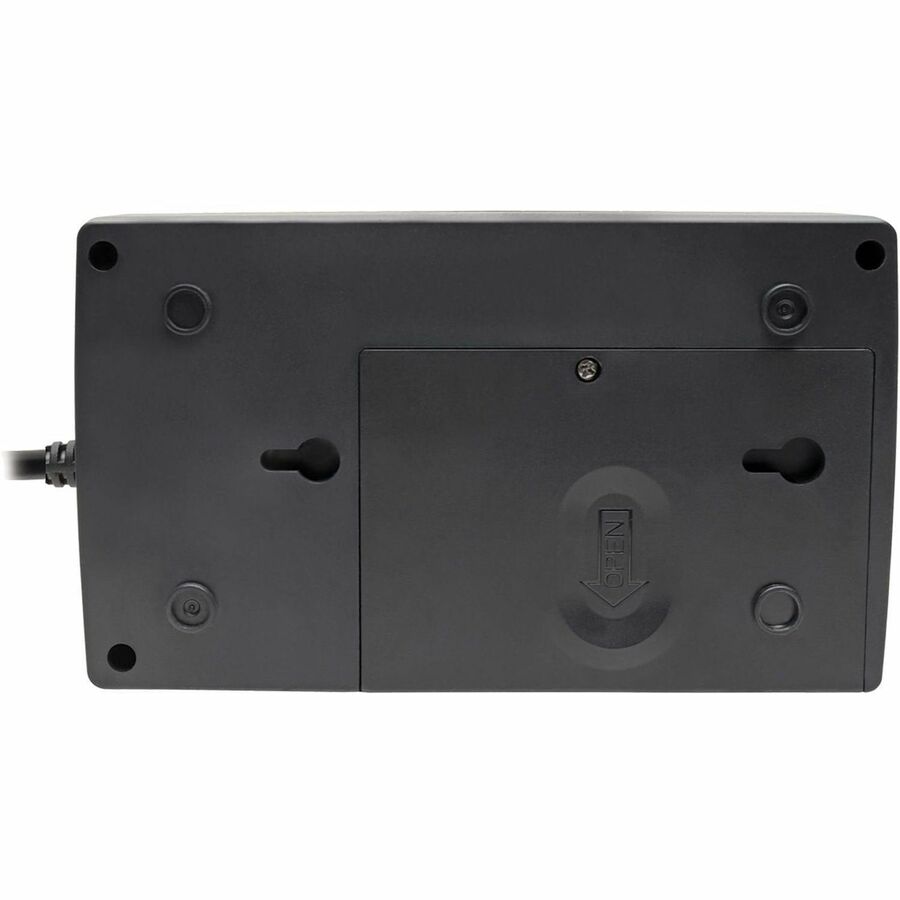

Form FactorUltra-compact Desktop/Tower/Wall Mount
-
Product SeriesECO
-
Product ModelECO550UPS
-
Receptacle TypeNEMA 5-15R
-
Input Voltage120 V AC
-
Plug/Connector TypeNEMA 5-15P
-
USBYes
-
Battery ChemistryLead Acid
-
Receptacle Detail10 x NEMA 5-15R
-
Transfer Time6 ms
-
Typical Battery Recharge Time6.50 Hour
-
Backup/Run Time (Full Load)1.20 Minute
-
PhaseSingle Phase
-
Waveform TypePure Sine Wave
-
Replaceable BatteryYes
-
Battery CharacteristicsValve-regulated
-
Minimum Operating Temperature32°F (0°C)
-
Maximum Operating Temperature104°F (40°C)
-
Backup/Run Time (Half Load)5 Minute
-
Output Voltage110 V AC,115 V AC,120 V AC
-
ManufacturerTripp Lite by Eaton
-
Battery Life6 Year
-
Number of Surge-only Outlets5
-
Additional Warranty Information2 year $100,000 connected equipment guarantee
-
Output Frequency60 Hz
-
Overload ProtectionYes
-

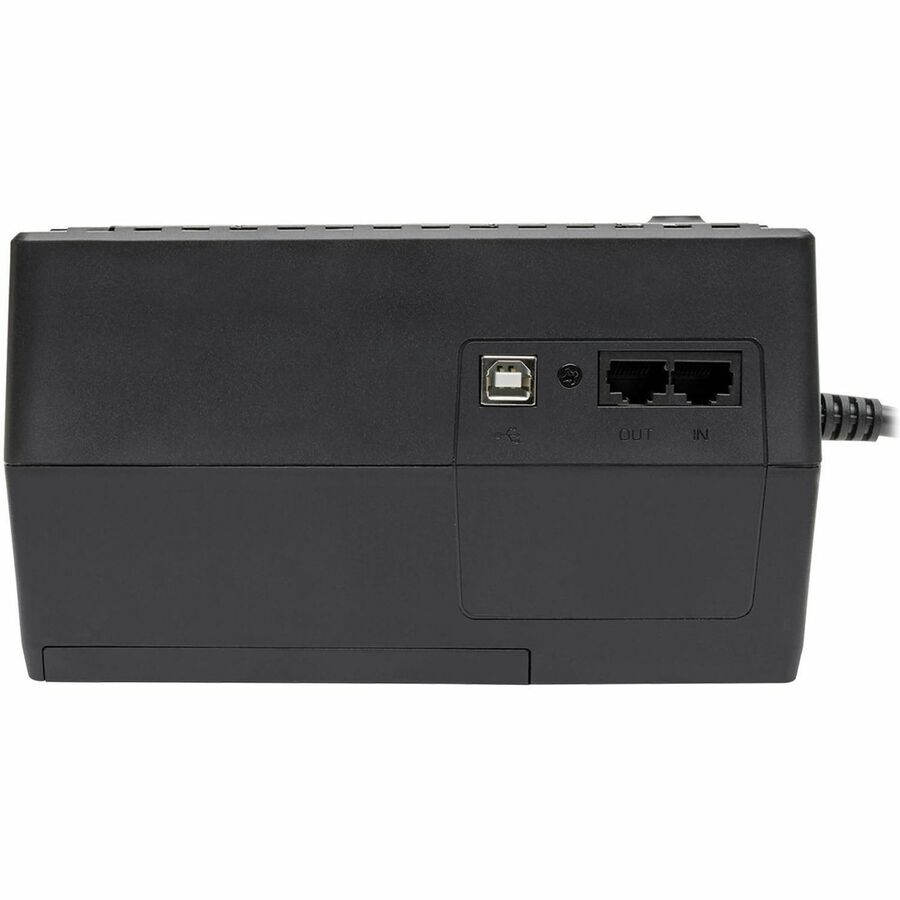

Dataline ProtectionRJ-11
-
Sound Emission40 dB
-
Surge Energy Rating316 J
-
DC System Voltage12 V DC
-
USB (HID Compliant) PortYes
-
Software IncludedPowerAlert software available via free download
-
Thermal Dissipation1.17 W
-
Status Indicators2 LED Indicator: Line power Battery power status Main Power Switch Controls : ON OFF SELF-TEST ALARM CANCEL Second switch enables "ECO" outlet switching
-
Manufacturer Website Addresshttps://tripplite.eaton.com/
-
Storage Temperature5°F (-15°C) - 133°F (56.1°C)
-
AlarmBattery Fault,Overload,Low Battery
-
Application/UsageRetail,Hospital,Computer Peripheral
-
Maximum Storage Elevation6561 ft
-
Package ContentsECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS USB Cable Owner's Manual
-
Load Capacity (Watt)300 W
-
Load Capacity (VA)550 VA
