Eaton Tripp Lite Series 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (16 C13 & 2 C19), L6-30P, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA — PDUMH30HV
Eaton Tripp Lite Series 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (16 C13 & 2 C19), L6-30P, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA — PDUMH30HV is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Eaton Tripp Lite Series 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (16 C13 & 2 C19), L6-30P, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA — PDUMH30HV is backordered and will ship as soon as it is back in stock.
Description
Description

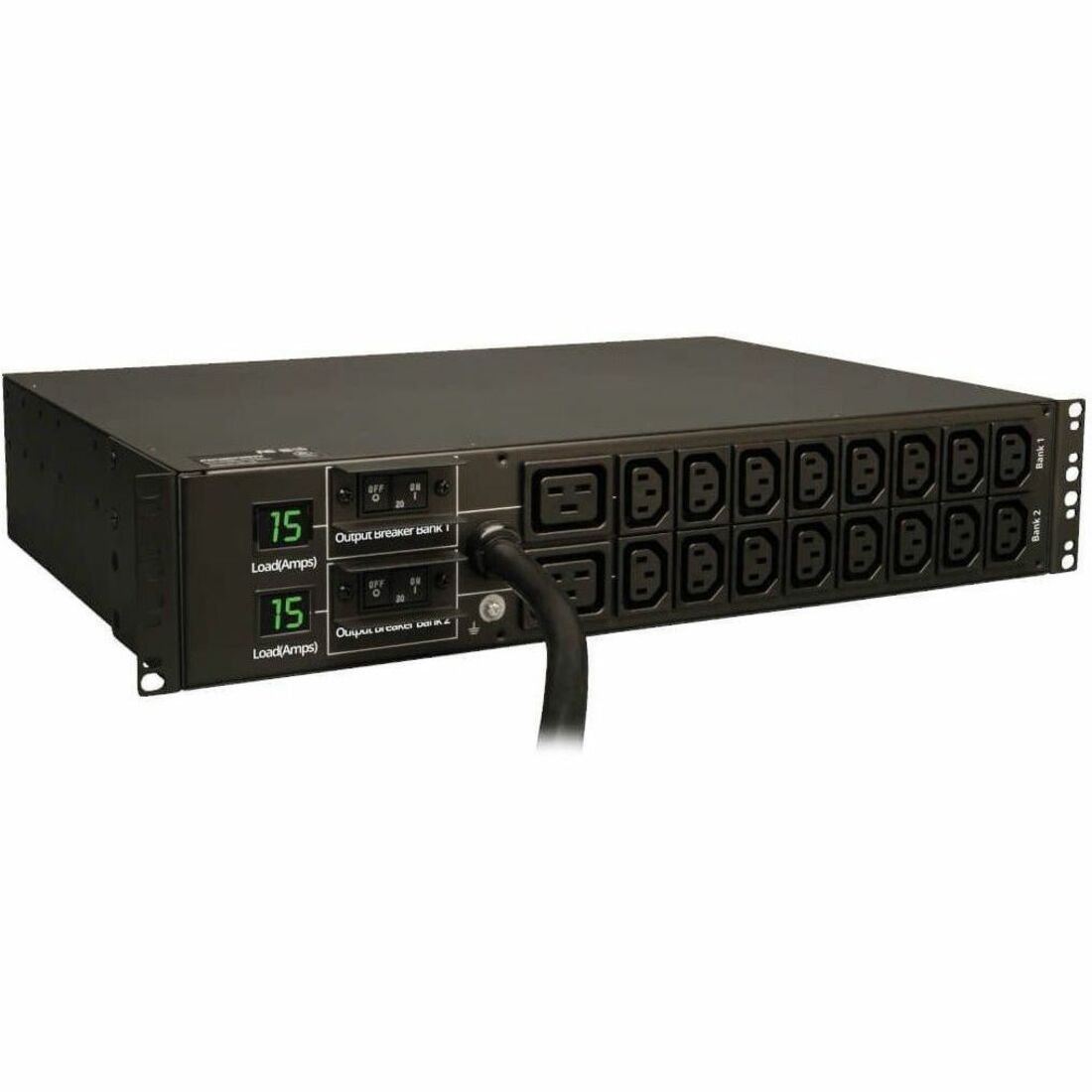

PDUMH30HV horizontal 2U metered rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A continuous). Includes 12 ft / 3.6m attached line cord with L6-30P input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.
- Reversible housing, 2U 208/240V rackmount metered PDU
- TAA Compliant

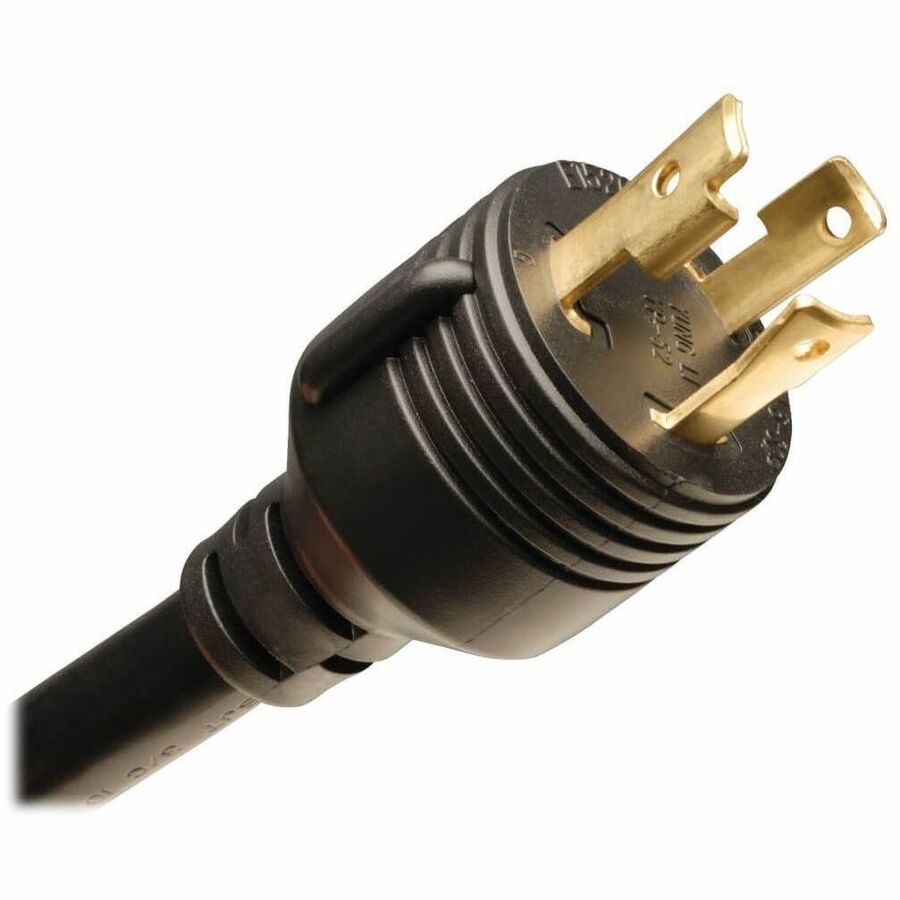

- Attached 12ft / 3.6m cord with NEMA L6-30P input plug
- 18 total outlets (16 C13, 2 C19)
- Two built-in meters report output current in amps for each load bank
- Metered single phase 30A 208/240V 2U horizontal rackmount PDU
Specifications
Specifications
-
Environmentally FriendlyYes
-
Rack Height2U
-
Limited Warranty2 Year
-
Country of OriginTaiwan
-
TAA CompliantYes
-
Product TypePDU
-
Mount TypeRack-mountable
-
Mounting OrientationHorizontal
-
Product SeriesMetered
-
Product ModelPDUMH30HV
-
Input Voltage230 V AC
-
Plug/Connector TypeNEMA L6-30P
-
Protection TypeOverload Protection
-
Input Voltage Range208 V AC - 240 V AC
-

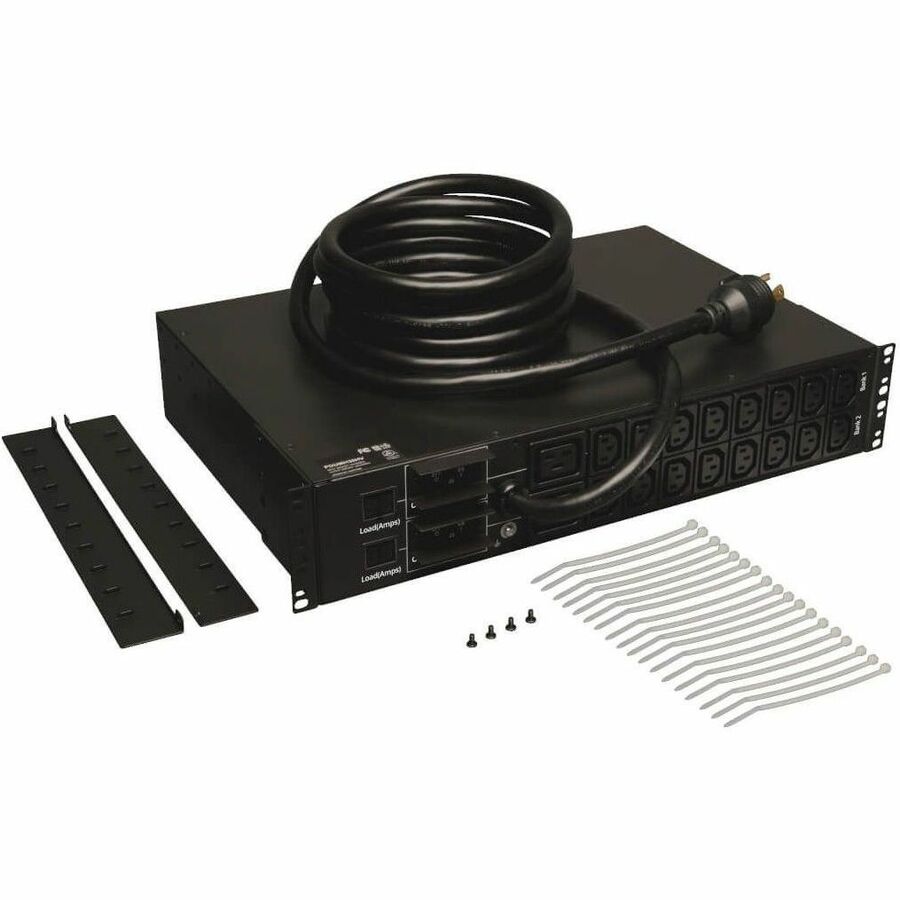

Package ContentsMetered PDUMH30HV 18-Outlets PDU Mounting Brackets Plug Retention Plates User Manual
-
Output Voltage208 V AC,240 V AC
-
Receptacle TypeIEC 60320 C19,IEC 60320 C13
-
Receptacle Detail2 x IEC 60320 C19,16 x IEC 60320 C13
-
ManufacturerTripp Lite by Eaton
-
Manufacturer Website Addresshttps://tripplite.eaton.com/
