Eaton Tripp Lite Series 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA — PDUMH20HV
Eaton Tripp Lite Series 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA — PDUMH20HV is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Eaton Tripp Lite Series 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA — PDUMH20HV is backordered and will ship as soon as it is back in stock.
Description
Description

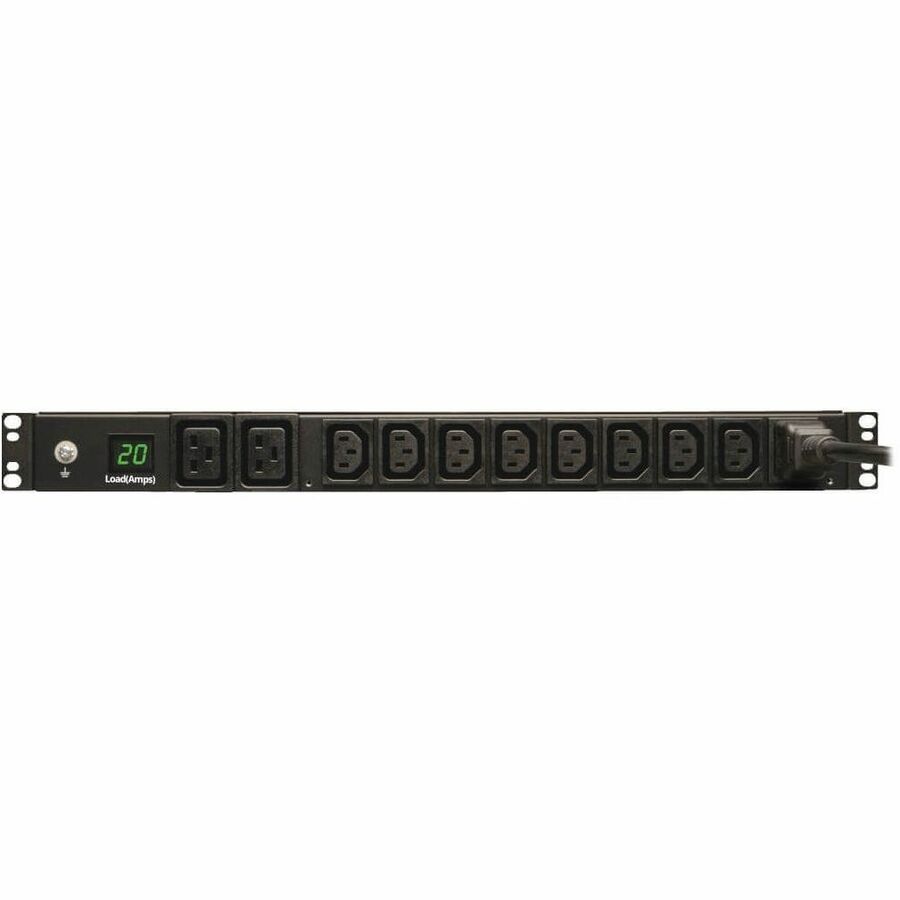

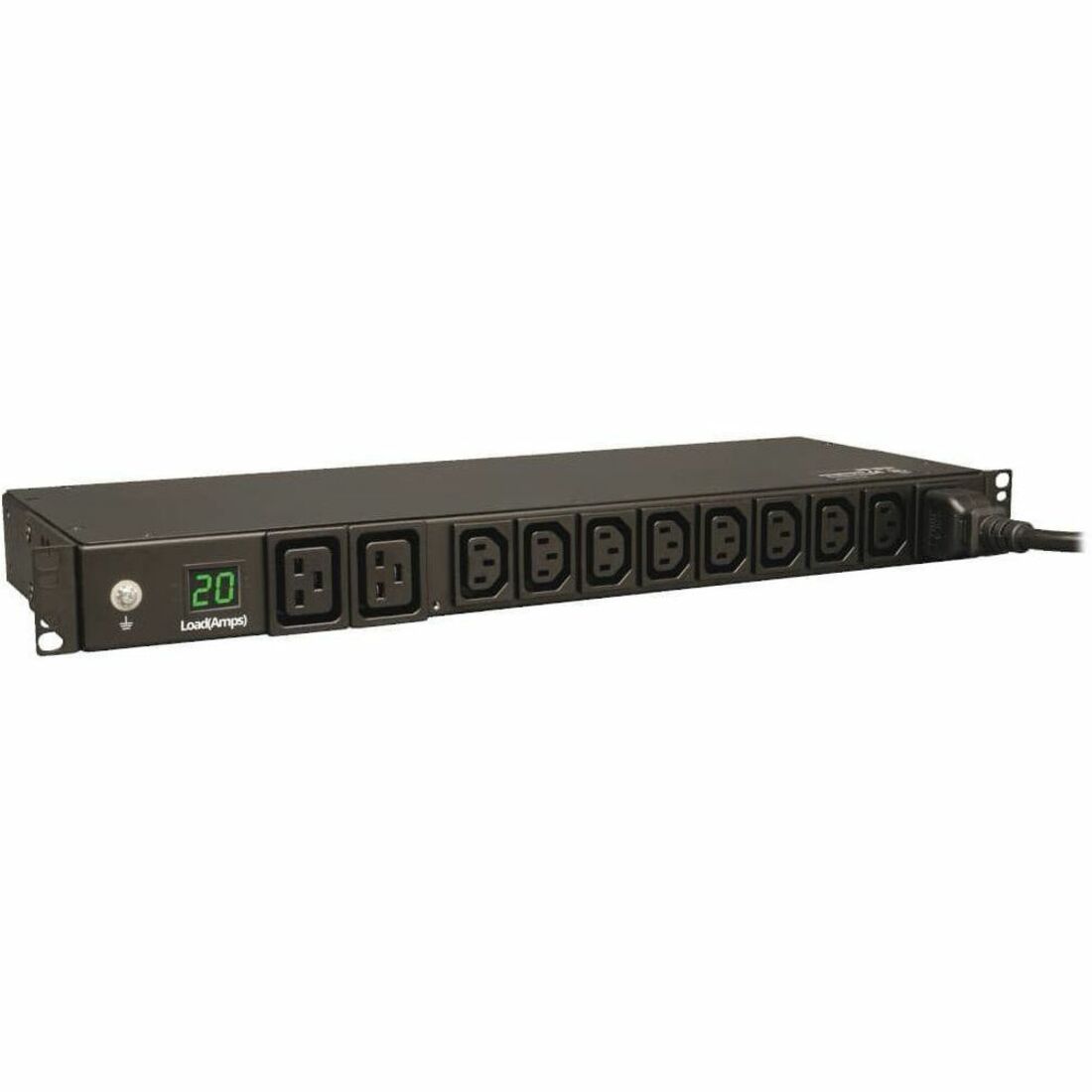

PDUMH20HV Metered, 1U rack PDU supports 20A maximum capacity at 208/240 & 230V (agency de-rated to 16 amps). Includes C20 inlet and detachable input cable with both C20 and L6-20P input plug options. 10 total output receptacles (8 C13 and 2 C19). Visual current meter tracks the output current of all outlets combined. Supports 1U rackmount installation in 19 inch 2 or 4 post racks. Included cord retention bracket keeps vital network equipment plugged in and continuously powered.
- 10 total outlets (8 C13, 2 C19)
- 1U horizontal rackmount; Digital current meter
- C20 input with L6-20P plug adapter; 12 ft. / 3.7m line cord
- Metered single phase 16/20A 200-240V PDU
Specifications
Specifications
-
Environmentally FriendlyYes
-
Limited Warranty2 Year
-
Country of OriginTaiwan
-
TAA CompliantYes
-
Rack Height1U
-
Product TypePDU
-
Mount TypeRack-mountable
-
Mounting OrientationHorizontal
-
Product SeriesMetered
-
Product ModelPDUMH20HV
-
Input Voltage230 V AC
-
Protection TypeOverload Protection
-
Input Voltage Range200 V AC - 240 V AC
-

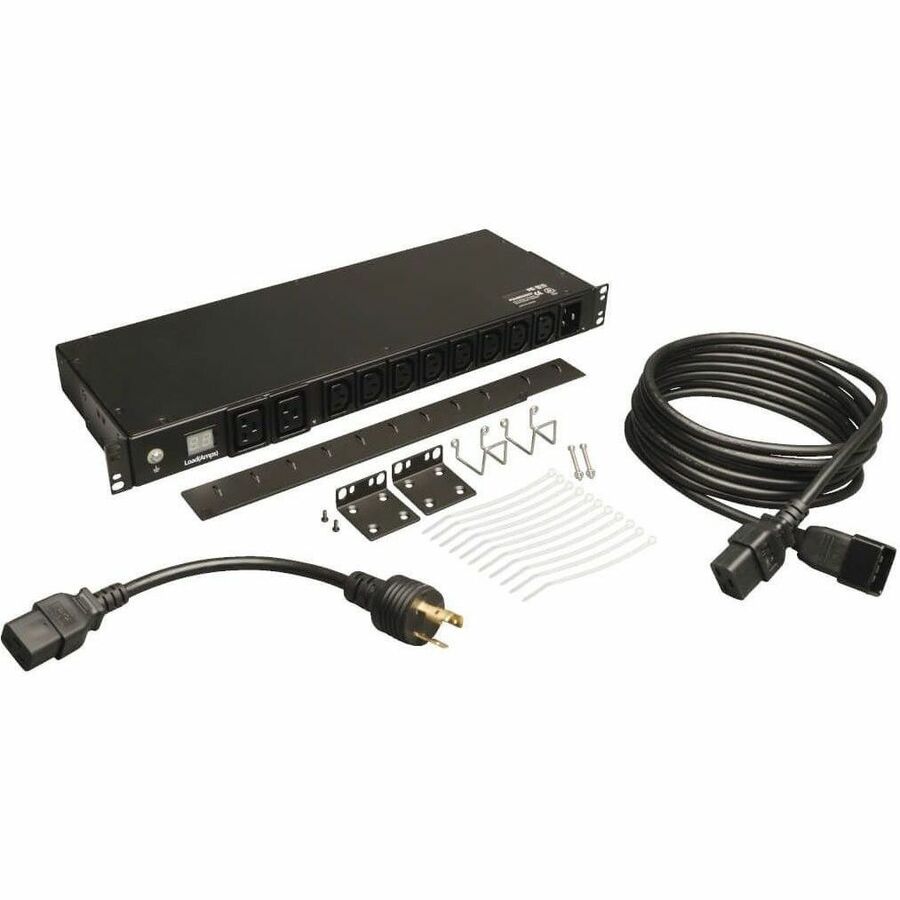

Package ContentsMetered PDUMH20HV 10-Outlets PDU Rackmount Brackets Cord Retention Brackets
-
Receptacle TypeIEC 60320 C19,IEC 60320 C13
-
Output Voltage208 V AC,230 V AC,240 V AC
-
Receptacle Detail2 x IEC 60320 C19,8 x IEC 60320 C13
-
Plug/Connector TypeIEC 60320 C20,NEMA L6-20P
-
ManufacturerTripp Lite by Eaton
-
Manufacturer Website Addresshttps://tripplite.eaton.com/
