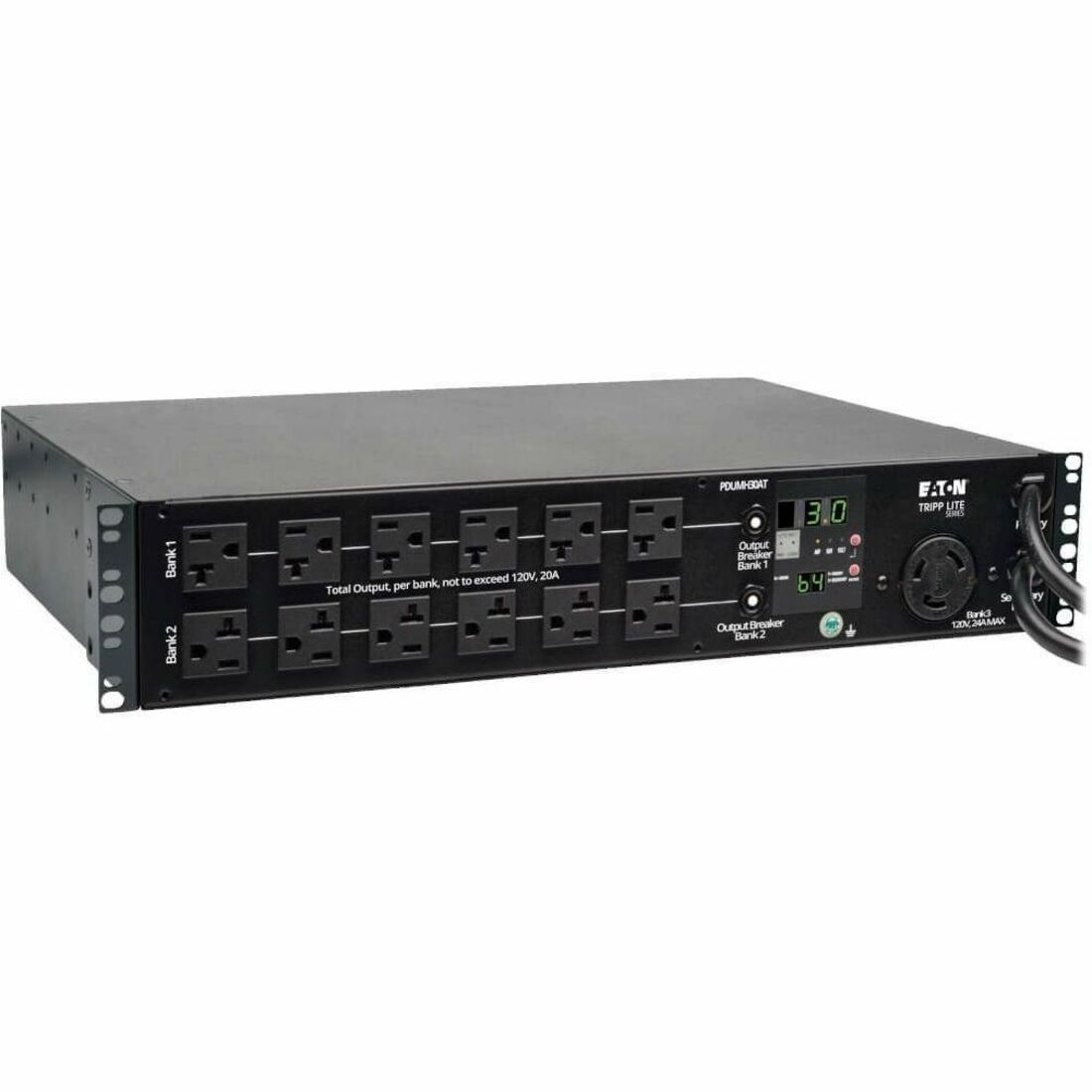

Eaton Tripp Lite Series 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V L5-30P Inputs, 24 5-15/20R & 1 L5-30R Outputs, 2U, TAA — PDUMH30AT
Eaton Tripp Lite Series 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V L5-30P Inputs, 24 5-15/20R & 1 L5-30R Outputs, 2U, TAA — PDUMH30AT is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Eaton Tripp Lite Series 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V L5-30P Inputs, 24 5-15/20R & 1 L5-30R Outputs, 2U, TAA — PDUMH30AT is backordered and will ship as soon as it is back in stock.
Description
Description

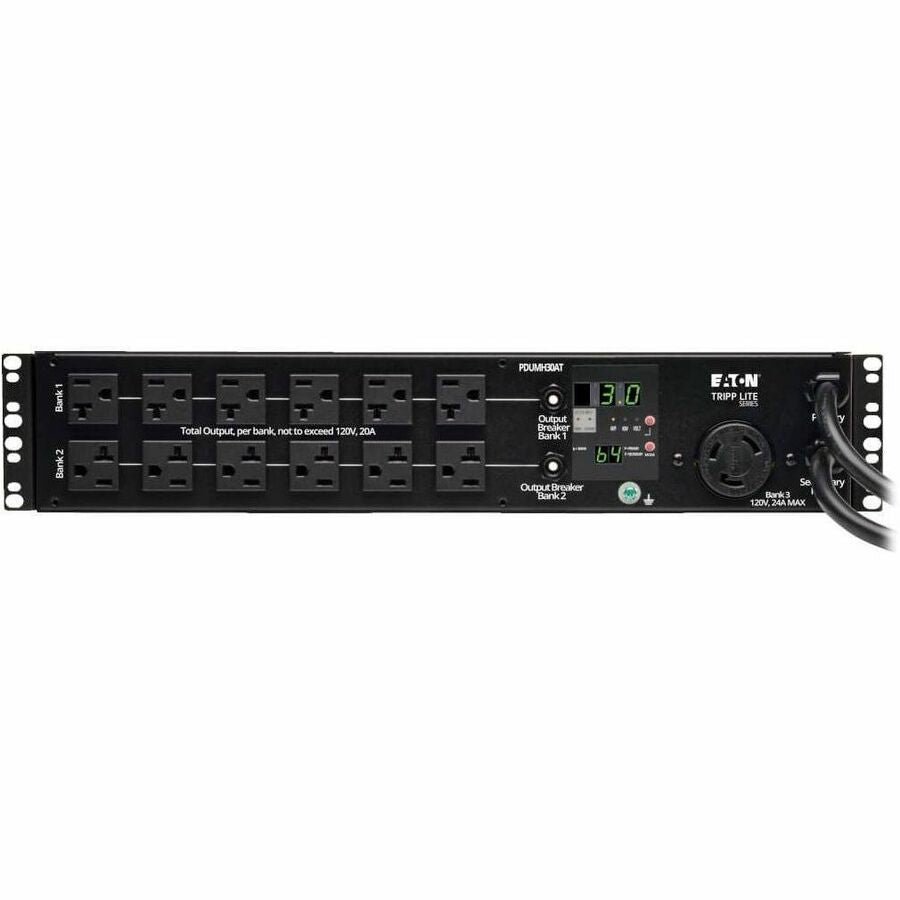

PDUMH30AT Metered ATS / Auto-Transfer Switch offers 120V 30A dual-input power distribution and visual current metering in a 2U horizontal rackmount installation format. Set of two NEMA L5-30P line cords enable separate primary and secondary input connections. Includes 25 built-in outputs (24 NEMA 5-15/20R and 1 L5-30R). Digital current metering with push-button display control tracks output power consumption in 4 segments: Bank 1 (12 upper 5-15/20R outlets), Bank 2 (12 lower 5-15/20R outlets), L5-30R (single outlet) and total PDU output. Supports 2U installation in 2 or 4 post racks, with additional support for wall-mount and under-counter placement.

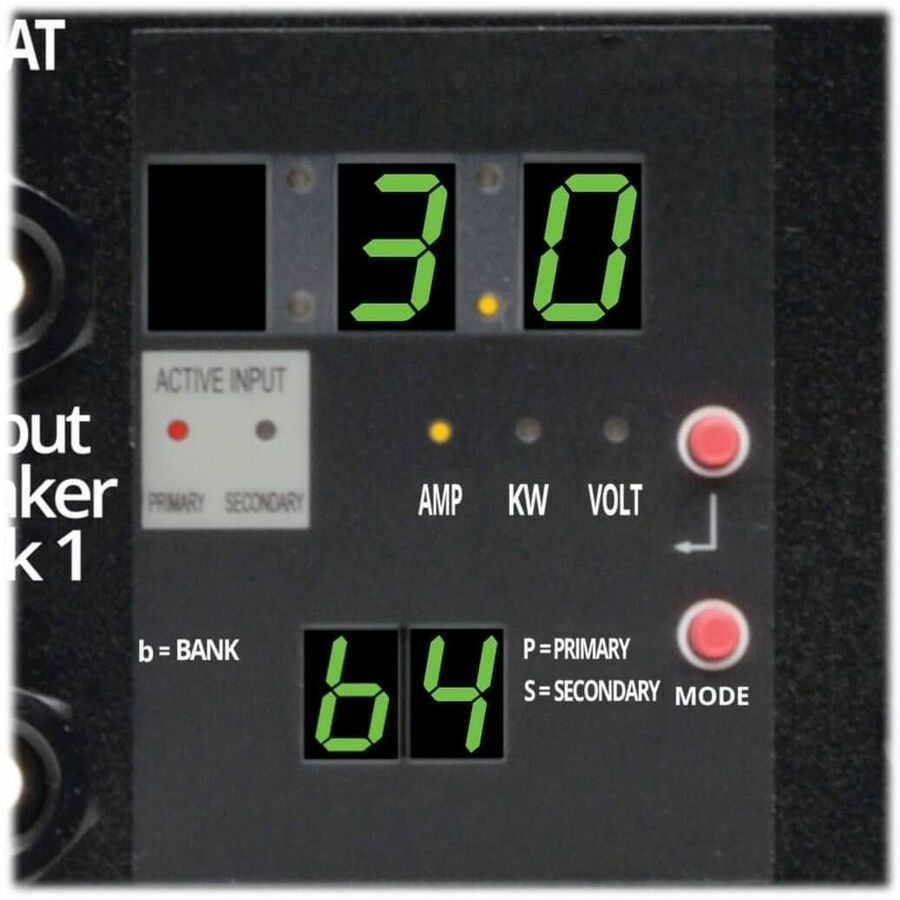

- Digital meter reports voltage, kW load level and output amperage in 4 load segments
- TAA Compliant
- 2U horizontal rackmount; 2 L5-30P inputs; 24 5-15/20R & 1 L5-30R outlets
- Separate primary & secondary inputs connect to any two compatible power sources
- Enables redundant A/B power option for single-corded network devices
- Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching
Specifications
Specifications
-
Environmentally FriendlyYes
-
Rack Height2U
-
Limited Warranty2 Year
-
Country of OriginTaiwan
-
TAA CompliantYes
-
Product TypePDU
-
Mounting OrientationHorizontal
-
Product SeriesMetered
-
Product ModelPDUMH30AT
-
Input Voltage120 V AC
-

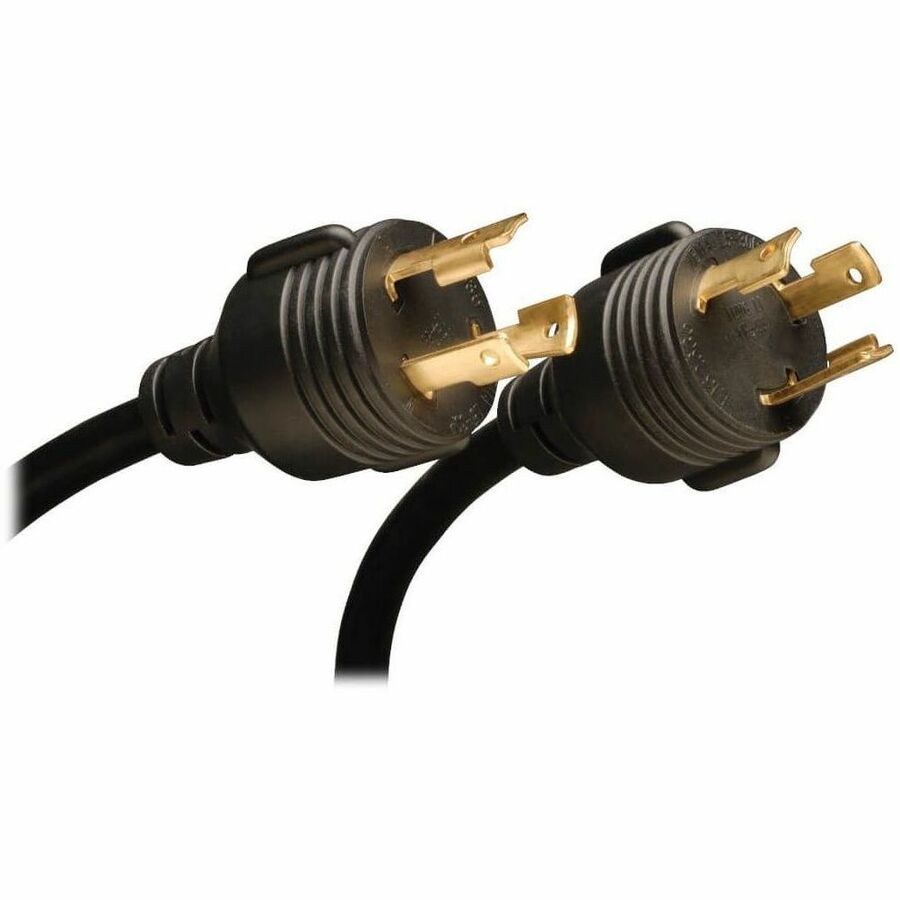

Plug/Connector TypeNEMA L5-30P
-
Plug/Connector Detail2 x NEMA L5-30P
-
Input Voltage Range100 V AC - 127 V AC
-
Package ContentsMetered PDUMH30AT 25-Outlets PDU Installable Plug-retention Shelves Rackmount Installation Brackets Cable Ties
-
Receptacle TypeNEMA 5-15/20R,NEMA L5-30R
-
Mount TypeWall-mountable,Rack-mountable
-
Receptacle Detail24 x NEMA 5-15/20R,1 x NEMA L5-30R
-
Output Voltage100 V AC,120 V AC,127 V AC
-
ManufacturerTripp Lite by Eaton
-
Manufacturer Website Addresshttps://tripplite.eaton.com/
