Eaton | SKU:
SMX1500LCD
Sold out
New arrival
Eaton Tripp Lite Series 1500VA 900W Line-Interactive UPS - 8 C13 Outlets, AVR, 230V, 50/60 Hz, USB, DB9, LCD, 2U Rack/Tower — SMX1500LCD
Regular price
$939.16 USD
Unit price
Shipping calculated at checkout.
Eaton Tripp Lite Series 1500VA 900W Line-Interactive UPS - 8 C13 Outlets, AVR, 230V, 50/60 Hz, USB, DB9, LCD, 2U Rack/Tower — SMX1500LCD is backordered and will ship as soon as it is back in stock.
Out of stock — request a quote & lead time
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Description
Description
The SMX1500LCD SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, point-of-sale applications, VoIP systems and small business networks, the SMX1500LCD switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

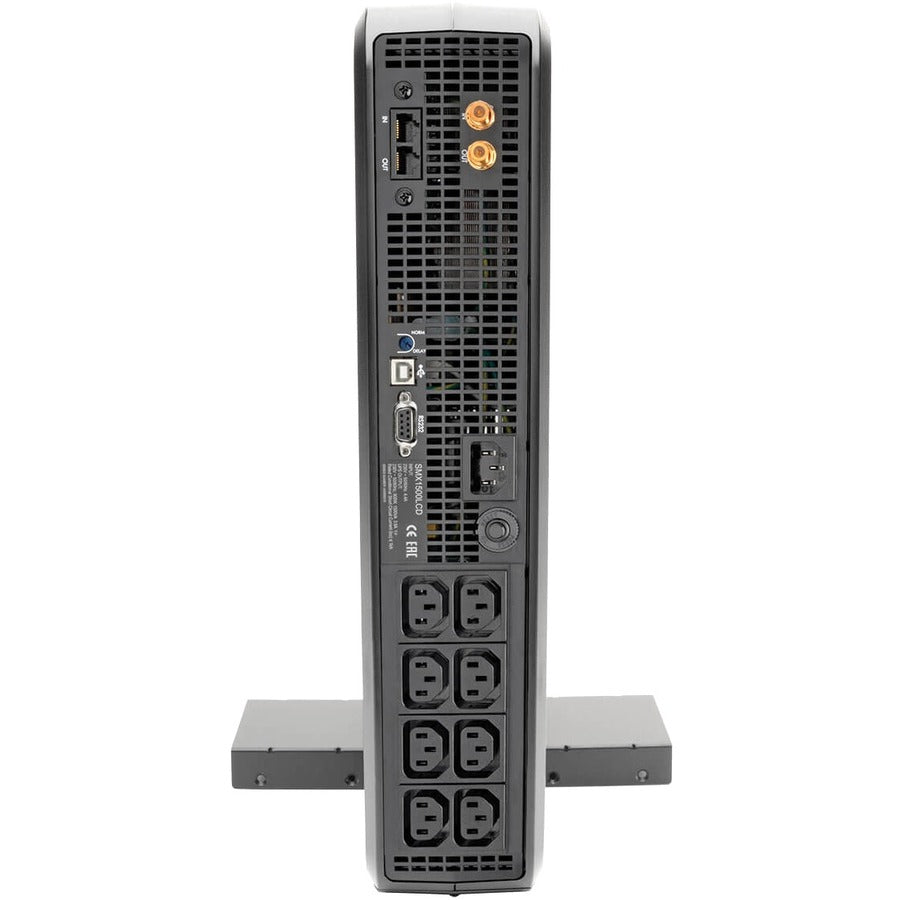

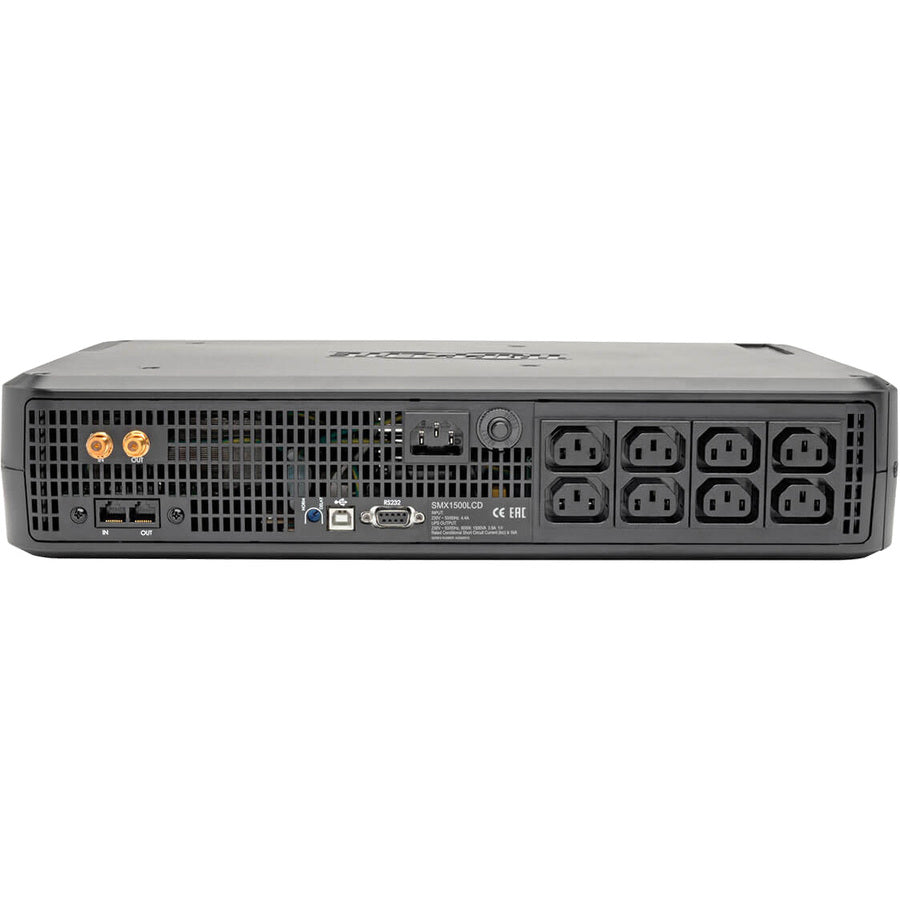

Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCD has a user-replaceable internal battery that provides 12 minutes of support at half load and 4.5 minutes at full load. It can also power an entry-level PC up to 60 minutes or a single DVR/VCR component up to three hours. A front-panel LCD screen lets you monitor operating data, such as voltage, battery and overload statuses.
Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 144V to 282V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. An 360-joule surge suppression rating protects your equipment from harmful power surges. USB communications port supports built-in power management and auto-shutdown features of Windows and Mac OS X or full featured monitoring and data-saving auto-shutdown options using Tripp Lite's free PowerAlert monitoring software.
Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCD has a user-replaceable internal battery that provides 12 minutes of support at half load and 4.5 minutes at full load. It can also power an entry-level PC up to 60 minutes or a single DVR/VCR component up to three hours. A front-panel LCD screen lets you monitor operating data, such as voltage, battery and overload statuses.
Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 144V to 282V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. An 360-joule surge suppression rating protects your equipment from harmful power surges. USB communications port supports built-in power management and auto-shutdown features of Windows and Mac OS X or full featured monitoring and data-saving auto-shutdown options using Tripp Lite's free PowerAlert monitoring software.
- 12 min. runtime at half load; 4.5 min. at full load
- Monitoring of power conditions via POWERALERT12
- 8 C13 outlets
- Interactive LCD monitoring screen
- Corrects under- and overvoltages from 144V to 282V
Specifications
Specifications
-
Product TypeLine-interactive UPS
-
Rack Height2U
-
Product LineSmartPro
-
Country of OriginChina
-
Limited Warranty2 Year
-
Product ModelSMX1500LCD
-
Input Voltage220 V AC
-
Transfer Time4 ms
-
USBYes
-
Serial PortYes
-
Backup/Run Time (Full Load)4.50 Minute
-
Battery ChemistryLead Acid
-
Load Capacity1500 VA/900 W
-
Typical Battery Recharge Time8 Hour
-
Receptacle TypeIEC 60320 C13
-
Receptacle Detail8 x IEC 60320 C13
-
Output Voltage230 V AC
-
Plug/Connector TypeIEC 320 EN 60320 C14
-
Package ContentsSmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS SMX1500LCD Digital UPS System USB cable, phone (RJ11) cable and coax cable 2 C13-to-C14 jumper cables 2 tower/rackmount brackets Owner's manual with warranty information
-
Backup/Run Time (Half Load)13 Minute
-
Form FactorTower,Rack-mountable
-
ManufacturerTripp Lite by Eaton
-
Software IncludedPowerAlert Software
-
Dataline ProtectionRJ-11
-
Manufacturer Website Addresshttps://tripplite.eaton.com/
