Description
Description
The PR2200RT2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

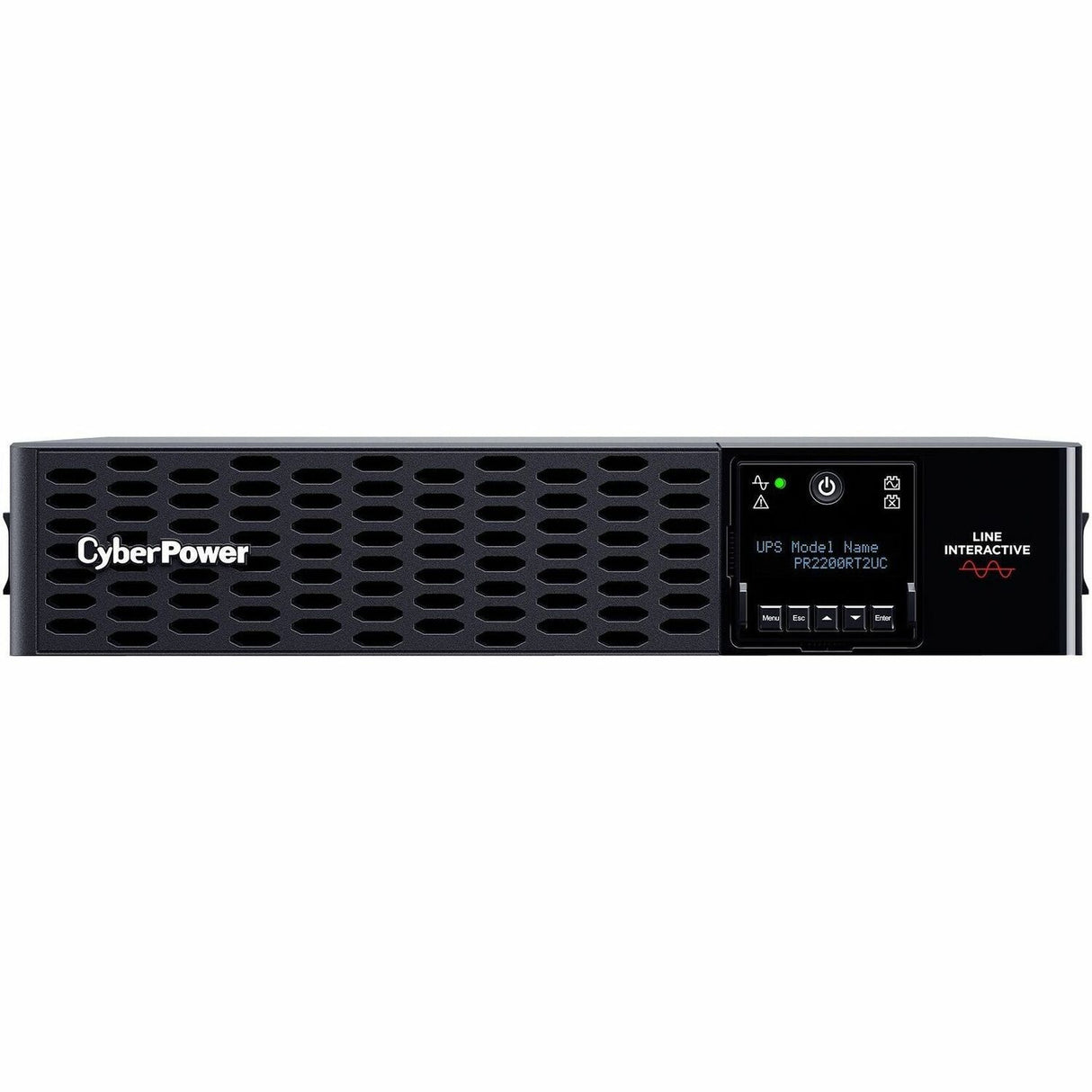

The Smart App Sinewave PR2200RT2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RT2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RT2UC.
- Capacity: 2200 VA / 2200 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-120 VAC ± 5%
- Runtime (half/full): 11.8 minutes / 3.2 minutes
- Plug type & cord: NEMA L5-30P, 10 ft. cord
- Outlets: 8 surge + battery backup
- Outlet types: 8 � NEMA 5-20R

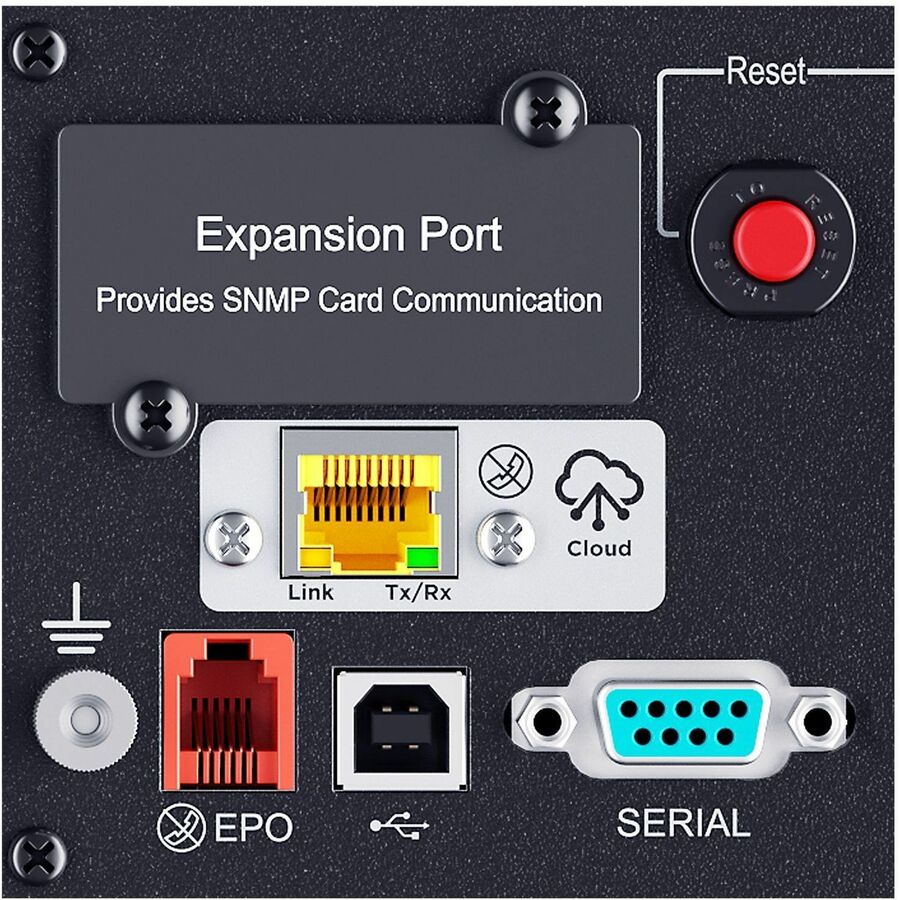

- Communication: USB, Serial, SNMP, Cloud, Relay, EPO
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205. Includes built in cloud monitoring
- Warranty: 3 year
- Connected Equipment Guarantee: $400,000
- ENERGY STAR® certified: Yes
Specifications
Specifications
-
Environmentally FriendlyYes
-
Product TypeLine-interactive UPS
-
Rack Height2U
-
Form FactorRack/Tower
-
Limited Warranty3 Year
-
ManufacturerCyberPower Systems, Inc
-
Energy StarYes
-
Country of OriginPhilippines
-
Hot SwappableYes
-
Product ColorBlack
-
Product LineSmart App Sinewave
-
Length20.9"
-
Receptacle TypeNEMA 5-20R
-
Input Voltage120 V AC
-
Plug/Connector TypeNEMA L5-30P
-
Waveform TypeSine Wave
-
Transfer Time4 ms
-
USBYes
-
Serial PortYes
-
Typical Battery Recharge Time3 Hour
-
Battery ChemistryLead Acid
-
AVRYes
-
Backup/Run Time (Full Load)3.20 Minute
-
Replaceable BatteryYes
-
Battery Capacity9000 mAh
-
Receptacle Detail8 x NEMA 5-20R
-
Number of Battery & Surge Outlets8
-
Battery CharacteristicsSealed
-
Input Voltage Range70 V AC - 155 V AC
-
Backup/Run Time (Half Load)11.80 Minute
-
DisplayLCD
-
Maximum Operating Temperature104°F (40°C)
-
Number of Batteries4
-
Operating Humidity95%
-
Output Voltage100 V AC,110 V AC,120 V AC,125 V AC
-
Environmental CertificationGreenPower UPS,RoHS
-
Output Frequency60 Hz
-
Overload ProtectionYes
-
Thermal Dissipation39.56 W
-
Input Frequency63 Hz
-
Storage Temperature5°F (-15°C) - 113°F (45°C)
-
EMI/RFI Noise FilterYes
-
USB (HID Compliant) PortYes
-
Battery Size12V
-
EPO PortYes
-
Maximum Operating Elevation9842.52 ft
-
Number of Critical Load Outlets4
-
Surge Energy Rating2430 J
-
Storage Relative Humidity95%
-
Sound Emission (A-Weighted)52.5 dB(A)
-
AlarmBattery Mode,Low Battery,Overload,Over-charge,Overheat
-
Output Power Factor1
-
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
-
Additional Warranty InformationConnected Equipment Guarantee: Lifetime
-
Maximum Storage Elevation49209.32 ft
-
Application/UsageServer,Storage Device,VoIP,Network Device,Telecommunication,Equipment,Corporate
-
Network ManagementRelay-MS Card,Dry Contact,SNMP/HTTP Remote Monitoring
-
Status IndicatorsLED Indicators Power On Line Mode Battery Mode Fault Night Mode Wiring Fault
-
Product ModelPR2200RT2UC
-
Load Capacity (VA)2200 VA
-
Load Capacity (Watt)2200 W
