CyberPower PDU41003 Single Phase 100 - 120 VAC 30A Switched PDU — PDU41003
CyberPower PDU41003 Single Phase 100 - 120 VAC 30A Switched PDU — PDU41003 is backordered and will ship as soon as it is back in stock.
Volume or contract pricing? Get a written quote with confirmed lead time.
CyberPower PDU41003 Single Phase 100 - 120 VAC 30A Switched PDU — P...
CyberPower PDU41003 Single Phase 100 - 120 VAC 30A Switched PDU — PDU41003 is backordered and will ship as soon as it is back in stock.
Description
Description

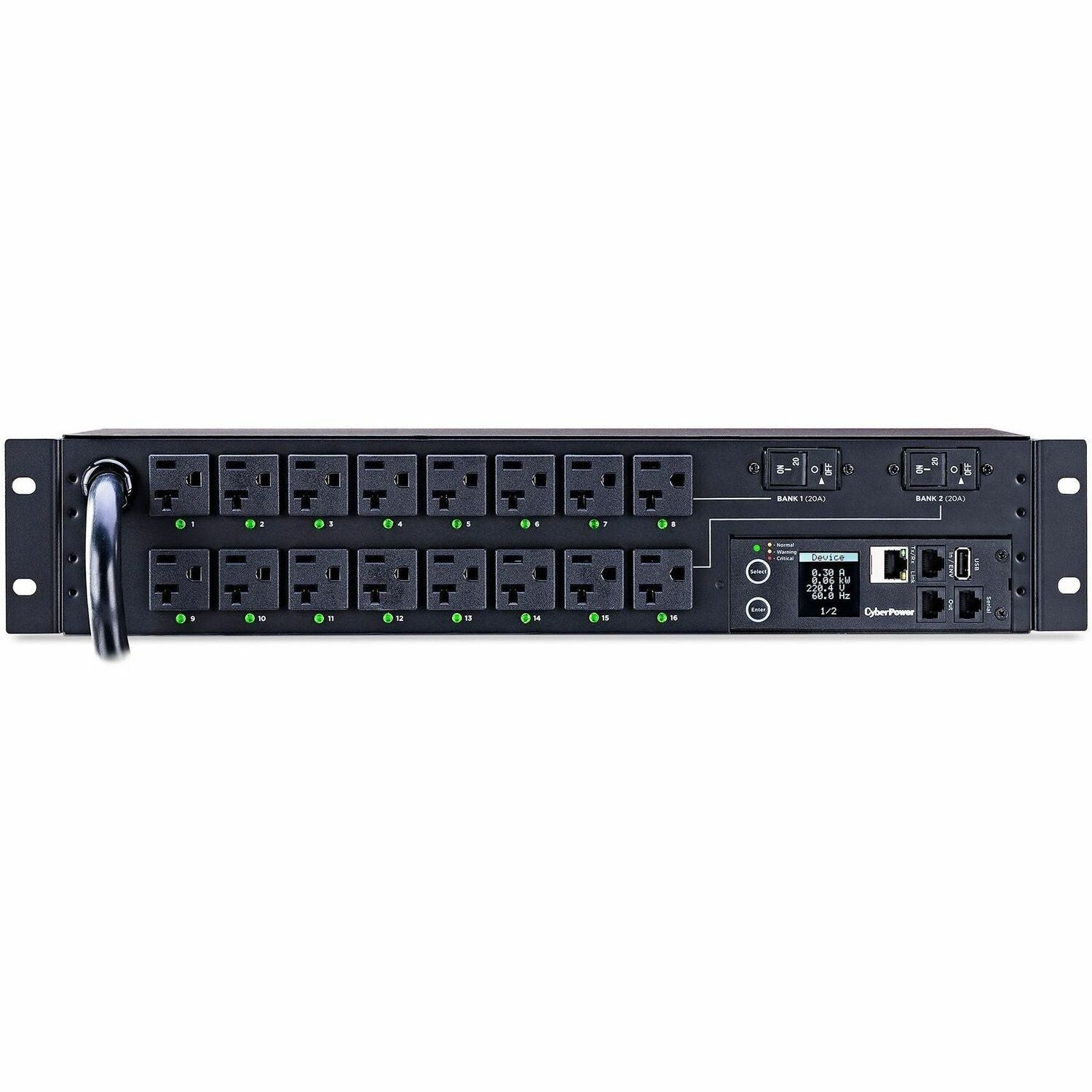

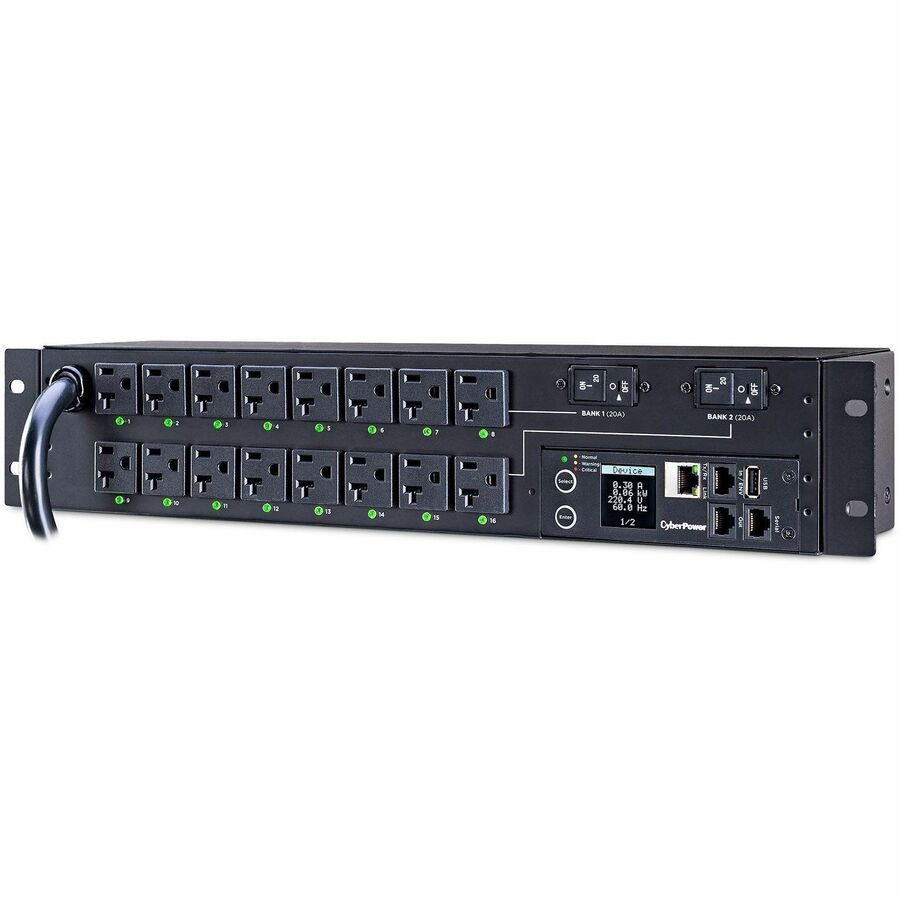

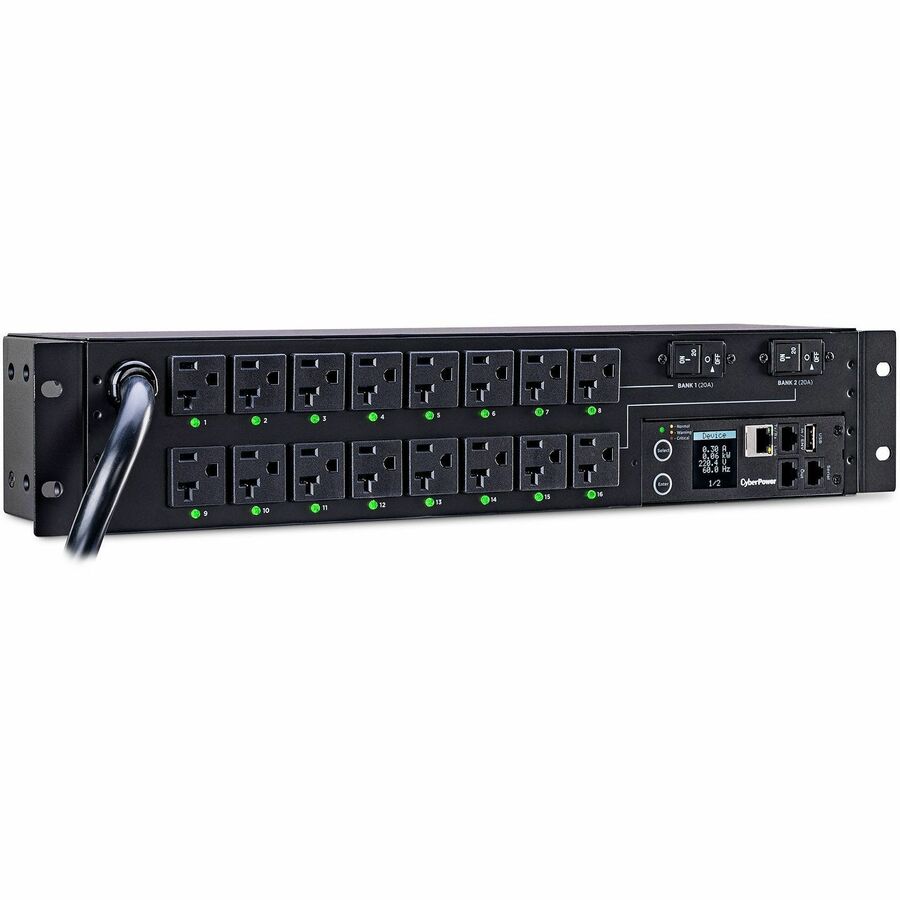

The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.
- Warranty: 3 Year
- Cord Length (ft): 12
- Outlets: 16 NEMA 5-20R
- Size: 2U Rackmount
- Plug Type: NEMA L5-30P
- Volts: 100-120Vac
- Frequency: 50Hz/60Hz
- Amps: 30A (Derated to 24A)
- Automated notifications: E-mail, SMS, Text and SNMP Trap
- Phase: Single
Specifications
Specifications
-
Environmentally FriendlyYes
-
Rack Height2U
-
Country of OriginChina
-
Energy StarNo
-
Limited Warranty3 Year
-
ManufacturerCyberPower Systems, Inc
-
Product TypePDU
-
Length4.4"
-
Mounting OrientationHorizontal/Vertical
-
Product SeriesSwitched PDU
-
Product ModelPDU41003
-
Receptacle TypeNEMA 5-20R
-
Output Voltage120 V AC
-
Input Voltage120 V AC
-
Plug/Connector Detail1 x NEMA L5-30P
-
Plug/Connector TypeNEMA L5-30P
-
Network (RJ-45)Yes
-
Protection TypeOverload Protection
-
Receptacle Detail16 x NEMA 5-20R
-
PhaseSingle Phase
-
PDU TypeMonitored
-
Input Current30 A
-
Output Voltage Range100 V AC - 120 V AC
-
Input Voltage Range100 V AC - 120 V AC
-
ManagementIPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
-
DesignNon-Modular
-
Package ContentsPDU41003 PDU 2 x Mounting Brackets 12 x M4x8 Bracket Mounting Screws 6 x M5x12 Rack Mounting Screws and Washers 2 x Cord Retention Trays 12 x M3x6 Cord Retention Tray Screws 24 x Cable Ties, RJ45/DB9 Serial Port Connection Cable User Manual Registration Card Download Card
-
Mount TypeRack-mountable,Wall-mountable
-
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
