CyberPower PDU41002 Single Phase 100 - 120 VAC 20A Switched PDU — PDU41002
CyberPower PDU41002 Single Phase 100 - 120 VAC 20A Switched PDU — PDU41002 is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
CyberPower PDU41002 Single Phase 100 - 120 VAC 20A Switched PDU — PDU41002 is backordered and will ship as soon as it is back in stock.
Description
Description

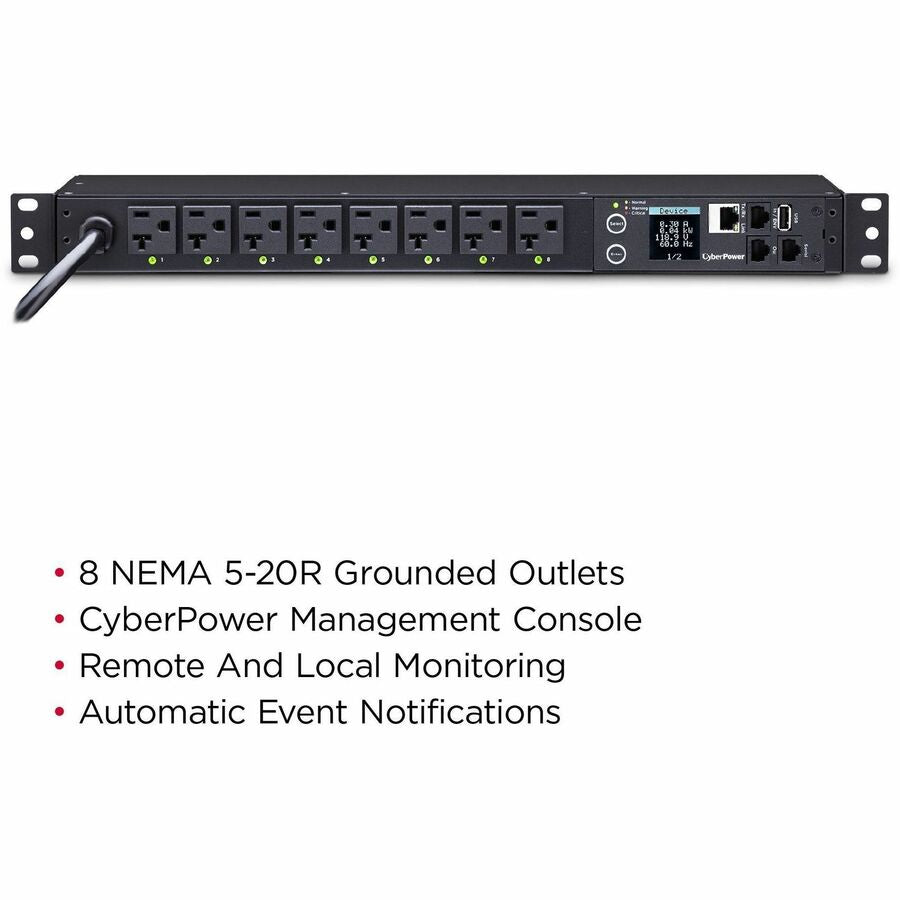

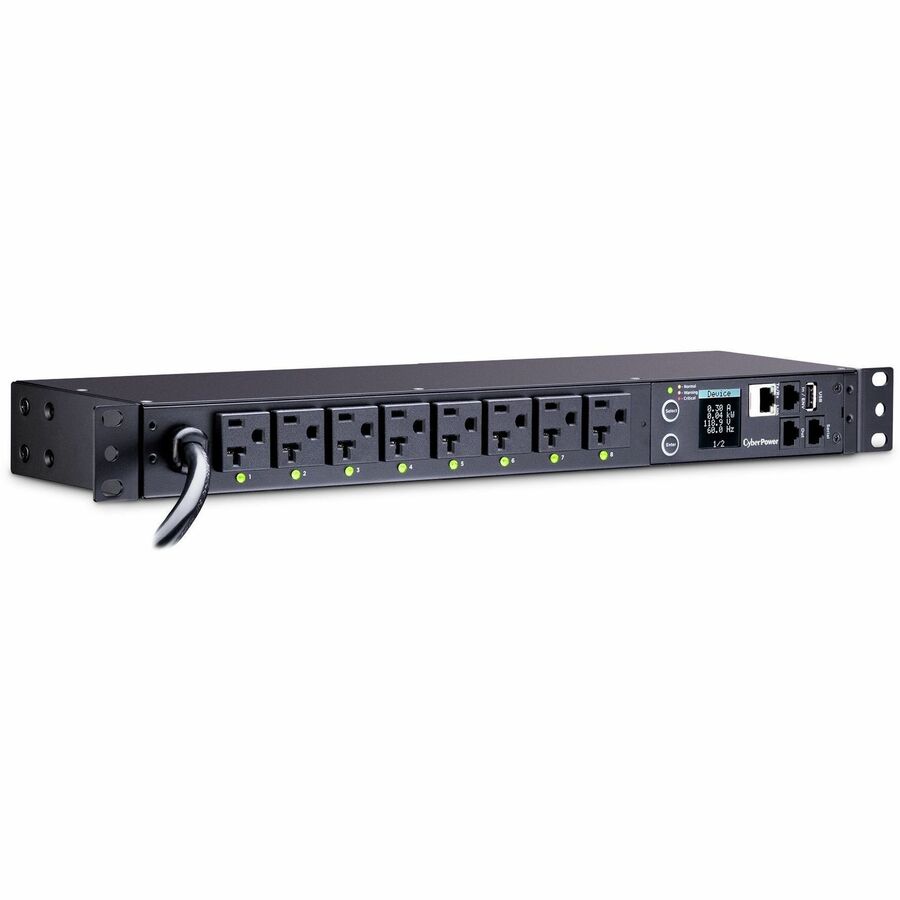

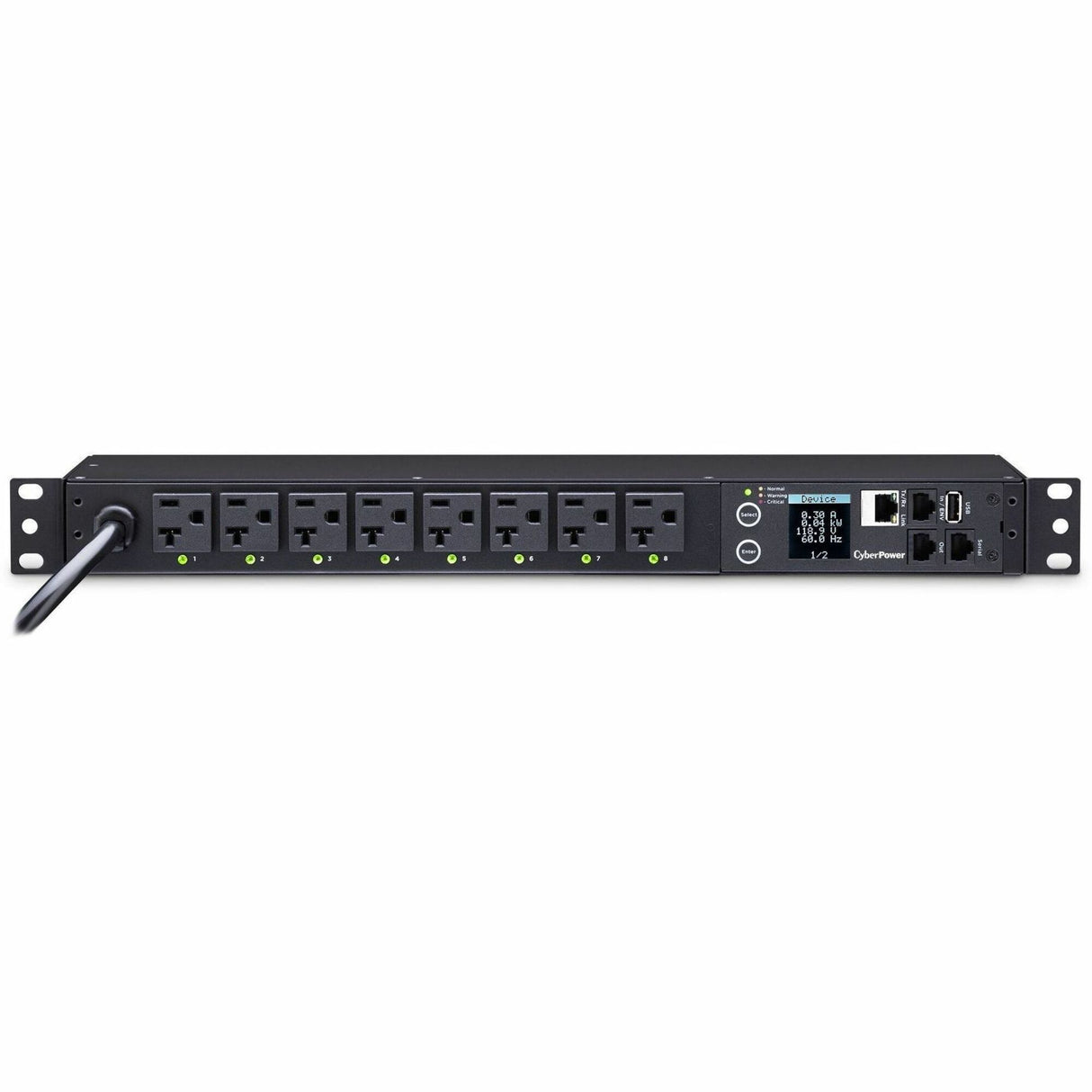

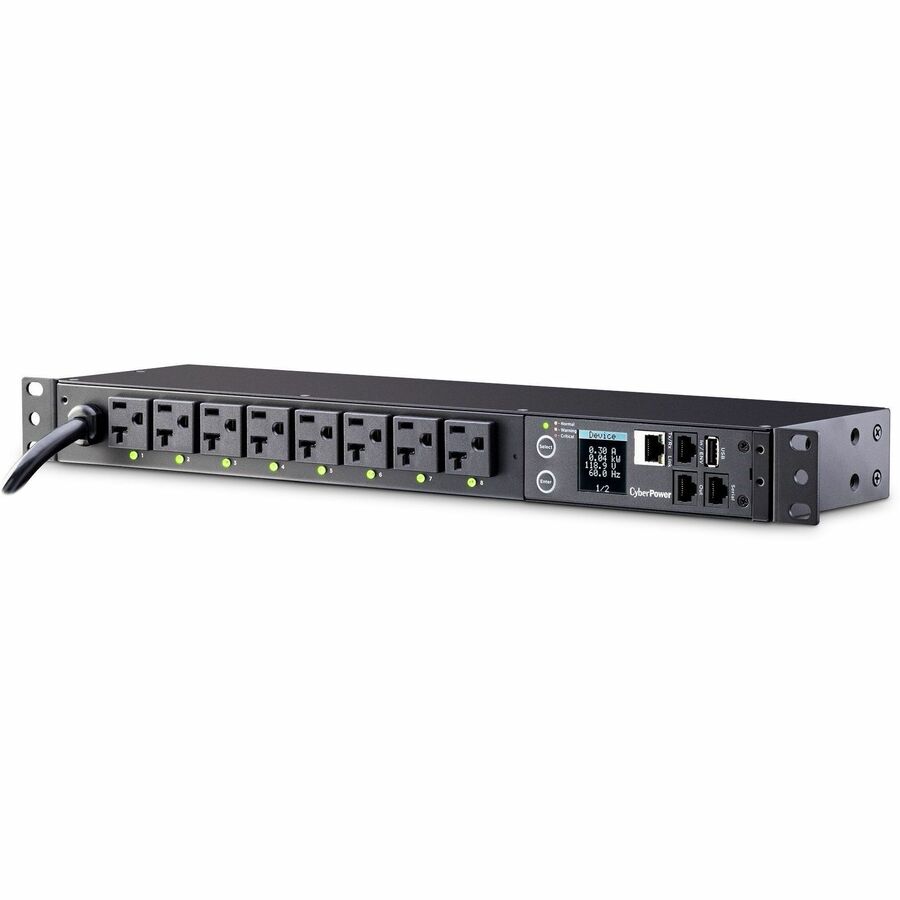

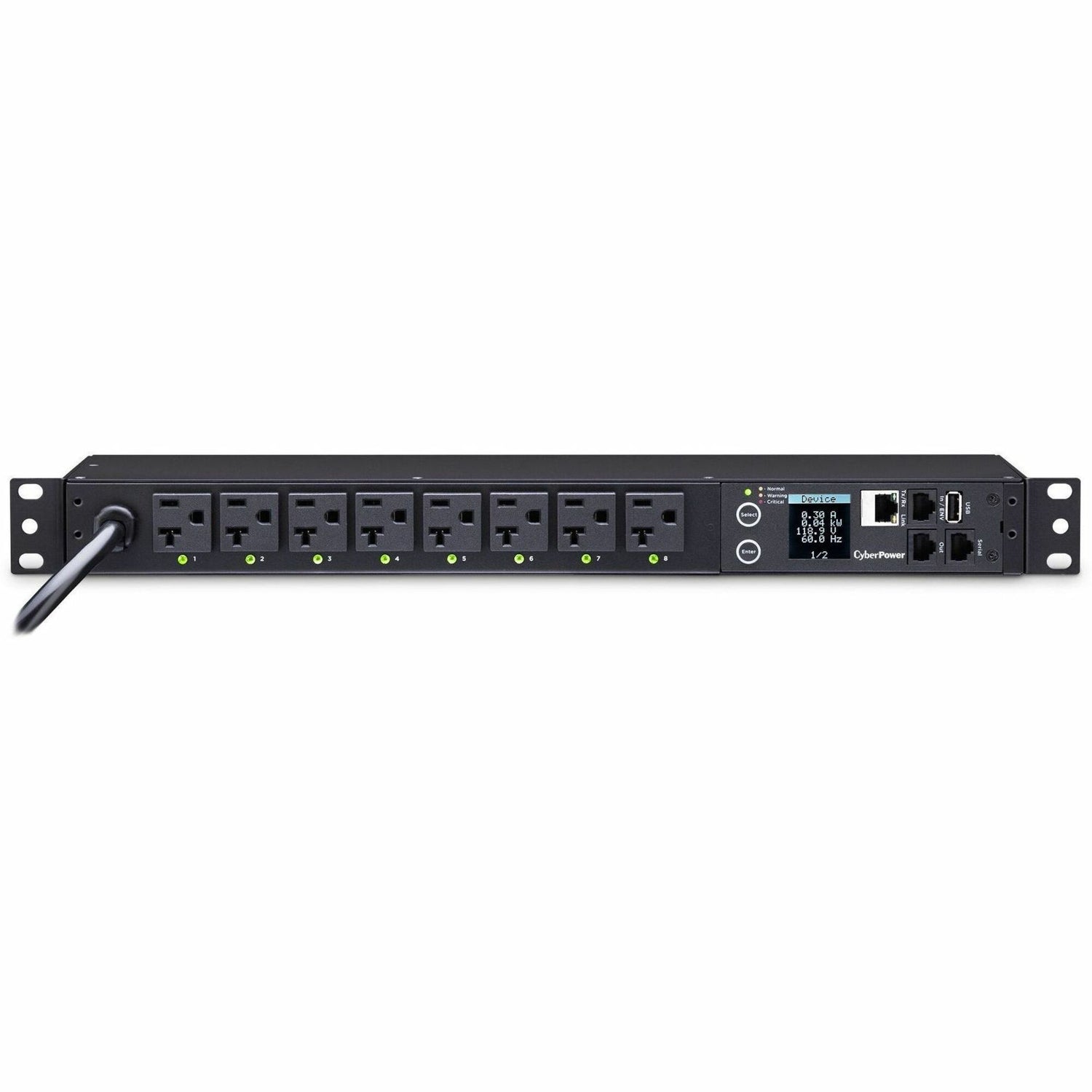

The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
- Size: 1U Rackmount
- Warranty: 3 year
- Plug type: NEMA (L)5-20P
- Outlets: 8 NEMA 5-20R
- Frequency: 50Hz/60Hz
- Volts: 100-120V
- Phase: Single
- Amps: 20A (Derated to 16A)
- Automated notifications: Email, SMS Text, and SNMP Trap
Specifications
Specifications
-
Environmentally FriendlyYes
-
Country of OriginChina
-
Energy StarNo
-
Limited Warranty3 Year
-
ManufacturerCyberPower Systems, Inc
-
Rack Height1U
-
Product TypePDU
-
Mounting OrientationHorizontal
-
Length4.4"
-
Product SeriesSwitched PDU
-
Product ModelPDU41002
-
Output Voltage120 V AC
-
Receptacle TypeNEMA 5-15R
-
Input Voltage120 V AC
-
Receptacle Detail8 x NEMA 5-15R
-
Plug/Connector TypeNEMA 5-15P
-
PDU TypeSwitched
-
Network (RJ-45)Yes
-
PhaseSingle Phase
-
Input Current20 A
-
Output Voltage Range100 V AC - 120 V AC
-
Input Voltage Range100 V AC - 120 V AC
-
ManagementProtocols: IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS, Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog Windows AD
-
Package ContentsPDU41002 8-Outlet PDU 4 x Mounting Brackets (2 short and 2 long) 10 x Flat Head M4x8 Bracket Mounting Screws Cord Retention Tray 10 x Cable Ties 6 x M3x6 Cord Retention Tray Mounting Screws 6 x M5x12 Screws 6 x Washers RJ45/DB9 Serial Port Connection Cable User Manual Registration Card CD
-
Mount TypeRack-mountable,Wall-mountable
-
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
