Description
Description
A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
- Warranty: 3 year
- Remote management: Yes, with optional RMCARD205
- Communication: USB, Relay, SNMP
- Management software: PowerPanel® Business
- Outlet types: 6 � NEMA 5-15R
- Waveform: Simulated Sine Wave
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Topology: Line Interactive
- Capacity: 1500 VA / 900 W
Specifications
Specifications
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Product TypeLine-interactive UPS
-
Limited Warranty3 Year
-
ManufacturerCyberPower Systems, Inc
-
Energy StarYes
-
Rack Height1U
-
Product SeriesSmart App LCD UPS
-
Product ModelOR1500LCDRM1U
-
Output Voltage120 V AC
-
Receptacle TypeNEMA 5-15R
-
Input Voltage120 V AC
-
Network ManagementSNMP Manageable
-
Plug/Connector TypeNEMA 5-15P
-
Receptacle Detail6 x NEMA 5-15R
-
USBYes
-
Serial PortYes
-
Battery ChemistryLead Acid
-
Typical Battery Recharge Time8 Hour
-
Transfer Time8 ms
-

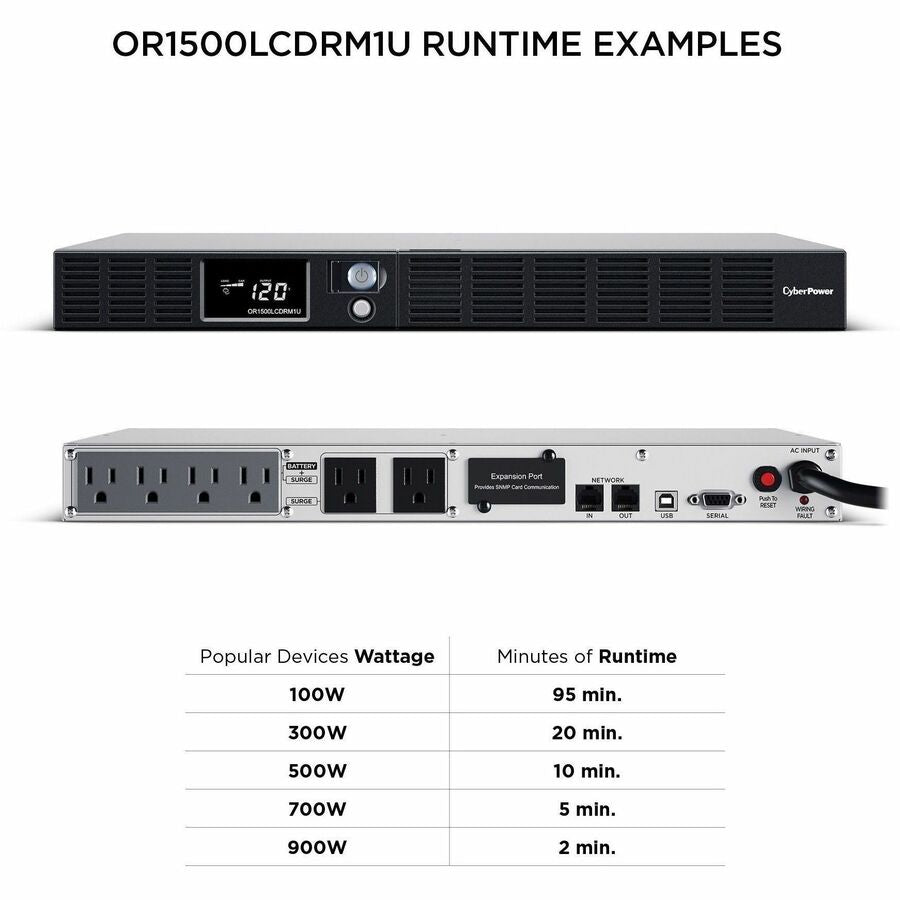

Backup/Run Time (Full Load)2 Minute
-
AVRYes
-
Backup/Run Time (Half Load)11 Minute
-
Replaceable BatteryYes
-
Battery Capacity9000 mAh
-
Number of Surge-only Outlets2
-
Number of Battery & Surge Outlets4
-
Input Voltage Range90 V AC - 140 V AC
-
Waveform TypeSimulated Sine Wave
-
Maximum Operating Temperature104°F (40°C)
-
Number of Batteries4
-
Output Frequency60 Hz
-
Overload ProtectionYes
-
Input Frequency63 Hz
-
Dataline ProtectionRJ-45,RJ-11
-
Maximum Operating Elevation10000 ft
-
Storage Temperature5°F (-15°C) - 113°F (45°C)
-
EMI/RFI Noise FilterYes
-
USB (HID Compliant) PortYes
-
Maximum Storage Elevation50000 ft
-
Surge Energy Rating1150 J
-
AlarmBattery Mode
-
Software IncludedPowerPanel® Business
-
Energy SavingGreenPower UPS™ Bypass Design
-
DC System Voltage6 V DC
-
Battery Size6V
-
Status IndicatorsPower On Multifunction LCD
-
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
-
Load Capacity (VA)1500 VA
