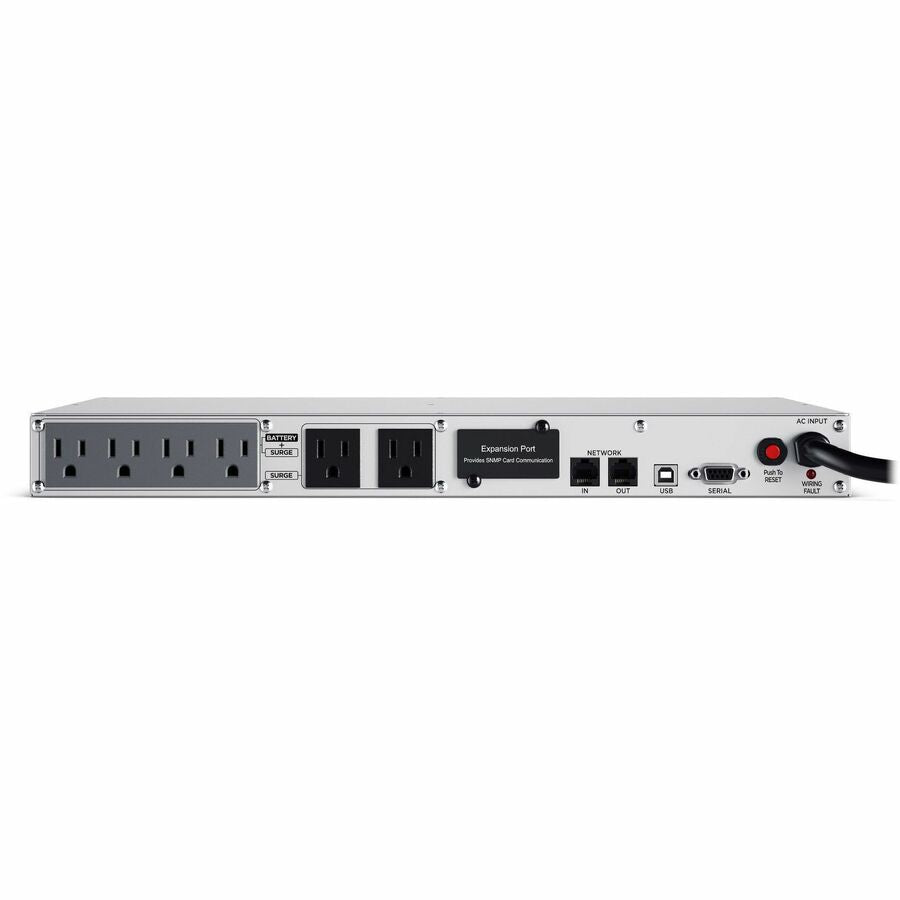

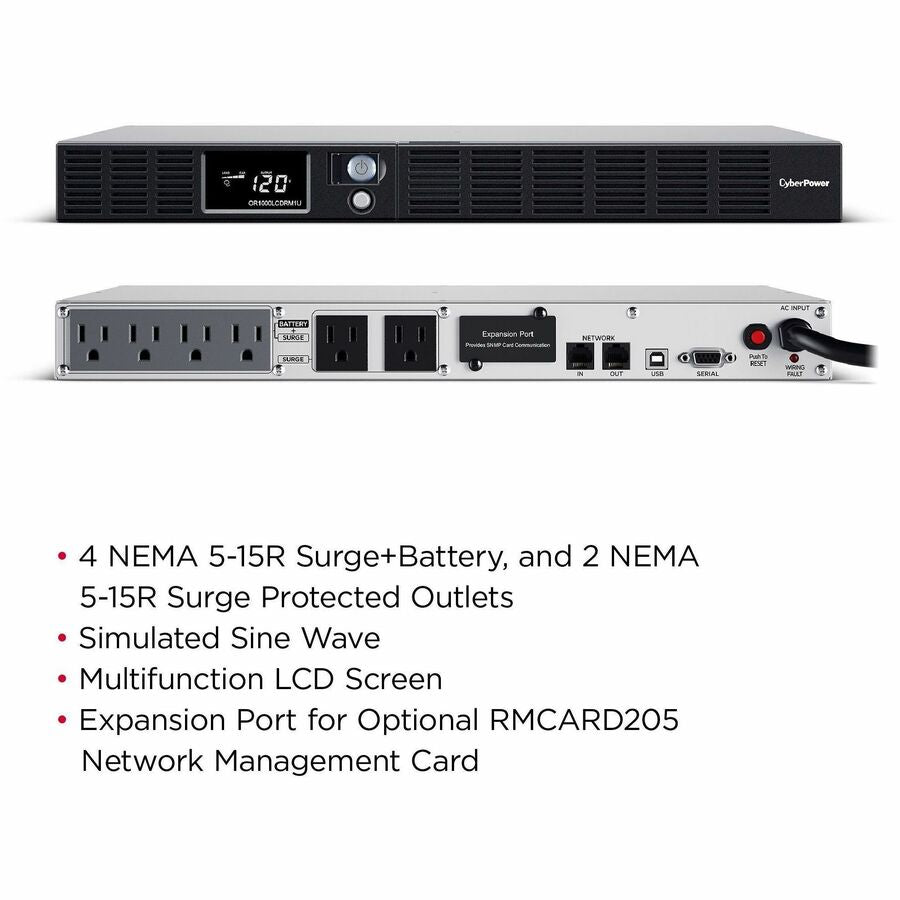

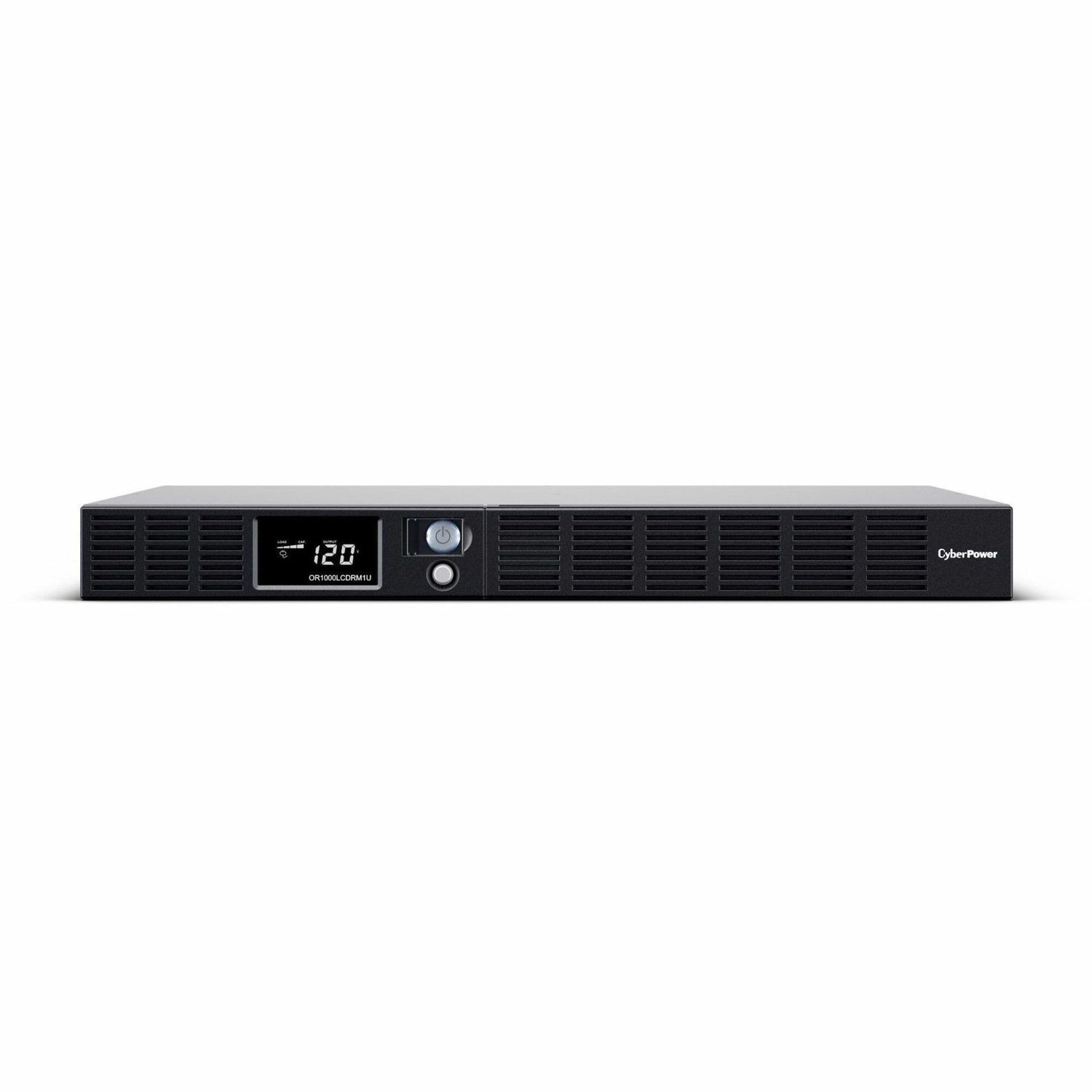

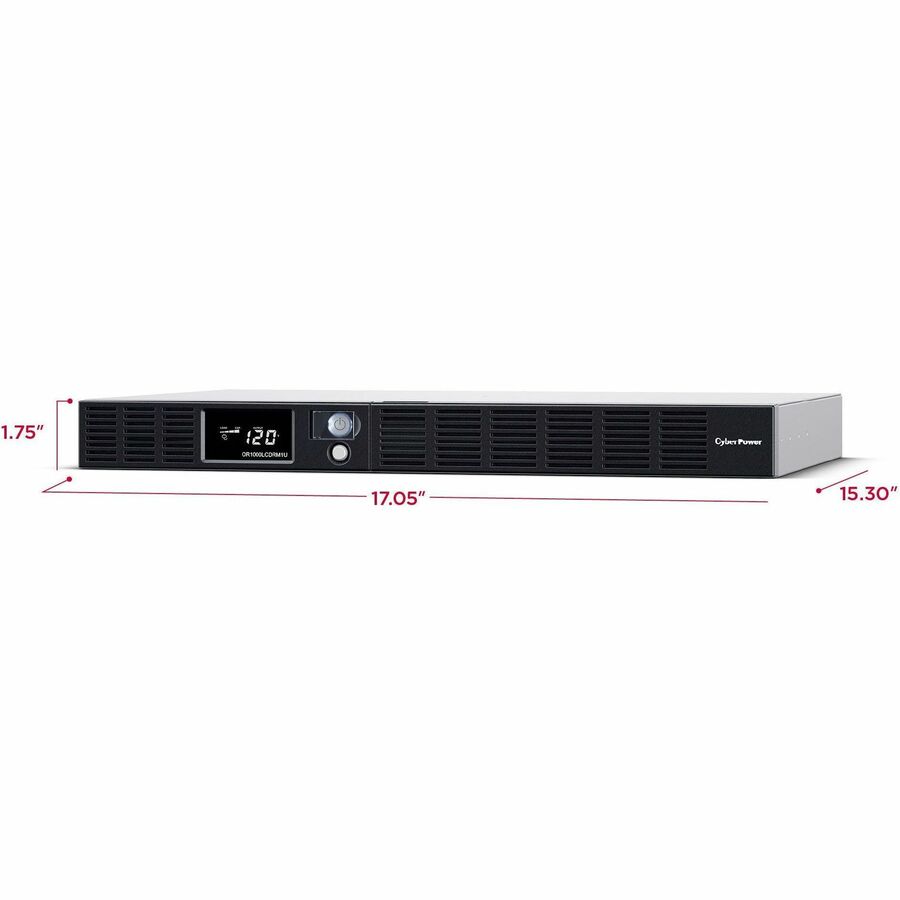

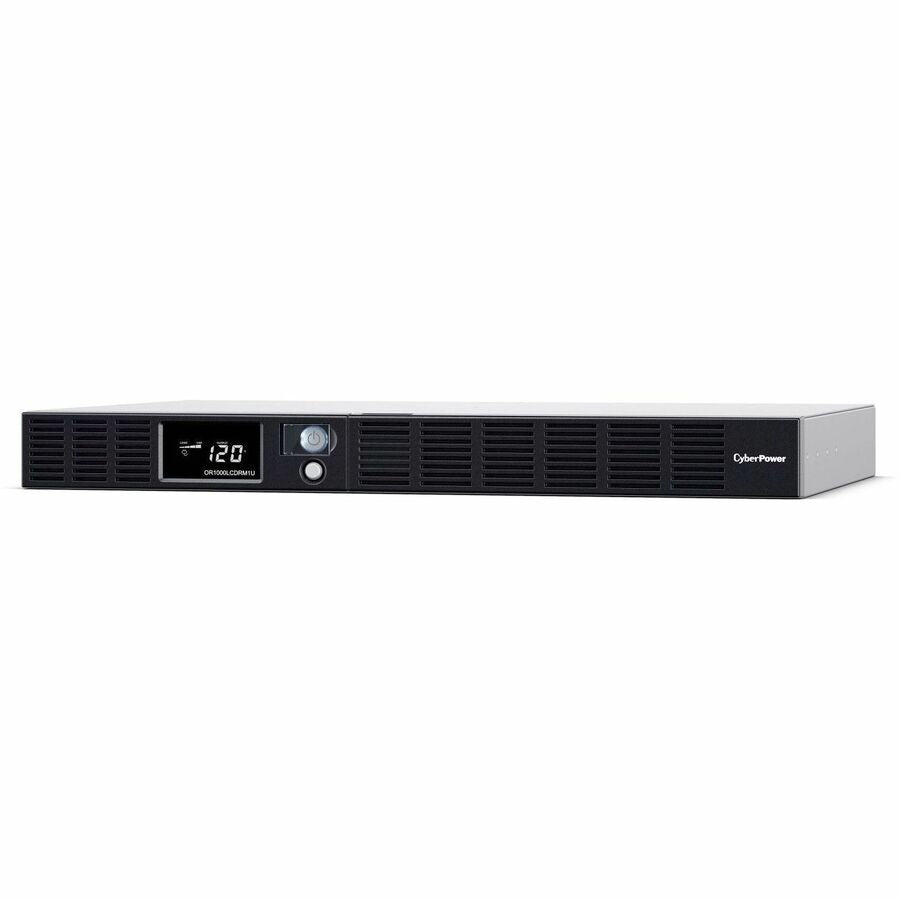

CyberPower OR1000LCDRM1U Smart App LCD UPS Systems — OR1000LCDRM1U
CyberPower OR1000LCDRM1U Smart App LCD UPS Systems — OR1000LCDRM1U is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
CyberPower OR1000LCDRM1U Smart App LCD UPS Systems — OR1000LCDRM1U is backordered and will ship as soon as it is back in stock.
Description
Description
A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1000LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1000LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1000LCDRM1U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
- Capacity: 1000 VA / 600 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 6 � NEMA 5-15R
- Communication: USB, Relay, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
Specifications
Specifications
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Product TypeLine-interactive UPS
-
Country of OriginChina
-
Limited Warranty3 Year
-
ManufacturerCyberPower Systems, Inc
-
Energy StarYes
-
Rack Height1U
-
Hot SwappableYes
-
Product ColorBlack
-
Product SeriesSmart App LCD UPS
-
Product ModelOR1000LCDRM1U
-
Receptacle TypeNEMA 5-15R
-
Input Voltage120 V AC
-
Network ManagementSNMP Manageable
-
Plug/Connector TypeNEMA 5-15P
-
Receptacle Detail6 x NEMA 5-15R
-
USBYes
-
Serial PortYes
-
Battery ChemistryLead Acid
-
Typical Battery Recharge Time8 Hour
-
Backup/Run Time (Full Load)3 Minute
-
Transfer Time8 ms
-
Battery CharacteristicsMaintenance-free
-
AVRYes
-
Load Capacity (Watt)600 W
-
Replaceable BatteryYes
-
Number of Surge-only Outlets2
-
Number of Battery & Surge Outlets4
-
Input Voltage Range90 V AC - 140 V AC
-
Waveform TypeSimulated Sine Wave
-
Package ContentsSmart App Intelligent LCD OR1000LCDRM1U 1000VA UPS User's Manual Rackmount Brackets USB A+B Type Cable
-
Backup/Run Time (Half Load)13 Minute
-
Number of Batteries4
-
Battery Capacity7000 mAh
-
Application/UsageWorkstation,Server,Network Device,Telecommunication
-
Battery Life6 Year
-
Maximum Operating Temperature95°F (35°C)
-
Additional Warranty InformationCyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.
-
Output Frequency60 Hz
-
Overload ProtectionYes
-
Dataline ProtectionRJ-45
-
Input Frequency63 Hz
-
Maximum Operating Elevation10000 ft
-
EMI/RFI Noise FilterYes
-
USB (HID Compliant) PortYes
-
Maximum Storage Elevation50000 ft
-
Energy SavingGreenPower UPS™ Bypass Technology
-
Surge Energy Rating1150 J
-
Software IncludedPowerPanel Business Edition Software
-
Battery Size6V
-
Status IndicatorsOn Unit: Power On Wiring Fault LCD Panel: Input Voltage Output Voltage Battery Capacity Load Level Runtime On Battery Overload Silent Mode
-
AlarmLow Battery,Fault,Overload,Battery Mode
-
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
-
Load Capacity (VA)1000 VA
