CyberPower OL3000RTXL2UN Smart App Online UPS Systems — OL3000RTXL2UN
CyberPower OL3000RTXL2UN Smart App Online UPS Systems — OL3000RTXL2UN is backordered and will ship as soon as it is back in stock.
Volume or contract pricing? Get a written quote with confirmed lead time.
CyberPower OL3000RTXL2UN Smart App Online UPS Systems — OL3000RTXL2UN is backordered and will ship as soon as it is back in stock.
Description
Description
Prevent business interruptions and safeguard mission-critical enterprise network equipment.

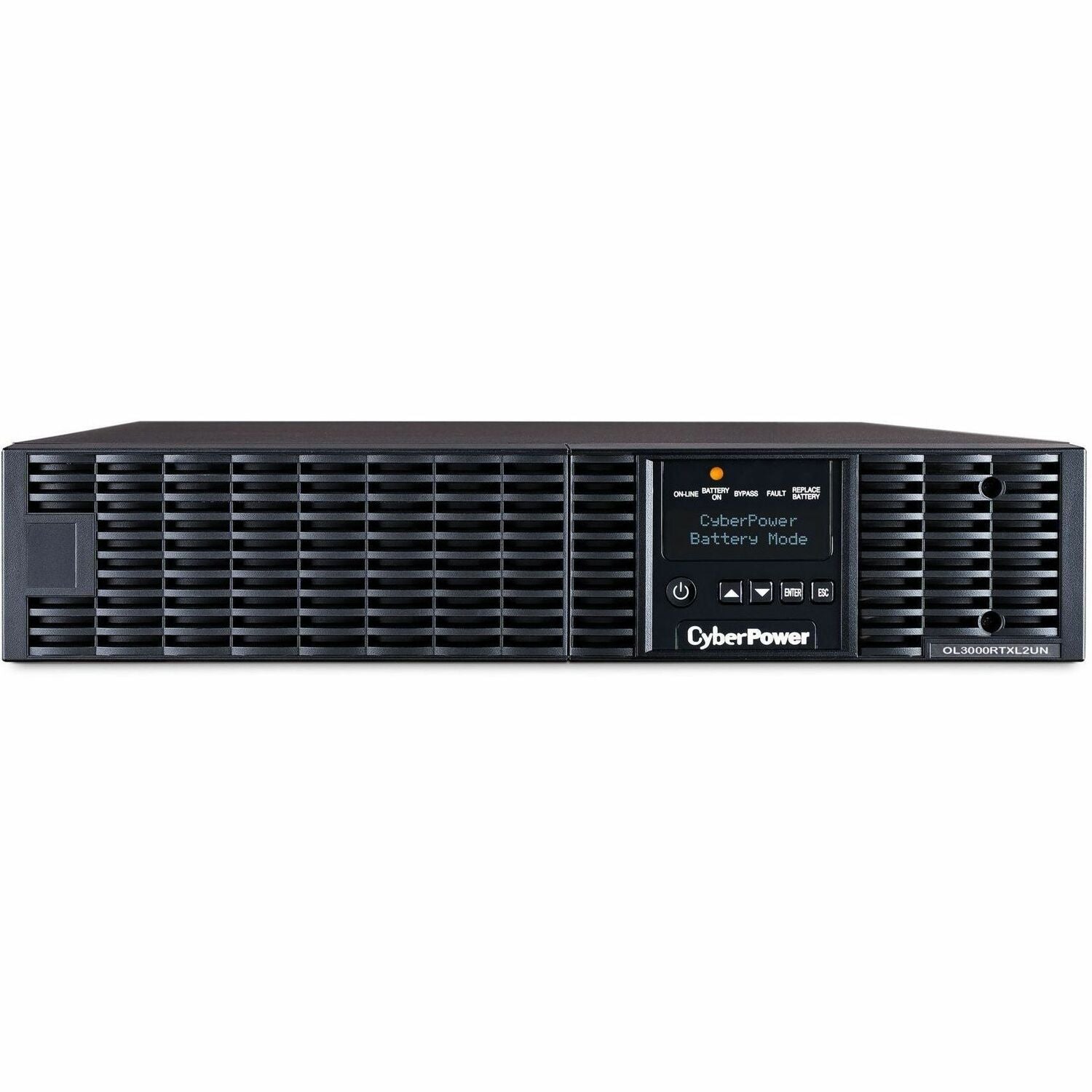

The CyberPower OL3000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

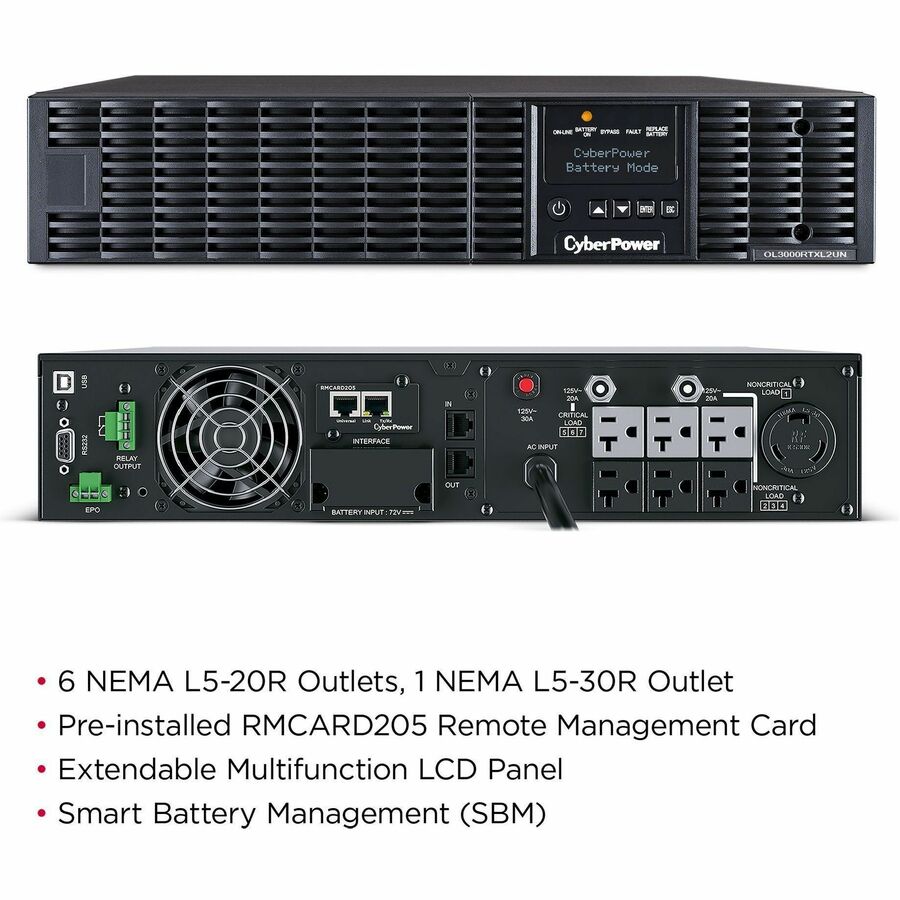

The OL3000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a ,400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
- 3 year
- Warranty:
- PowerPanel® Business Edition
- Management software:
- Telephone, Network
- USB, Serial, RMCARD205, Relay, EPO
- Data line surge protection:
- Monitoring & Management:
- 6 � NEMA 5-20R, 1 L5-30R
- NEMA L5-30P, 10 ft. cord
- Outlet types:
- 100, 110, 115, 120, 125 V ±2% (configurable)
- Plug type & cord:
- Sine Wave
- Output:
- Double-Conversion
- Waveform:
- 0.9
- Topology:
- 3000 VA / 2700 W
- Power Factor (PF):
- Capacity:
Specifications
Specifications
-
Environmentally FriendlyYes
-
Rack Height2U
-
Country of OriginTaiwan
-
Form FactorRack/Tower
-
Limited Warranty3 Year
-
ManufacturerCyberPower Systems, Inc
-
Energy StarYes
-
Product SeriesSmart App Online UPS
-
Product ColorBlack
-
Product ModelOL3000RTXL2UN
-
Input Voltage120 V AC
-
Plug/Connector TypeNEMA L5-30P
-
Waveform TypeSine Wave
-
Typical Battery Recharge Time4 Hour
-
USBYes
-
Serial PortYes
-
Battery ChemistryLead Acid
-
Transfer Time0 ns
-
Backup/Run Time (Full Load)3.50 Minute
-
Network (RJ-45)Yes
-
Backup/Run Time (Half Load)11 Minute
-
Replaceable BatteryYes
-
Battery Capacity9000 mAh
-
Input Voltage Range100 V AC - 125 V AC
-
Number of Battery & Surge Outlets7
-
Battery CharacteristicsSealed
-
Package ContentsSmart App Online OL3000RMXL2U 3000VA Rack/Tower UPS User Manual Registration Card 2 x Rackmount Rails 2 x Rackmount Ears 2 x Hanging Brackets Phone Line USB Communication Cable Serial Interface Cable (RS-232) 8 x M5X7L Black Flat Head Screws 12 x M5X12L Black Pan Head Screws 6 x M5X6l Silver Pan Head Screws 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Pads Software Download Card
-
Maximum Operating Temperature104°F (40°C)
-
Number of Batteries6
-
Protection TypeSurge
-
Receptacle TypeNEMA L5-30R,NEMA 5-20R
-
Output Voltage100 V AC,110 V AC,115 V AC,120 V AC,125 V AC
-
Receptacle Detail1 x NEMA L5-30R,6 x NEMA 5-20R
-
Application/UsageServer,Network Device,Storage Device,Network Closet,PBX System,Mission Critical Equipment
-
Product TypeDouble Conversion Online UPS
-
Output Frequency60 Hz
-
Overload ProtectionYes
-
Storage Relative Humidity0% - 95%
-
Sound Emission (A-Weighted)55 dB(A)
-
Maximum Operating Elevation10000 ft
-
EMI/RFI Noise FilterYes
-
USB (HID Compliant) PortYes
-
Battery Size12V
-
Dataline ProtectionRJ-11,RJ-45
-
Maximum Storage Elevation50000 ft
-
AlarmBattery Mode
-
Input Frequency70 Hz
-
Software IncludedPowerPanel® Business
-
Energy SavingECO Mode Efficiency >95%
-
Storage Temperature-4°F (-20°C) - 113°F (45°C)
-
EPO PortYes
-
Surge Energy Rating1335 J
-
Thermal Dissipation260.54 W
-
Status IndicatorsLED Indicators: Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red)
-
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
-
Load Capacity (VA)3000 VA
