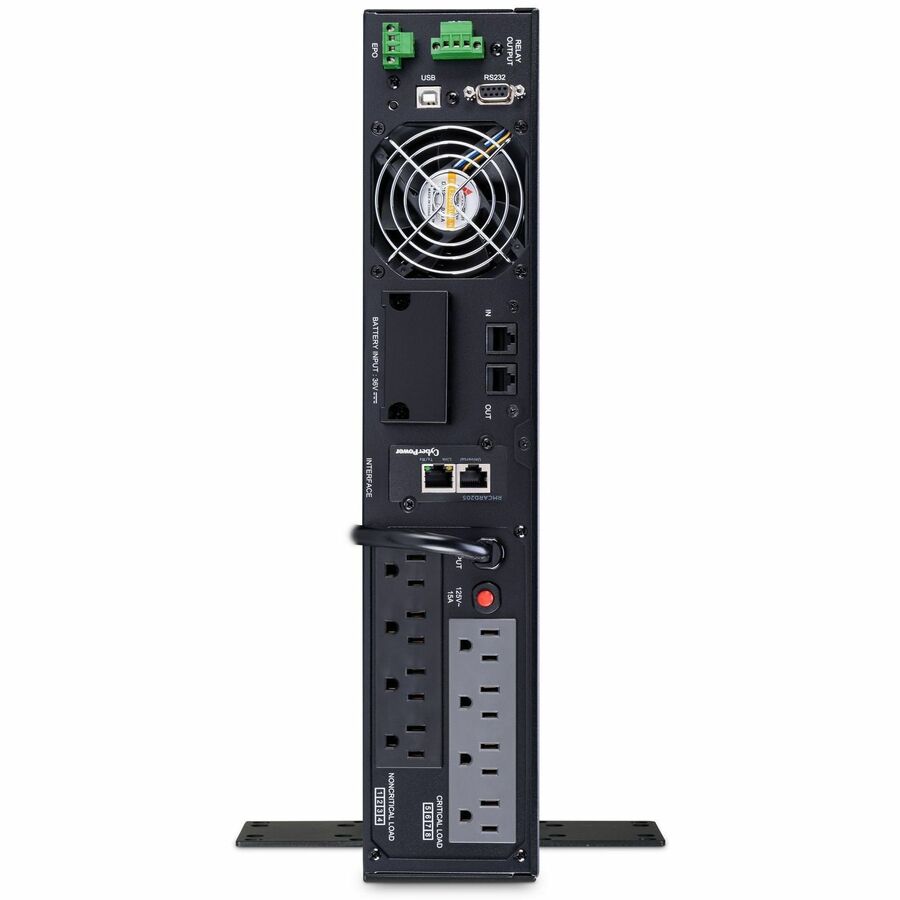

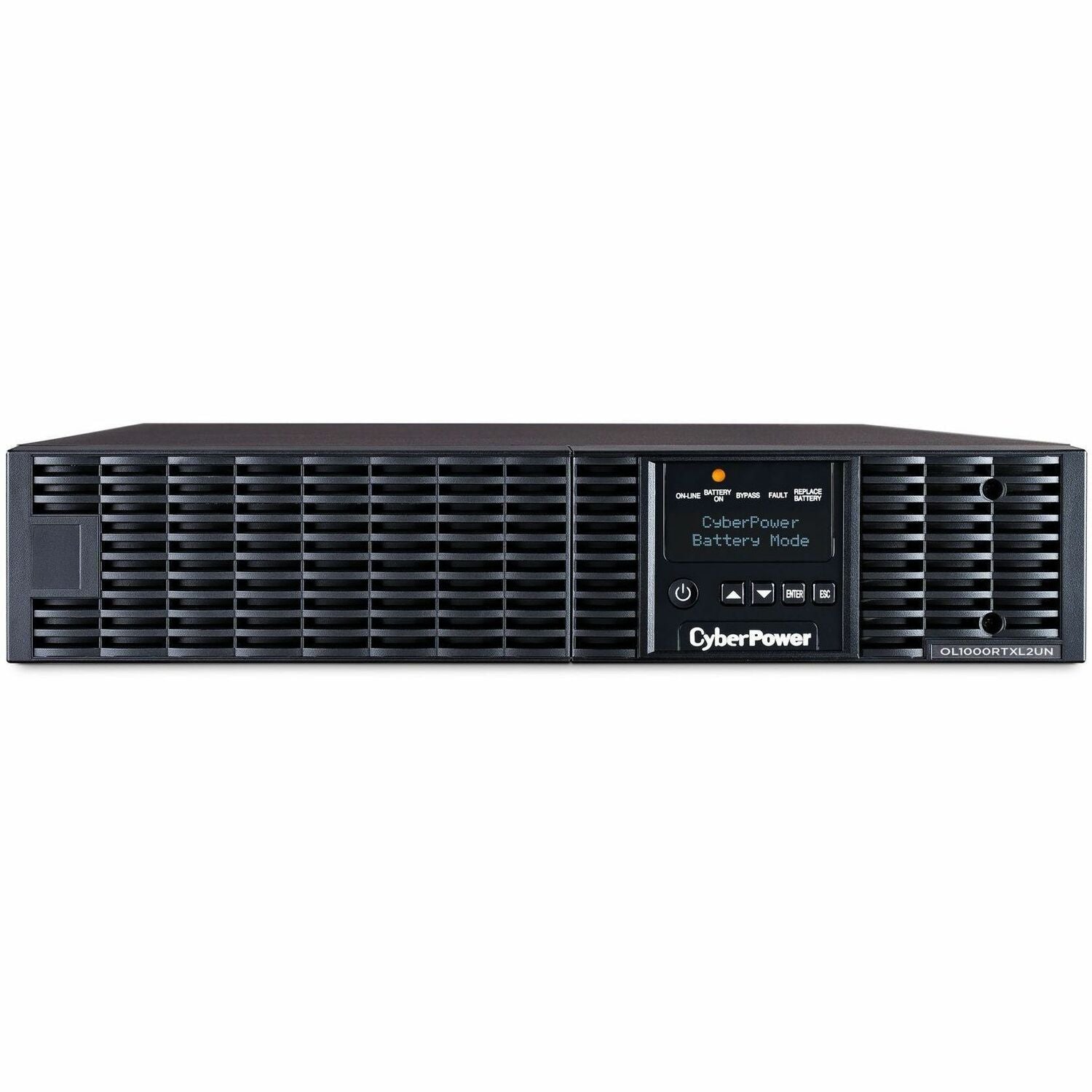

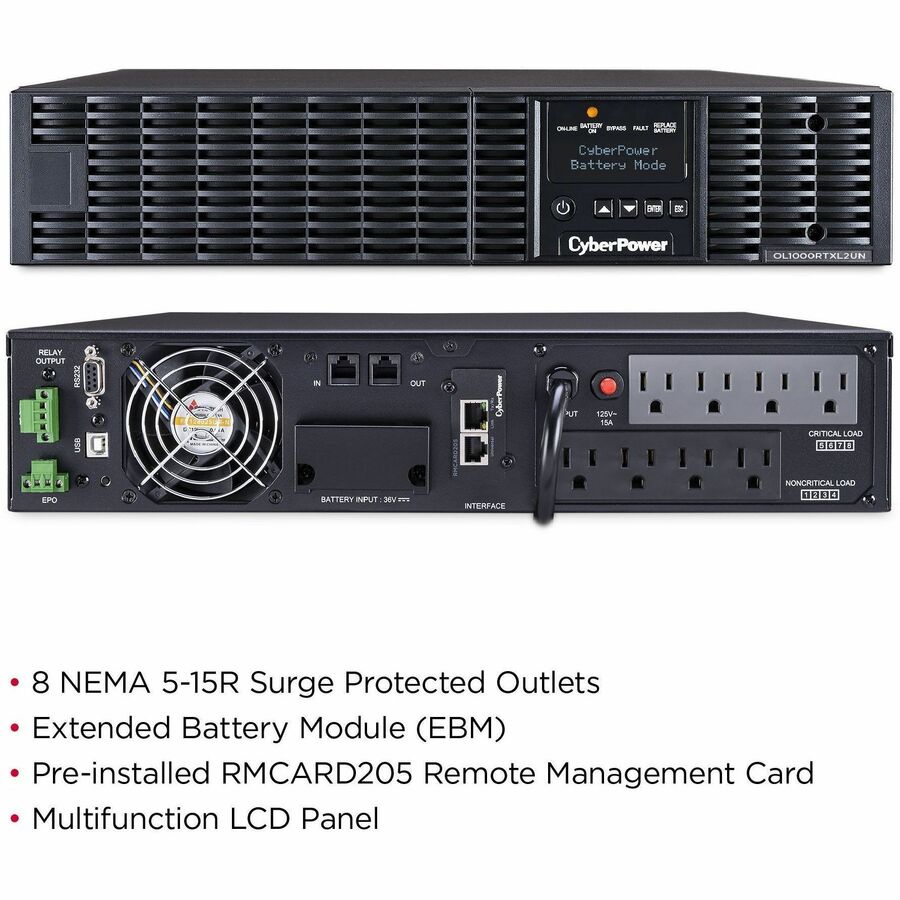

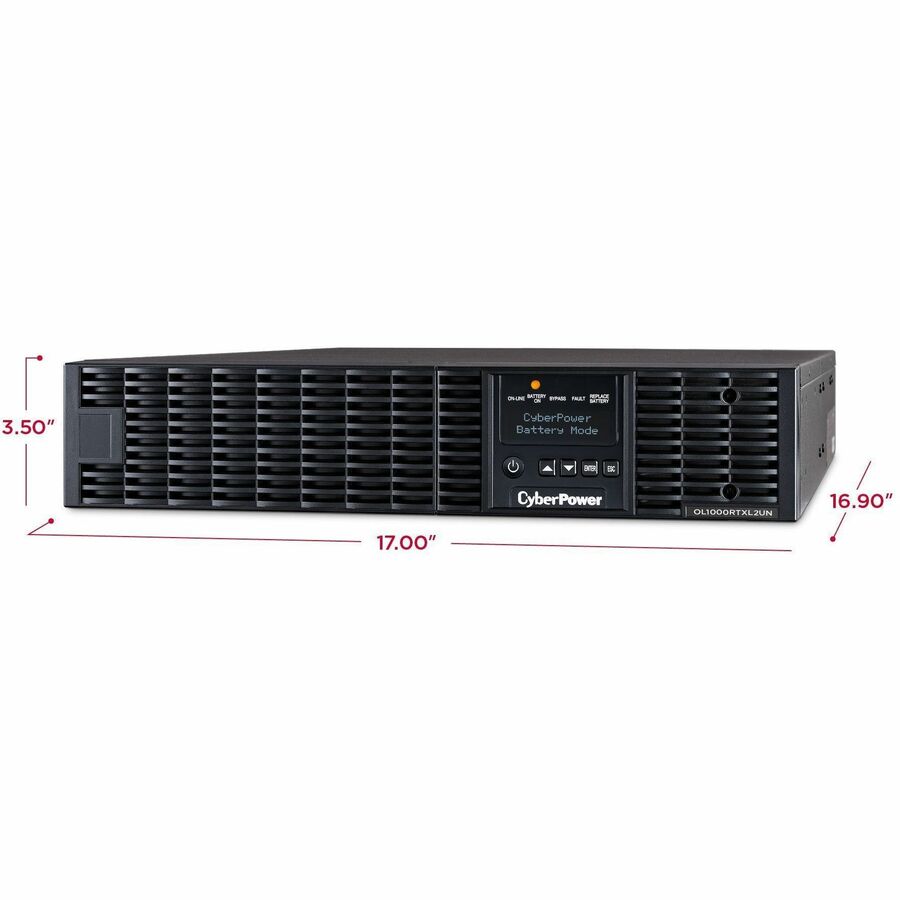

CyberPower OL1000RTXL2UN Smart App Online UPS Systems — OL1000RTXL2UN
CyberPower OL1000RTXL2UN Smart App Online UPS Systems — OL1000RTXL2UN is backordered and will ship as soon as it is back in stock.
Volume or contract pricing? Get a written quote with confirmed lead time.
CyberPower OL1000RTXL2UN Smart App Online UPS Systems — OL1000RTXL2UN is backordered and will ship as soon as it is back in stock.
Description
Description
Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL1000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL1000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a ,400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
- 3 year
- PowerPanel® Business Edition
- Warranty:
- Telephone, Network
- Management software:
- Data line surge protection:
- USB, Serial, RMCARD205, Relay, EPO
- Monitoring & Management:
- 8 � NEMA 5-15R
- Plug type & cord:
- NEMA 5-15P, 10 ft. cord
- Outlet types:
- Output:
- 100, 110, 115, 120, 125 V ± 2% (configurable)
- Waveform:
- Sine Wave
- Topology:
- Double-Conversion
- Power Factor (PF):
- 0.9
- Capacity:
- 1000 VA / 900 W
Specifications
Specifications
-
Environmentally FriendlyYes
-
Rack Height2U
-
Country of OriginTaiwan
-
Form FactorRack/Tower
-
Limited Warranty3 Year
-
ManufacturerCyberPower Systems, Inc
-
Energy StarYes
-
Product SeriesSmart App Online UPS
-
Product ColorBlack
-
Product ModelOL1000RTXL2UN
-
Receptacle TypeNEMA 5-15R
-
Input Voltage120 V AC
-
Network ManagementSNMP Manageable
-
Waveform TypeSine Wave
-
Receptacle Detail8 x NEMA 5-15R
-
Typical Battery Recharge Time4 Hour
-
Plug/Connector TypeNEMA 5-15P
-
Serial PortYes
-
Battery ChemistryLead Acid
-
Transfer Time0 ns
-
Network (RJ-45)Yes
-
Backup/Run Time (Full Load)7.40 Minute
-
Replaceable BatteryYes
-
Battery Capacity9000 mAh
-
Input Voltage Range100 V AC - 125 V AC
-
Backup/Run Time (Half Load)20 Minute
-
Battery CharacteristicsSealed
-
Package ContentsSmart App Online OL1000RTXL2UN 1000VA Rack/Tower UPSUser Manual Registration Card 2 x Rackmount Rails 2 x Rackmount Ears 2 x Hanging Brackets Phone Line Usb Communication Cable Serial Interface Cable (RS-232) 8 x M5x7l Black Flat Head Screws 12 x M5x12l Black Pan Head Screws 6 x M5x6l Silver Pan Head Screws 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Pads And A Software Download Card
-
Number of Batteries3
-
Maximum Operating Temperature104°F (40°C)
-
Output Voltage125 V AC,100 V AC,110 V AC,115 V AC,120 V AC
-
Application/UsageServer,Network Device,Storage Device,Network Closet,PBX System,VoIP Phone System,Mission Critical Equipment
-
Product TypeDouble Conversion Online UPS
-
Output Frequency60 Hz
-
Overload ProtectionYes
-
Storage Relative Humidity0% - 95%
-
Sound Emission (A-Weighted)55 dB(A)
-
Maximum Operating Elevation10000 ft
-
EMI/RFI Noise FilterYes
-
USB (HID Compliant) PortYes
-
Battery Size12V
-
Dataline ProtectionRJ-11,RJ-45
-
Maximum Storage Elevation50000 ft
-
Input Frequency70 Hz
-
Software IncludedPowerPanel® Business
-
Storage Temperature-4°F (-20°C) - 113°F (45°C)
-
Surge Energy Rating1780 J
-
AlarmBattery Mode,Low Battery,Overload,UPS Fault
-
EPO PortYes
-
Energy SavingECO Mode Efficiency >94%
-
Status IndicatorsLED Indicators: Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red)
-
Thermal Dissipation80.30 W
-
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
-
Load Capacity (VA)1000 VA
