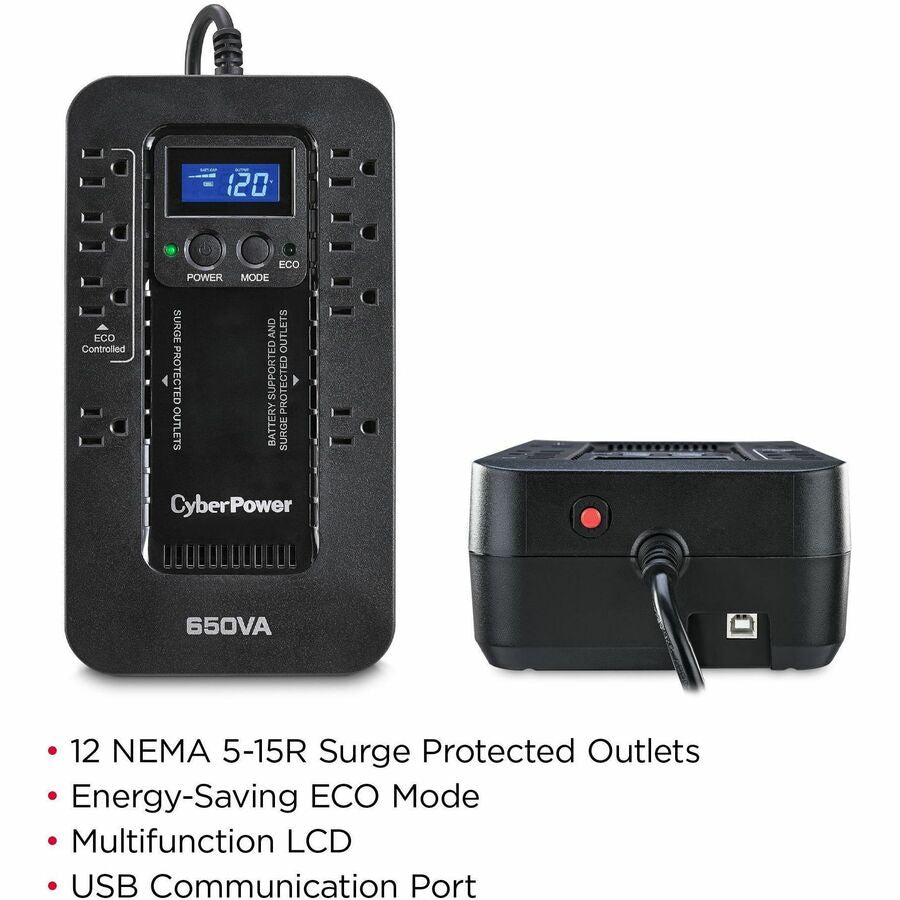

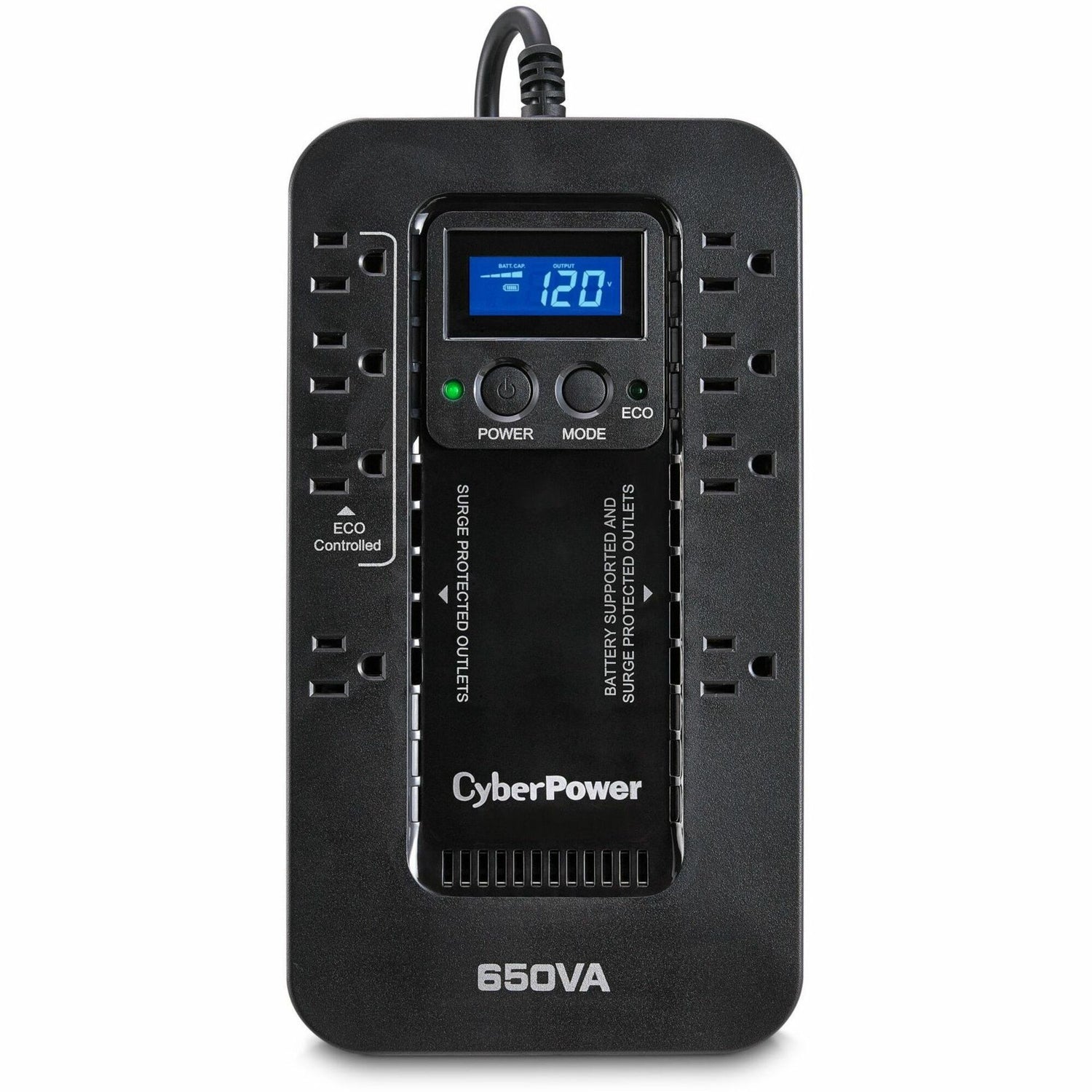

CyberPower EC650LCD Ecologic UPS Systems — EC650LCD
CyberPower EC650LCD Ecologic UPS Systems — EC650LCD is backordered and will ship as soon as it is back in stock.
Volume or contract pricing? Get a written quote with confirmed lead time.
CyberPower EC650LCD Ecologic UPS Systems — EC650LCD is backordered and will ship as soon as it is back in stock.
Description
Description
A compact UPS with standby topology, the CyberPower Ecologic EC650LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC650LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime. The EC650LCD comes with a three-year warranty (including coverage of batteries) and a ,100,000 Connected Equipment Guarantee.
- Warranty: 3 year
- Connected Equipment Guarantee: $100,000
- Management software: PowerPanel® Personal
- Communication: USB
- Outlet types: 8 � NEMA 5-15R
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 5 ft. cord
- Waveform: Simulated Sine Wave
- Topology: Standby
- Capacity: 650 VA / 390 W
Specifications
Specifications
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Country of OriginChina
-
Limited Warranty3 Year
-
ManufacturerCyberPower Systems, Inc
-
Energy StarYes
-
Product ColorBlack
-
Form FactorCompact
-
Product ModelEC650LCD
-
Product SeriesEcologic UPS
-
Product TypeStandby UPS
-
Cord Length5 ft
-
Output Voltage120 V AC
-
Receptacle TypeNEMA 5-15R
-
Input Voltage120 V AC
-
Receptacle Detail8 x NEMA 5-15R
-
Transfer Time4 ms
-
Plug/Connector TypeNEMA 5-15P
-
USBYes
-
Battery ChemistryLead Acid
-
Typical Battery Recharge Time8 Hour
-
Number of Battery & Surge Outlets4
-
Waveform TypeSimulated Sine Wave
-
Backup/Run Time (Full Load)2.80 Minute
-
Package ContentsEC650LCD ECOLOGIC UPS PowerPanel Personal Edition Software CD USB Cable User Manual Registration Card
-
Maximum Operating Temperature104°F (40°C)
-
Number of Batteries1
-
Number of Surge-only Outlets4
-
Backup/Run Time (Half Load)8.40 Minute
-
Overload ProtectionYes
-
Storage Relative Humidity0% - 95%
-
Input Frequency63 Hz
-
Maximum Operating Elevation10000 ft
-
Storage Temperature5°F (-15°C) - 113°F (45°C)
-
EMI/RFI Noise FilterYes
-
USB (HID Compliant) PortYes
-
Maximum Storage Elevation50000 ft
-
Energy SavingGreenPower UPS™ Bypass Technology
-
AlarmBattery Mode
-
Status IndicatorsPower On
-
Battery CharacteristicsMaintenance-free, Sealed
-
Software IncludedPowerPanel Personal Edition
-
Surge Energy Rating526 J
-
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
-
Load Capacity (VA)650 VA
-
Load Capacity (Watt)390 W
