Chief | SKU:
RXT3
Sold out
New arrival
Chief Fit X-Large Tilt Display Wall Mount - For 49-98 inch Displays - Tilt TV Mount - VESA Wall Mount — RXT3
Regular price
$260.00 USD
Unit price
Shipping calculated at checkout.
Chief Fit X-Large Tilt Display Wall Mount - For 49-98 inch Displays - Tilt TV Mount - VESA Wall Mount — RXT3 is backordered and will ship as soon as it is back in stock.
Out of stock — request a quote & lead time
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
Description
Description

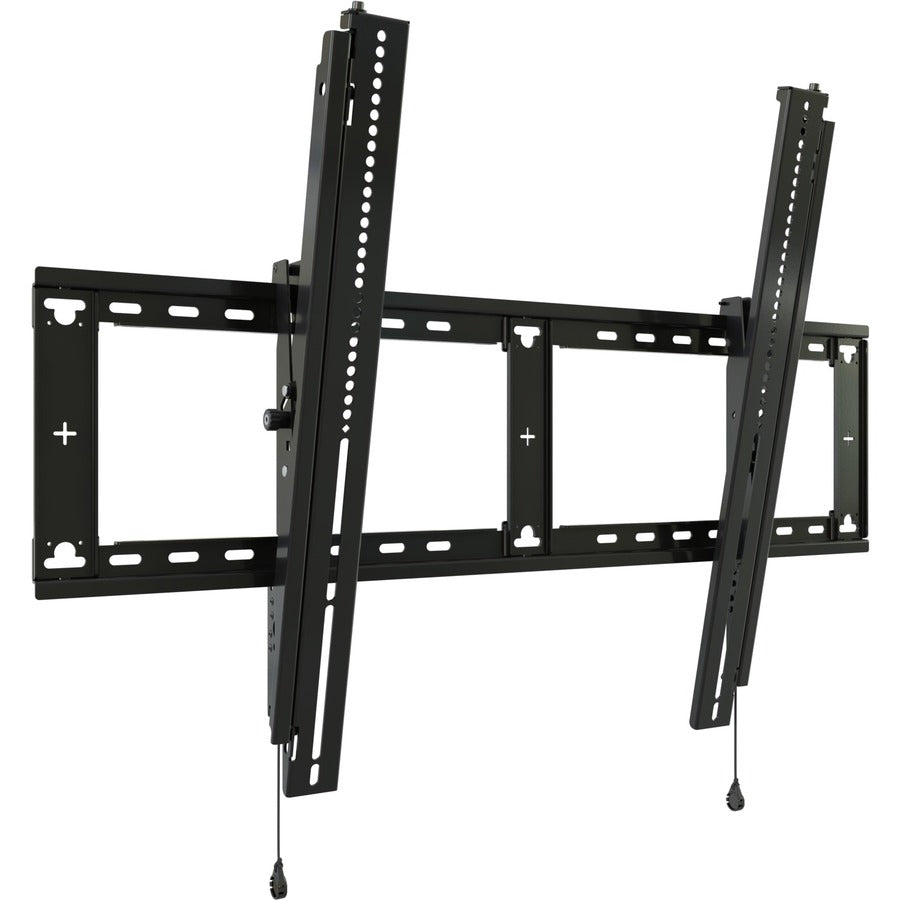

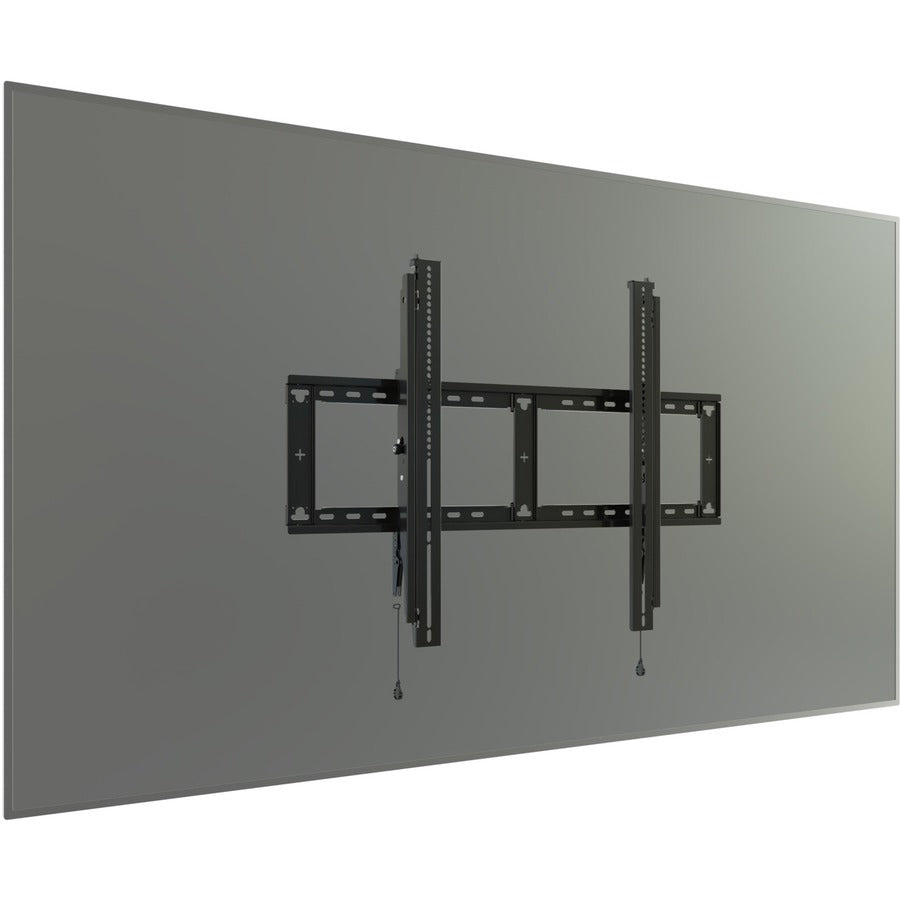

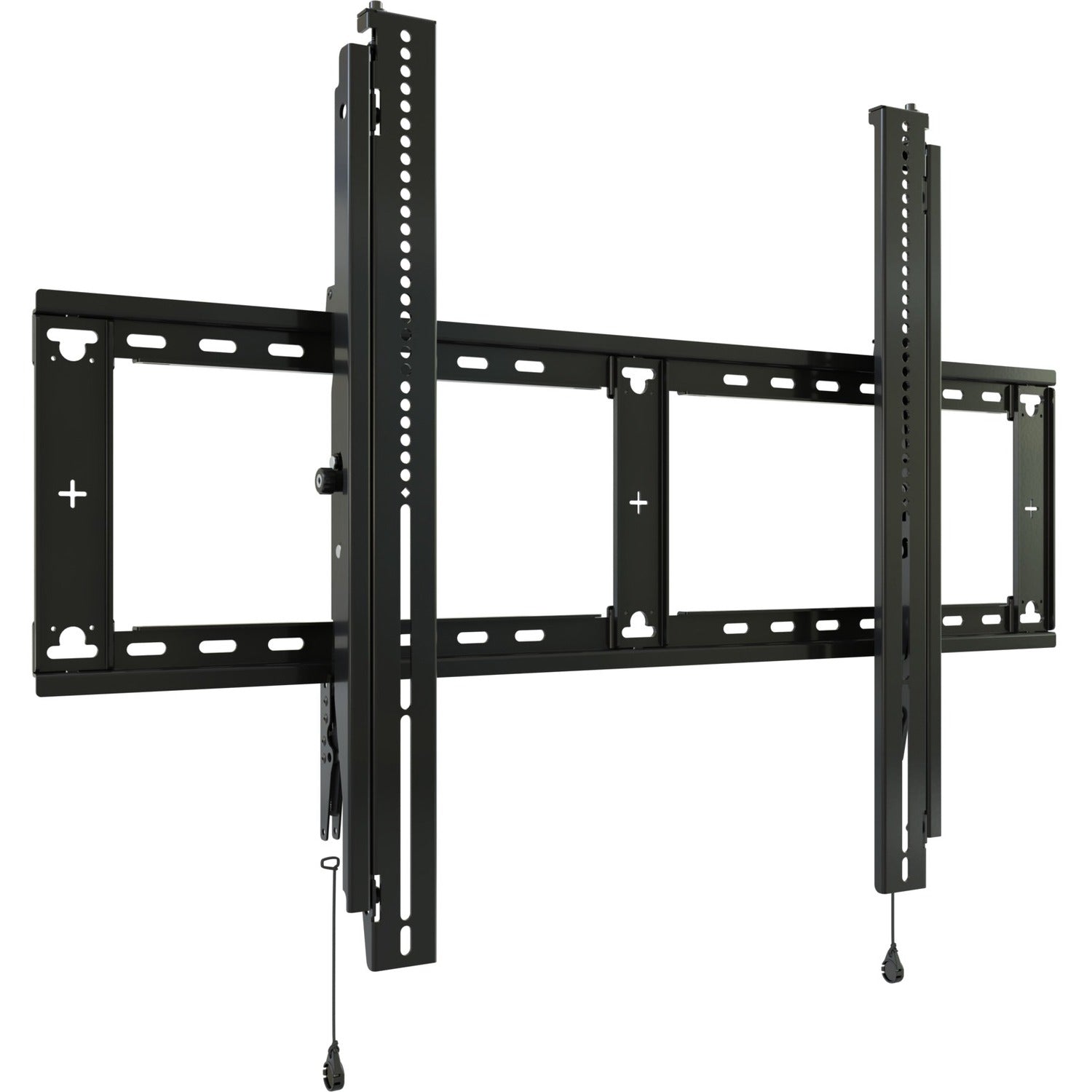

The Fit series RXT3 is an extra-large tilt display wall mount for 49" to 98" typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5" (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 915 x 650 mm
- Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards approved
Specifications
Specifications
-
Limited Warranty10 Year
-
ManufacturerLegrand Group
-
Product TypeWall Mount
-
Product ColorBlack
-
Application/UsageWall
-
Manufacturer Website Addresshttp://www.legrand.us
-
Maximum Load Capacity250 lb
-
Maximum Screen Size Supported98"
-
Minimum Screen Size Supported49"
-
Height AdjustableYes
-
Device SupportedDisplay,Wall Plate
-
Package ContentsExtra-Large Fit™ Tilt Display Wall Mount 0.75" (19 mm) Post-Installation Leveling Screw 10" (254 mm) Ball
-
Features12° Tilt,Landscape Mounting,Adjustable Tilt,Lateral Adjustment,Quick Release Mechanism
-
Product LineExtra-Large Fit
