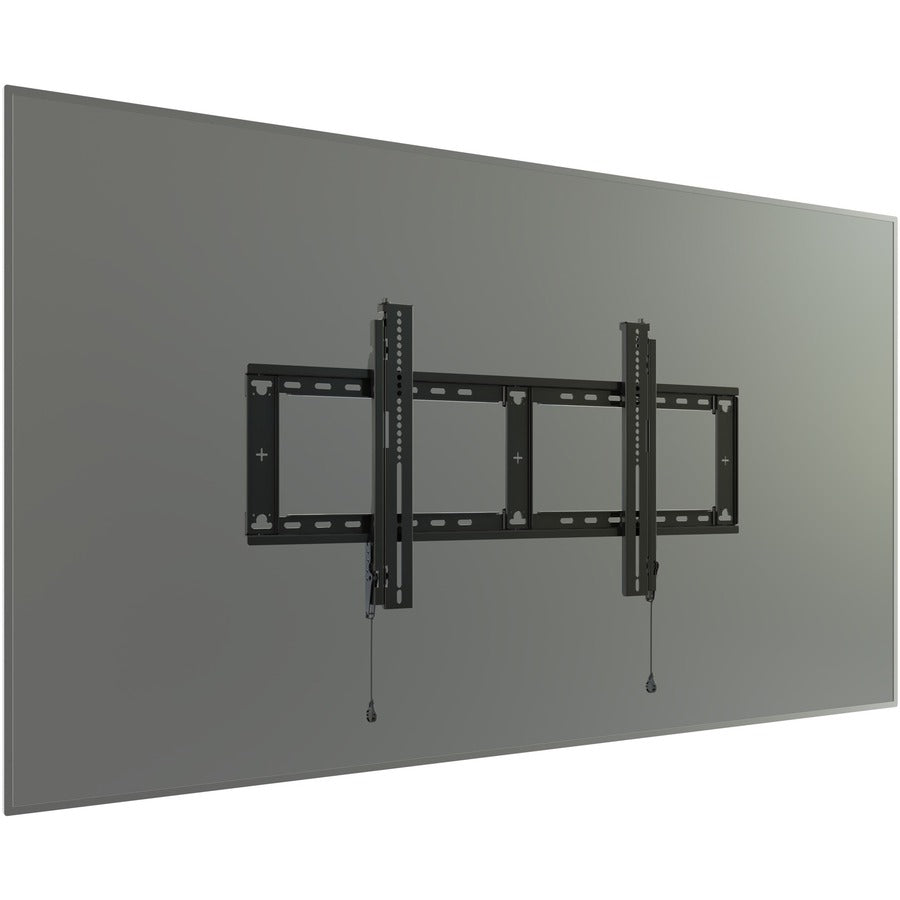

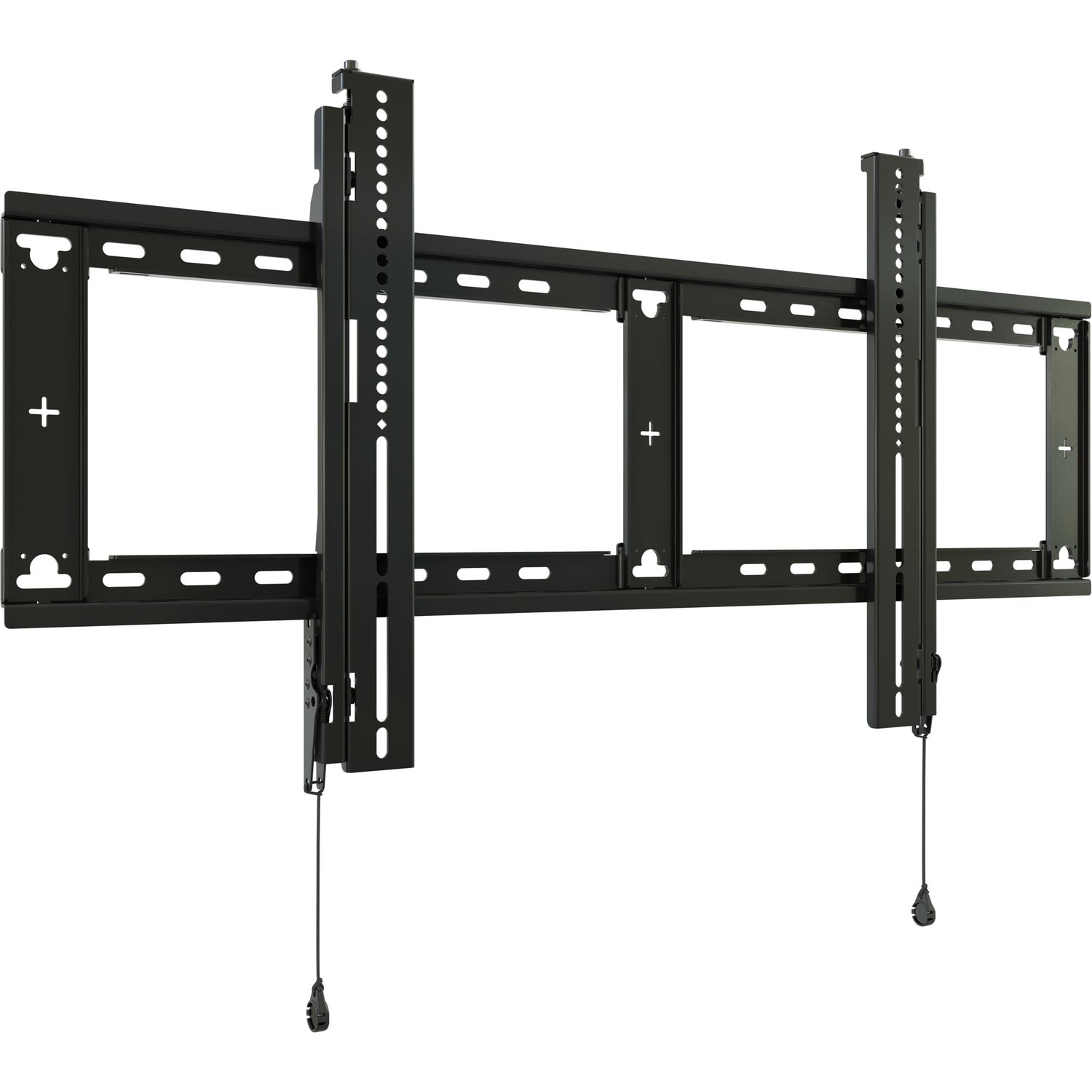

Chief Fit Large Fixed Display Wall Mount - For 43-86 inch Displays - Fixed TV Mount - VESA Wall Mount — RLF3
Chief Fit Large Fixed Display Wall Mount - For 43-86 inch Displays - Fixed TV Mount - VESA Wall Mount — RLF3 is backordered and will ship as soon as it is back in stock.
Volume or contract pricing? Get a written quote with confirmed lead time.
Description
Description
The Fit series RLF3 is a large fixed display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 1" (25 mm) low-profile depth, and UL and TUV safety standard approvals.
- Low profile 1" (25 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 960 x 450 mm
- Re-designed rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards compliant
Specifications
Specifications
-
VESA Mount CompatibleYes
-
Limited Warranty10 Year
-
ManufacturerLegrand Group
-
Product TypeWall Mount
-
Product ColorBlack
-
Application/UsageWall
-
Product LineLarge FIT
-
Device SupportedDisplay
-
Manufacturer Website Addresshttp://www.legrand.us
-
Maximum Load Capacity200 lb
-
Maximum Screen Size Supported86"
-
Minimum Screen Size Supported43"
-
Height AdjustableYes
-
Product ModelRLF3
-
FeaturesMagnetic Pull/Release System,Robust
-
Mounting Pattern960 x 450
