Chief  |  SKU: RLXT3  |  UPC: 841872176659
New arrival

Chief Fit Large Extended Tilt Display Wall Mount - For 43-86 inch Displays - Tilt TV Mount - VESA Wall Mount — RLXT3

Regular price $277.00 USD
Shipping calculated at checkout.


Request a quote for this item

Volume or contract pricing? Get a written quote with confirmed lead time.

Description

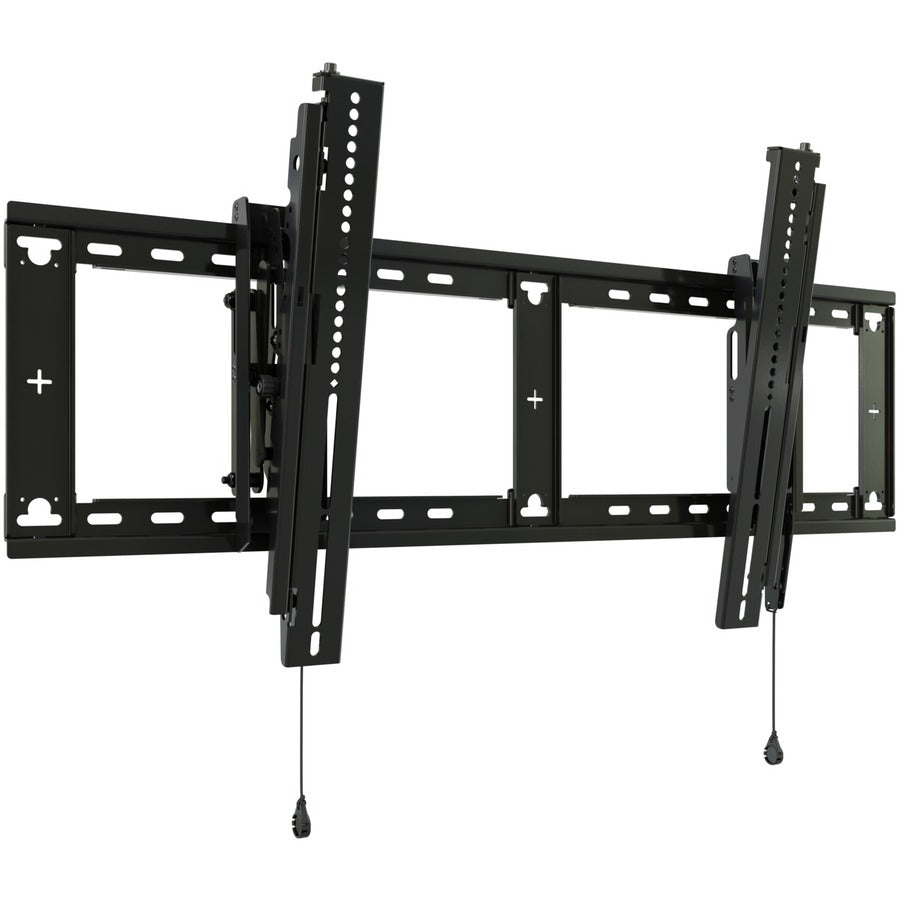

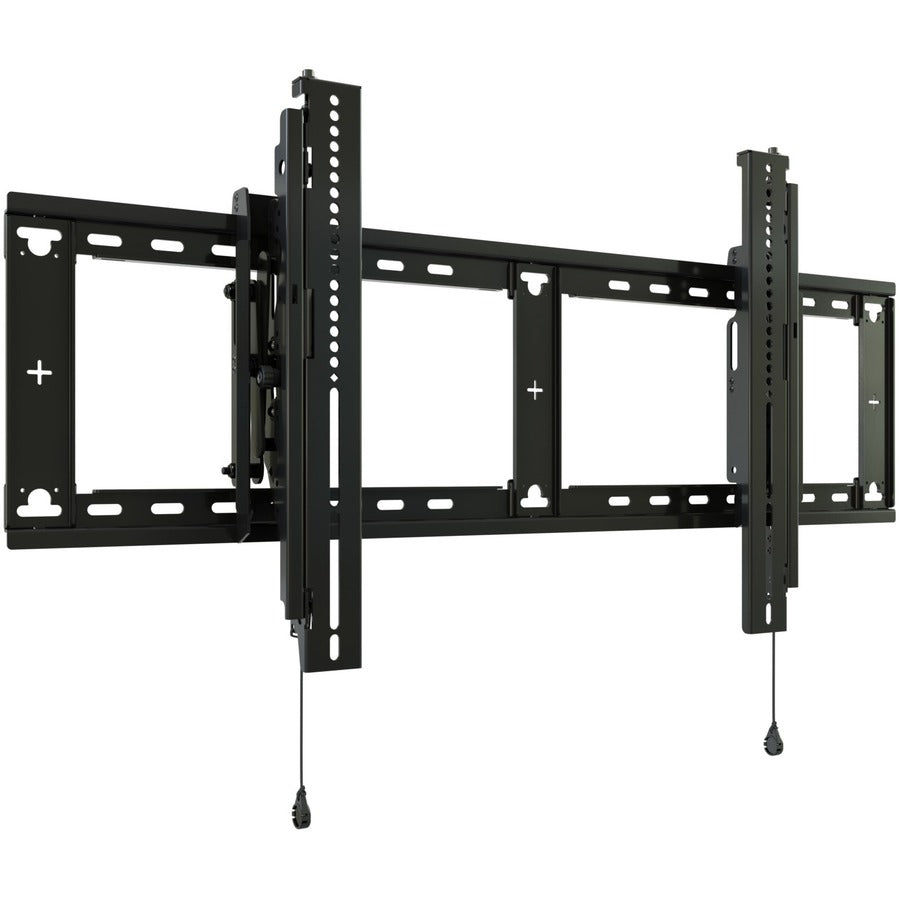

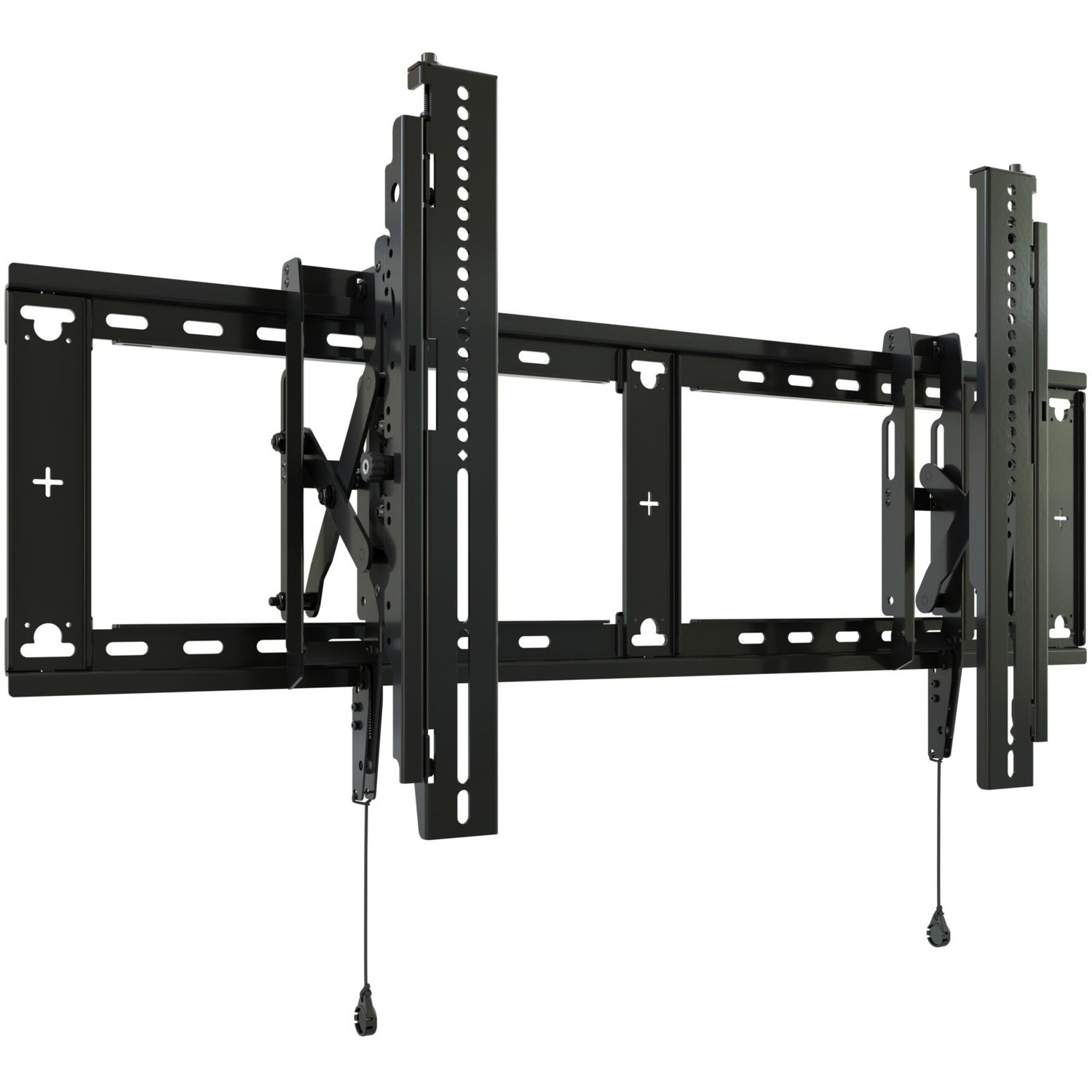

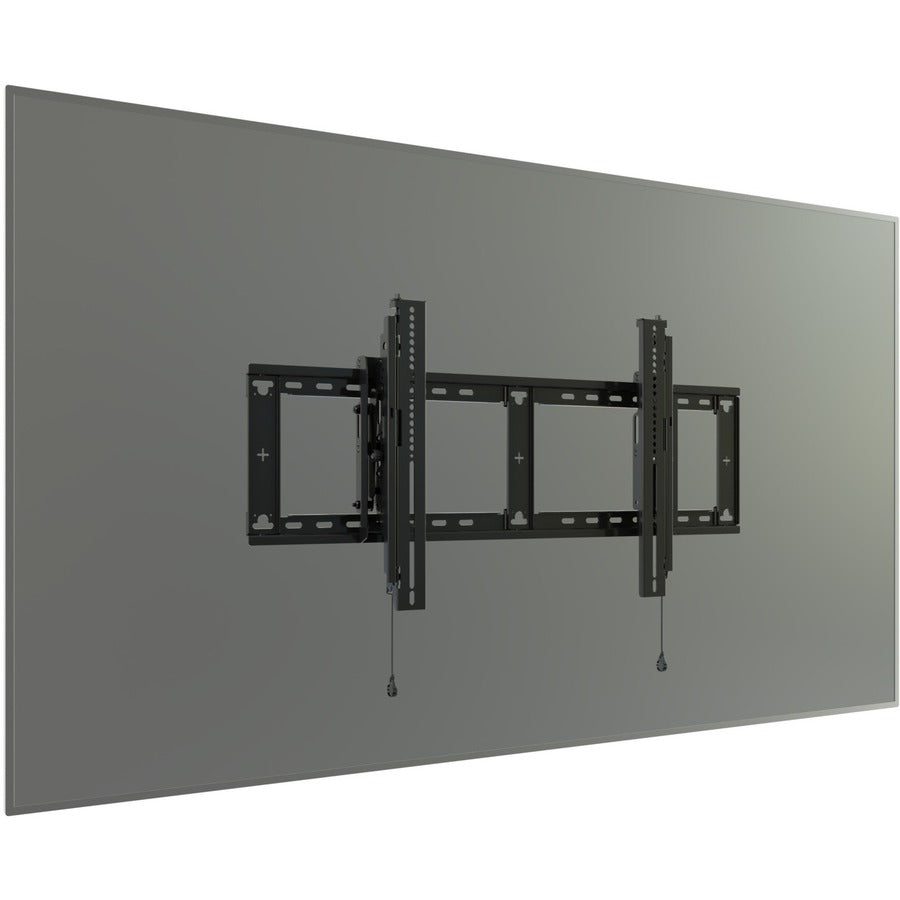

The Fit series RLXT3 is a large extending tilt display wall mount for 43" to 85" typical display sizes and supports mounting patterns up to 863 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 150 lbs (68 kg), minimum 2.67" (68 mm) depth up to 6" (152 mm) when fully extended away from the wall, 10° forward and back tilt, and UL and TUV safety standard approvals.

More from the Manufacturer

  • Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included

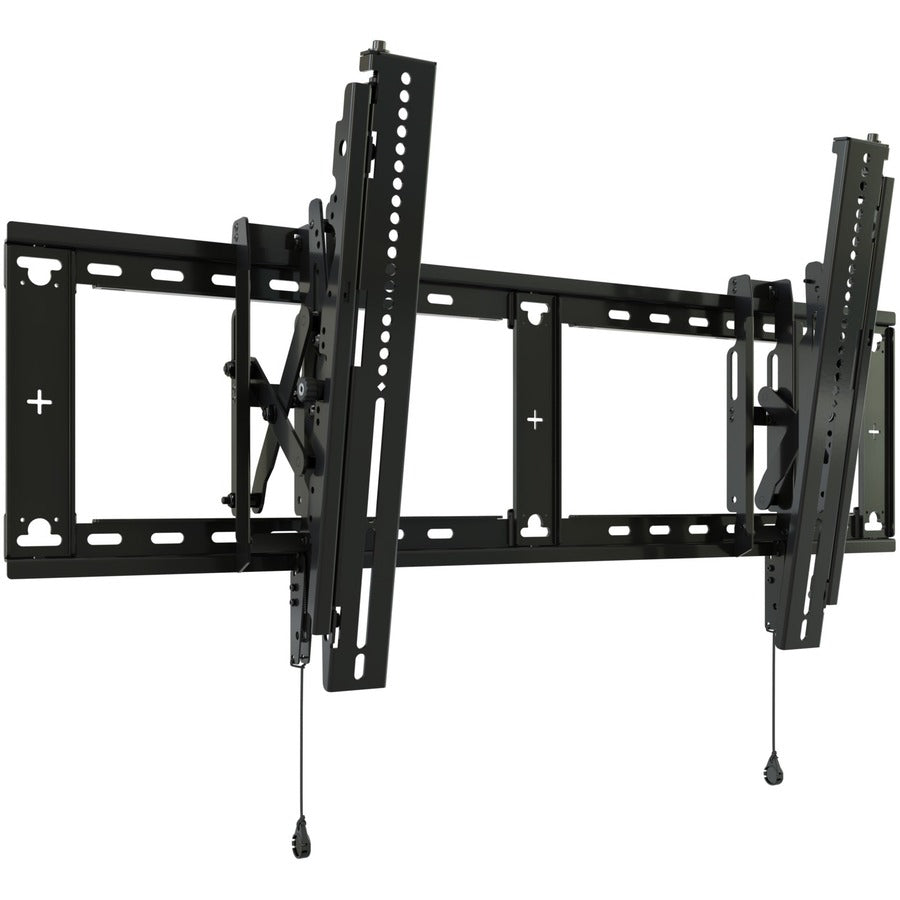

  • Display can be tilted 10° forward or back to set the optimal viewing angle - especially useful for large screens
  • Open wall plate allows for flexible positioning around power and data wall boxes
  • Supports display mounting patterns up to 863 x 450 mm
  • Rigid wall plate supports up to 150 lbs (68 kg) and has additional mounting slots for improved installation experience
  • Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
  • Easy access magnetic quick-store release pullcords
  • Kickstand for easy access to power and signal connections
  • Theft deterrent locking option to secure the screen in place with padlock or steel cable (not included)
  • UL and TUV safety standards approved

Specifications

  • Manufacturer
    Legrand Group
  • Product Type
    Wall Mount
  • Product Color
    Black
  • Application/Usage
    Wall
  • Product Line
    Large FIT
  • Device Supported
    Display
  • Manufacturer Website Address
    http://www.legrand.us
  • Maximum Load Capacity
    150 lb
  • Maximum Screen Size Supported
    85"
  • Minimum Screen Size Supported
    43"
  • Height Adjustable
    Yes
  • Package Contents
    Large Fit Extended Tilt Display Wall Mount Leveling Screw Ball end Hex-Key
  • Product Model
    RLXT3
  • Features
    Tilt,Flexible,Lateral Adjustment,Magnetic Pull/Release System,Theft Resistant,+/- 10� Tilt
