Chief 2" x 2" Suspended Ceiling Storage Box with Column Drop - White — CMS492C

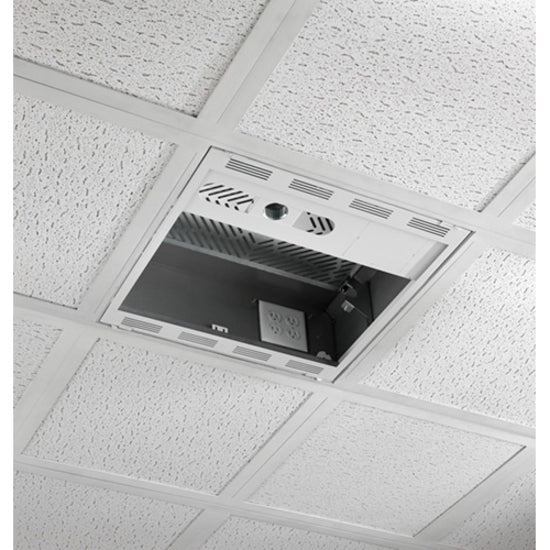

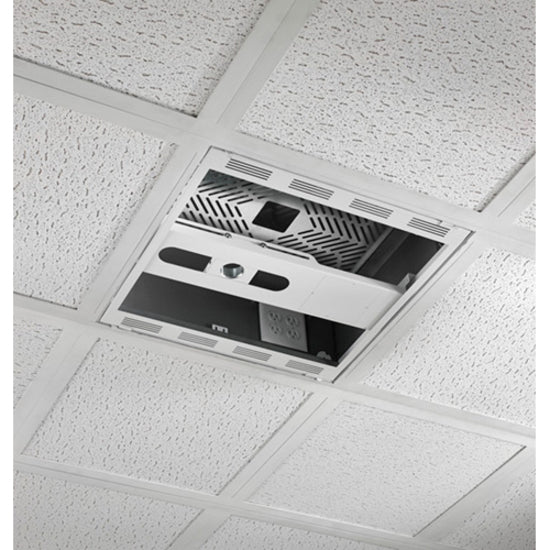

The Chief suspended ceiling storage box conceals AV equipment above a 2' x 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.

• TAA Compliant
• UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
• Lightweight construction, one man installation
• Ships with speed connect installation hardware
• 25 lbs (11 kg) per shelf location
• 50 lbs (22 kg) for projector ceiling plate
• Overall weight capacity 100 lbs (45 kg)
• 1 RU rack rail brackets sold separately, see CMS1RU
• Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2
• AV tray supports a variety of AV components
• Built in ventilation
• 4 nested knockouts for 1-1/4", 1", & �" diameter conduit
• Up to 2 single gang or 1 dual gang outlet
• Inside the box or facing the room
• Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time

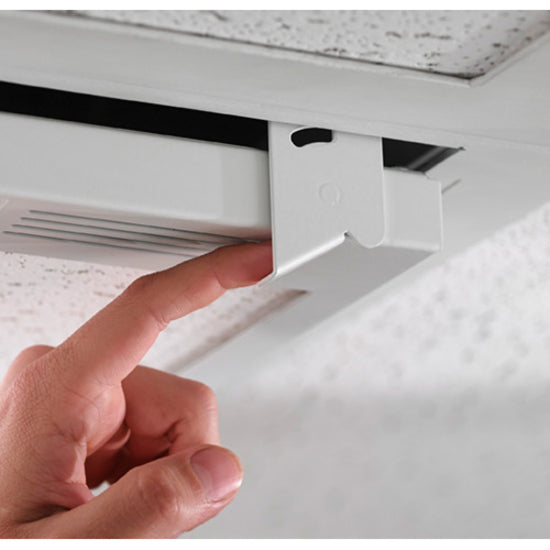

• Drop carriage door improves accessibility and serviceability providing full access to equipment
• Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
