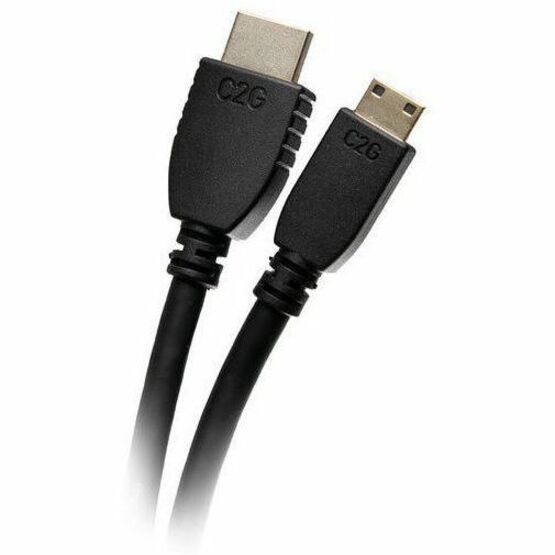

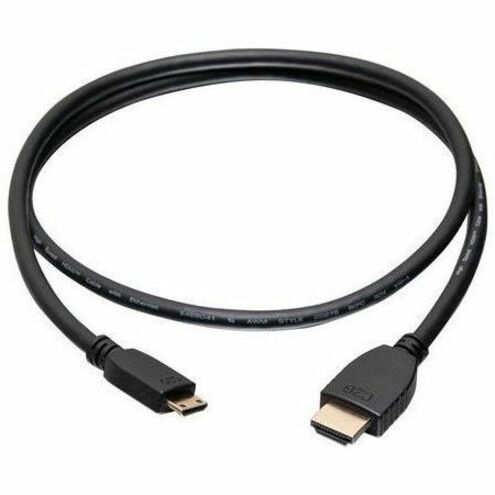

C2G 6ft High Speed HDMI® to Mini HDMI Cable with Ethernet - Black — 50619

This High Speed HDMI to Mini HDMI Cable with Ethernet supports all HDMI 2.0 features and is perfect for connecting a smartphone, tablet or other mobile device to an HD display for home theater or desktop applications. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware.

Electrical Characteristics

Nominal Impedance - 100 ± 10

Nominal Velocity of Propagation - > 1.78ns

DC Resistance - 376/km

Dielectric Strength - AC 500V - 1 minute

Insulation Resistance - 100

Physical Characteristics

Voltage Rating - 30V

Minimum Bend Radius - 70mm

Temperature Rating - 80°C

Approvals - RoHS Compliant

Warranty - Lifetime

Package Type - Polybag

Conductor 1 (5 pair)

Conductor Type - 30AWG (7/0.10), Tinned Copper

Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.8mm

Drain Wire - 30AWG (7/0.10), Tinned Copper

Shield - Aluminum Foil, 100% Coverage

Conductor 2 (4 conductors)

Conductor Type - 30AWG (7/0.10), Tinned Copper

Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.6mm

Connector

Connector Type - HDMI® - Type A

Pin Construction - Phosphor Copper

Plating - 3m Gold

Insulation - Black LCP

Hood - 45P™ PVC, Black

Dimensions (HxWxL) - 10.0 x 20.1 x 37.1mm

Connector

Connector Type - HDMI® - Type C

Pin Construction - Phosphor Copper

Plating - 3m Gold

Insulation - Black LCP

Hood - 45P™ PVC, Black

Dimensions (HxWxL) - 8.3 x 14.0 x 32.7mm

Overall Cable

Drain Wire - 30AWG (7/0.10), Tinned Copper

Foil Shield - Aluminum Foil, 100% Coverage

Braided Shield - 16/4/0.12, Aluminum/Magnesium, 50% Coverage

Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm

• 6ft High Speed HDMI to Mini HDMI Cable with Ethernet
• HDMI M to HDMI Mini M Cable
• Supports resolutions up to 4K (4096 X 2160) at 60Hz
• Audio / Video Cable
• Supports 32 audio channels for an immersive audio experience
• 6 ft / 6 foot / 6' / 6 Feet
• C2G Lifetime Warranty
• Connector 1: (1) HDMI Male
• Connector 2: (1) HDMI Mini Male
• Certifications: NDAA 889, Prop 65, REACH, RoHS, TSCA
