Black Box Corporation  |  SKU: IC408AR2  |  UPC: 822088125716
Sold out
New arrival

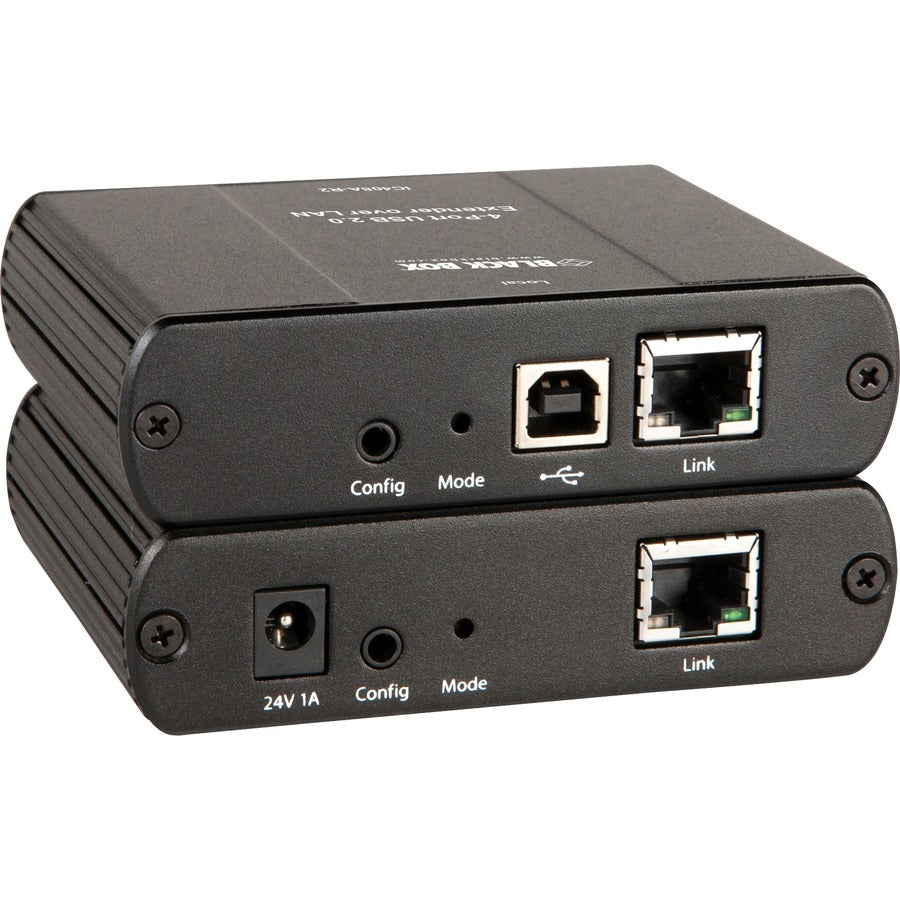

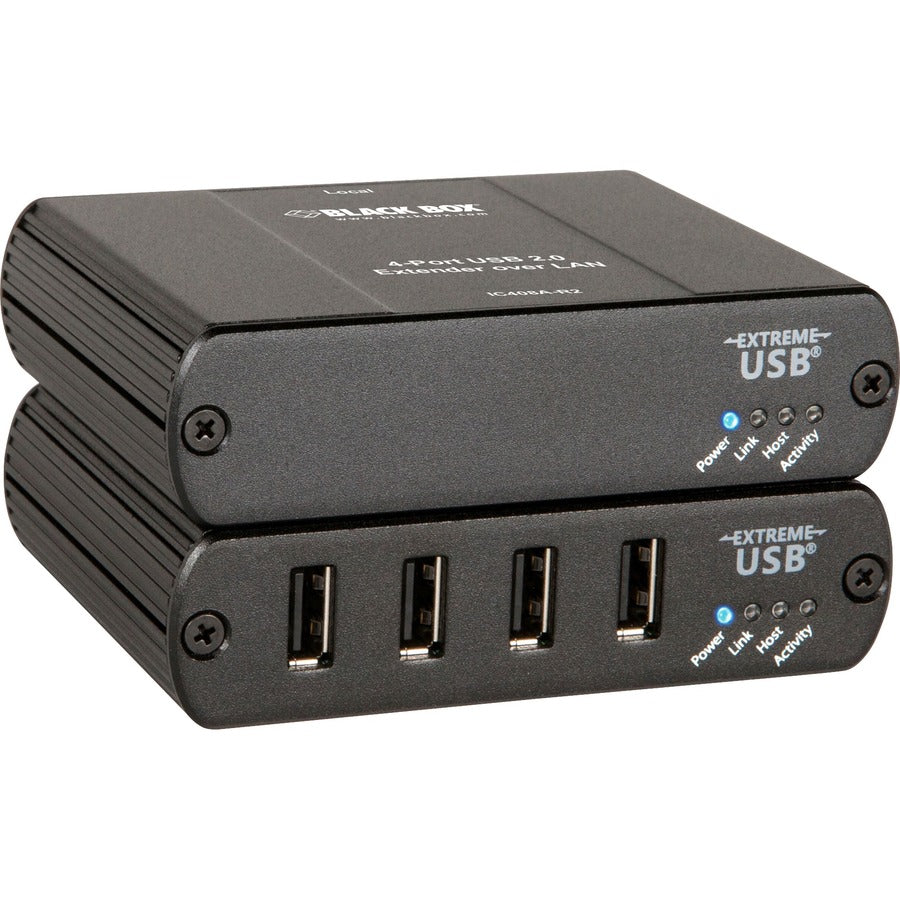

Black Box USB 2.0 Extender - CATx/LAN, 4-Port — IC408A-R2

$640.26 USD
Shipping calculated at checkout.
Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description

Extend a USB 2.0 connection beyond the 16 ft (5 m) limitation over a CATx link 328 ft (100 m) or over an Ethernet LAN to four peripherals. Extend a USB connection beyond the desktop to peripherals for applications such as indistrial control, KVM extension, Digital Sinage, Remote Desktop USB connections, Security web cameras and access control, Medical device connectivity, USB Web device sharing: printing scanning , storage. The extender can be used in industrial control, factory floor, classroom, or meeting room applications The extender supplies up to 600 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.

  • Plug and play. No drivers to install on your computer.
  • Works with Windows®, Mac® OS X®, and Linux® systems.
  • Supplies 1A max power to the USB devices.
  • Extends USB signals at speeds up to 480 Mbps.
  • Transmits up to 328 feet (100 m) over CATx or over a LAN.

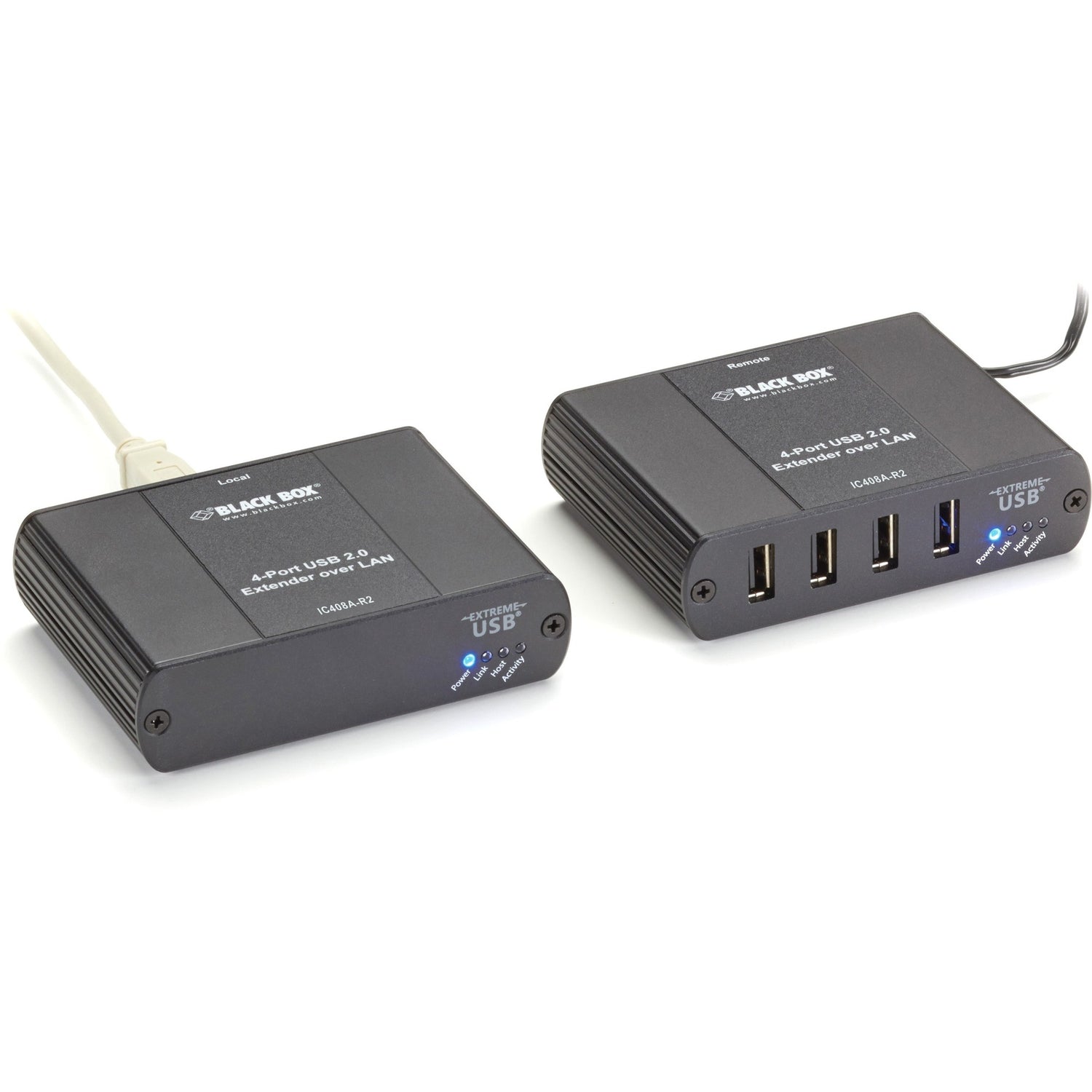

  • Includes a local unit and remote unit with four USB 2.0 ports.

Specifications
  • Environmentally Friendly
    Yes
  • Country of Origin
    China
  • Limited Warranty
    2 Year
  • Manufacturer
    Black Box Corporation
  • Certifications & Standards
    CE
  • Product Type
    USB Extender
  • USB
    Yes
  • Input Voltage
    240 V AC
  • Network (RJ-45)
    Yes
  • Number of Network (RJ-45) Ports
    2
  • Number of USB Ports
    5
  • Manufacturer Website Address
    http://www.blackbox.com
  • Maximum Extended Range
    328.08 ft
  • Package Contents
    Local Extender Unit Remote Extender Unit USB Cable Power Adapter US Power Cord Quick Start Guide
  • Maximum Data Transfer Rate
    60 MB/s
  • Additional Information
    Distance Between local and remote units in a direct CATx application and between network switches: 328 ft. (100 m)* maximum Network Operation When used to extend over an Ethernet IP network: Data traffic: Layer 2; Management traffic: Layer 3 (dynamic or static IP assignments) Operating Humidity 20 to 80%, noncondensing Operating Temperature 32 to 122° F (0 to 50°C) Power Input From 100-240 VAC, 50-60 Hz adapter (included) Power Output 24 VDC RoHS Yes Speeds Up to 480 Mbps* Standards FCC (Class B), IC (Class B), CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 8kV Contact, 16kV Air Storage Humidity 10 to 90%, noncondensing Connectors Local unit: USB: (1) USB Type B F; Interconnect: (1) RJ-45; Remote unit: USB: (4) USB Type A F; Interconnect: (1) RJ-45 Dimensions 1"H x 3.9"W x 3"D (2.6 x 10 x 7.6 cm) Indicators On each unit: (4) LEDs (Power, Link, Host, Activity) Weight 3.1 lb (1.4 kg)
