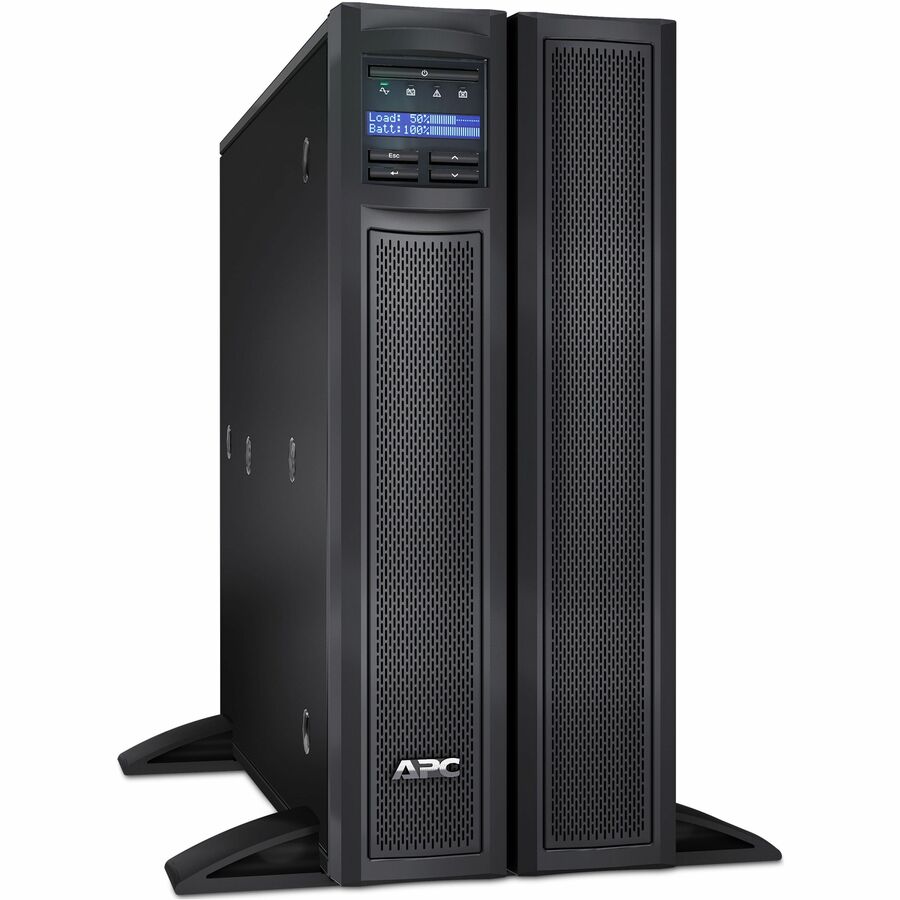

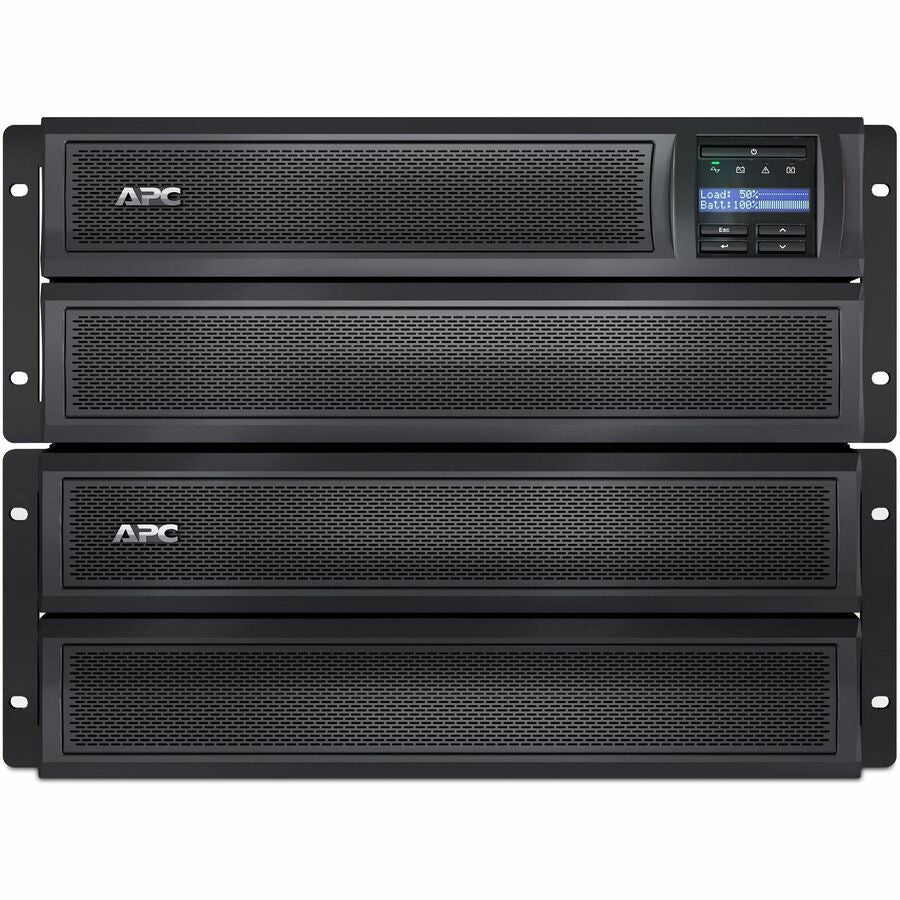

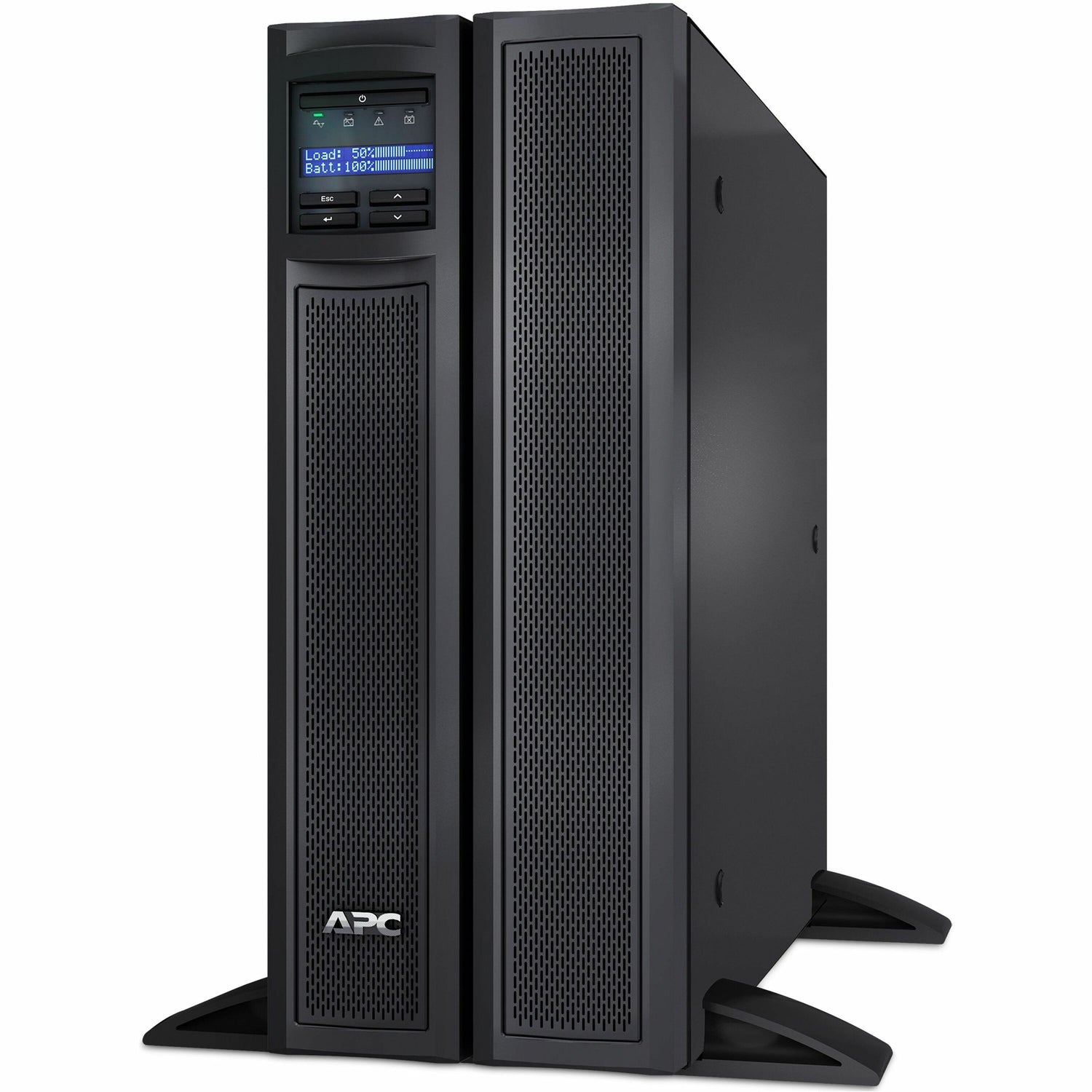

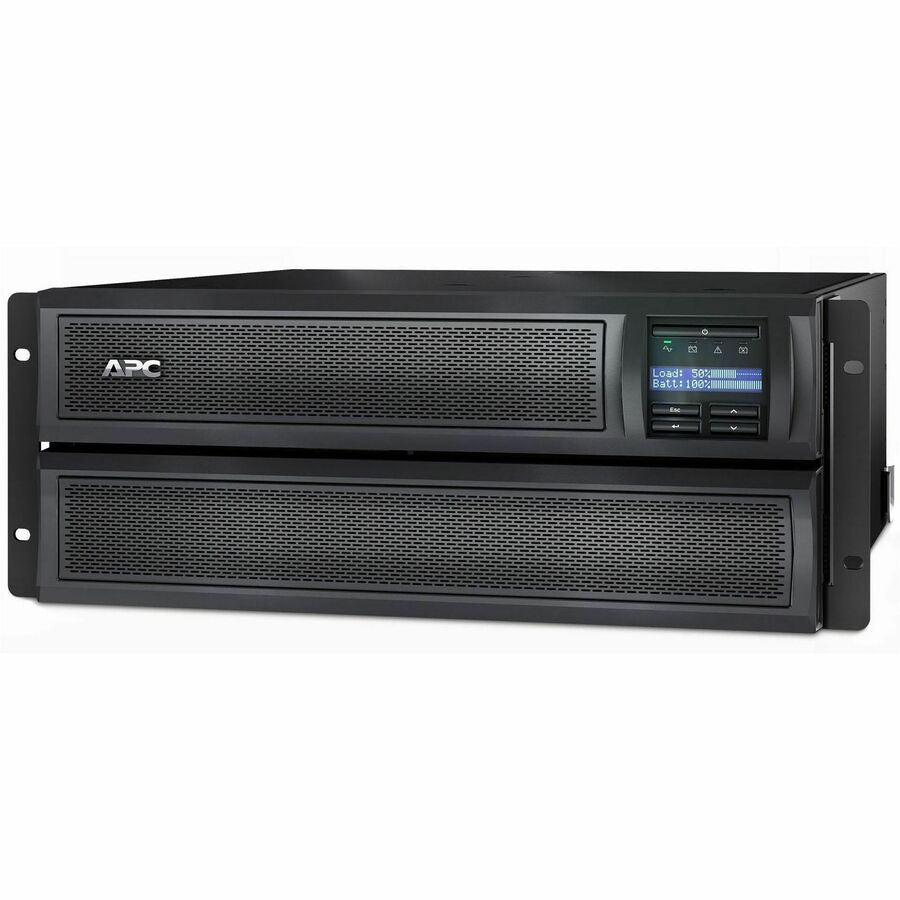

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth — SMX3000HV
APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth — SMX3000HV is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth — SMX3000HV is backordered and will ship as soon as it is back in stock.
Description
Description
- Ideal for servers, storage, networking & commercial applications
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Short depth UPS provides extra space for cable management
- Add up to 10 external battery packs (SMX120BP)
- User-selectable high voltage setting of 200V-240V
- 3kVA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
Specifications
Specifications
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Product TypeLine-interactive UPS
-
Limited Warranty3 Year
-
ManufacturerSchneider Electric SA
-
Rack Height4U
-
Cord Length6 ft
-
Product LineSmart-UPS
-
Hot SwappableYes
-
Product ColorBlack
-
Product SeriesSMX
-
Manufacturer Website Addresshttp://www.schneider-electric.com
-
Waveform TypeSine Wave
-
USBYes
-
Serial PortYes
-
Typical Battery Recharge Time3 Hour
-
Battery ChemistryLead Acid
-
Backup/Run Time (Full Load)6 Minute
-
Output Voltage230 V AC
-
Backup/Run Time (Half Load)18 Minute
-
Package ContentsSmart-UPS X 3000VA Rack/Tower LCD 200-240V CD with software Documentation CD Rack mounting brackets Smart UPS signalling RS-232 cable USB cable User manual
-
Battery CharacteristicsSpill-proof, Maintenance-free
-
Surge Energy Rating645 J
-
AlarmLow Battery,On Battery,Configurable Delay
-
Number of Battery & Surge Outlets12
-
Additional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
-

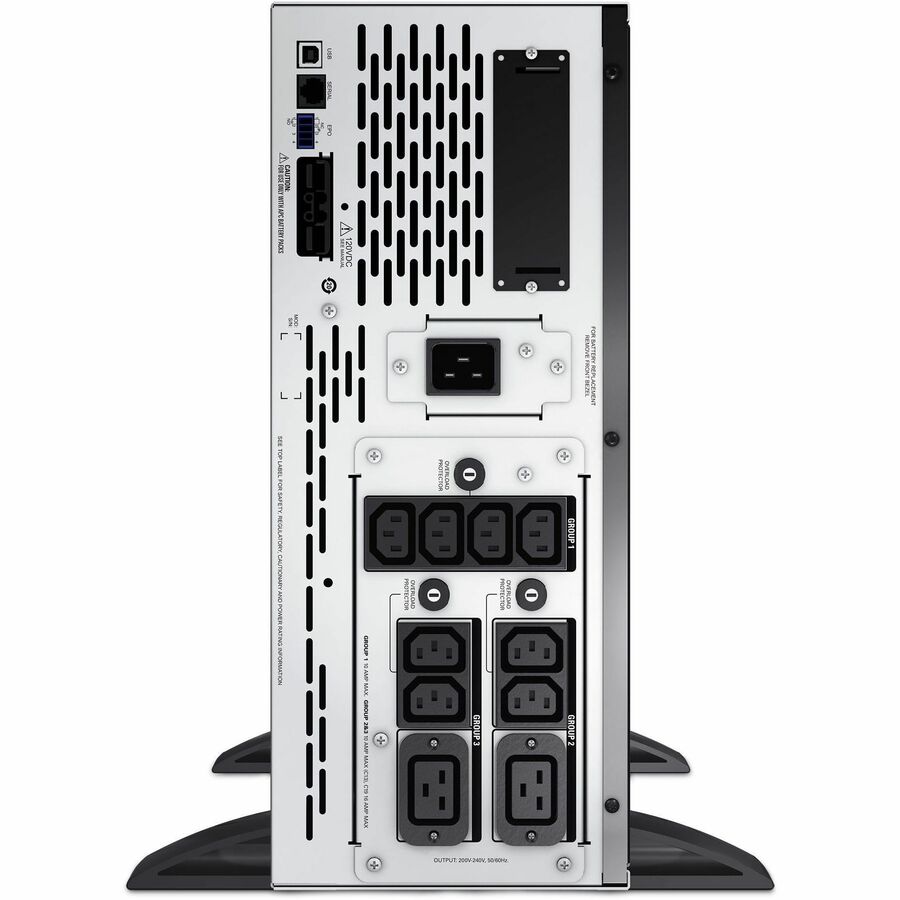

Receptacle Detail2 x IEC 320-C19,2 x IEC Jumper,8 x IEC 320-C13
-
Receptacle TypeSchuko CEE 7/EU1-16P
-
Input Voltage208 V,230 V
-
Plug/Connector TypeBritish BS1363A,IEC 320-C20
-
Software IncludedPowerchute Serial Edition
-
Load Capacity (VA)3000 VA
-
Load Capacity (Watt)2700 W
